MHO900

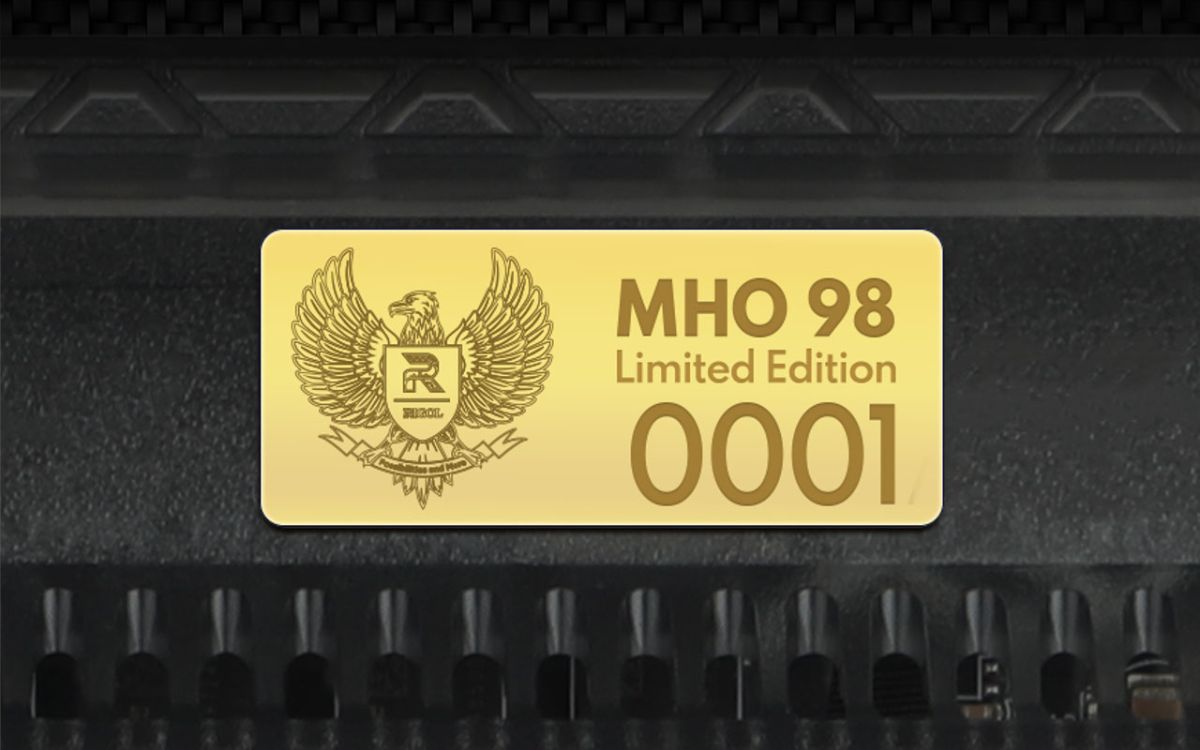

Exclusive Gold Emblem, Crowned for Passion

Every MHO98 Special Edition carries a unique identifier, highlighted by a dazzling 24K gold emblem. It is not only a rare symbol of identity, but also a medal honoring the spirit of passion and exploration. It represents the unwavering curiosity of every technology enthusiast—shining like gold, untarnished by time. More than a collectible, it is the highest tribute to the spirit of exploration, witnessing every moment of your journey in technology.

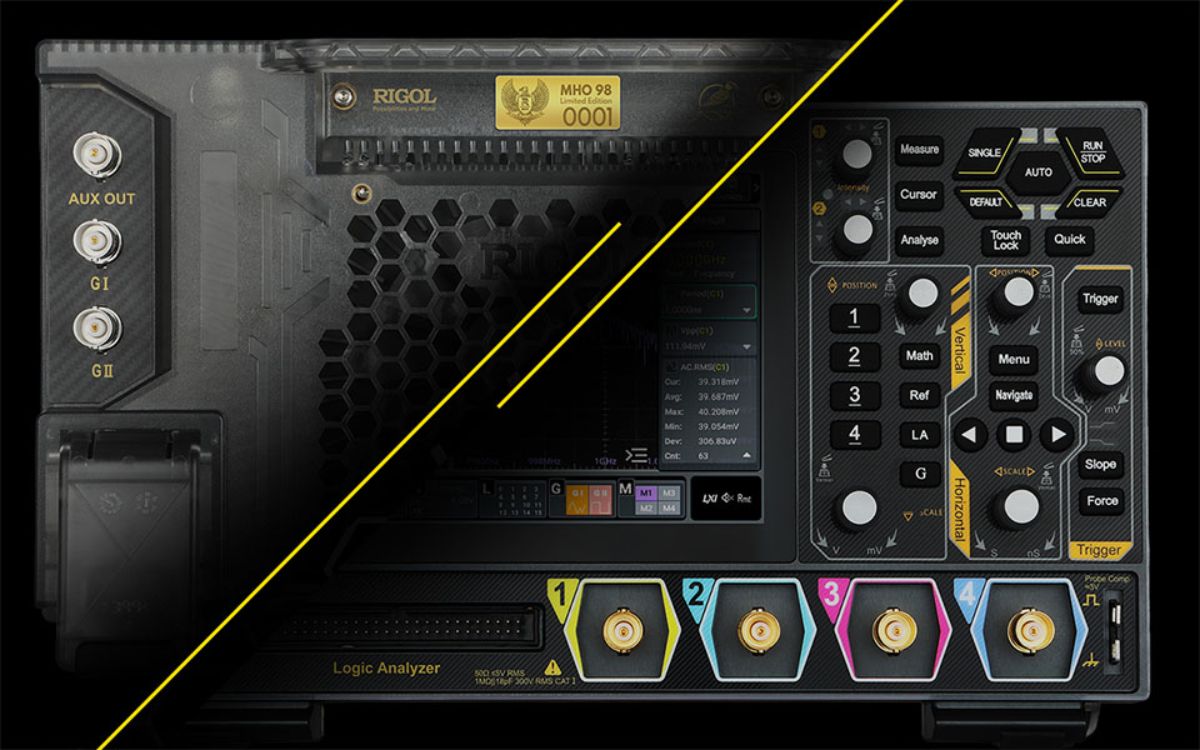

Masterful Design, Refined Inside and Out

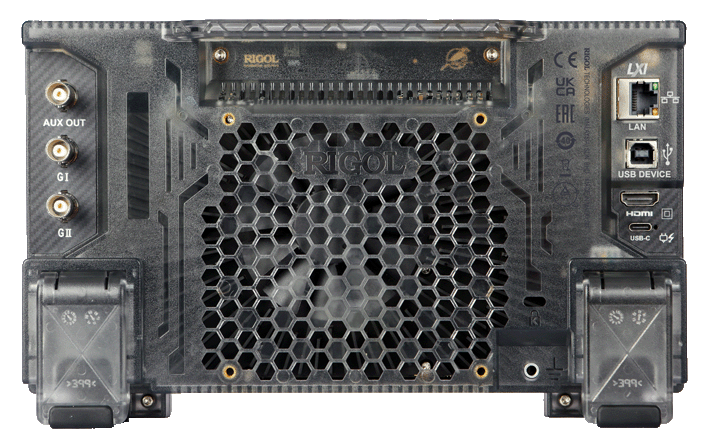

The ID design of the MHO98 Special Edition is a perfect encounter between technology and aesthetics. The front panel adopts a premium metallic shell paired with finely tuned damping knobs, delivering an exceptional tactile experience with every operation. The deep 3D PC diagonal-texture relief shifts with light and shadow, exuding understated luxury. Its semi-transparent back cover—like a “window of exploration”—reveals the intricate circuitry within, showcasing its uncompromising power. This elegance, from the outside in, deeply resonates with engineers and embodies the true spirit of passion and exploration.

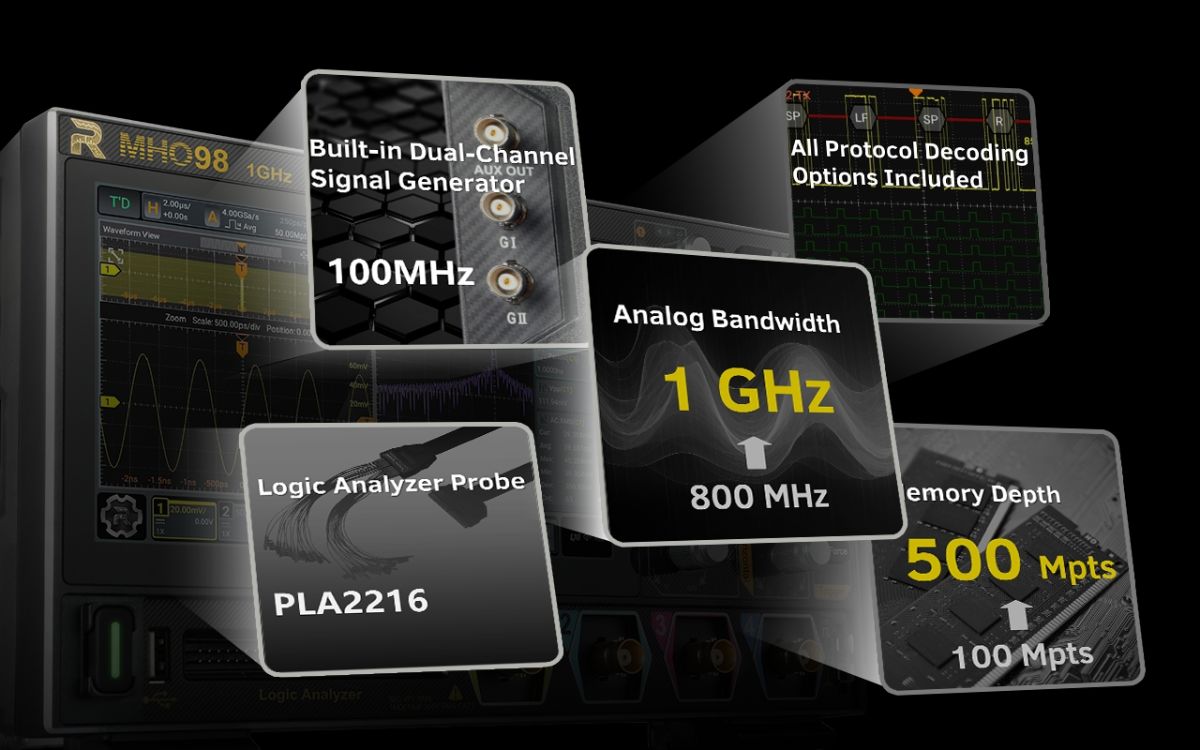

Full Power, Fully Equipped – A Peak Experience for Enthusiasts

The MHO98 Special Edition is our highest tribute to every enthusiast and scientist devoted to RIGOL and the art of test and measurement. We believe that true passion deserves the finest reward. That’s why we broke conventions to deliver a completely different level of experience—at the same price. No extra options required; out of the box, it’s already the peak: 1 GHz maximum bandwidth, 500 Mpts ultra-long memory, dual-channel 100 MHz signal source, 16-channel logic probe, and a full suite of protocol decoding options. Nothing is held back. This is not just an instrument, but a heartfelt gift honoring your relentless spirit of exploration.

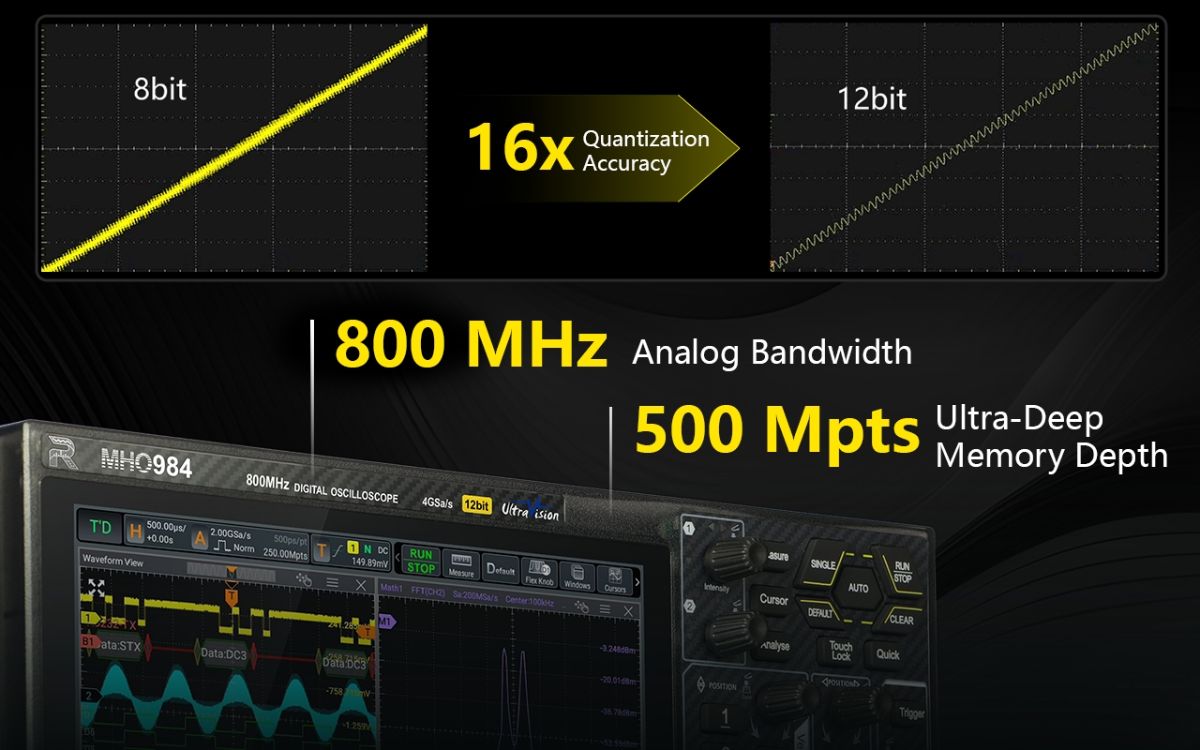

Powerful Performance, Redefining the Entry-Level Standard

The MHO900 Series, with its unmatched performance in its class, completely reshapes the boundaries of entry-level oscilloscopes. It offers up to 800 MHz analog bandwidth to handle high-speed signal challenges with ease, and its standard 4 analog channels provide flexible support for complex system debugging. At its core is a 12-bit high-resolution ADC, delivering 16 times the detail of traditional 8-bit instruments—making even the faintest anomalies visible. Combined with an ultra-long 500 Mpts memory depth, it ensures long-duration capture and analysis of complex signals without missing a detail. With the MHO900, you can confidently tackle future testing challenges and achieve a true leap from “entry” to “mastery.”

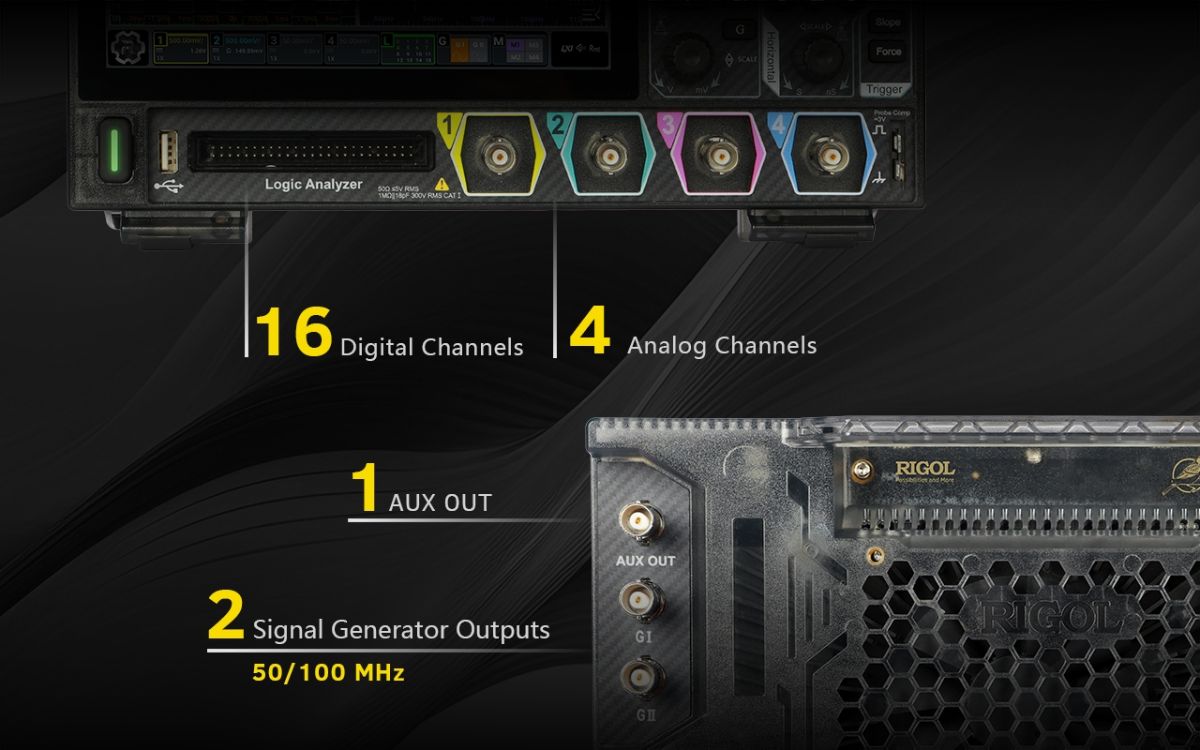

All-in-One Power, An Integrated Efficiency Tool

The MHO900 is far more than an oscilloscope—it is a powerful all-in-one time-domain workstation. With 16 digital channels standard, it allows perfect synchronization and analysis of analog and digital signals, giving you complete insight into mixed-signal systems. Additionally, you can opt for the built-in dual-channel signal generator, capable of outputting pure sine waves up to 100 MHz, seamlessly integrated with the powerful Bode Plot analysis function. This combination makes it an ideal solution for complex analysis and testing challenges such as power supply loop stability. By bringing multiple instrument functions together in one compact device, the MHO900 significantly boosts your efficiency.

Wireless Connectivity, Instant Access

The MHO900, equipped with standard Bluetooth and Wi-Fi adapters, allows engineers full remote network access and control, enabling unattended automated testing or long-distance data monitoring—greatly improving efficiency and safety. Bluetooth connectivity expands the possibilities for peripheral devices without occupying any physical ports, eliminating cumbersome cables. This “out-of-the-box” wireless solution is designed to create a cleaner, modern testing environment, allowing you to focus more on data analysis and technological innovation.

Model	Analog Bandwidth	Analog Channels	Maximum Real-time Sample Rate	Maximum Memory Depth	Maximum Waveform Capture Rate	Digital Channels	Built-in Signal Source
MHO98	1GHz	4	4GSa/s	500Mpts	1,000,000 wfms/s	Digital Channels	100MHz, 2CH
MHO984	800MHz	4	4GSa/s	500Mpts(opt.)	1,000,000 wfms/s	16(Probe opt.)	100MHz, 2CH（opt.）
MHO954	500MHz	4	4GSa/s	500Mpts(opt.)	1,000,000 wfms/s	16(Probe opt.)	100MHz, 2CH（opt.）
MHO934	350MHz	4	4GSa/s	500Mpts(opt.)	1,000,000 wfms/s	16(Probe opt.)	100MHz, 2CH（opt.）

Model	Description
MHO900-RLU-05	MHO900, 500Mpts Memory Upgrade Option
MHO900-BWU03T05	MHO900，350 MHz to 500 MHz Bandwidth Upgrade Option
MHO900-BWU03T08	MHO900，350 MHz to 800 MHz Bandwidth Upgrade Option
MHO900-BWU05T08	MHO900，500 MHz to 800 MHz Bandwidth Upgrade Option
MHO900-AFG50	MHO900，2 Channel 50 MHz Arbitrary Function Generator Option, includes Bode-plot
MHO900-AFG100	MHO900，2 Channel 100 MHz Arbitrary Function Generator Option, includes Bode-plot
MHO900-AUDIOA	MHO900，I2S Audio-Bus Trigger and Analysis Option
MHO900-AUTOA	MHO900, Automotive Serial Bus CAN-FD Decoding and Analysis Option
MHO900-FlexA	MHO900, Flexray Bus Trigger and Decode Option
MHO900-AEROA	MHO900, MIL-STD-1553 Bus Triggering and Decoding Analysis Option
MHO900-BND	MHO900, Functional Upgrade Package Option, includes: AFG100, AUDIOA, AUTOA, FlexA, AEROA
