DSA1000 Series

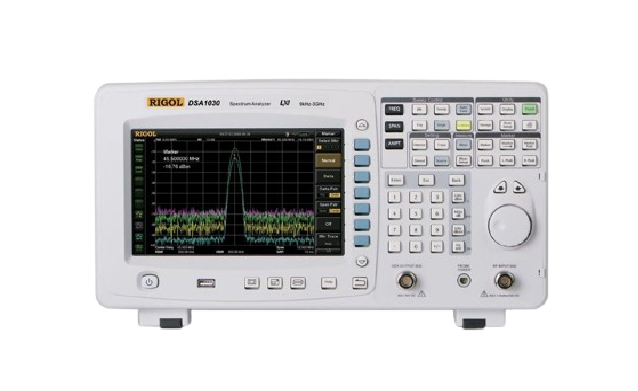

The Rigol DSA1030 is a compact and light weight Spectrum Analyzer with premium performance for portable applications. The use of digital IF (intermediate frequency) technology guarantees reliability and performance to meet the most demanding RF applications.

Frequency Range : 9 kHz to 3 GHz
Display Average Noise Level (DANL) : -138 dBm
Phase Noise : -80 dBc/Hz @ 10 kHz offset (Typical)
Total Amplitude Accuracy : <1.5 dB
Minimum Resolution Bandwidth : 100 Hz
Datasheet
Main Image
Thumbnail 1

Features

Big Display

The TFT-LCD display is an 21.6 cm (8.5") widescreen with 800 × 480 high resolution and fine spectral lines for displaying large data sets. There are 601 display points available in normal and 761 points in full screen mode.

Big Display

Measurement of peak values

After a peak search all peaks matching the defined parameter conditions are displayed in this peak table (with frequency and amplitude shown). The table can show up to ten peaks at the same time.

Measurement of peak values

Simple use of Markers

This table displays all the opened markers on the lower portion of the screen, including Marker number, Trace number, Trace Type, X-axis, and Amplitude readout. Through this table you can view the measured value from multiple points. The table allows for up to eight markers to be displayed at one time.

Simple use of Markers

Detailed Network Configuration

The analyzer supports communications through the LAN, USB and GPIB interface. Both LAN and USB are standard interfaces. Using this comfortable LAN setup every necessary parameter can configured easily.

Detailed Network Configuration

Model

Model Frequency Range Adv. Measure Kit Preamplifier Tracking Generator
DSA1020 9 kHz – 2.0 GHz No No No
DSA1030 9 kHz – 3.0 GHz Opt Opt No
DSA1030-TG3 9 kHz – 3.0 GHz Opt Opt Yes
DSA1030A 9 kHz – 3.0 GHz Yes Yes No
DSA1030A-TG3 9 kHz – 3.0 GHz Yes Yes Yes
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

User Manual

Name Version Release Date Download
DSA1000 Manual UGD02119-1110 2015-03-19 Download

Datasheet

Name Version Release Date Download
DSA1030 Datasheet DSA1030-PA-TG3 2018-12-27 Download

Programming Manual

Name Version Release Date Download
Rigol DSA1000 Programming Guide PGD02107-1110 2014-09-30 Download

Quick Guide

Name Version Release Date Download
Rigol DSA1000 Quick Guide QGD02108-1110 2015-03-24 Download
