MSO/DS2000A Series

The MSO/DS2000A series of digital oscilloscopes are universal digital oscilloscopes with bandwidths from 100MHz to 300MHz and sampling rates up to 2GSa/s, combined with deep memory depth and high waveform capture rates.

Bandwith: 300MHz
Sampling Rate: 2GSa/s
Channels: 2
Memory Depth: 56Mpts
Waveform Capture Rate: 52,000wfms/s
Datasheet

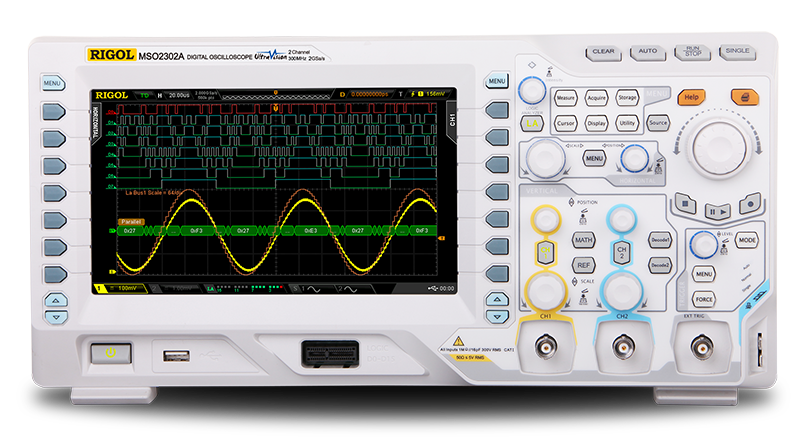

MSO/DS2000A Series Product
MSO/DS2000A Series thumbnail 1

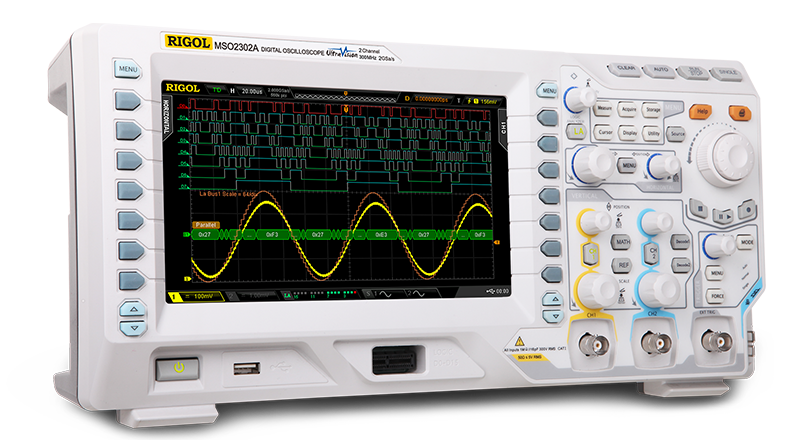

MSO/DS2000A Series thumbnail 2

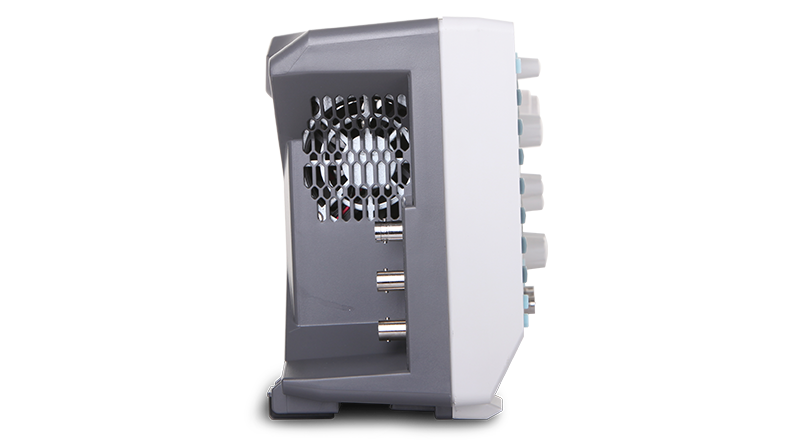

MSO/DS2000A Series thumbnail 3

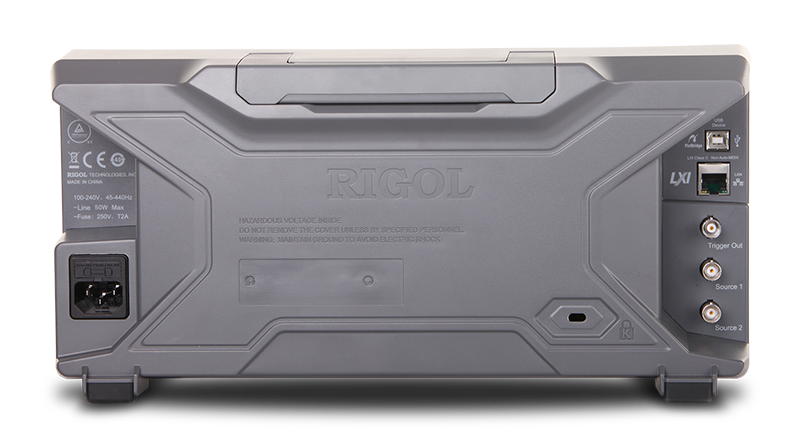

MSO/DS2000A Series thumbnail 4

Features

Low Noise floor with wide vertical range (500uV/div ~ 10V/div)

With a lower noise range setting at 500uV/div as well as included 50 Ohm termination and a clean frequency response design, the 2000 Series oscilloscope enables more sophisticated analysis of low level signal artifacts that can effect your design.

Low Noise floor with wide vertical range (500uV/div ~ 10V/div) – MSO/DS2000A Series

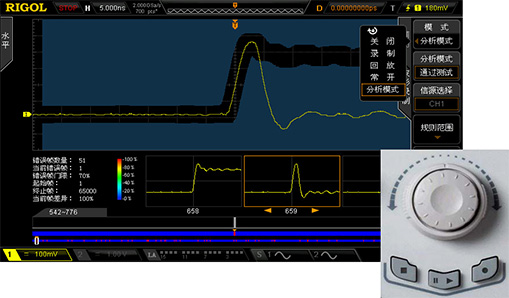

Waveform Record and Playback

Debug occasional and random glitches using our fast capture, playback, and onboard analysis capabilities.

Waveform Record and Playback – MSO/DS2000A Series

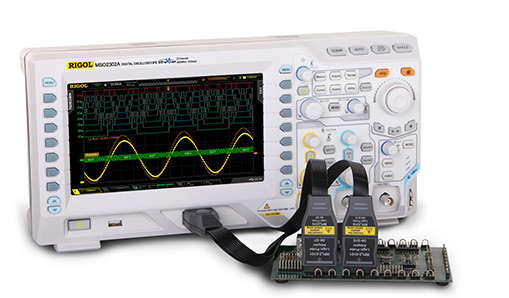

16 Digital Channels (MSO Models)

The MSO2000A models add Mixed Signal Capabilities allowing users to not only look at the analog behavior of up to 4 channels but also trigger, capture, and analyze the behavior of up to 16 digital channels at the same time.

16 Digital Channels (MSO Models) – MSO/DS2000A Series

Integrated 2 Channel Full Function 25MHz Generator

Create standard waves from the front panel, convert captured waves to emulated signals, or build arbitrary waves in the UltraStation PC Software. The embedded waveform generators included in the "-S" models adds value and capability to the bench for a variety of applications.

Integrated 2 Channel Full Function 25MHz Generator – MSO/DS2000A Series

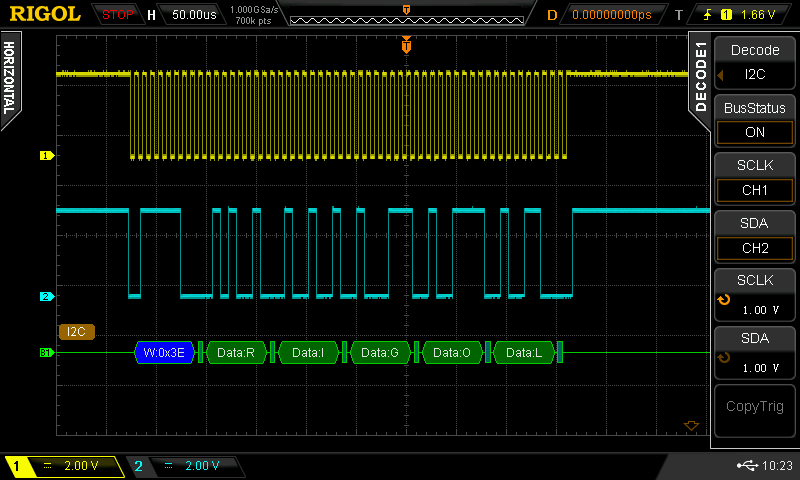

Serial bus Triggering and Decoding

Supports I2C, SPI, RS232/UART, CAN, LIN, FlexRay bus triggering and decoding as standard.

Serial bus Triggering and Decoding – MSO/DS2000A Series

Model

Model Bandwidth Analog Channels Real-time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-in Signal Sources Price
DS2302A 300MHz 2 2GSa/s 56Mpts 52,000wfrms/s - - Rp.15.984.000
DS2202A 200MHz 2 2GSa/s 56Mpts 52,000wfrms/s - - Rp.12.487.500
DS2102A 100MHz 2 2GSa/s 56Mpts 52,000wfrms/s - - Rp.12.598.500
DS2072A 70 MHz 2 2 GSa/s 56 Mpts 52,000 wfrms/s - - Rp.6.490.000
MSO2102A 100MHz 2 2GSa/s 56Mpts 52,000wfrms/s 16 - Rp19.758.000
MSO2102A-S 100MHz 2 2GSa/s 56Mpts 52,000wfrms/s 16 2CH Rp25.197.000
MSO2202A 200MHz 2 2GSa/s 56Mpts 52,000wfrms/s 16 - Rp.19.869.000
MSO2202A-S 200MHz 2 2GSa/s 56Mpts 52,000wfrms/s 16 2CH Rp.26.085.000
MSO2302A 300MHz 2 2GSa/s 56Mpts 52,000wfrms/s 16 - Rp.25.363.500
MSO2302A-S 300MHz 2 2GSa/s 56Mpts 52,000wfrms/s 16 2CH Rp.30.464.000
*Prices may change without prior notice.

Accessories

Model Description Price
RM-DS2000 Rack mount kit Rp6.242.000
CB-USBA-USBB-FF-150 USB Data line，150cm Rp283.781
CB-BNC-BNC-MM-100 BNC Coaxial line，100cm Rp317.167
USB-GPIB USB to GPIB adapter Rp5.490.000
DK-DS6000 Demo board Rp3.672.000

User Manual

Name Version Release Date Download
MSO/DS2000A User Manual V1.0 2021-10-26 Download

Datasheet

Name Version Release Date Download
MSO/DS2000A Datasheets V2.0 2025-08-27 Download

Programming Manual

Name Version Release Date Download
MSO/DS2000A Programming Manual V1.0 2021-10-26 Download

Quick Guide

Name Version Release Date Download
MSO/DS2000A Quick Guide V1.0 2021-10-26 Download
