DNA6000

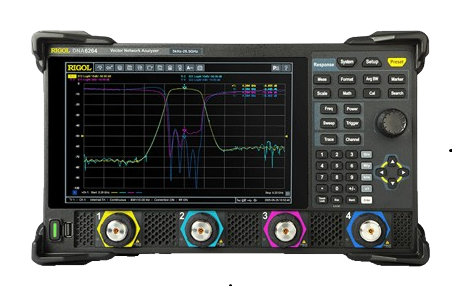

The DNA6000 Vector Network Analyzer is ideal for your lab and production line. Its rugged chassis provides stable and reliable measurements, making it perfect for long-duration, repetitive testing tasks. Whether for device development and debugging or production line quality control, it accurately characterizes the performance of components such as filters, amplifiers, and cables. Its rich array of interfaces simplifies connectivity and automated testing, making it a powerful assistant in your daily testing work.

Number of Ports : 4
Highest Frequency Range : 5 kHz ~ 26.5 GHz
Connector : 3.5mm (m)
Main Image
Thumbnail 1

Features

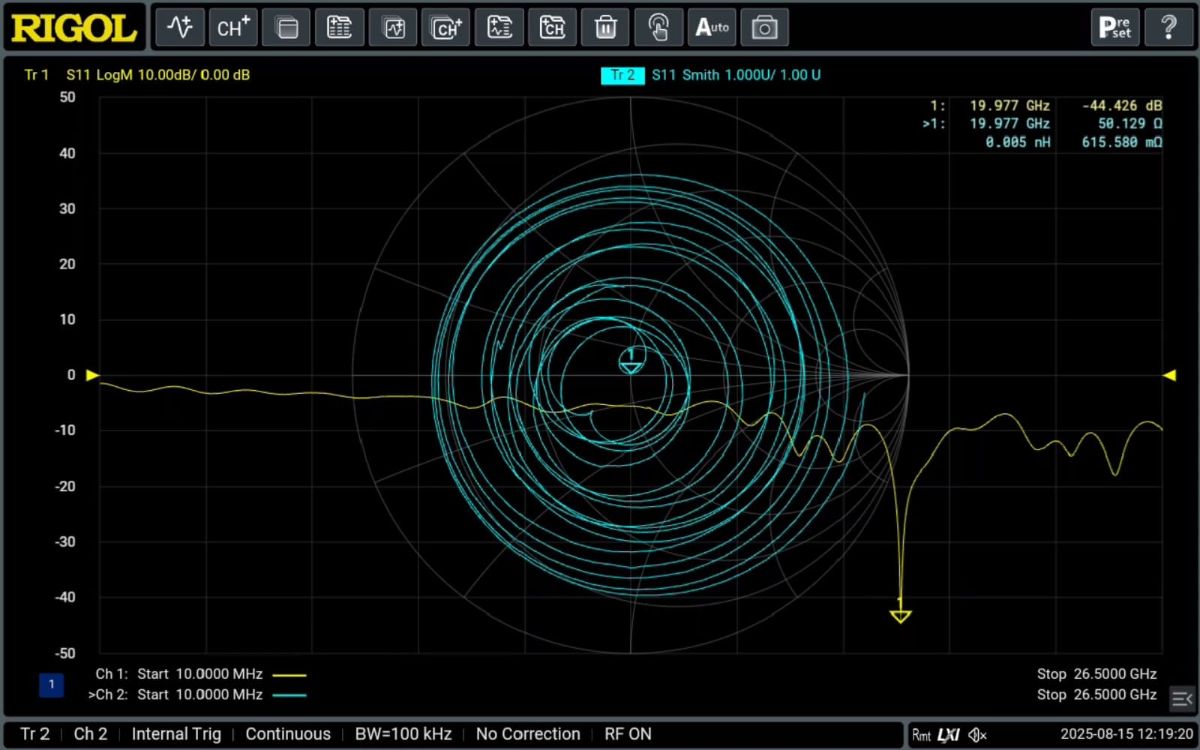

Frequency Range Covers a Variety of Applications

It offers a frequency range from 5 kHz to 26.5 GHz and supports 4 or 2 test ports, accurately covering the testing needs of fields ranging from basic passive devices (such as filters, antennas, and cables), material dielectric constants, and high-speed interconnects.

Frequency Range Covers a Variety of Applications

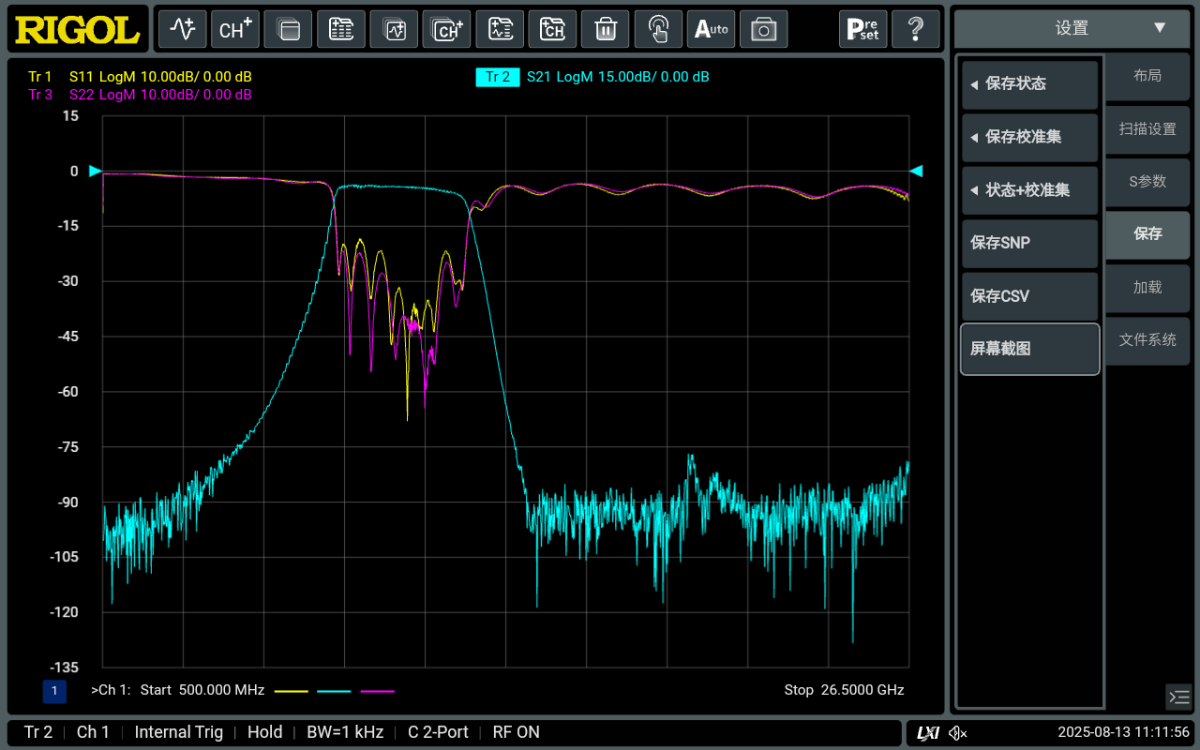

Wide Dynamic Range Ensures Performance Characterization

Wide Dynamic Range Ensures Performance Characterization

Wide Dynamic Range Ensures Performance Characterization

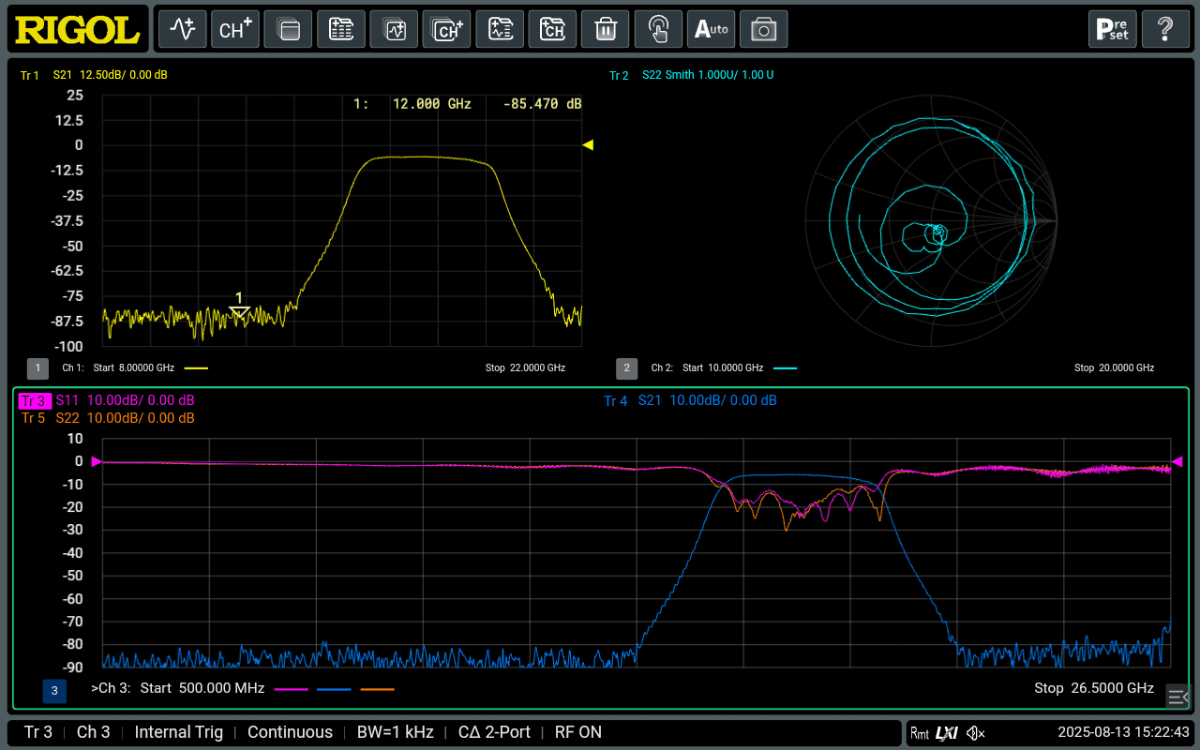

Rich Analytical Functions

It has built-in tools for various applications, such as pass/fail testing, standing wave ratio (SWR) measurement, Smith chart, and time domain reflectometer (TDR), which can efficiently complete both R&D verification and production line quality control.

Rich Analytical Functions

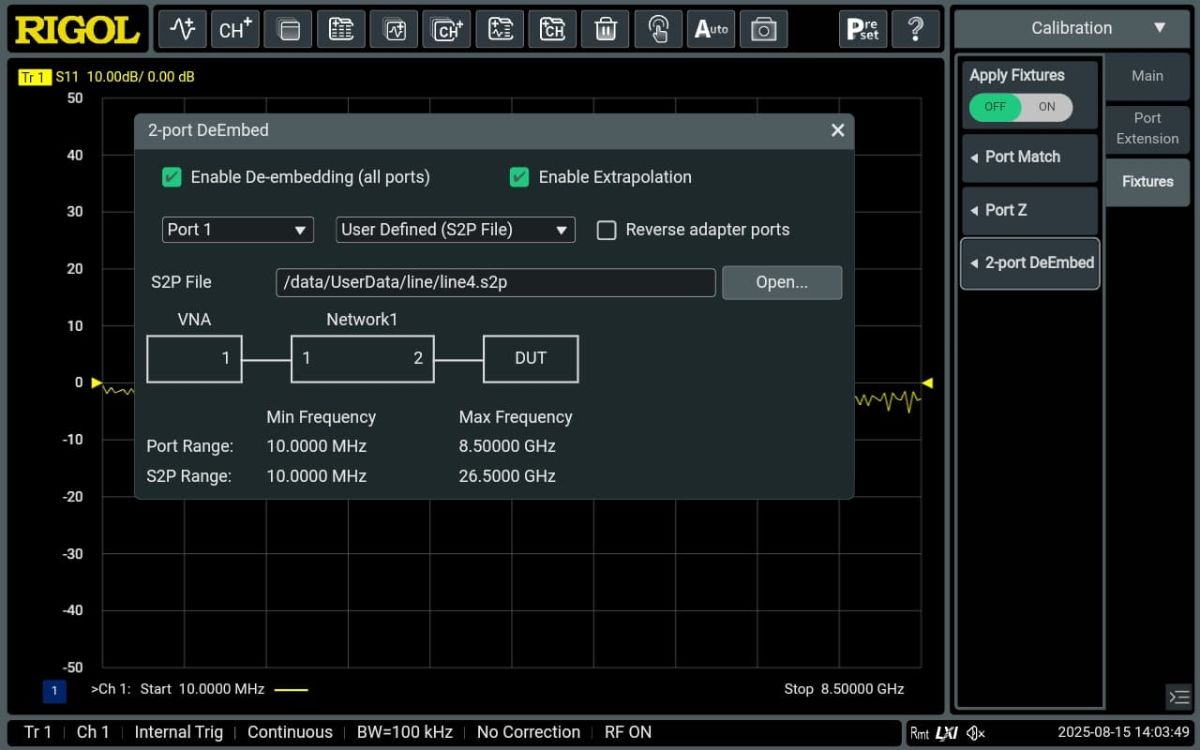

Fixture Removal and Unclamping

Easily remove and de-embed the effects of test fixtures, adapters, and cables by removing and de-embedding them, accurately measure the true S-parameters of the device under test (DUT), and ensure the reliability of the results

Fixture Removal and Unclamping

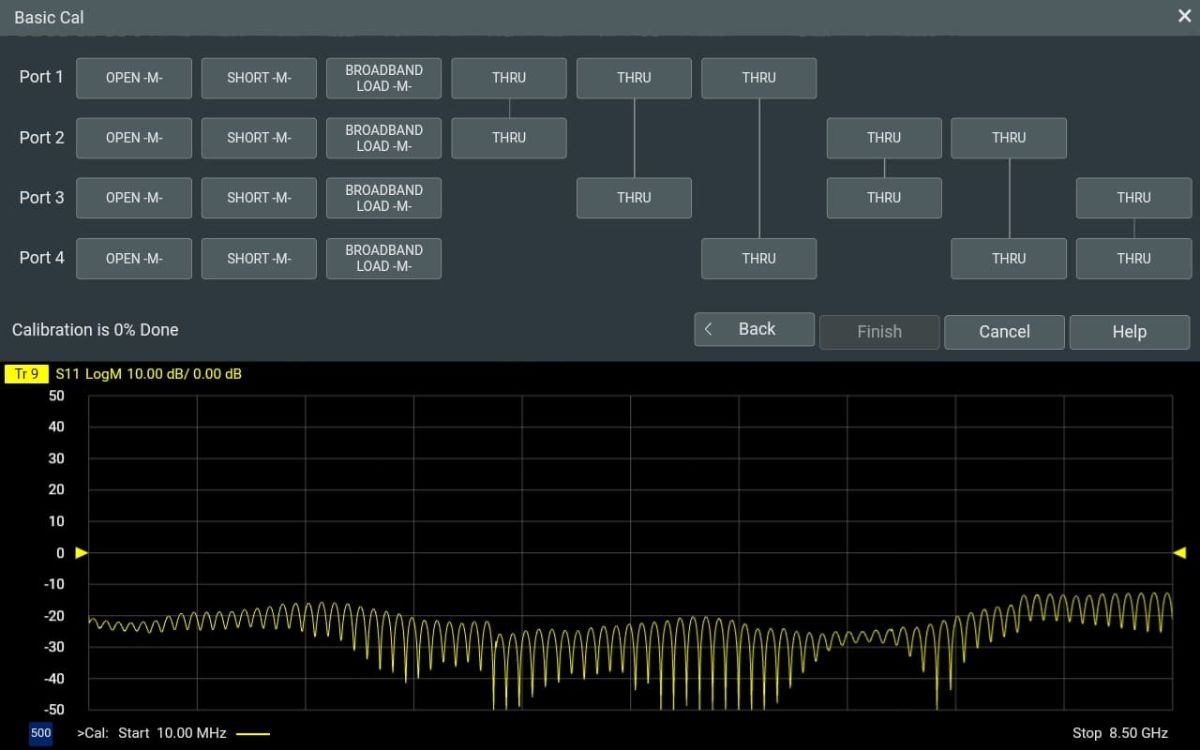

Guided Calibration

The built-in calibration wizard will guide you step by step to complete the operation clearly, so that both beginners and experts can quickly and accurately complete the setup and ensure the accuracy of every measurement.

Guided Calibration

Optional Mechanical or Electronic Calibration Kits

We offer high-precision, long-life mechanical calibration kits covering different frequency bands and interface types, ensuring traceability and high repeatability of test results. Electronic calibration kits significantly reduce test preparation time and effectively avoid human error, making them the ideal choice for those seeking ultimate efficiency and consistency.

Optional Mechanical or Electronic Calibration Kits

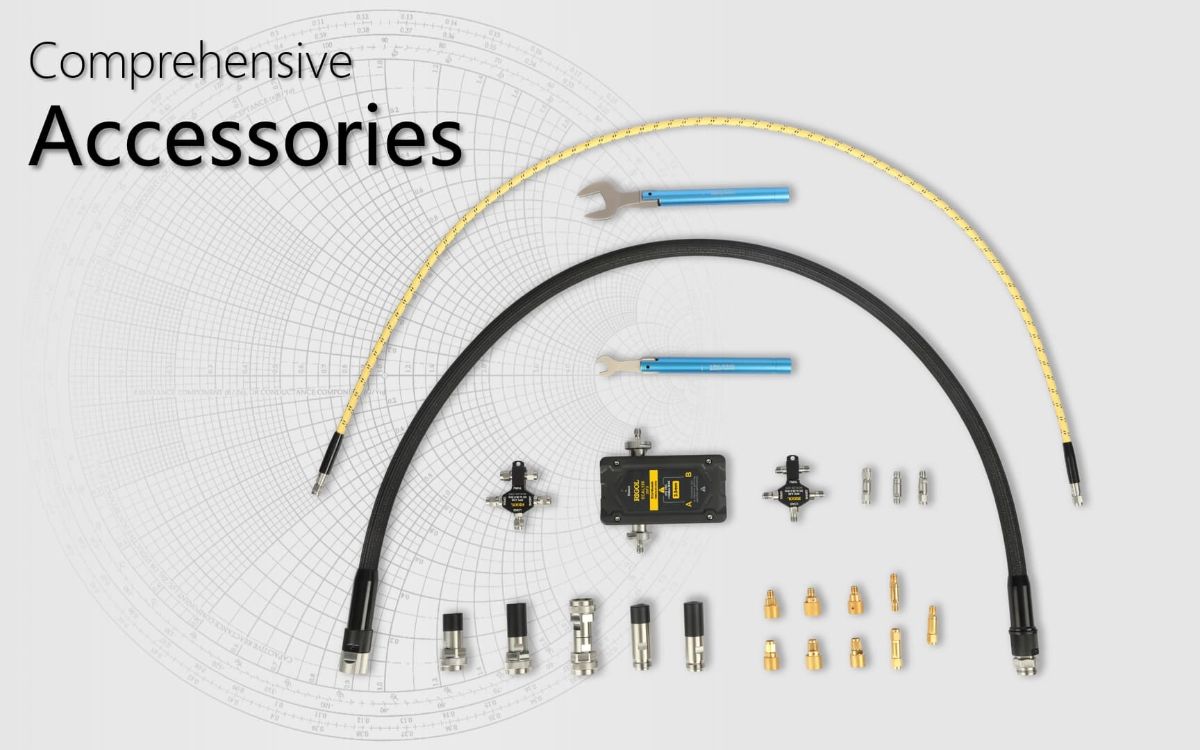

A Wide Range of Optional Accessories

With a comprehensive ecosystem of accessories, you can get everything you need in one place, enabling reliable testing to happen instantly.

A Wide Range of Optional Accessories

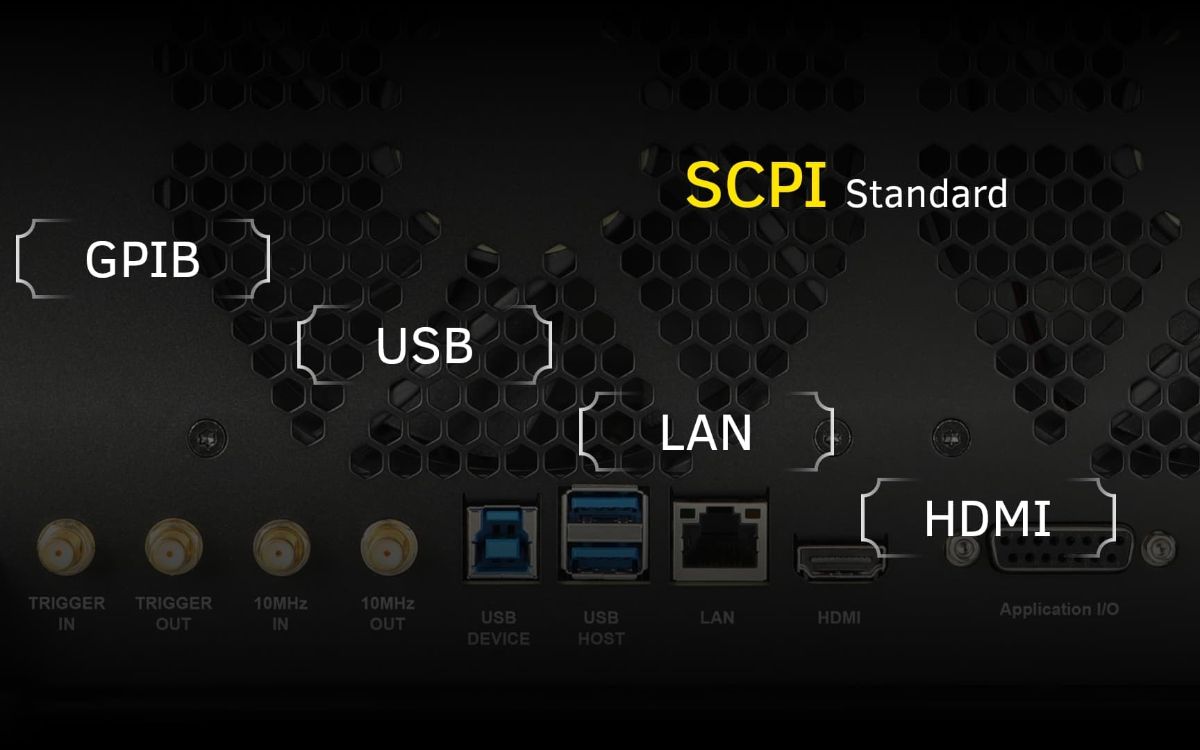

Standard SCPI Instructions, Instruction Set Compatible

It provides multiple remote control interfaces and supports standard SCPI commands, allowing for smooth integration or replacement into existing test systems through command set compatibility, without the need to rewrite automation scripts and retaining familiar workflows.

Standard SCPI Instructions, Instruction Set Compatible

Model

Model Number of Ports Highest Frequency Range Connector Price
DNA6264 4 5 kHz ~ 26.5 GHz 3.5mm (m) Get A Code
DNA6262 2 5 kHz ~ 26.5 GHz 3.5mm (m) Get A Code
DNA6204 4 5 kHz ~ 20 GHz 3.5mm (m) Get A Code
DNA6202 2 5 kHz ~ 20 GHz 3.5mm (m) Get A Code
DNA6144 4 5 kHz ~ 14 GHz N (f) Get A Code
DNA6142 2 5 kHz ~ 14 GHz N (f) Get A Code
DNA6084 4 5 kHz ~ 8.5 GHz N (f) Get A Code
DNA6082 2 5 kHz ~ 8.5 GHz N (f) Get A Code
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DNA-TDA10 TDA Time Domain Analysis
DNA-DTF10 DTF Fault Distance Measurement
MCAL104-NM1 Mechanical calibration kit, DC ~ 4.5 GHz, N-type (male) 50 Ω
MCAL104-NF1 Mechanical calibration kit, DC ~ 4.5 GHz, N-type (female) 50 Ω
MCAL109-NM1 Mechanical calibration kit, DC ~ 9 GHz, N-type (male) 50 Ω
MCAL109-NF1 Mechanical calibration kit, DC ~ 9 GHz, N-type (female) 50 Ω
MCAL109-NK1 Mechanical calibration kit, DC ~ 9 GHz, N-type (male and female) 50 Ω
MCAL104-SM1 Mechanical calibration kit, DC ~ 4.5 GHz, 3.5 mm (male)
MCAL104-SF1 Mechanical calibration kit, DC ~ 4.5 GHz, 3.5 mm (female head)
MCAL109-SM1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male)
MCAL109-SF1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (female)
MCAL109-SK1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male and female heads)
MCAL126-35K1 Mechanical calibration kit, DC ~ 26.5 GHz, 3.5 mm (male and female heads)
MCAL226-35F5 4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (female)
ECAL109-NF2 Electronic calibration component, 100 kHz ~ 9 GHz, N-type (female) 50 Ω, 2-port
ECAL114-NF2 Electronic calibration component, 100 kHz ~ 14 GHz, N-type (female) 50 Ω, 2-port
ECAL126-35F2 Electronic calibration kit, 100 kHz ~ 26.5 GHz, 3.5 mm (female), 2 ports
CB-3.5M-3.5M-100-L-26G RF cable, DC ~ 26.5 GHz, 3.5 mm (male) - 3.5 mm (male), 100 cm
CB-SMAM-SMAM-100-L-18G RF cable, DC ~ 18 GHz, SMA (male) - SMA (male), 100 cm
CB-NM-NM-100-L-18G RF cable, DC ~ 18 GHz, N (male) - N (male), 100 cm
CB-NM-SMAM-100-L-18G RF cable, DC ~ 18 GHz, N (male) - SMA (male), 100 cm
CB-NM-3.5M-100-L-18G RF cable, DC ~ 18 GHz, N (male) - 3.5mm (male), 100 cm
CB-NMD3.5F-3.5F-63-L-26G Dedicated RF cable for network splitter, DC ~ 26.5 GHz, NMD 3.5mm (female) - 3.5mm (female), 63.5 cm
AD-NF-NF-L-18G Adapter, N (female) - N (female), DC ~ 18GHz
AD-NM-NM-L-18G Adapter, N (male) - N (male), DC ~ 18GHz
AD-SMAF-SMAF-L-18G Adapter, SMA (female connector) - SMA (female connector), DC ~ 18GHz
AD-SMAM-SMAM-L-18G Adapter, SMA (male) - SMA (male), DC ~ 18GHz
AD-3.5F-3.5FL-26G Adapter, 3.5mm (female) - 3.5mm (female), DC ~ 26.5GHz
AD-3.5M-3.5ML-26G Adapter, 3.5mm (male) - 3.5mm (male), DC ~ 26.5GHz
AD-NM-BNCF-L-4G Adapter, N (male) - BNC (female), DC ~ 4GHz
AD-SMAM-NM-L-18G Adapter, SMA (male) - N (male), DC ~ 18GHz
AD-SMAF-NM-L-18G Adapter, SMA (female) - N (male), DC ~ 18GHz
AD-SMAF-BNCM-L-4G Adapter, SMA (female) - BNC (male), DC ~ 4GHz
AD-3.5M-2.92FL-26G Adapter, 3.5mm (male) - 2.92mm (female), DC ~ 26.5GHz
AD-3.5F-2.92ML-26G Adapter, 3.5mm (female) - 2.92mm (male), DC ~ 26.5GHz
TW8-8 Torque wrench, 8 in-lb, 8.1 mm open end, for SMA 3.5mm connectors.
TW12-19 Torque wrench, 12 in-lb, 19.1 mm open end, for N-type connectors.
