DSA800 Series

Performance Spectrum Analyzers with exceptional capabilities and an affordable price 1.5 GHz to 7.5 GHz models with tracking generators, Preamps, EMI, VSWR, and more options.

Frequency Range: 9kHz ~ 1.5/3.2/7.5GHz
RBW: 10Hz~1MHz
Phase Noise: -98dBc/Hz@10kHz
DANL: -161dBm/Hz
Tracking Source: -TG

Start From Rp25.300.000

Datasheet

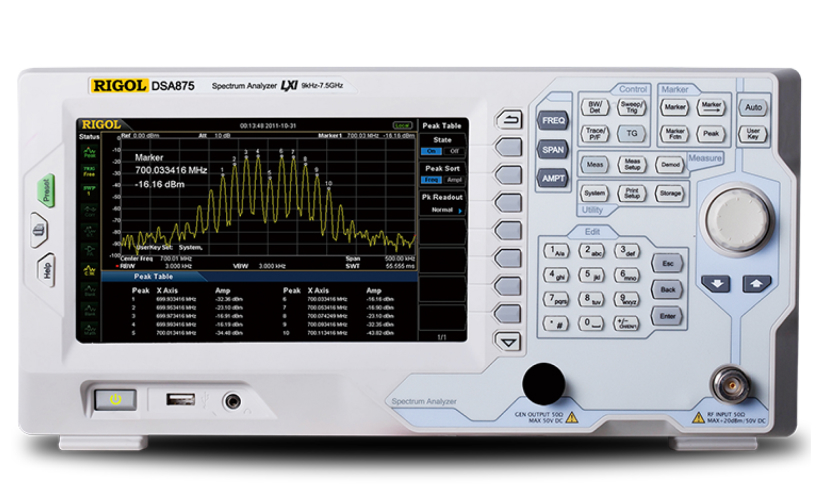

DSA800 Series Product

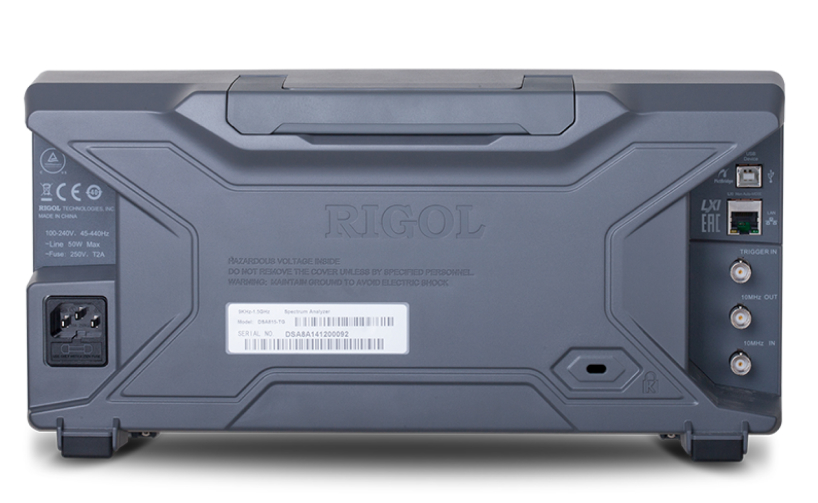

DSA800 Series thumbnail 1

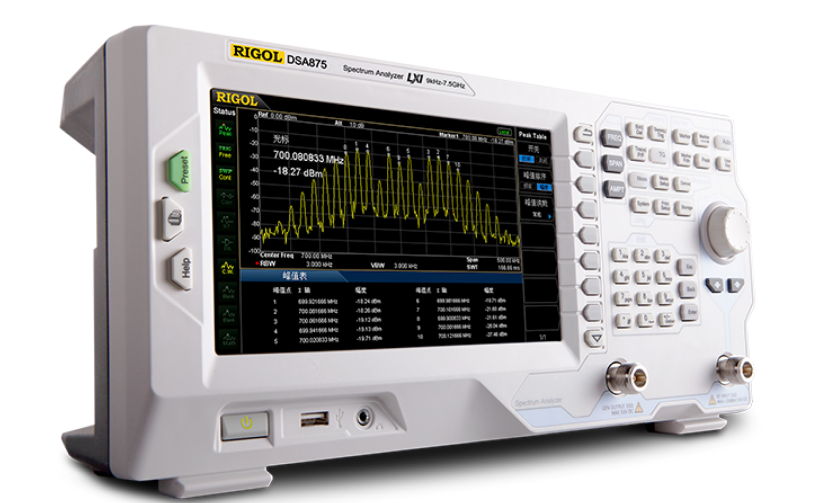

DSA800 Series thumbnail 2
DSA800 Series thumbnail 3
DSA800 Series thumbnail 4

Features

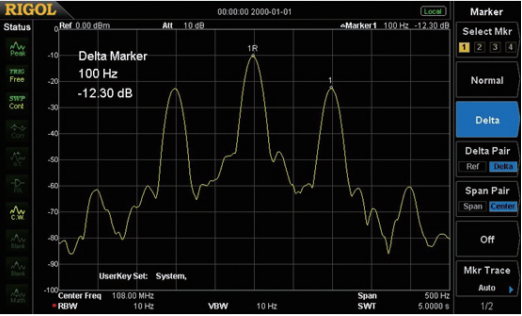

10Hz Resolution Bandwidth

The DSA800 withl RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.

10Hz Resolution Bandwidth – DSA800 Series

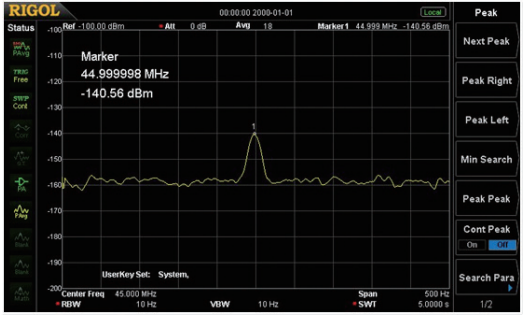

DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

DANL: -161 Dbm with Optional Preamp – DSA800 Series

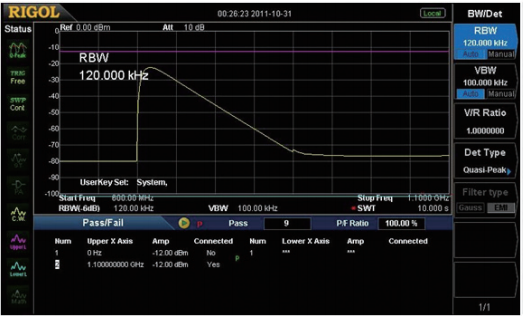

EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation.

EMI Pre-compliance Measurement – DSA800 Series

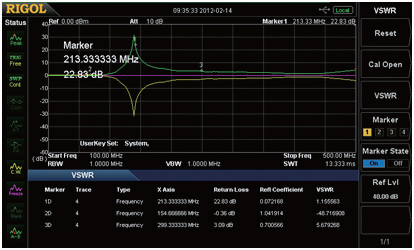

Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test.

Tracking Source and VSWR Function – DSA800 Series

UnltraSpectrum Software

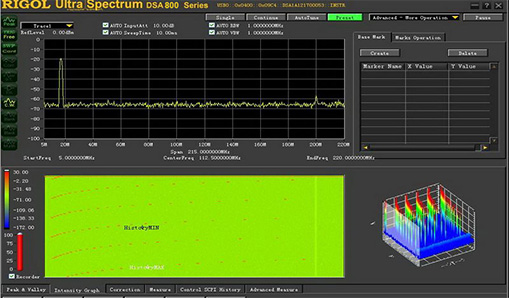

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.

UnltraSpectrum Software – DSA800 Series

Model

Model Frequency Range Description Phase Noise DANL Tracking Source Price
DSA875 9kHz-7.5GHz 10Hz-1MHz -98dBc/Hz@10kHz -161dBm N/A Rp123.987
DSA875-TG 9kHz-7.5GHz 10Hz-1MHz -98dBc/Hz@10kHz -161dBm Yes Rp154.179.000
DSA832 9kHz-3.2GHz 10Hz-1MHz -98dBc/Hz@10kHz -161dBm N/A Rp88.928.000
DSA832-TG 9kHz-3.2GHz 10Hz-1MHz -98dBc/Hz@10kHz -161dBm Yes Rp112.165
DSA832E 9kHz-3.2GHz 10Hz-1MHz -90dBc/Hz@10kHz -161dBm/Hz¼ typ.) N/A Rp39.960.000
DSA832E-TG 9kHz-3.2GHz 10Hz-1MHz -90dBc/Hz@10kHz -161dBm/Hz¼ typ.) Yes Rp52.558.500
DSA815 9kHz-1.5GHz 10Hz-1MHz -80dBc/Hz@10kHz -161dBm/Hz¼ typ.) N/A Rp24.919.000
DSA815-TG 9kHz-1.5GHz 10Hz-1MHz -80dBc/Hz@10kHz -161dBm/Hz¼ typ.) Yes Rp26.739.900
*Prices may change without prior notice.

Accessories

Model Description Price
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable Rp3.184.000
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable Rp3.184.000
RF Adaptor Kit RF Cable and adaptor kit Rp5.024.000
RM-DSA800 Rack Mounting Kit for a DSA800 Series Spectrum Analyzer Rp6.288.000
RX1000 RF Demo Kit (Receiver) Rp14.432.000
TX1000 RF Demonstration board with built in 1 GHz Oscillator, mixer, filters, and amplifier Rp15.888.000
NFP-3 Near Field Probe Kit Rp7.984.000
BAG-G1 Instrument Carry Case for DSA800, DG4000, MSO5000, DS2000 Rp2.480.000
USB-GPIB USB-GPIB Converter Rp5.536.000
VB1032 VSWR Bridge + licenses (DSA800/1000), Range: 1 MHz - 3.2 GHz, Directivity ≥ 25 dB, Requires TG Option Rp10.544.000
VB1080 VSWR Bridge + DSA800-VSWR software (2–8 GHz), Not for DSA1000, Requires TG Option Rp11.744.000
VB1040 800 MHz – 4 GHz VSWR Bridge + software for DSA800 (Not for DSA1000), Requires TG Option Rp14.768.000
ATT03301H 30dB High Power Attenuator, Max Power 100W Rp3.680.000
DSA Utility Kit Accessories Package (cables, adaptors, antennas) Rp13.296.000
RF Attenuator Kit Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) Rp8.384.000
RF CATV Kit Kit Includes 50 to 75 Ohm Adaptors (2pcs) Rp6.704.000

User Manual

Name Version Release Date Download
DSA800/E User Manual V2.0 2024-02-29 Download
DSA800E Rackmount Kit User Manual V1.0 2021-10-26 Download
NFP-3 V1.0 2021-10-22 Download

Datasheet

Name Version Release Date Download
DSA800 Datasheets DSD03000-2020-12 2021-10-22 Download
DSA800E Datasheets DSD03000-2020-12 2021-10-22 Download

Programming Manual

Name Version Release Date Download
DSA800 Programming Manual V1.0 2021-10-22 Download
DSA800E Programming Manual V1.0 2021-10-22 Download

Quick Guide

Name Version Release Date Download
DSA800E Quick Guide V1.0 2021-10-22 Download
