DM800 Series

DM800 is an economical 5.5-bit digital multimeter with features such as high precision, multifunctionality, easy operation, large screen, and small volume. It provides USB and LAN interfaces and supports remote control. It is compact and supported by a desktop stand, designed for automatic measurement, making it the best choice for engineers.

Readings Resolution: 5.5 digits
Max Measuring Speed: 125 rdgs/s
Accuracy Specifications: 0.03%
Remote Interface: USB, LAN

Start From Rp6.826.500

Datasheet

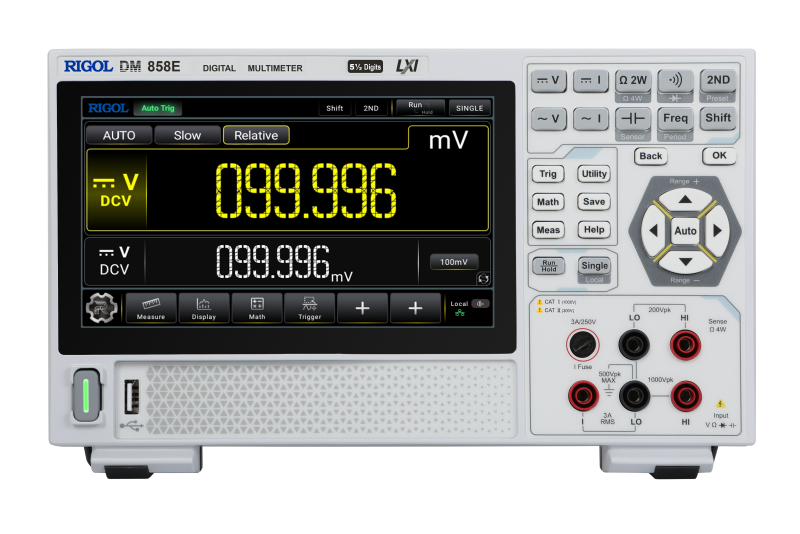

DM800 Series Product
DM800 Series thumbnail 1

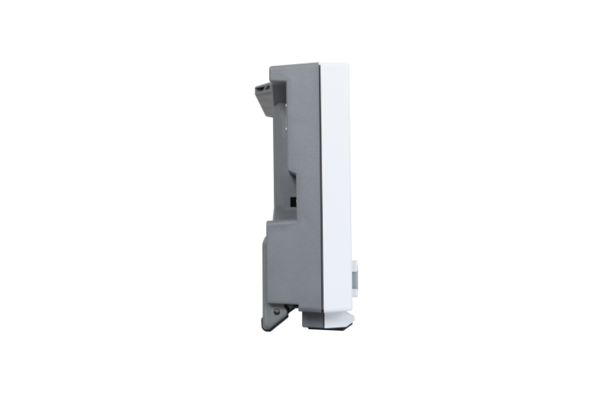

DM800 Series thumbnail 2

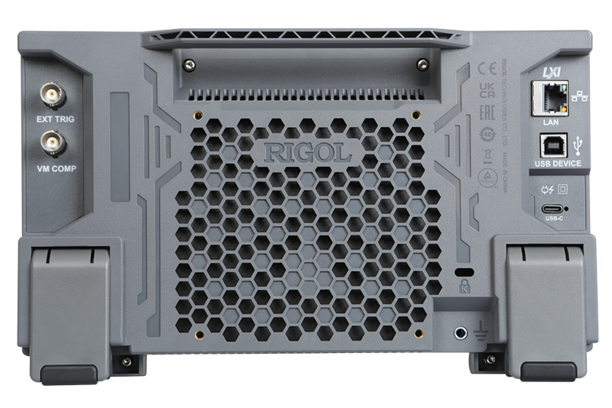

DM800 Series thumbnail 3
DM800 Series thumbnail 4

Features

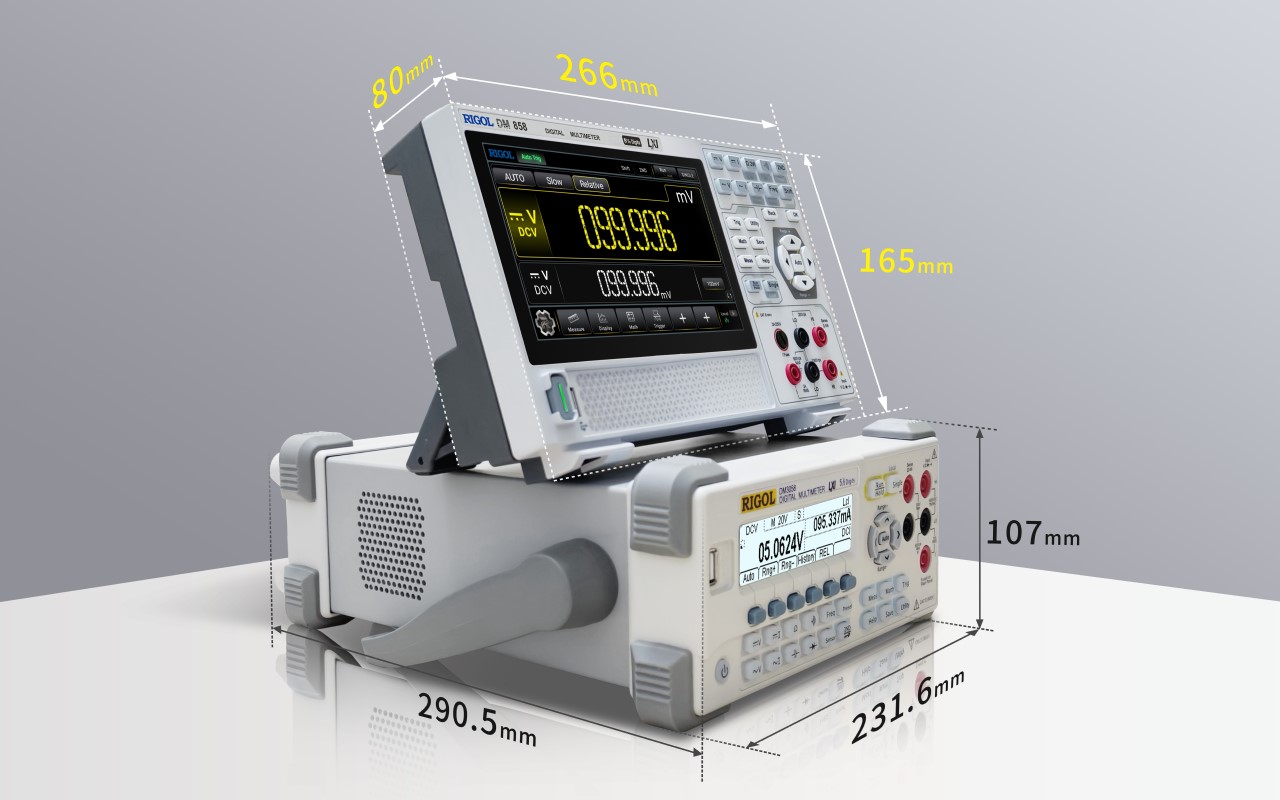

Lighter and Thinner Body

Compared to the previous generation product DM3058, DM858 has a lighter and thinner body but a wider field of view. The depth of the machine is only 80mm, making it a desktop digital multimeter that saves a lot of desktop space.

Lighter and Thinner Body – DM800 Series

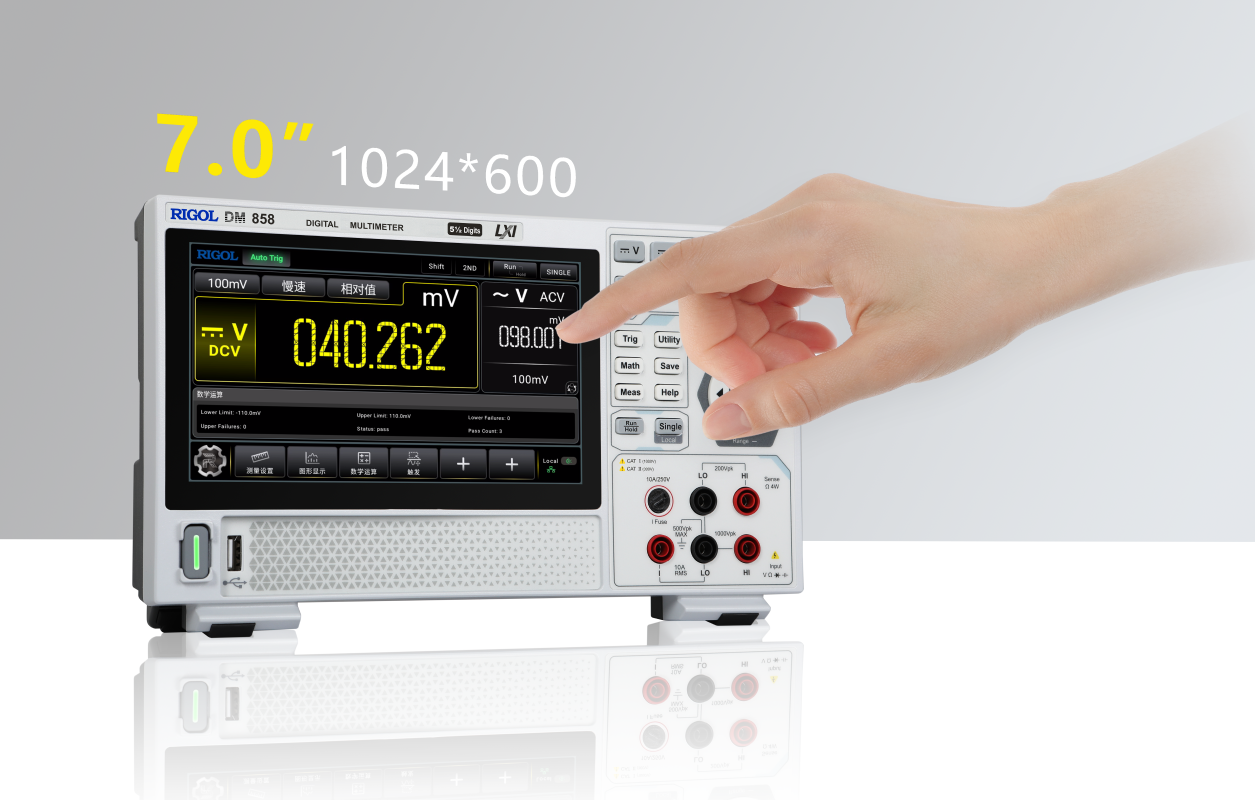

Wider Screen, Clearer View

The DM858 series is equipped with a 7-inch color touch screen display with a resolution of 1024 * 600, divided into main and auxiliary display areas, which can simultaneously view readings, instrument status, statistical information, and other content without the need to switch back and forth between interfaces. The spacious screen and touch screen design makes it easy to set measurement settings and view results.

Wider Screen, Clearer View – DM800 Series

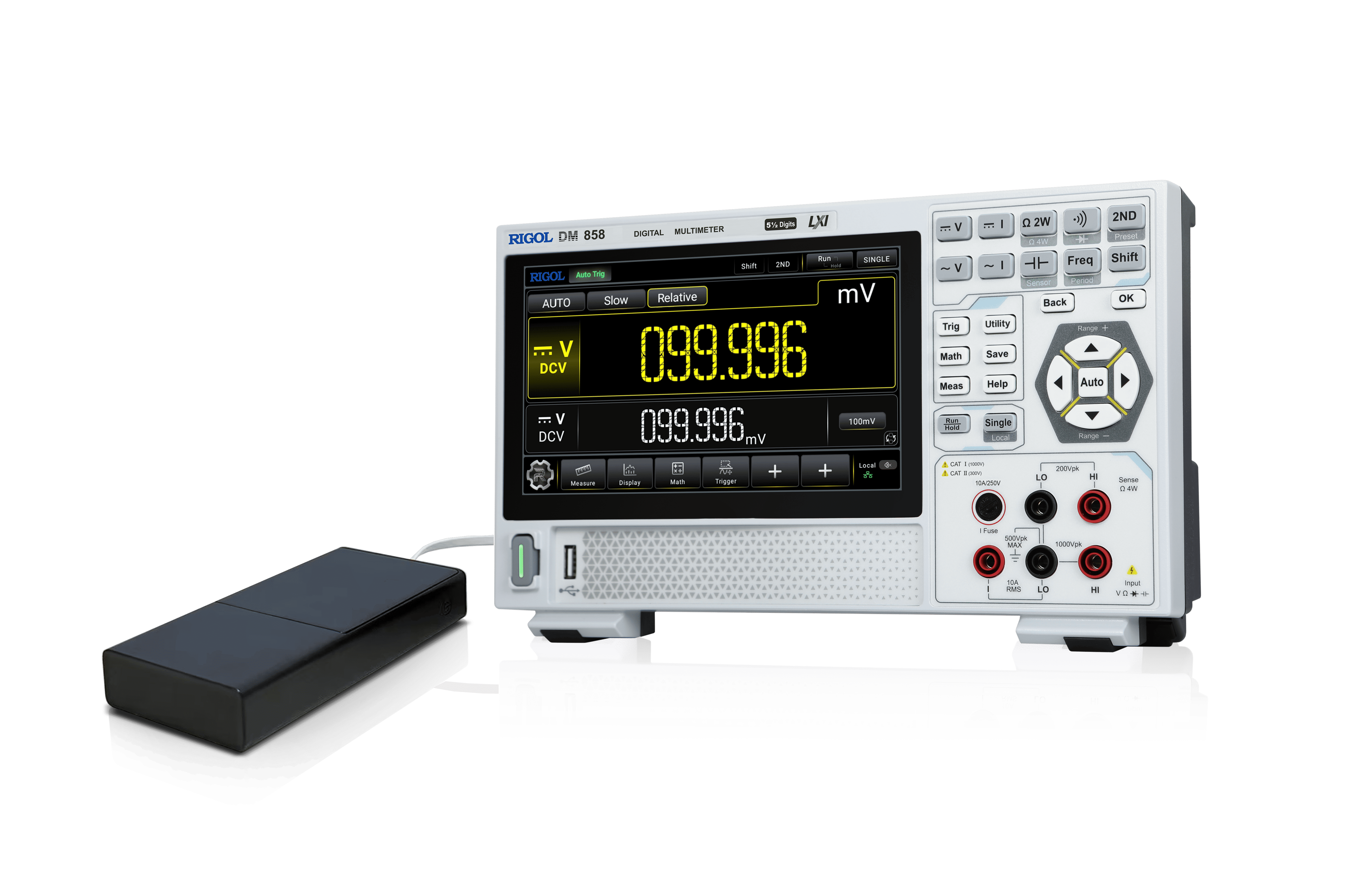

Equipped with Type-C Connector

Type-C connector enable DM858 to be powered up by mobile power supply, make on-site testing more convenient. With a 65W, 74Wh mobile power supply, the DM858 can operate up to 8 hours

Equipped with Type-C Connector – DM800 Series

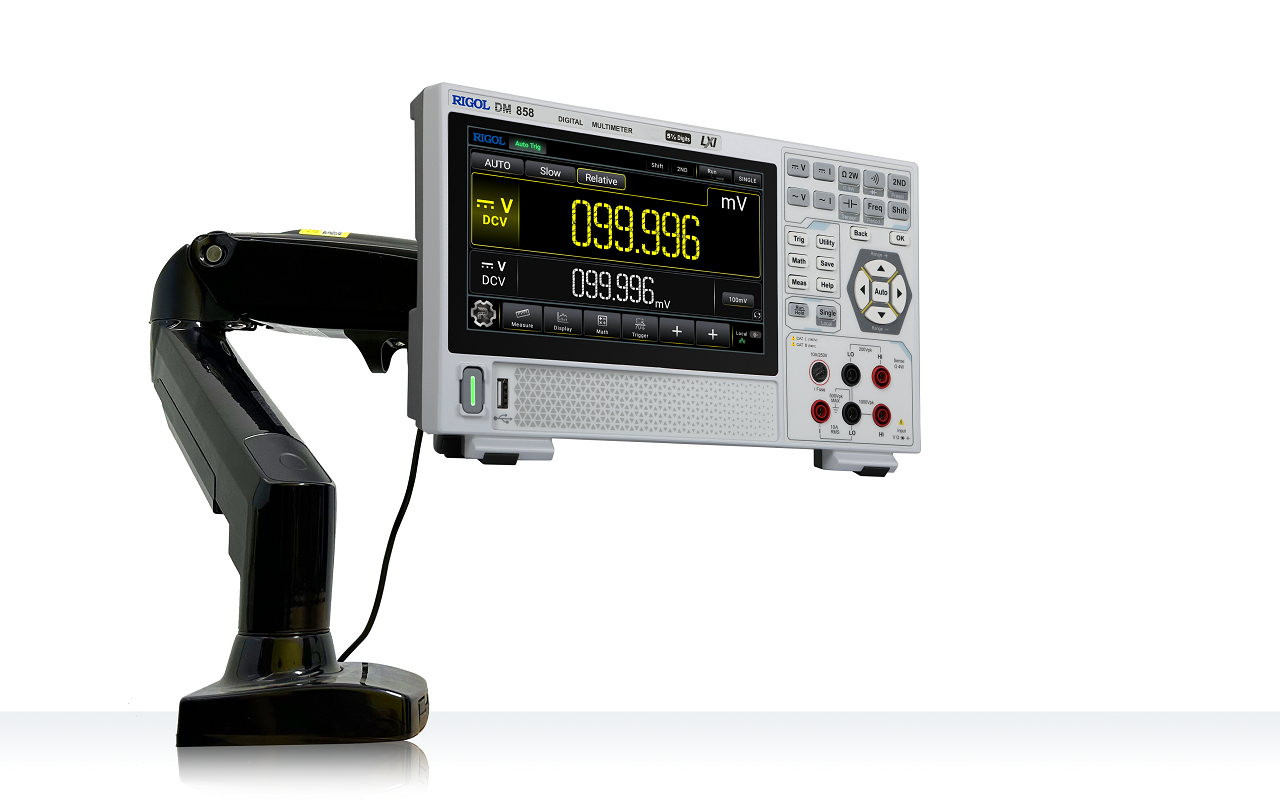

Compact Size and Convenient Design

Compact and ultra-thin in size, the bare machine weighs only 1.25kg, with a wall mounted interface on the back panel that meets the VESA 100X100 standard. Pair the DM858 with a desktop stand to free up your workbench

Compact Size and Convenient Design – DM800 Series

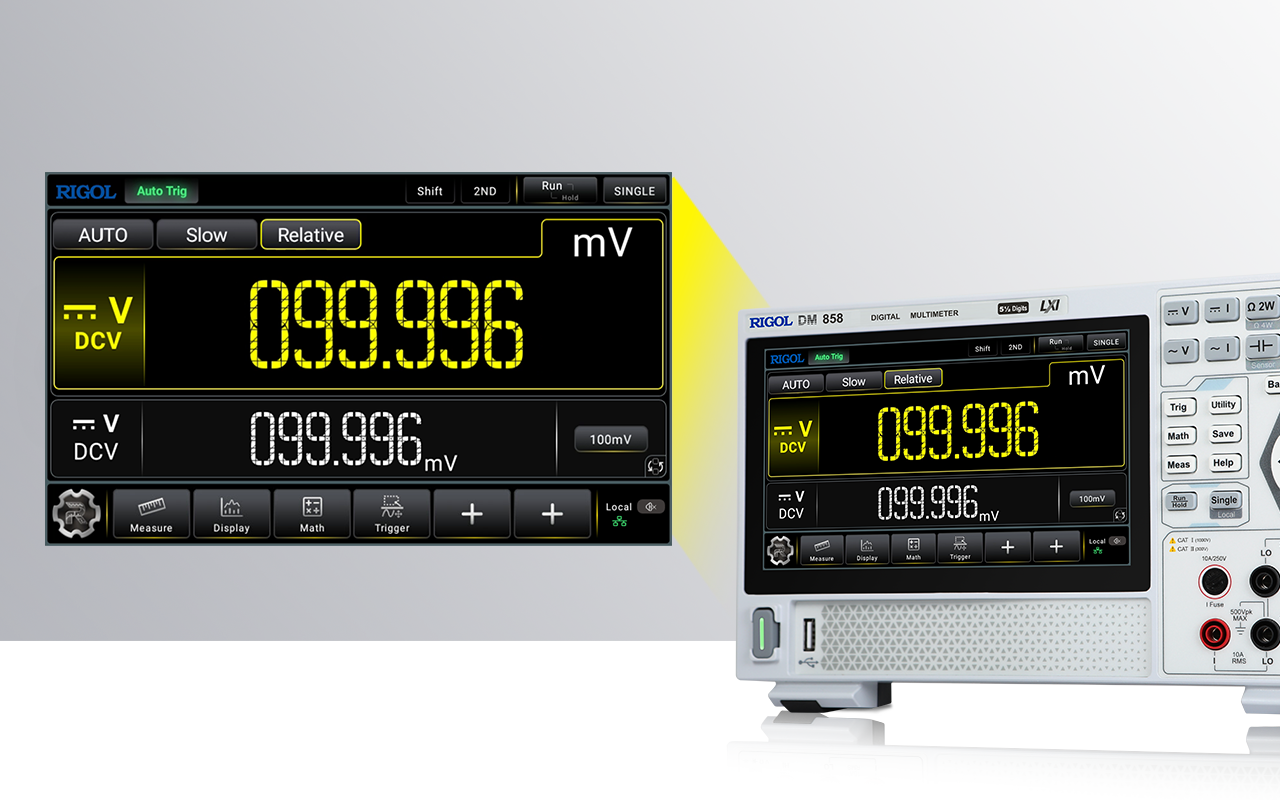

5.5 Digit Reading

Perform fast measurement suitable with a 5.5-bits resolution and a measurement rate of up to 125 readings per second. 500000 point recording memory allows recording and analyzing more test data

5.5 Digit Reading – DM800 Series

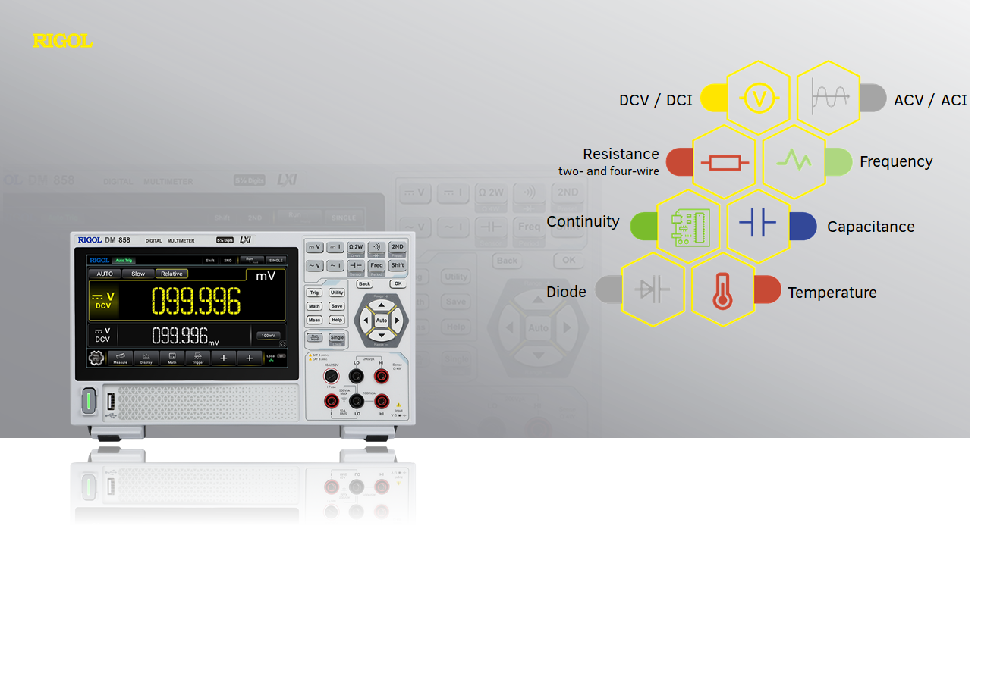

11 Input Signal Measurements

Support measuring DCV, DCI, ACV, ACI, two- and four-wire resistance, frequency and cycle, connectivity, diode, temperature, capacitance output signals, providing more possibilities for testing.

11 Input Signal Measurements – DM800 Series

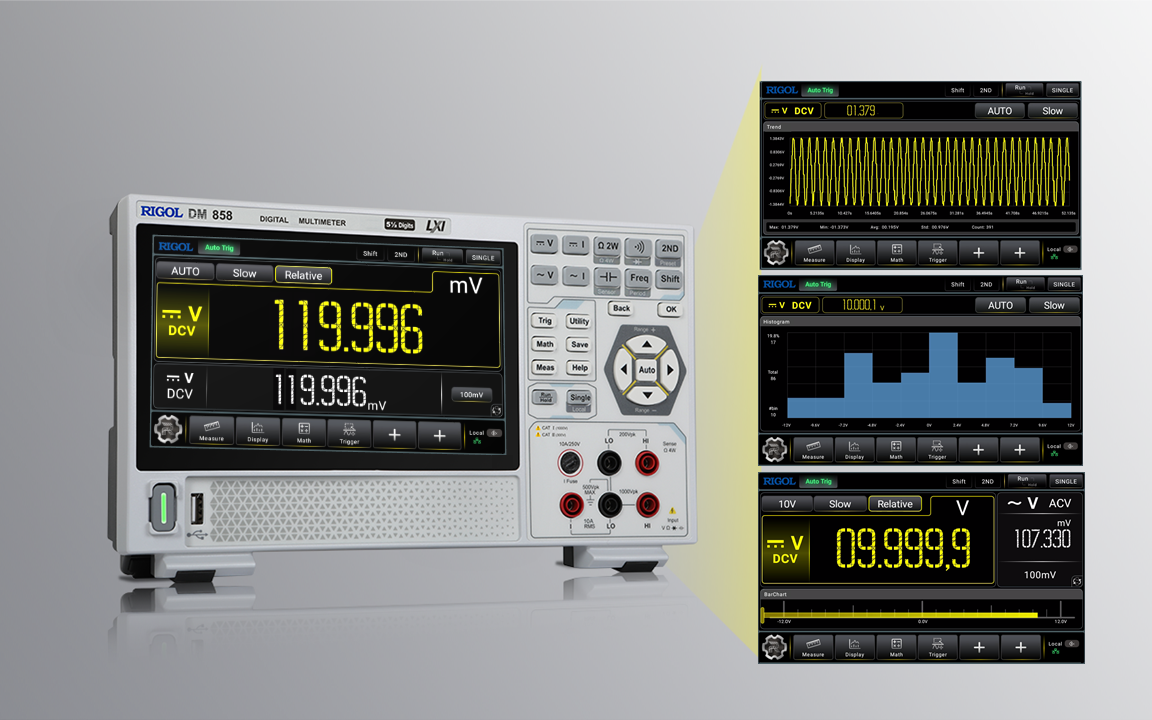

Graphical Display and Mathematical Operation Functions

Supports three graphical displays: trend charts, histograms, and bar charts. It also provides various mathematical functions such as statistical operations, limit operations, dB/dBm, and relative operations, allowing for a more intuitive observation and analysis of changes in test values.

Graphical Display and Mathematical Operation Functions – DM800 Series

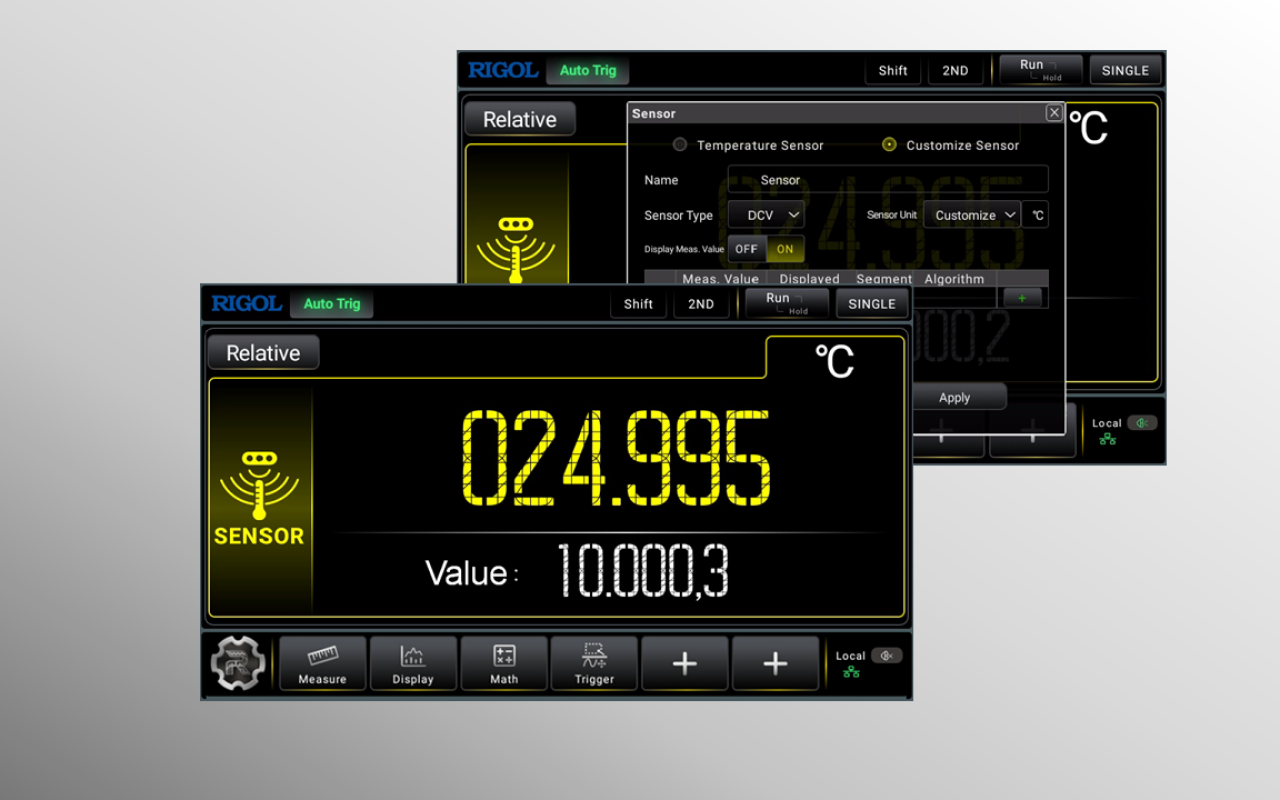

Support any Sensor Measurement

10 sets of standard sensor configurations are preset, with built-in thermocouple cold end compensation. Users can easily configure various types of sensors such as pressure, flow, temperature, etc

Support any Sensor Measurement – DM800 Series

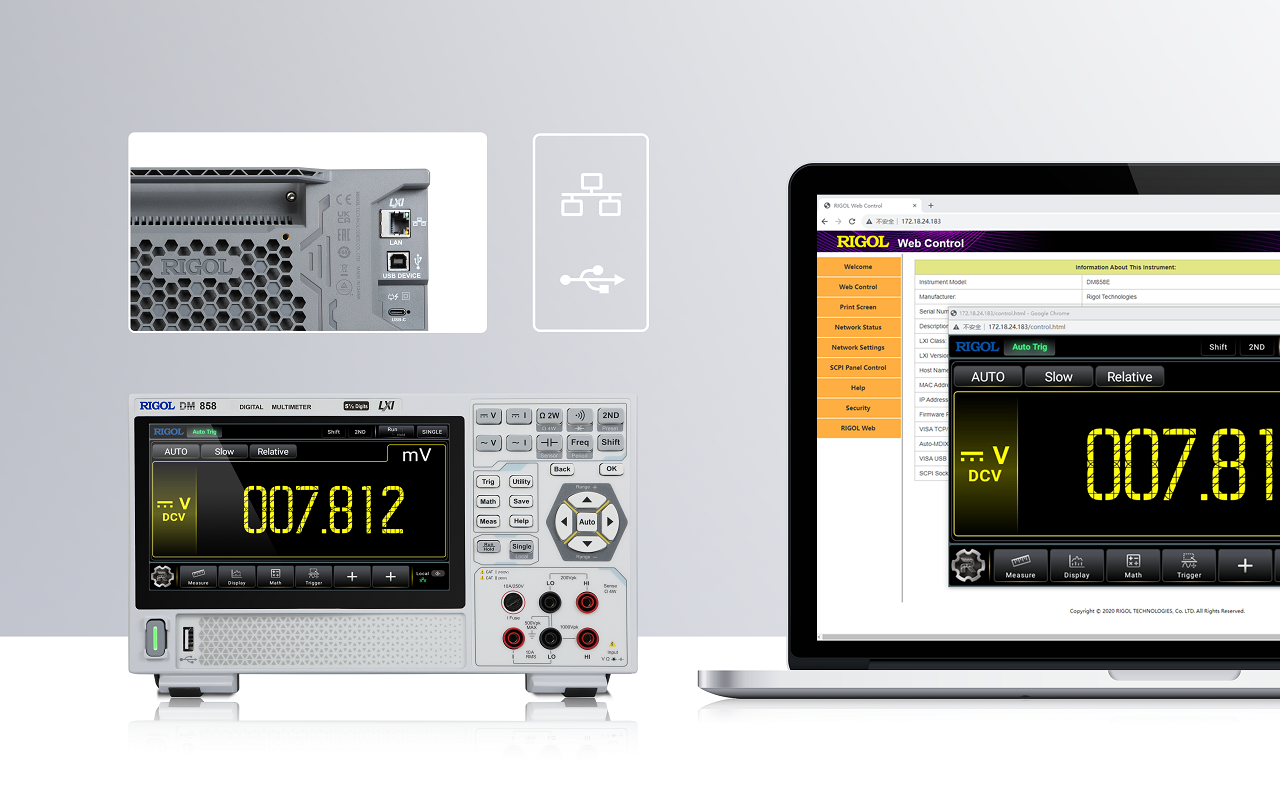

Flexible Connection with PC to Control Instruments

Makes testing more convenient with the standard USB HOST, USB Device, LAN interface for Web remote control, and standard SCPI instructions for automated testing.

Flexible Connection with PC to Control Instruments – DM800 Series

Model

Model Precision DCV Annual Accuracy Fastest Test Rate Connectivity Price
DM858 5.5 digits 0.03% 125 rdgs/s USB, LAN Rp9.823.000
DM858E 5.5 digits 0.06% 80 rdgs/s USB, LAN Rp6.826.500
*Prices may change without prior notice.

Accessories

Model Description Price
BAG-800 Instrument Carry Case for a DHO800/900, DG800/900 Pro, DM800 Rp1.311.000
CB-USBA-USBB-FF-150 USB Cable (150 cm) Rp551.000
Kelvin Probe Set Kelvin probes for 4 wire resistance measurements with a DMM Rp2.280.000

User Manual

Name Version Release Date Download
DM800 Series User Manual V5.0 2024-12-25 Download

Datasheet

Name Version Release Date Download
DM800 Datasheets V2.0 2024-05-27 Download

Programming Manual

Name Version Release Date Download
DM800 Programming Manual V1.1 2024-03-06 Download

Open Source

Name Version Release Date Download
DM858 Open Source Statement V1.0 2024-01-12 Download

Quick Guide

Name Version Release Date Download
DM800 Series Quick Guide V2.0 2024-05-27 Download
