DP800A

DP800A

The RIGOL DP800A Series is a high-performance programmable DC power supply designed to deliver stable, accurate, and low-noise power output for a wide range of testing and laboratory applications. Featuring multiple output channels, intuitive operation, and advanced protection functions, the DP800A Series provides a reliable and efficient power solution for R&D, education, production testing, and electronic troubleshooting.

Number of Channels : 3CH

Total Power : 200W

Output per Channel : 20V/10A（Low Range）,40V/5A（High Range）

Programming Resolution : 1mV/0.1mA

Display Resolution : 10mV/10mA

Readback Resolution : 0.1mV/0.1mA

Communication Interface : USB, LAN, RS232, Digital IO

Features

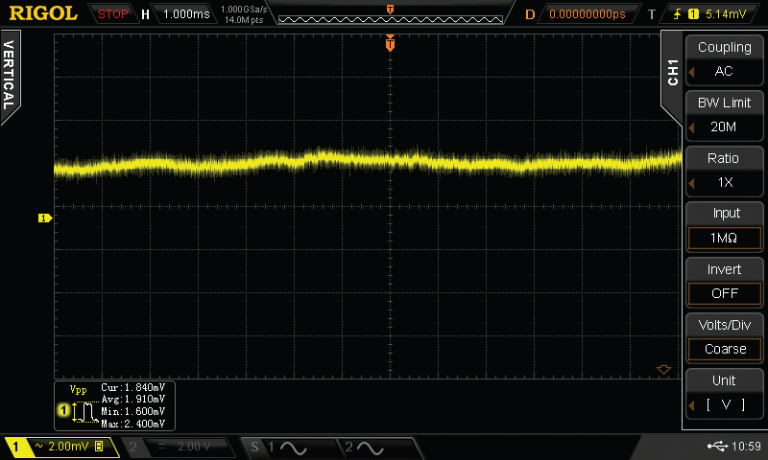

Low ripple noise: <350uVrms / 2mVpp

The ultra-low noise design meets the users' needs for high-purity power supply.

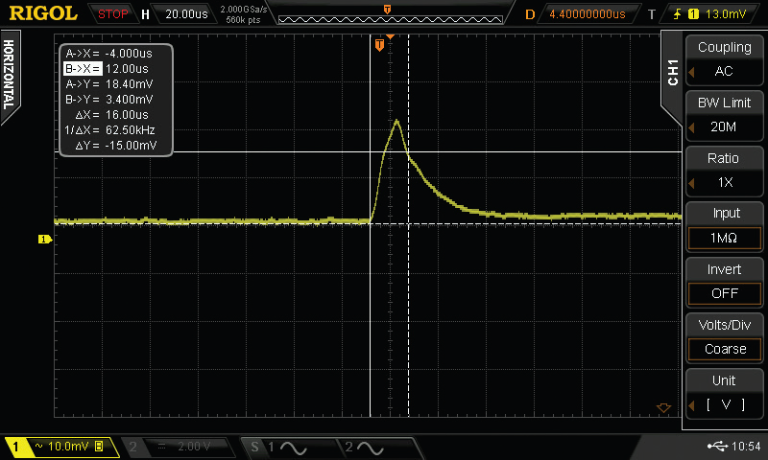

Fast transient response time: < 50us

A power supply response time of no more than 50 microseconds meets users' needs for rapidly changing voltage waveforms.

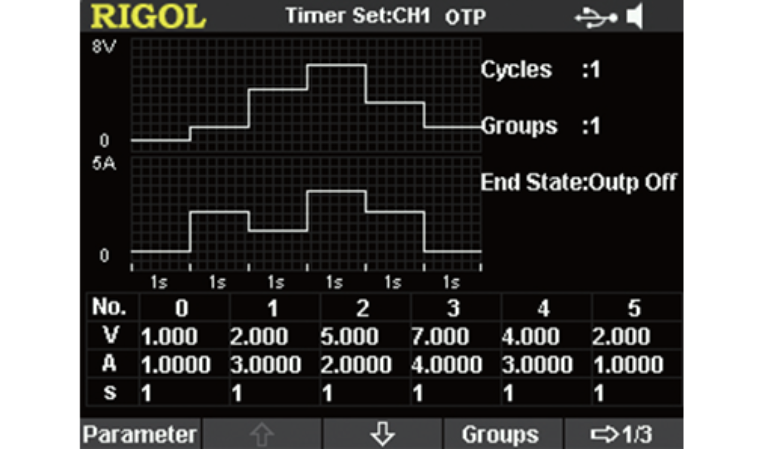

Standard timed output

When the timer is turned on, the instrument will output the preset voltage and current (up to 2048 sets). Users can set the number of output sets of the timer and set the output voltage, current, and timing time for each set. (The picture uses DP831A as an example).

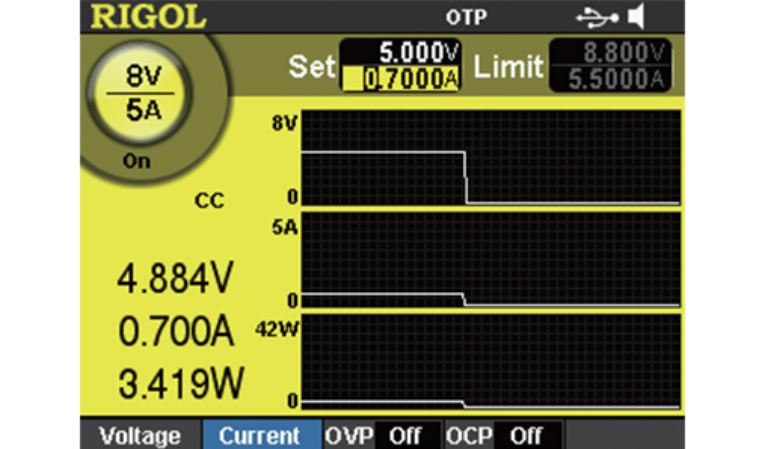

Built-in V/A/W measurement and waveform display

Measure in real-time and simultaneously display the changing trends of V/A/W parameters. (The picture takes DP831A as an example).

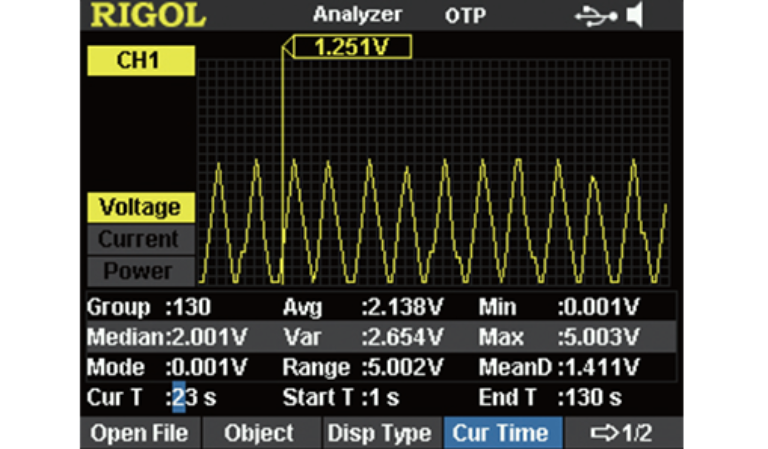

Functions such as output analysis, monitoring, and setting presets

It has functions such as output analysis, monitoring, and preset setting to achieve comprehensive monitoring and analysis. (The picture takes DP831A as an example).

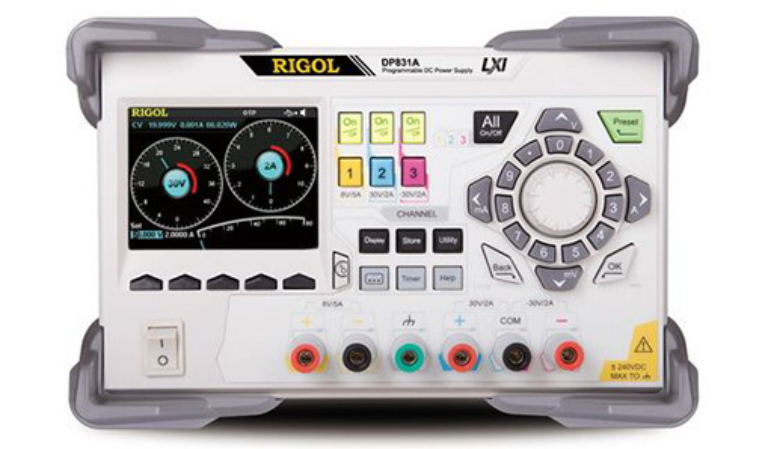

Original 3.5-inch TFT wide-screen display

The traditional numerical interface and the dashboard interface can be switched, with simple operation and intuitive clarity.

Model

Model	Number of Channels	Total Power	Output per Channel	Programming Resolution	Display Resolution	Readback Resolution	Communication Interface	Price
DP832A	3CH	195W	30V/3A \|\| 30V/3A , 5V/3A	1mV/1mA	1mV/1mA	0.1mV/0.1mA	USB, LAN, RS232, Digital IO	Rp.19.369.000
DP831A	3CH	160W	8V/5A \|\| 30V/2A , -30V/2A	1mV/0.1mA	1mV/1mA	0.1mV/0.1mA	USB, LAN, RS232, Digital IO	Rp.17.360.000
DP821A	2CH	140W	8V/10A\|\|60V/1A	1mV/1mA	1mV/1mA	1mV/1mA	USB, LAN, RS232, Digital IO	Rp.15.651.000
DP811A	1CH（2 Ranges）	200W	20V/10A（Low Range）,40V/5A（High Range）	1mV/1mA	1mV/1mA	0.1mV/0.1mA	USB, LAN, RS232, Digital IO	Rp.16.428.000
DP813A	1CH（2 Ranges）	200W	8V/20A（Low Range），20V/10A（High Range）	1mV/1mA	1mV/1mA	1mV/1mA	USB, LAN, RS232, Digital IO	Rp.15.762.000
DP822A	2CH	180W	20V/5A\|\|5V/16A	1mV/1mA	1mV/1mA	1mV/1mA	USB, LAN, RS232, Digital IO	Rp.17.416.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan
