DP800 Series

DP800 series includes single output, two output and three output programmable linear DC power supply. They have pure output, excellent performance indicators, multiple analysis functions, rich interfaces, and can meet the diverse testing needs.

Channels: 3/2/1CH
Total power: Max 200W
Output Per Channel: 30V/3A || 30V/3A , 5V/3A
Programming Accuracy: 1mV/1mA
Readback Accuracy: 0.1mV/0.1mA
Display Resolution: 1mV/1mA

Start From Rp11.710.500

Datasheet

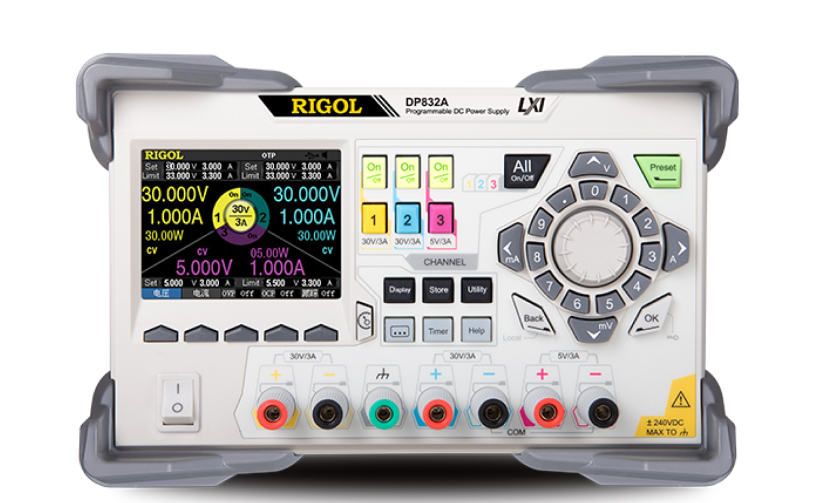

DP800 Series Product
DP800 Series thumbnail 1
DP800 Series thumbnail 2

Features

Low Ripple Noise: < 350uvrms / 2mvpp

Ultra low noise design to meet the user's demand for high purity power supply.

Low Ripple Noise: < 350uvrms / 2mvpp – DP800 Series

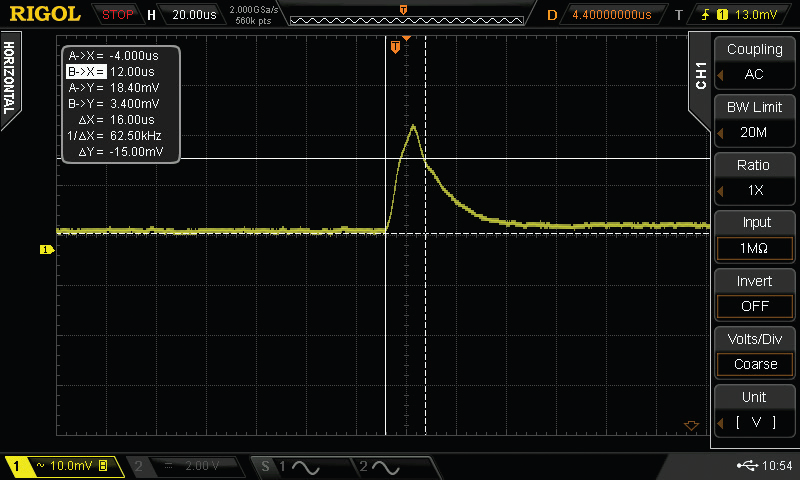

Fast Transient Response Time: < 50us

The response time of the power supply shall not exceed 50uS, so as to meet the user's demand for rapidly changing voltage waveform.

Fast Transient Response Time: < 50us – DP800 Series

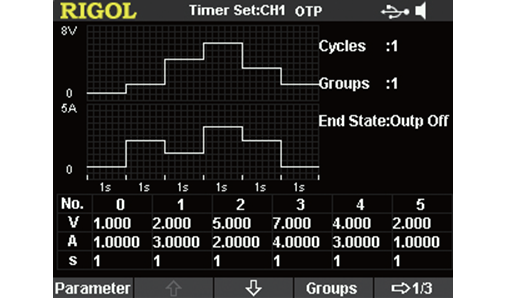

Standard Timing Output

When the timer is on, the instrument will output preset voltage and current (up to 2048 groups). The user can set the number of output groups of the timer, and set the output voltage, current and timing time of each group. (take dp831a as an example)

Standard Timing Output – DP800 Series

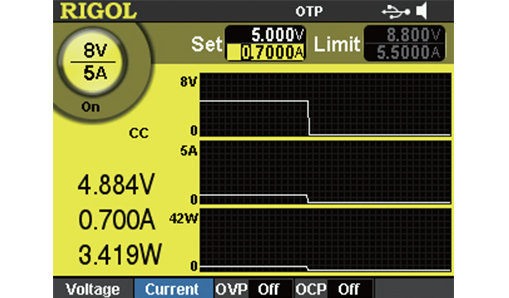

Built in V / A / W Measurement and Waveform Display

Real time measurement and display the change trend of V / A / W parameters at the same time. (take dp831a as an example).

Built in V / A / W Measurement and Waveform Display – DP800 Series

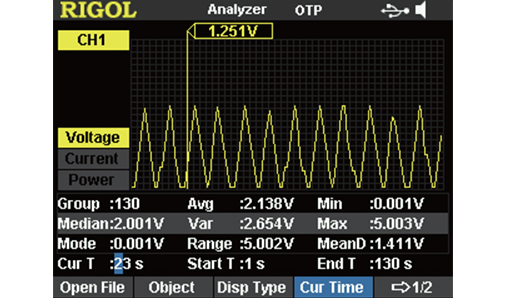

Output Analysis, Monitoring, Setting Preset and Other Functions

It has the functions of output analysis, monitoring, setting preset, etc. to realize all-round monitoring analysis (take dp831a as an example).

Output Analysis, Monitoring, Setting Preset and Other Functions – DP800 Series

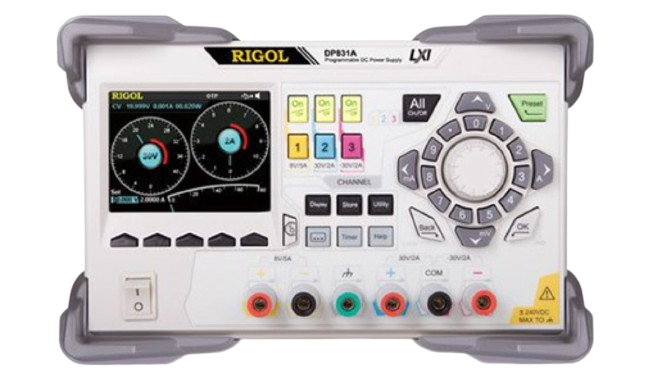

Original 3.5-inch Tft Wide Screen Display

Traditional numerical interface and instrument panel interface can be switched, easy to operate, intuitive and clear.

Original 3.5-inch Tft Wide Screen Display – DP800 Series

Model

Model Channels Total Power Output Per Channel Load Regulation Power Regulation Price
DP832A 3 195W 30V/3A | 30V/3A, 5V/3A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp19.369.000
DP832 3 195W 30V/3A | 30V/3A, 5V/3A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp14.448.000
DP831A 3 160W 8V/5A | 30V/2A + 30V/2A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp17.360.000
DP831 3 160W 8V/5A | 30V/2A + 30V/2A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp13.496.000
DP822A 2 180W 20V/5A | 50V/1.6A Voltage: ≤0.01% + 2mV/uA, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV/uA, Current: ≤0.01% + 250uA Rp17.416.000
DP822 2 180W 20V/5A | 50V/1.6A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp14.896.000
DP821A 2 140W 8V/10A | 60V/1A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp14.874.000
DP821 2 140W 8V/10A | 60V/1A Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp12.376.500
DP813A 1 200W 8V/20A/uA (Low Range)/uA, 30V/10A/uA (High Range) Voltage: ≤0.01% + 2mV/uA, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV/uA, Current: ≤0.01% + 250uA Rp15.762.000
DP813 1 200W 8V/20A/uA (Low Range)/uA, 30V/10A/uA (High Range) Voltage: ≤0.01% + 2mV/uA, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV/uA, Current: ≤0.01% + 250uA Rp13.320.000
DP811A (two ranges) 200W 20V/10A (Low Range), 40V/5A (High Range) Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp16.428.000
DP811 (two ranges) 200W 20V/10A (Low Range), 40V/5A (High Range) Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Voltage: ≤0.01% + 2mV, Current: ≤0.01% + 250uA Rp12.543.000
*Prices may change without prior notice.

Accessories

Model Description Price
RM-2-DP800 Rack Mounting Kit for 2 DP800 Power Supplies or 2 DL3000 Loads Rp1.891.000
10A-Testing-Cable 10 A testing cable for DP Series Rp387.500
RM-1-DP800 Rack Mounting Kit for 1 DP800 Power Supply or 1 DL3000 Load Rp2.123.500

User Manual

Name Version Release Date Download
DP800 User Manual V1.0 2021-10-07 Download

Datasheet

Name Version Release Date Download
DP800 Datasheet v2.0 2025-06-13 Download

Programming Manual

Name Version Release Date Download
DP800 Programming Manual V1.1 2021-10-27 Download

Quick Guide

Name Version Release Date Download
DP800 QuickGuide v1.0 2021-11-25 Download
