MSO8000 Series

The MSO8000 series digital oscilloscope is a mid- to high-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

Bandwidth: 600 MHz ~ 2 GHz
Analog Channels: 4
Real-time Sample Rate: 10 GSa/s
Max. Memory Depth: 500 Mpts
Waveform Capture Rate: 600,000 kwfms/s
Digital Channels: 16
Datasheet
MSO8000 Series Product

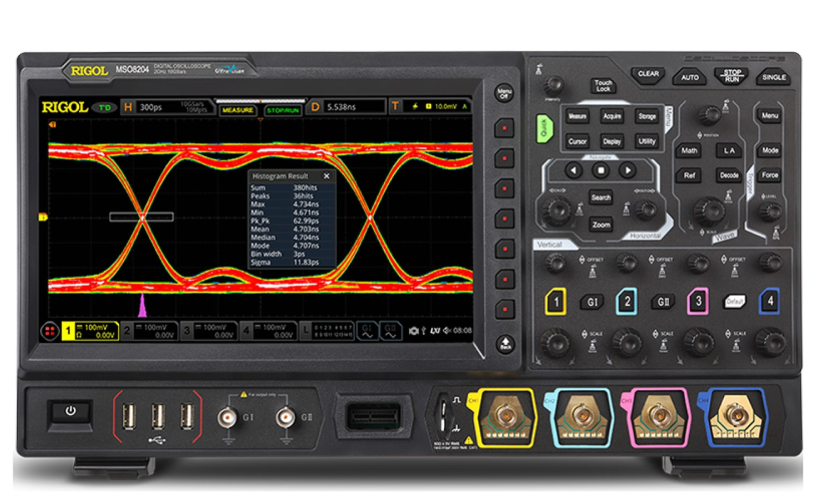

MSO8000 Series thumbnail 1

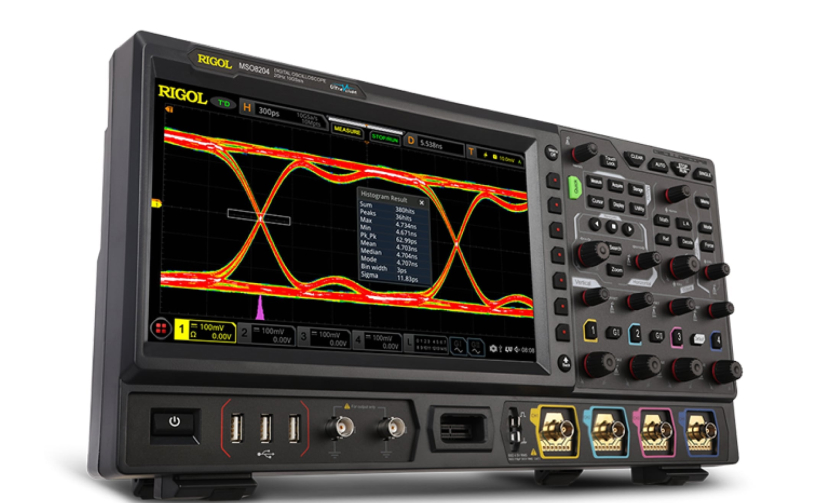

MSO8000 Series thumbnail 2

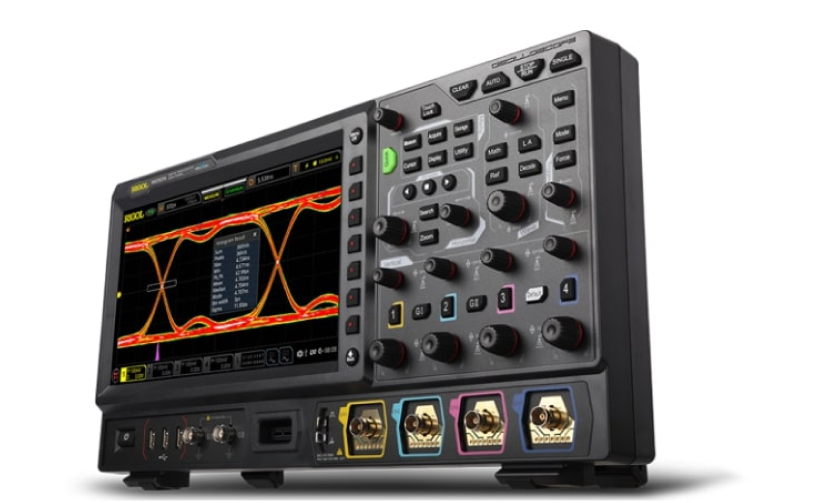

MSO8000 Series thumbnail 3

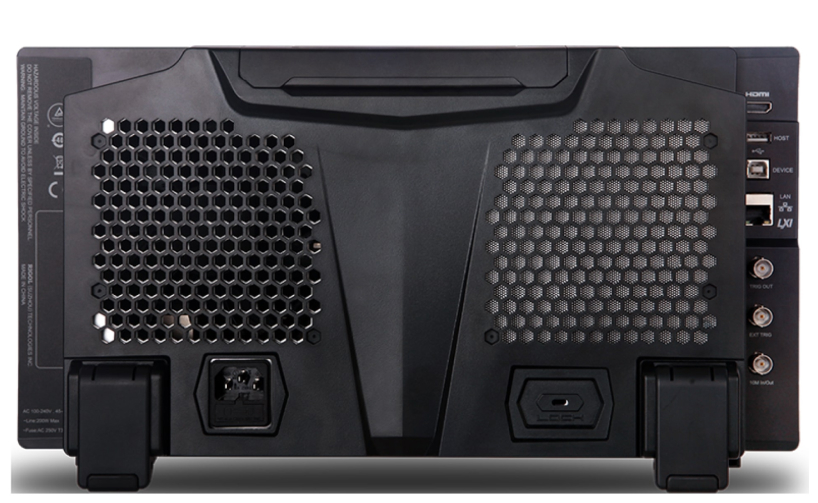

MSO8000 Series thumbnail 4

Features

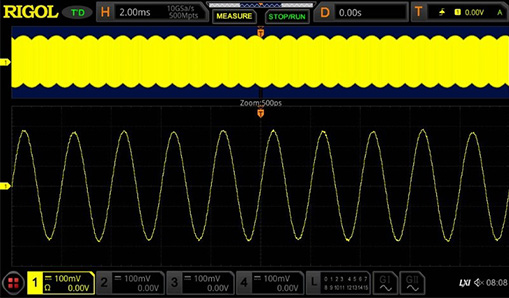

2 GHz Performance for Advanced and Serial Analysis Applications

Category Leading Performance for today's most complex embedded debug challenges. Characterize and Debug Communication Links with integrated Jitter and Real-Time Eye Diagram Solutions 10GSa/sec max Sample Rate 500MPts max Record length >600,000 wf/sec Waveform Capture Rate Jitter and Eye Analysis Option Powerful Search and Mark Capabilities

2 GHz Performance for Advanced and Serial Analysis Applications – MSO8000 Series

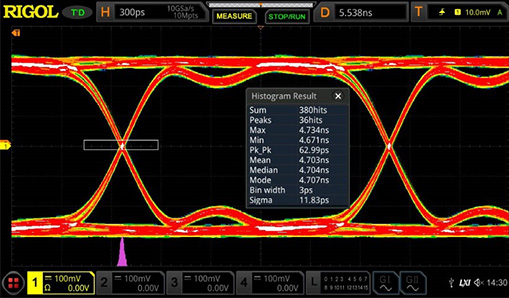

Economical and Practical Eye Diagram Pretest

Eye diagram measurement with an oscilloscope can help users visually display the transmission quality of digital signals, thereby understanding the strength of crosstalk between codes in the system, and making improvements in system design. For those who often need to verify the quality of digital signals, the MSO8000 digital oscilloscope with eye diagram function is your wise choice.

Economical and Practical Eye Diagram Pretest – MSO8000 Series

Support for Dither Analysis of Diverse Displays

The MSO8000 Series with the MSO8000-JITTER option enables Jitter and Real-Time Eye analysis. Debug subtle timing effects in your high speed clock and digital data lines by visualizing error sources with the eye diagram, histogram, and jitter trend. Combine these visualization tools with direct measurements of the most common jitter and eye parameters.

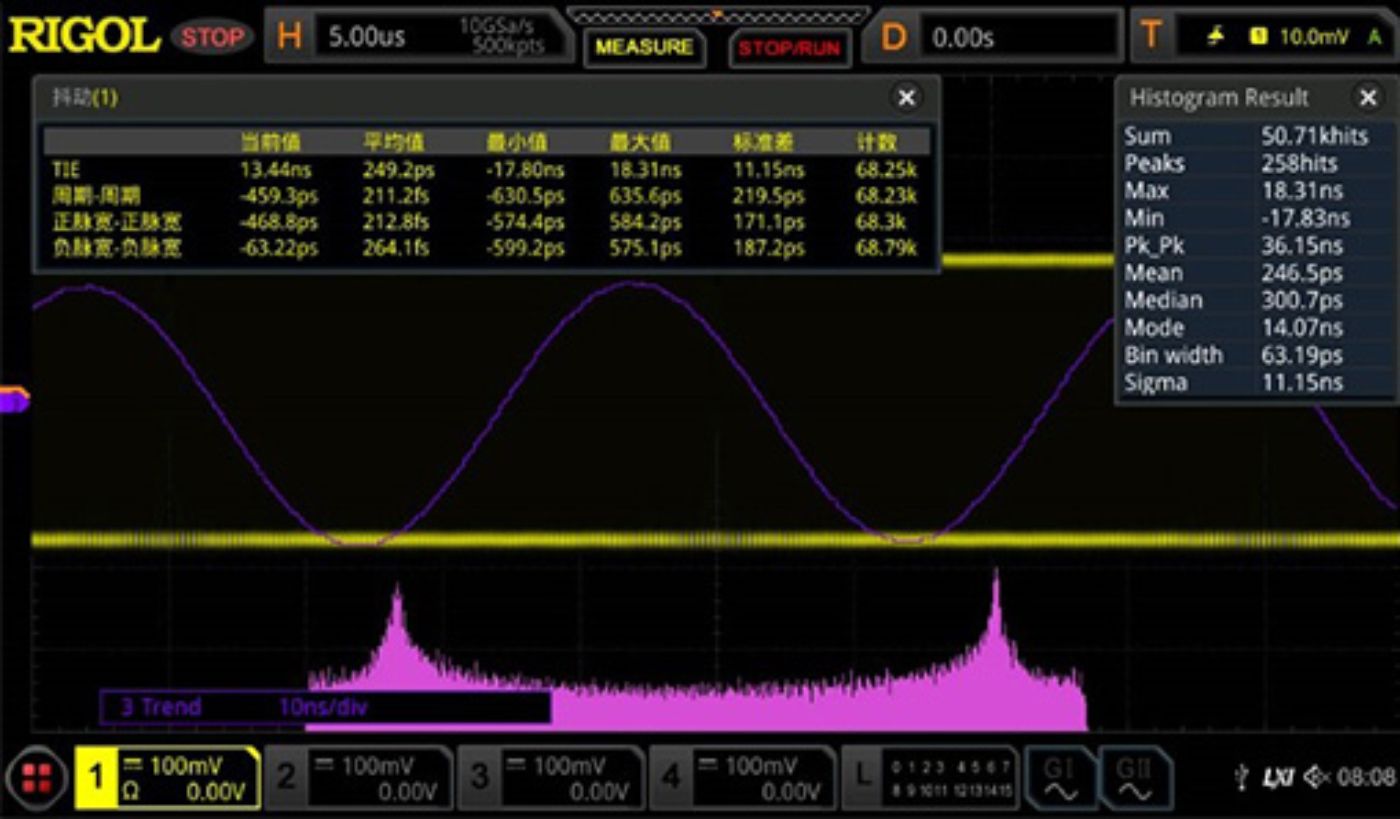

Support for Dither Analysis of Diverse Displays – MSO8000 Series

Full Memory Hardware Measurement

No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.

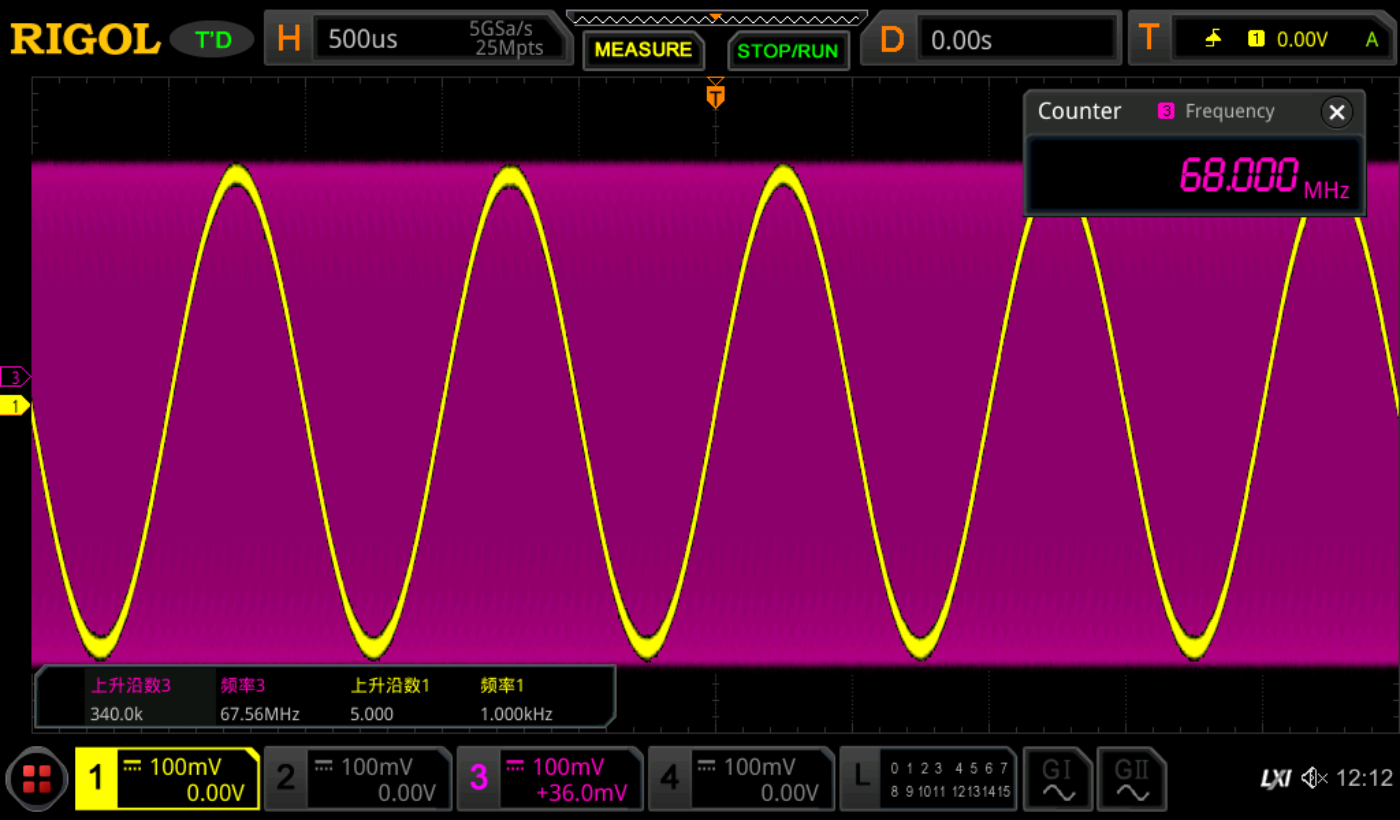

Full Memory Hardware Measurement – MSO8000 Series

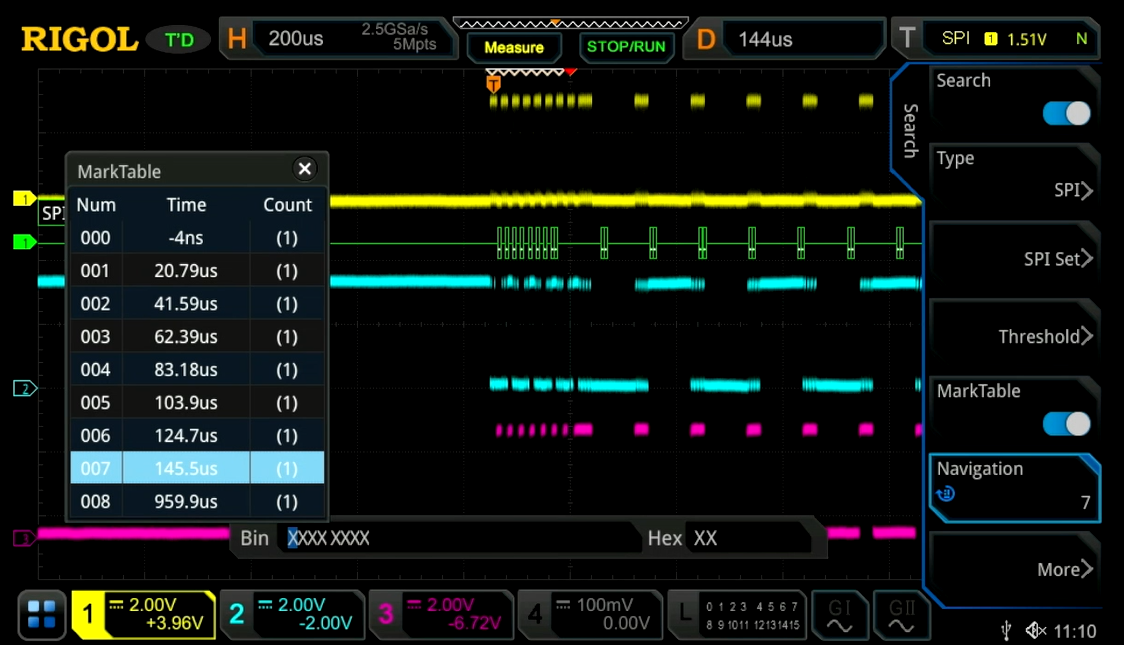

Trigger, decode, and visualize serial bus traffic to speed

The MSO8000 Series provides decoding on up to 4 serial buses simultaneously. The MSO8000 provides the option of viewing traffic in a comprehensive event table. Choose from our expanded bus list including RS232/UART, I2C, SPI, LIN, CAN, FlexRay, I2S, and MIL-STD-1553. Add to that search and mark capabilities for the most common serial buses to debug systems quickly and easily.

Trigger, decode, and visualize serial bus traffic to speed – MSO8000 Series

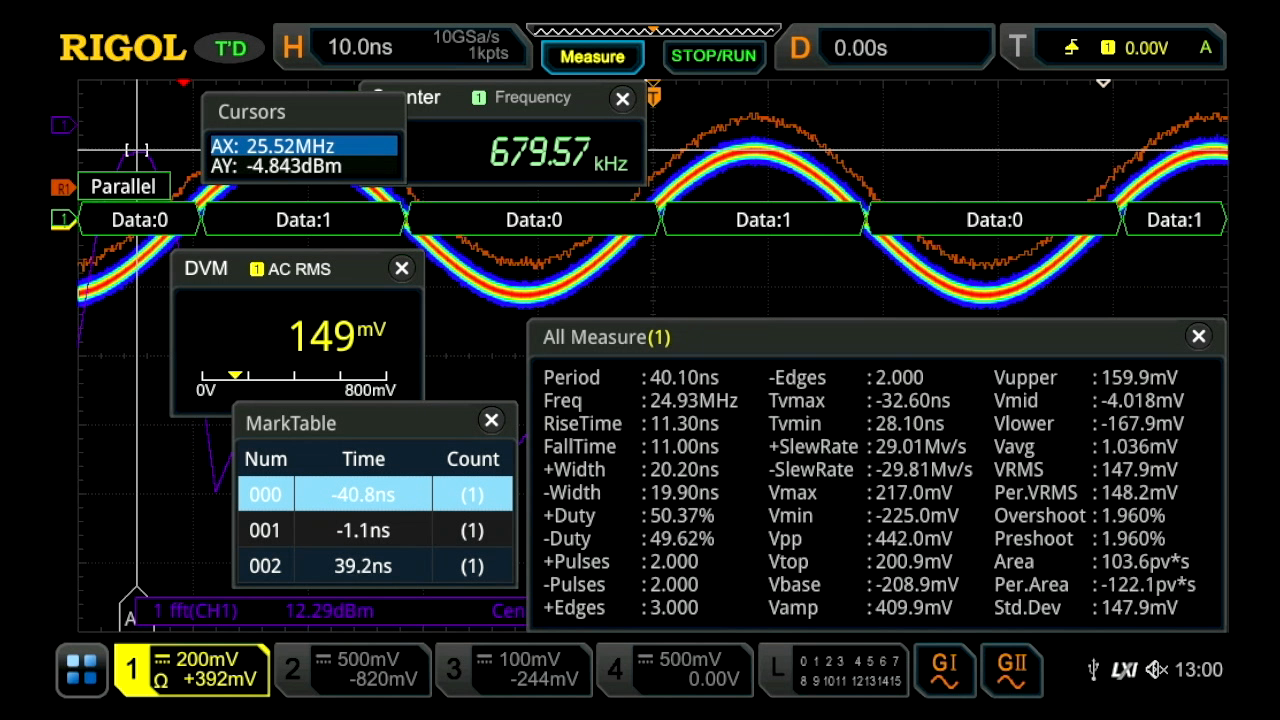

Minimize scope “dead time” between trigger events and increases

Faster capture times reduce the time it takes to visualize these transient effects. Most of the scope’s capabilities can be used without sacrificing waveform capture rate performance. This enables detailed analysis with high signal fidelity.

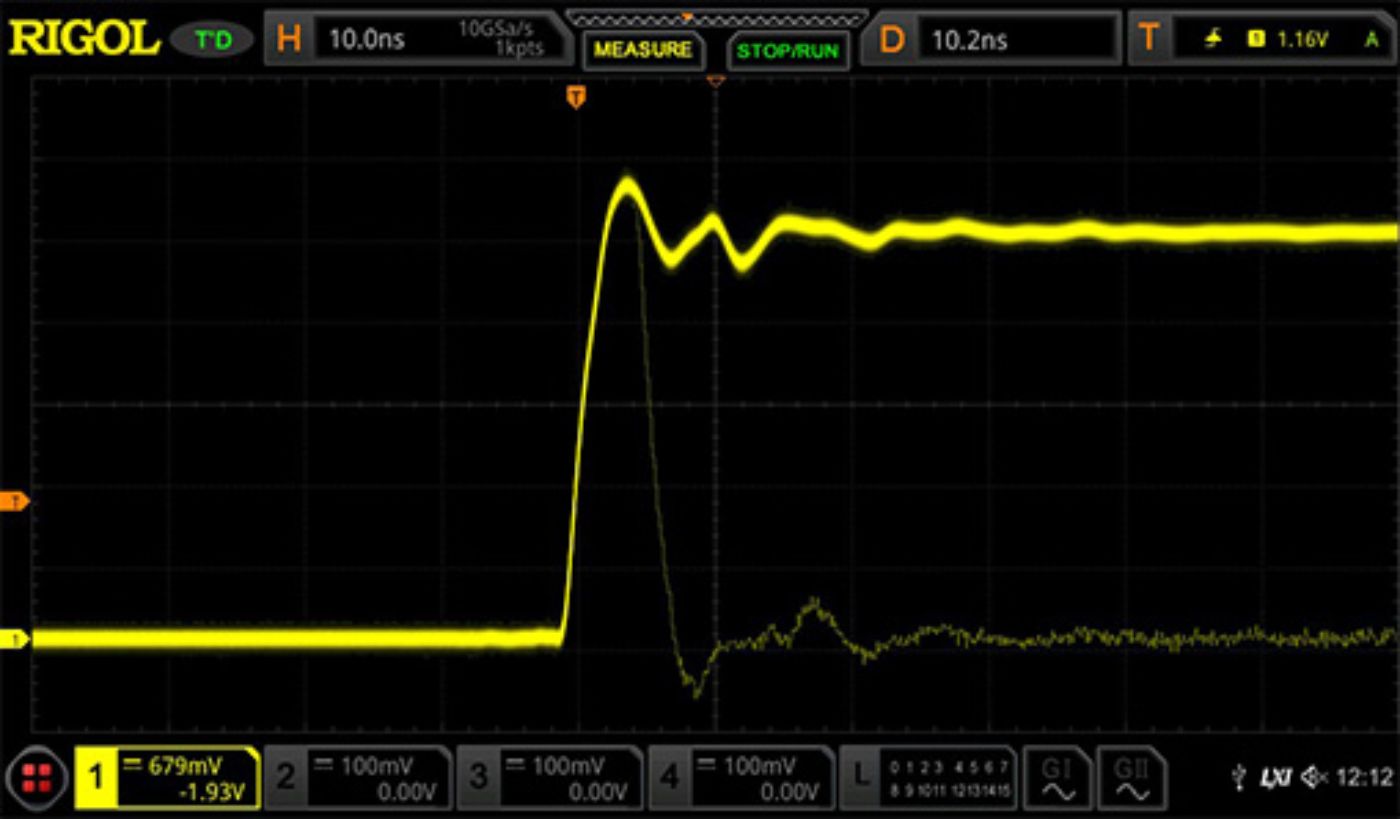

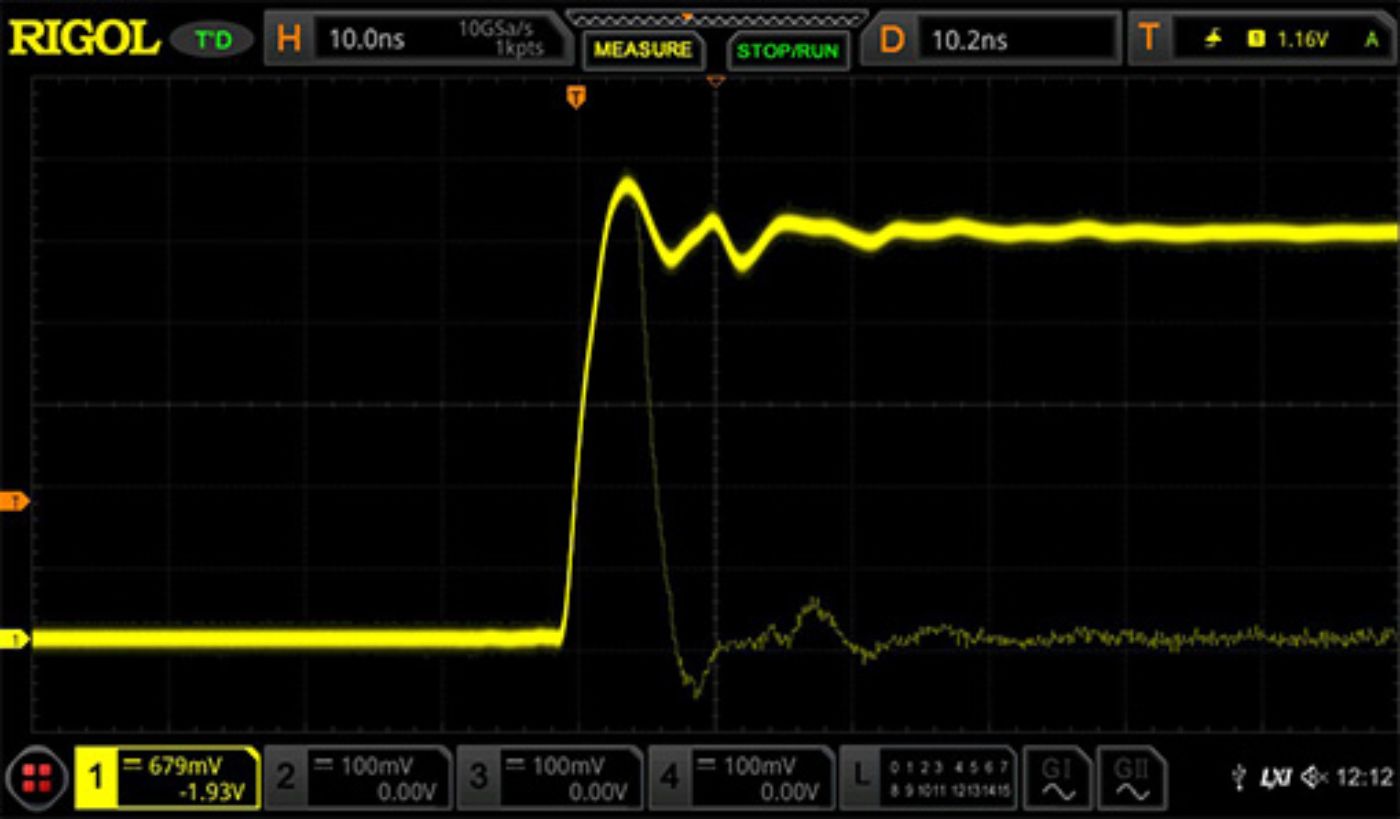

Minimize scope “dead time” between trigger events and increases – MSO8000 Series

Find exclusive problems in complex digital streams with Find elusive problems in complex digital streams with long acquisitions at high

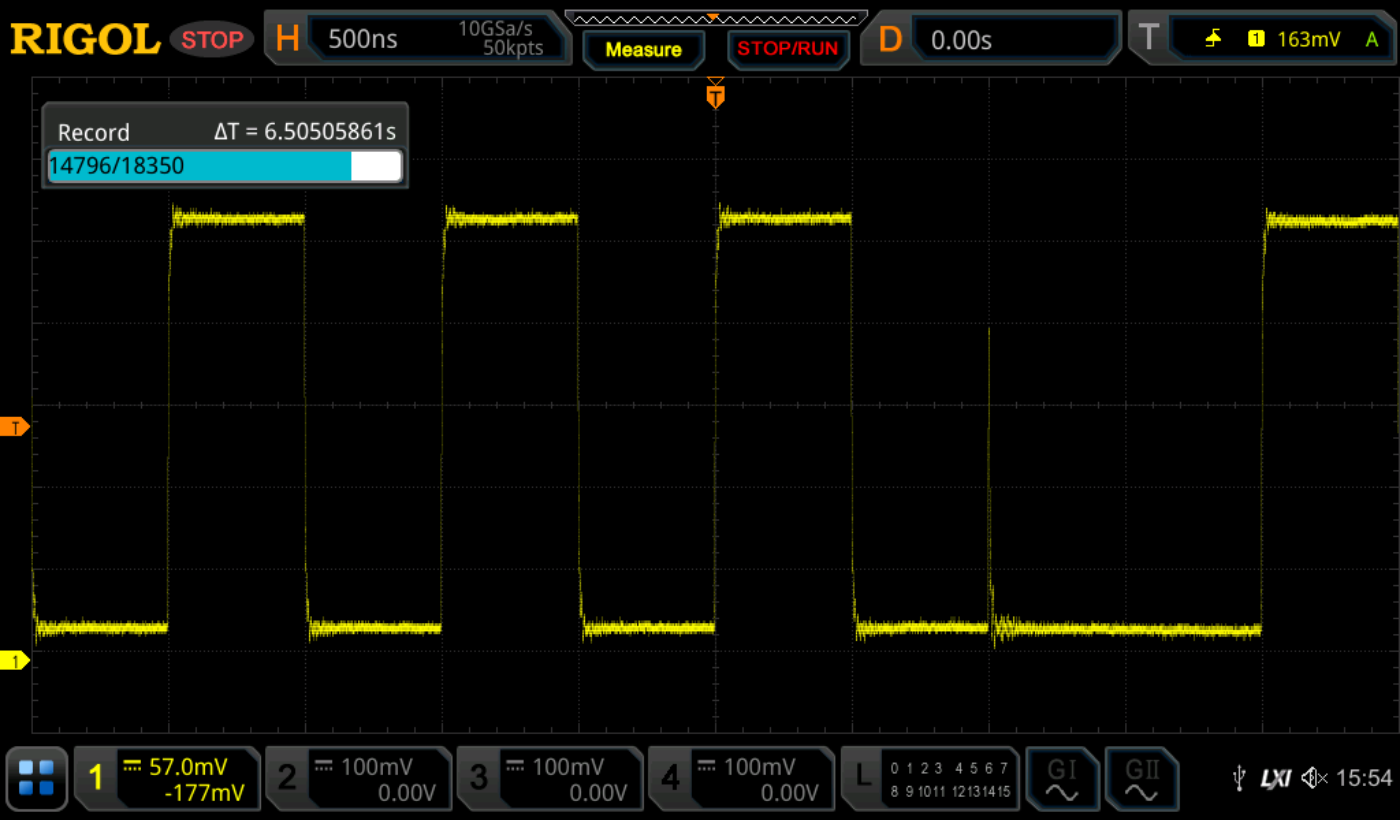

The MSO8000 provides up to 500 Mpt record lengths while making it easier than ever to utilize these samples. The MSO8000 provides complete search navigation and wave recording capabilities to harness the value of our deeper memory.

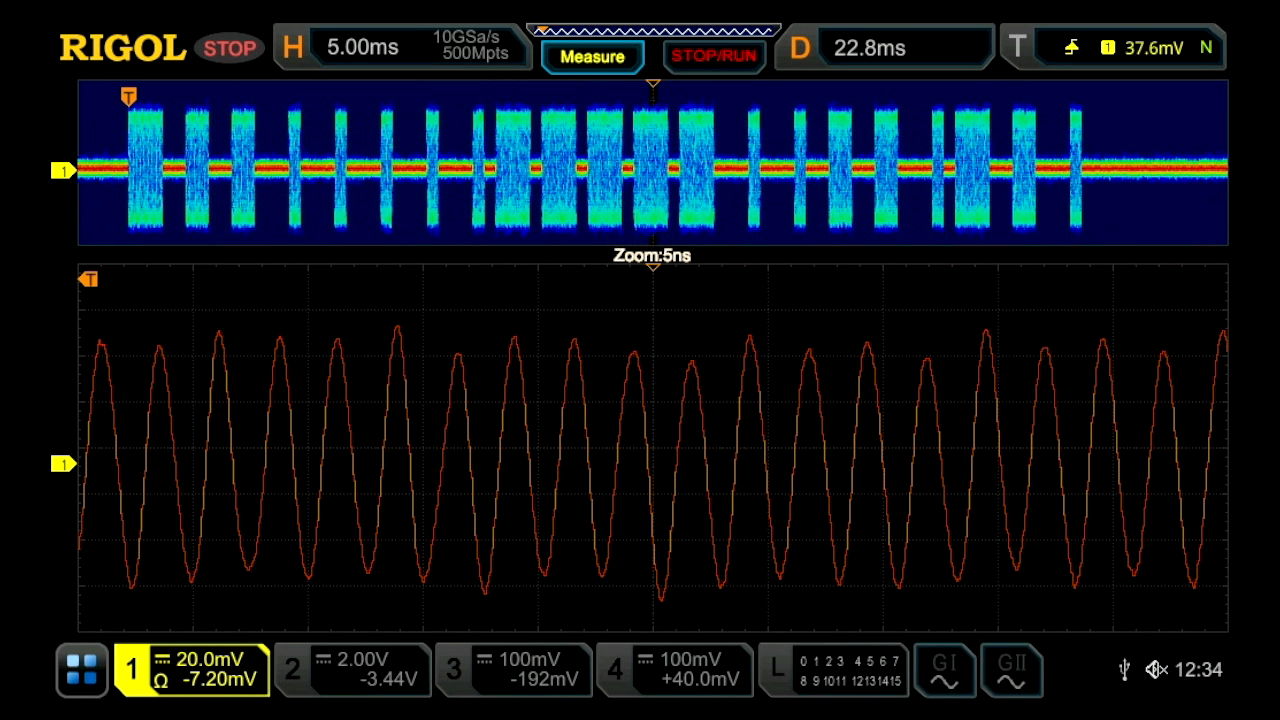

Find exclusive problems in complex digital streams with Find elusive problems in complex digital streams with long acquisitions at high – MSO8000 Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
MSO8064 600 MHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Need to configure logic probe) 2CH (option) Get a Quote
MSO8104 1 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Need to configure logic probe) 2CH (option) Get a Quote
MSO8204 2 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 16 (Need to configure logic probe) 2CH (option) Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
MSO8000-JITTER Eye diagram and jitter analysis Rp17.557.460
MSO8000-PWR Built-in power analysis software Rp17.557.460
MSO8000-AWG 2CH 25MHz Arbitrary wave generator Rp12.284.260
MSO8000-AERO MIL-STD1553 bus trigger and analysis Rp17.557.460
MSO8000-AUDIO Audio serial bus triggering and analysis(I2S) Rp17.557.460
MSO8000-FLEX Automotive serial bus triggering and analysis(FlexRay) Rp17.557.460
MSO8000-AUTO Automotive serial bus triggering and analysis(CAN/LIN) Rp17.557.460
MSO8000-EMBD Embedded serial bus triggering and analysis(I2C/SPI) Rp17.557.460
MSO8000-COMP Computer serial bus triggering and analysis(RS232/UART) Rp17.557.460
MSO8000-BND Bundle options, including all serial protocol analysis options and measurement application options Rp39.083.460

User Manual

Name Version Release Date Download
MSO8000 User Manual V2.0 2024-06-07 Download
MSO8000 RackmountKit Manual V1.0 2021-11-01 Download

Datasheet

Name Version Release Date Download
MSO8000 Datasheets V5.0 2025-05-20 Download

Programming Manual

Name Version Release Date Download
MSO8000 Programming Manual V2.0 2024-07-01 Download

Open Source

Name Version Release Date Download
MSO&DS7000&8000 Open Source Acknowledgment V1.0 2021-11-17 Download

Quick Guide

Name Version Release Date Download
MSO8000 Quick Guide V2.0 2024-06-07 Download
