DP900 Series

The latest DP900 series, in addition to the advantages of low ripple and high accuracy, also adds a variety of new functions such as one-key series-parallel, full-channel isolation, etc. to meet the new needs of various application fields, and a new model for education is added to users. Provide maximum security, three-way classic, totally new start.

Total Power: 210W
Channel Number: 3CH
Ripple: < 350μVrms
Datasheet
DP900 Series Product
DP900 Series thumbnail 1
DP900 Series thumbnail 2

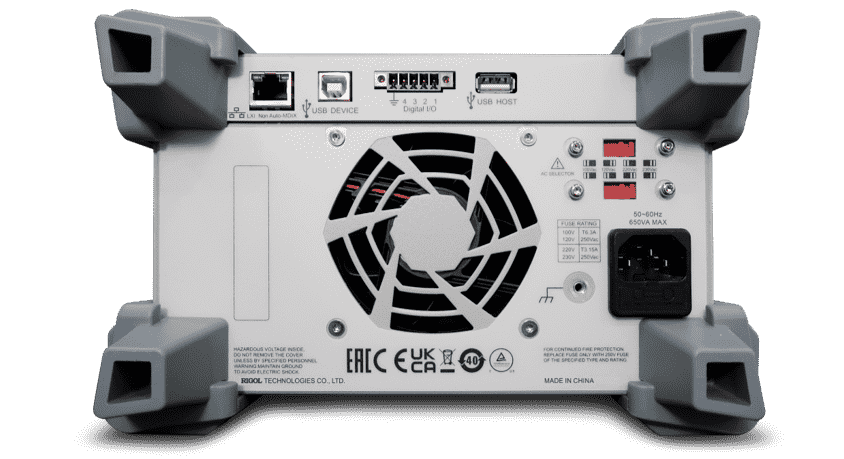

DP900 Series thumbnail 3
DP900 Series thumbnail 4

Features

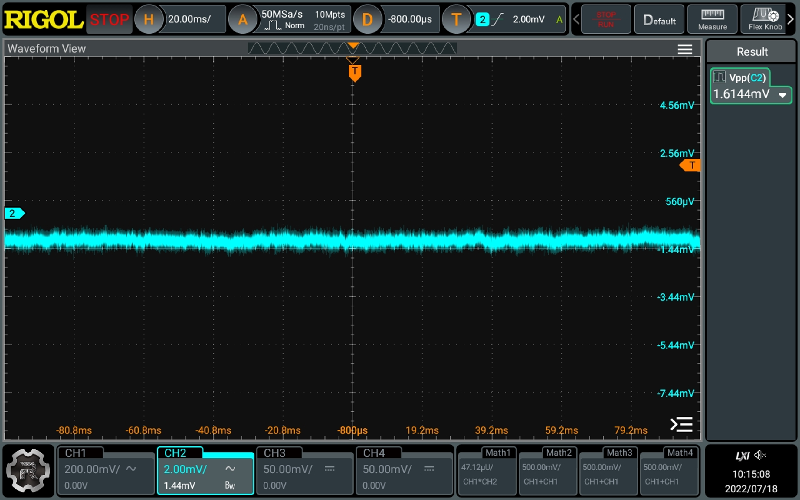

Low Ripple Noise: <350μVrms / 2mVpp

One of the advantages of linear DC power supply is the pure output. In the 20Hz-20MHz bandwidth, the DP900 ripple and noise index is less than 350μVrms or 2 mVpp, ultra-low noise design, purer output, and minimizes any interference to the load. Provides a high-purity signal.

Low Ripple Noise: <350μVrms / 2mVpp – DP900 Series

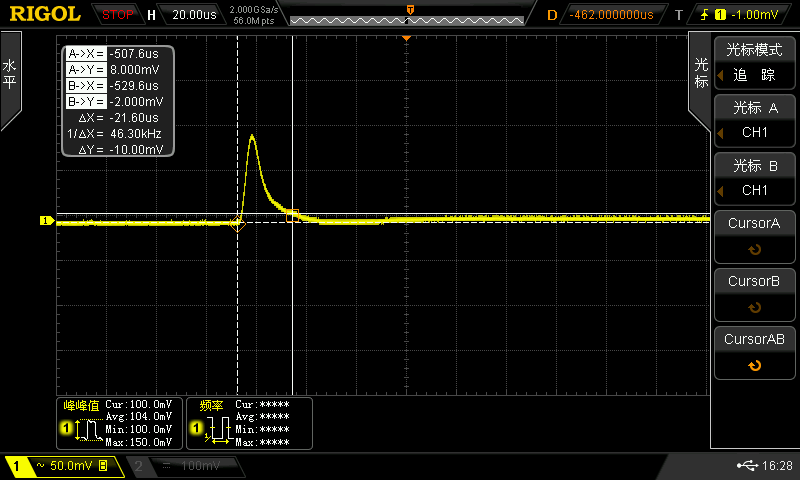

Fast Transient Response Time: < 50us

A high-quality power supply must be able to cope with changing loads well. The DP900 has a transient response capability of less than 50us, which meets the user's needs for rapidly changing voltage waveforms and ensures the smooth progress of the test work.

Fast Transient Response Time: < 50us – DP900 Series

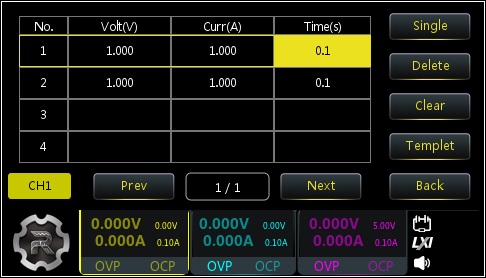

Precise Arbitrary Wave Function: 100ms

The Arb minimum dwell time of DP900 is increased to 100ms, and a variety of basic waveforms are built in, which supports free editing and generation of waveforms, and simulates different application scenarios for testing.

Precise Arbitrary Wave Function: 100ms – DP900 Series

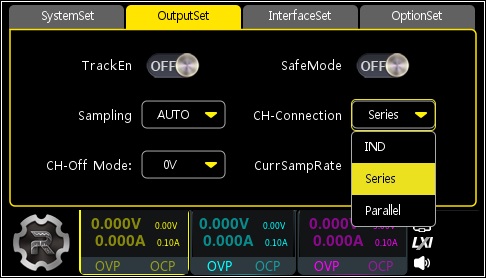

One-Key Series-Parallel, Flexible Testing

Channel 1 and channel 2 of the DP900 have added a one-key series-parallelfunction. The machine can realize serial 64V or parallel 6A output. Say goodbye to external cumbersome wiring and software switching to help your test efficiency.

One-Key Series-Parallel, Flexible Testing – DP900 Series

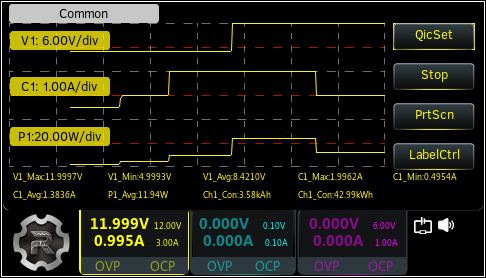

A Variety of Functions, A Wide Range of Applications

DP900 series programmable linear DC power supply also provides various functions such as general analysis, pulse current analysis, monitor, trigger, etc., and is compatible with the standard SCPI ommand set, which can give you higher-level analysis and control capabilities, not only simple power delivery.

A Variety of Functions, A Wide Range of Applications – DP900 Series

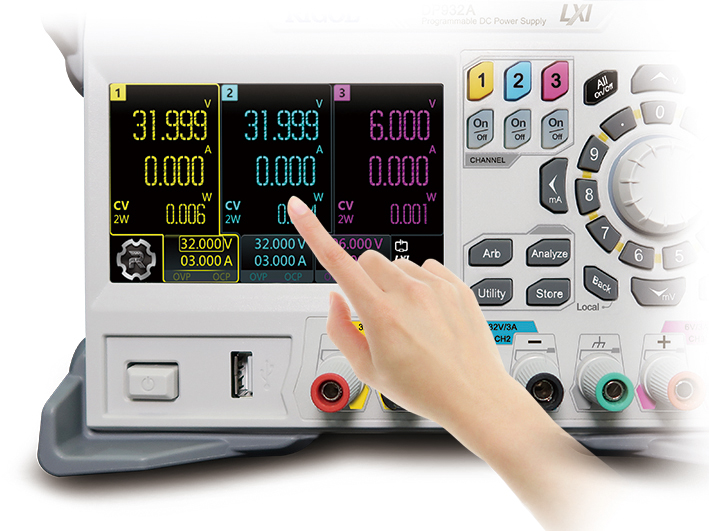

Colorful Appearance, Convenient Operation

The 4.3-inch color touch screen supports two working modes: touch screen and non-touch screen, and smooth touch interaction brings a better experience for your testing.

Colorful Appearance, Convenient Operation – DP900 Series

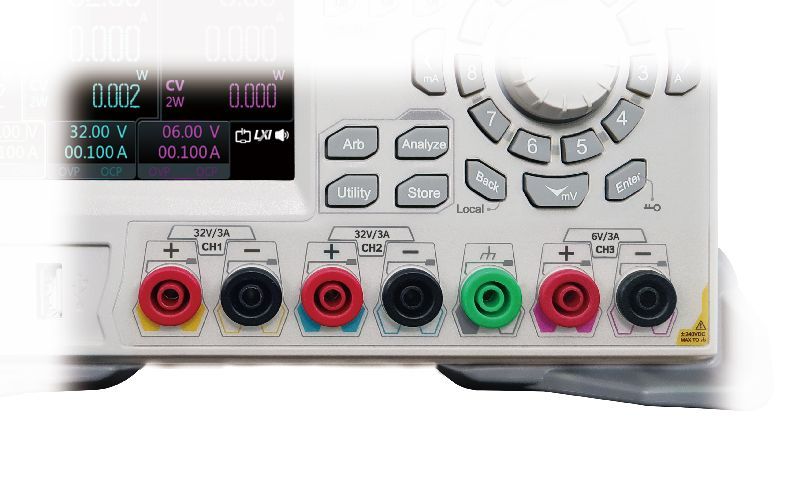

Benefit Education, Safety Terminal

The front panel of the DP932U model of the DP900 series is equipped with safety terminals without exposed metal, which can protect the user's test safety. Sincere price, reliable performance, and safety guarantee are the best choice for your purchase!

Benefit Education, Safety Terminal – DP900 Series

Model

Model Channels Total Power Output Per Channel Programming Resolution Readback Resolution Communication Interface Price
DP932A 3CH 210W 32V/3A || 32V/3A || 6V/3A 1mV/1mA 0.1mV/0.1mA USB, LAN, Digital IO Get a Quote
DP932E 3CH 198W 32V/3A || 32V/3A || 6V/3A 10mV/10mA 10mV/10mA USB, LAN Rp12.200.000
DP932U 3CH 210W 32V/3A || 32V/3A || 6V/3A 10mV/10mA 10mV/10mA USB, LAN, opt-Digital IO Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
RM-2-DP800 Rack Mounting Kit for 2 DP800 Power Supplies or 2 DL3000 Loads Rp1.891.000
10A-Testing-Cable 10 A testing cable for DP Series Rp387.500
RM-1-DP800 Rack Mounting Kit for 1 DP800 Power Supply or 1 DL3000 Load Rp2.123.500

User Manual

Name Version Release Date Download
DP900 User Guide V3.0 2024-08-23 Download

Datasheet

Name Version Release Date Download
DP900 Datasheet V3.0 2024-08-23 Download

Programming Manual

Name Version Release Date Download
DP900 Programming Manual V2.0 2024-08-23 Download

Quick Guide

Name Version Release Date Download
DP900 QuickGuide V1.0 2024-02-23 Download
