RSA5000-TG

The RIGOL RSA5000-TG is a high-performance real-time spectrum analyzer with an optional tracking generator, designed for advanced RF signal testing and analysis. It supports wide frequency coverage up to 6.5 GHz, real-time spectrum analysis, and powerful measurement capabilities, making it suitable for wireless communication development, EMI pre-compliance testing, and general RF engineering applications.

Frequency Range : 9kHz~6.5GHz
Resolution Bandwidth (RBW) : 1Hz~10MHz
Phase Noise (Typ.) : -108dBc/Hz@10kHz
Displayed Average Noise Level (DANL) : -165dBm
Tracking Generator : Yes
Analysis Function : RTSA/EMI/VSA
Datasheet

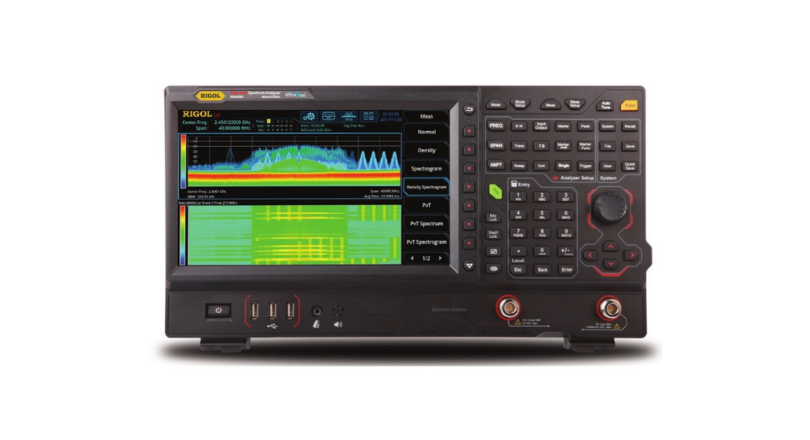

Main Image
Thumbnail 1

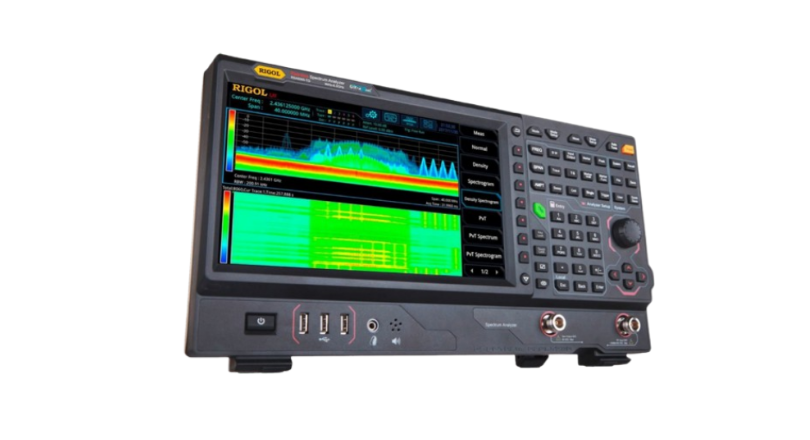

Thumbnail 2

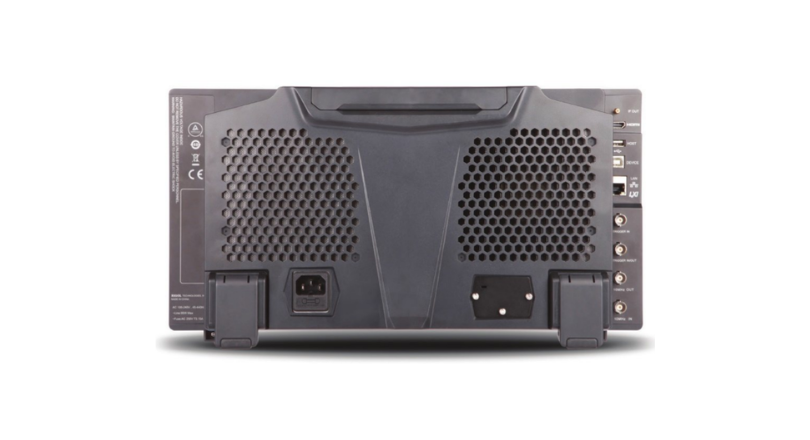

Thumbnail 3
Thumbnail 4

Features

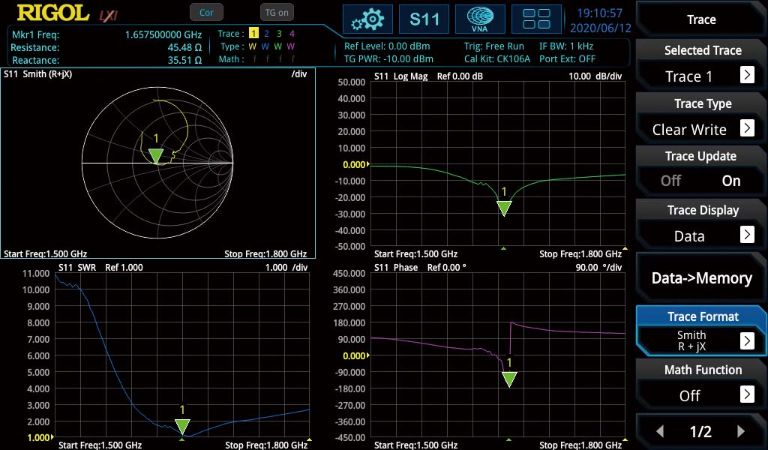

Built-in VNA vector network analysis mode (N model)

The VNA mode can measure the S11, S21 of components and circuit networks and locate fault points. It can more accurately characterize the network characteristics of the device under test through various displays such as Smith charts and polar coordinates.

Built-in VNA vector network analysis mode (N model)

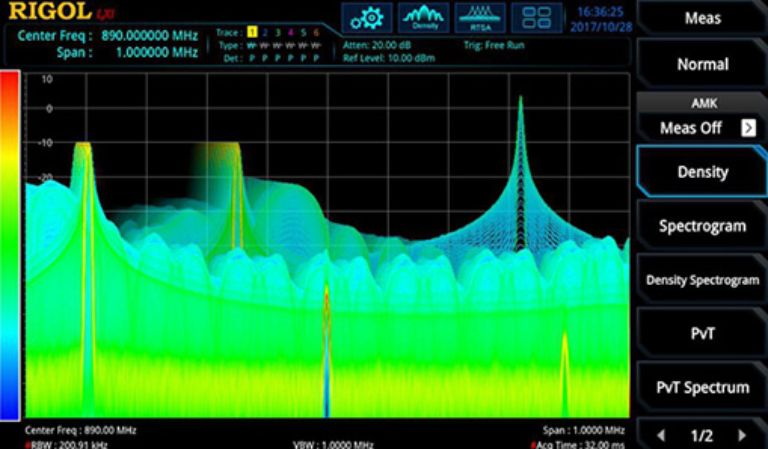

Detect transient abnormal signals through UltraReal technology

The RSA5000 uses UltraReal technology to provide a real-time bandwidth of up to 40 MHz. Within the real-time bandwidth range, it can ensure that transient signals with a duration of more than 7.45 μs can be captured 100% and accurately measured.

Detect transient abnormal signals through UltraReal technology

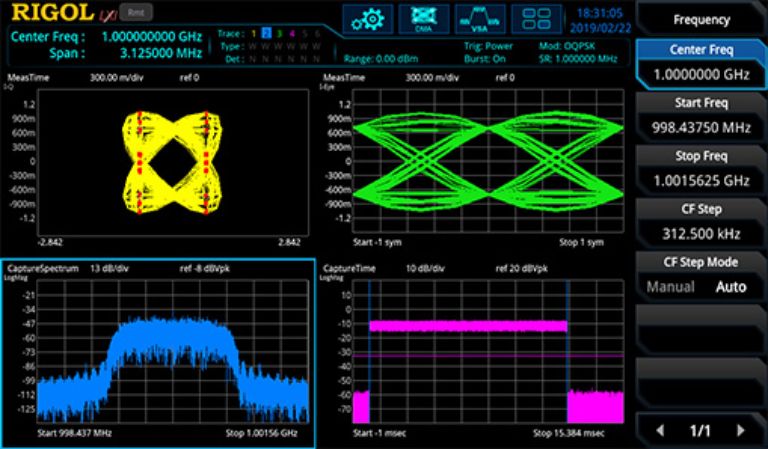

Find problems in the design through the vector analysis function

The vector signal analysis function VSA supports a variety of digital modulation formats, such as QAM, PSK, MSK, ASK, FSK, etc. Through this function, rapid demodulation is carried out to display multi - dimensional data such as constellation diagrams, eye diagrams (baseband signals), spectrograms, and demodulated data, so as to discover problems in the design.

Find problems in the design through the vector analysis function

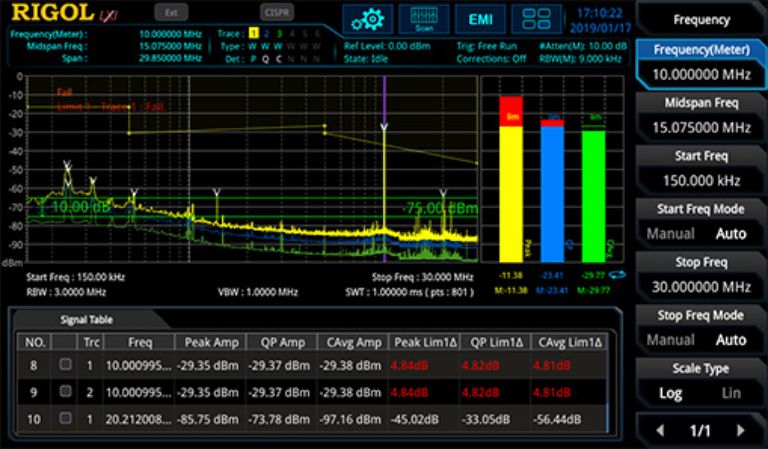

Complete the pre-test of conduction/radiation through the built-in EMI test software.

The RSA5000 is built-in with EMI pre-test application software. Combined with the filter that complies with the CISPR standard, it conducts pre-tests on the product for conduction and radiation, thereby identifying the sources of conduction/radiation interference and making improvements to accelerate the product's market entry.

Complete the pre-test of conduction/radiation through the built-in EMI test software.

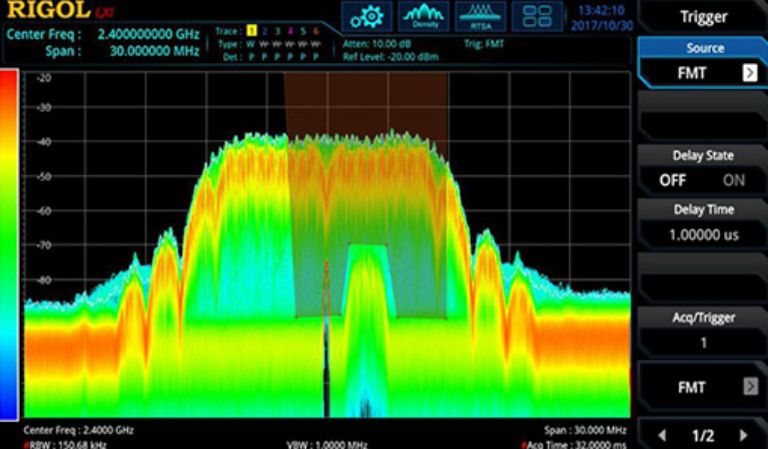

Trigger and monitor signals through the FMT template

FMT frequency template triggering is a triggering mode unique to real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that meet the template rules, thereby discovering occasional abnormal signals within the monitoring range.

Trigger and monitor signals through the FMT template

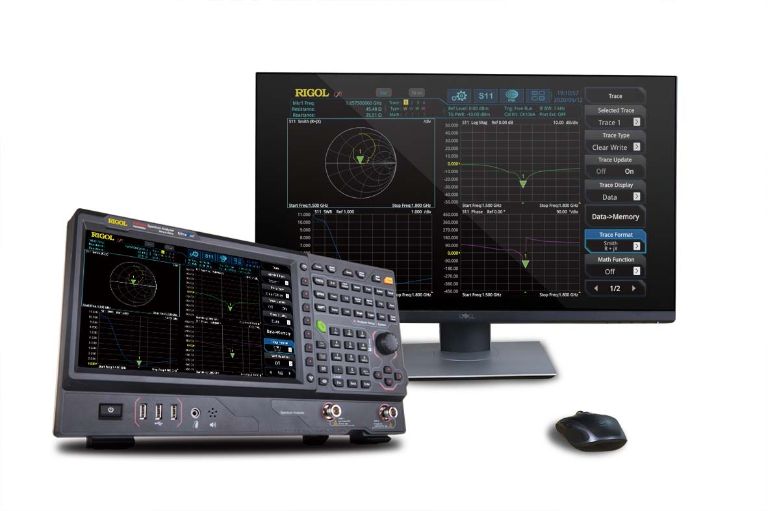

Provide multiple interfaces to enhance the connectivity of instruments and equipment.

It supports casting the display content of the device to a larger monitor through the HDMI interface. It provides the Web Control function, allowing users to directly control the device by accessing the device's IP address, thus enhancing the experience of remote control.

Provide multiple interfaces to enhance the connectivity of instruments and equipment.

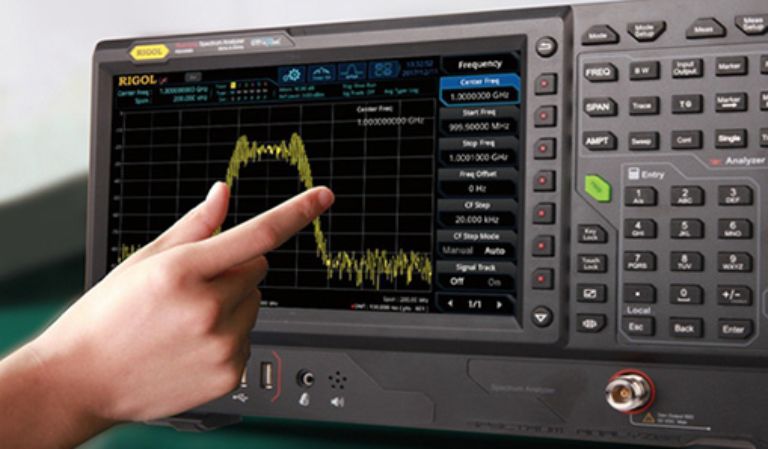

Use the multi-touch screen to complete operations quickly.

You can use the 10.1-inch multi-touch capacitive screen provided by RSA5000 for quick settings. It supports various gesture operations such as dragging, expanding, and zooming on the waveform, providing a user-friendly interactive experience.

Use the multi-touch screen to complete operations quickly.

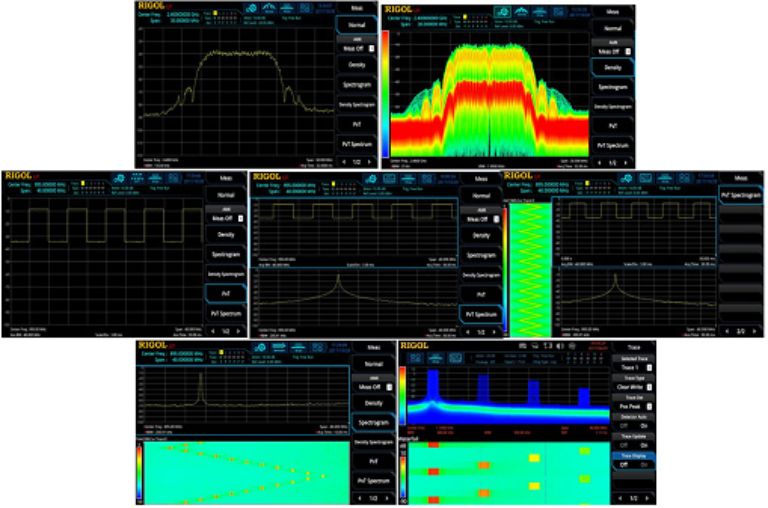

7 real-time display modes

The seven real-time signal display modes of the RSA5000 make it easier to capture, isolate, and analyze RF signals and systems. The relationship between power and time, as well as the spectrogram, shows how the signal changes with the acquisition time or continuous acquisition time. Combining these presentations and using markers and triggers in different modes makes the RSA5000 a flexible tool for real-time RF analysis and debugging.

7 real-time display modes

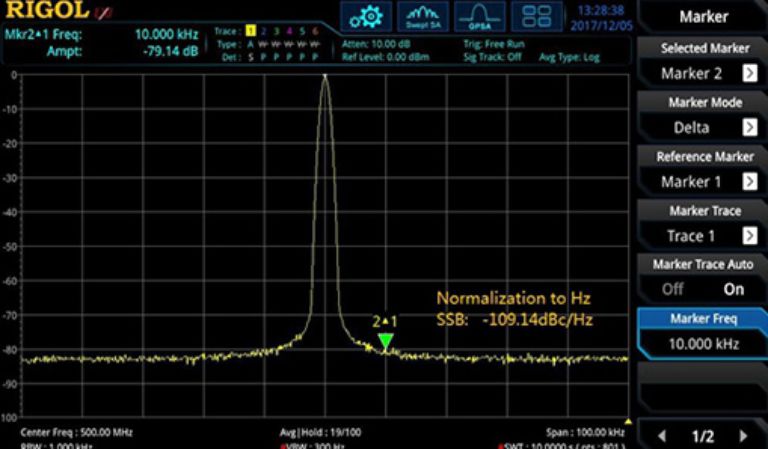

Excellent phase noise indicators

Excellent sweep frequency performance indicators, with phase noise as low as -108dBc/Hz.

Excellent phase noise indicators

Model

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise (Typ.) Displayed Average Noise Level (DANL) Tracking Generator Analysis Function
RSA5065-TG 9kHz~6.5GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes RTSA/EMI/VSA
RSA5032-TG 9kHz~3.2GHz 1Hz~10MHz -108dBc/Hz@10kHz -165dBm Yes RTSA/EMI/VSA
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Version Release Date Download
RSA5000 DataSheet V3.0 2025-02-07 Download
