DSA800-TG

The RIGOL DSA800-TG Series is a high-performance spectrum analyzer designed for RF testing, wireless communications, EMC pre-compliance, and antenna characterization. Equipped with a built-in Tracking Generator (TG), the DSA800-TG enables both spectrum analysis and frequency response measurements of filters, amplifiers, cables, and antennas in a single instrument. The series offers frequency ranges from 9 kHz up to 7.5 GHz, making it suitable for a wide range of RF applications.

Frequency Range : 9kHz~7.5GHz
Resolution Bandwidth (RBW) : 10Hz~1MHz
Phase Noise (Typ.) : -98dBc/Hz@10kHz
Tracking Generator : Yes
Datasheet

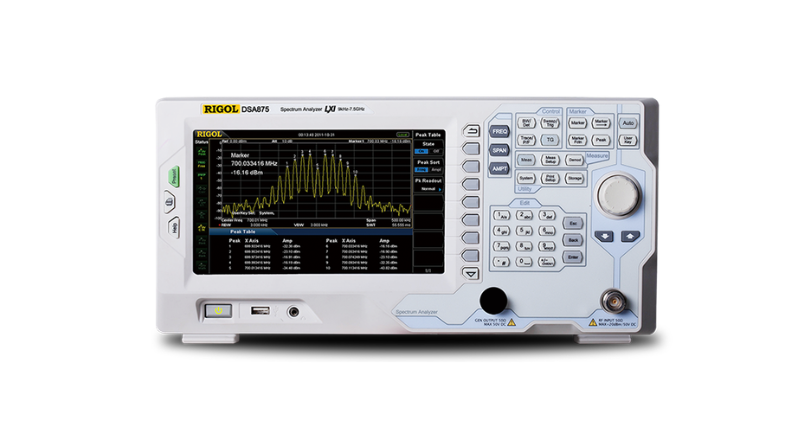

Main Image
Thumbnail 1

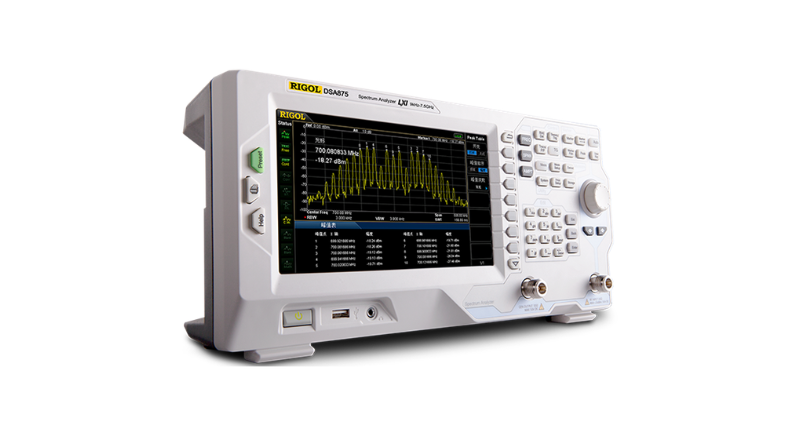

Thumbnail 2

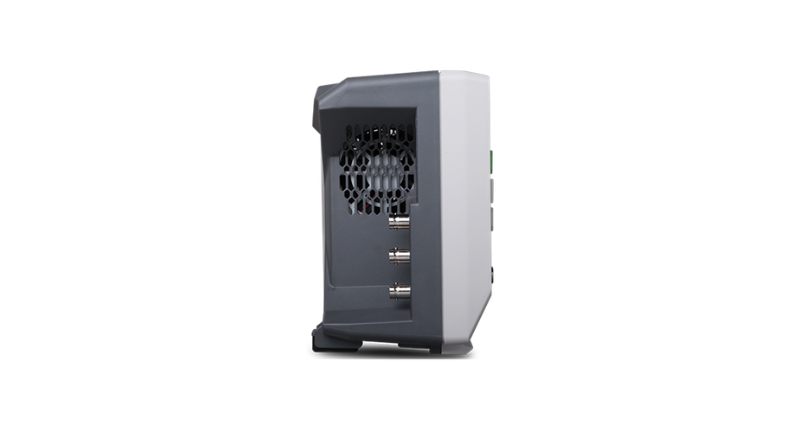

Thumbnail 3

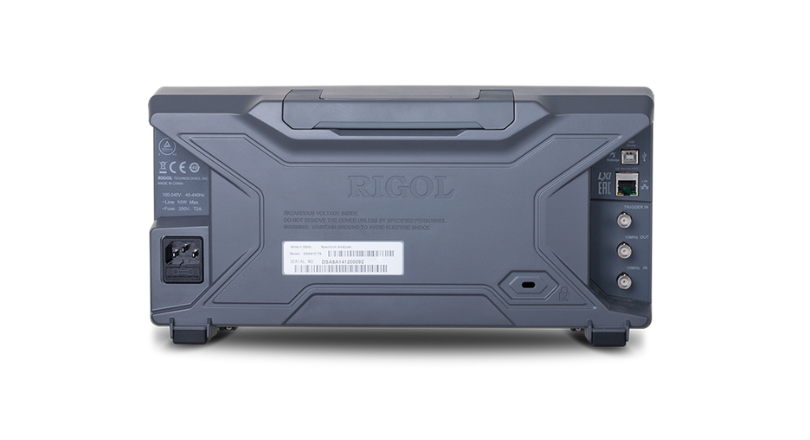

Thumbnail 4

Features

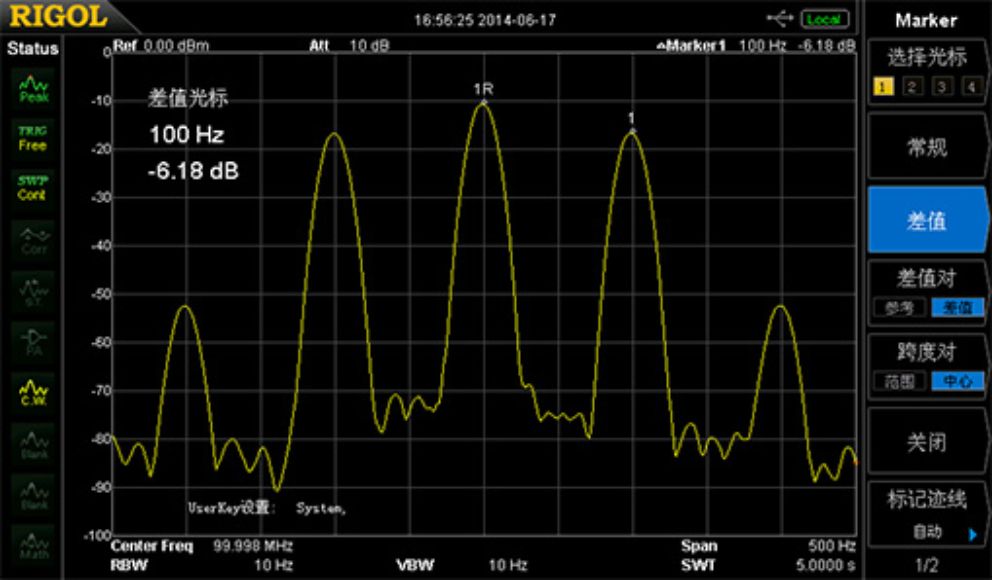

10Hz Resolution Bandwidth

The DSA800 withl RF technology to provide a resolution bandwidth as low as 10 Hz, which can effectively distinguish adjacent equal-amplitude signals and improve signal discrimination.

10Hz Resolution Bandwidth

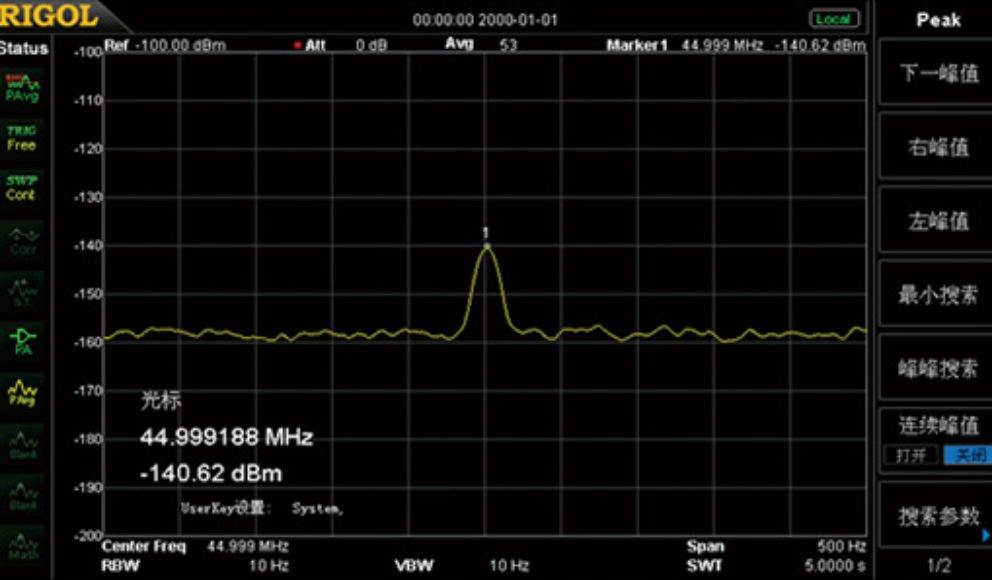

DANL: -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

DANL: -161 Dbm with Optional Preamp

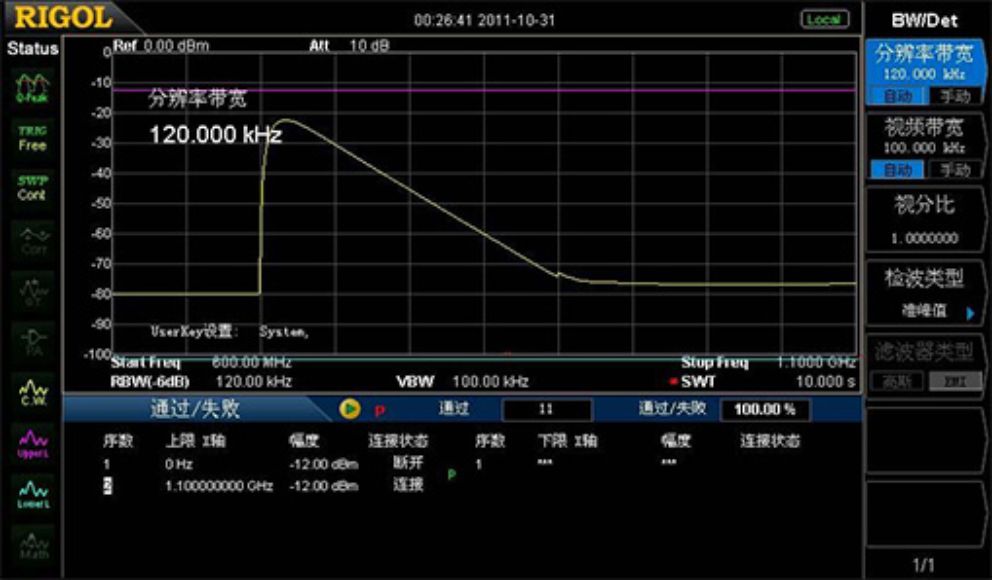

EMI Pre-compliance Measurement

EMI filter (6 dB) and quasi-peak detectors make EMI pre-test/diagnostics more accurate, complete with complete software and report generation.

EMI Pre-compliance Measurement

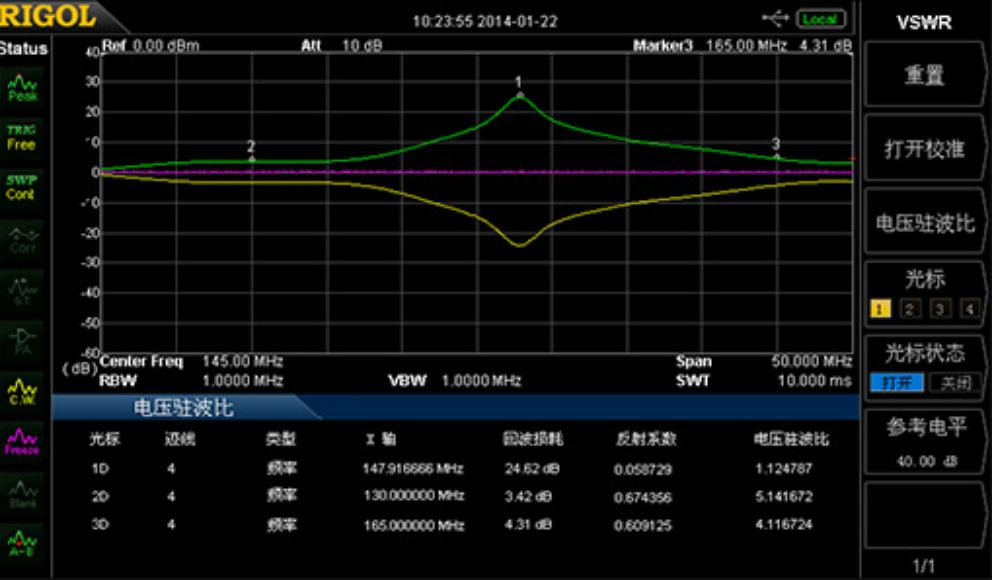

Tracking Source and VSWR Function

DSA800 series with VSWR measurement capability, with tracking source model (-TG), with VSWR bridge for voltage standing wave ratio test.

Tracking Source and VSWR Function

UnltraSpectrum Software

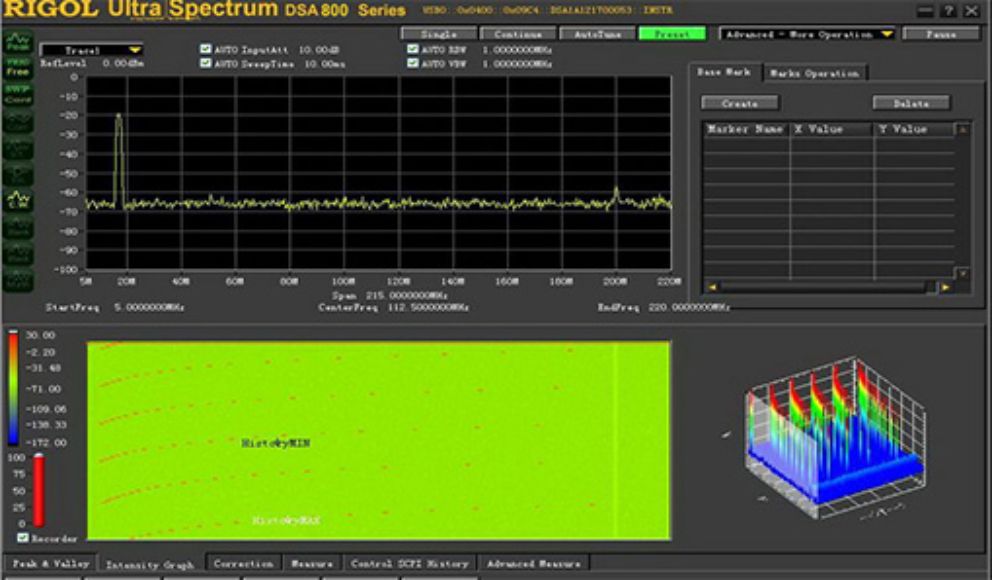

The optional UltraSpectrum software can not only complete the control of the spectrum analyzer, but also provide powerful display and analysis functions such as spectrum and waterfall.

UnltraSpectrum Software

Model

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise (Typ.) Tracking Generator
DSA875-TG 9kHz~7.5GHz 10Hz~1MHz -98dBc/Hz@10kHz Yes
DSA832-TG 9kHz~3.2GHz 10Hz~1MHz -98dBc/Hz@10kHz Yes
DSA815-TG 9kHz~1.5GHz 10Hz~1MHz -80dBc/Hz@10kHz Yes
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Version Release Date Download
DSA800 DateSheet DSD03000-2020-12 2021-10-22 Download
