DP2000 Series

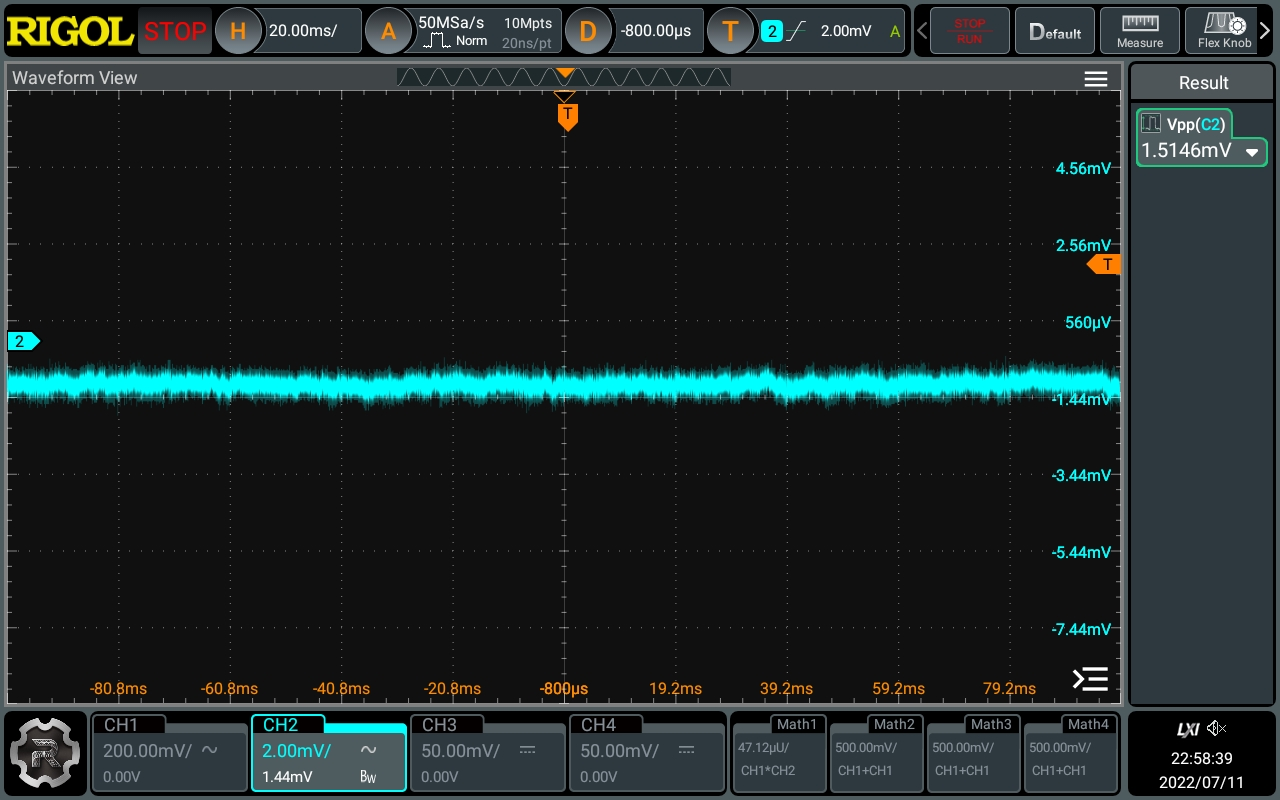

Low ripple noise: <350uVrms / 2mVpp

One of the major advantages of linear DC power supply is the output purity. In the bandwidth of 20Hz-20MHz, DP2000 ripple and noise index is less than 350Î¼Vrms or 2 mVpp, ultra-low noise design, purer output, minimizing any interference to the load and providing high purity signal to your equipment.

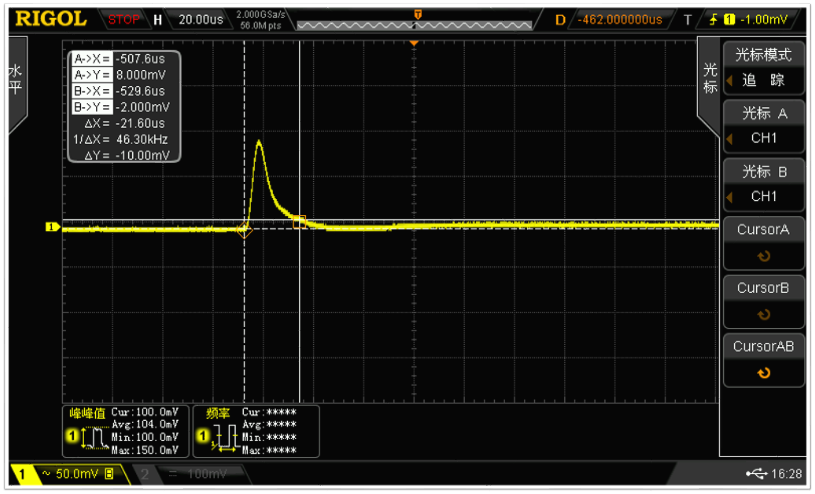

Fast transient response time: <50us

With a transient response capability of less than 50us, the DP2000 is able to cope with changing loads and protect your tests.

High Speed Arb Mode

Emulate dynamic power signals for reliability and robustness testing Emulate dynamic power signals for reliability and robustness testing With high-speed arbitrary mode, engineers can create a function or waveform of up to 512 points with a minimum dwell time as low as 1 millisecond. Create sine waves, pulses, ramps, or custom shapes to output on the power supply channel in either voltage or current. Set up the waveform to repeat or trigger using the digital IO or bus communication. Combine high speed arb mode and sampling for complete analysis of a test deviceâ€™s power performance.

Automatic Series & Parallel Connections

Simplified wiring and connections for fast and easy setup Simplified wiring and connections for fast and easy setup Channels 1 & 2 can be internally connected via the utility menu either in parallel or series. This allows engineers to get voltage or current from both channels with only a connection to the channel 1 terminals. With all 3 fully isolated channels it is easy to configure the instrument for your application.

Model	Description	Price
10A-Testing-Cable	Banana jack to alligator clip test lead(Current rating:10A)	Rp488.425
DP2000-GPIB	GPIB module option	Rp3.692.773

Features

Low ripple noise: <350uVrms / 2mVpp

Fast transient response time: <50us

High Speed Arb Mode

Automatic Series & Parallel Connections
