DSG5000 Series

The frequency range of DSG5000 series microwave signal generator is 9 kHz to 12 GHz / 20 GHz, and it supports 2-8 independent channel outputs. Its stable phase coherence, excellent low phase noise and good spurious and harmonic suppression ability, Meet the needs of complex tests such as superconducting quantum computing, radar signal generation, MIMO, EMS, etc.

Frequency Range: 9 kHz – 20 GHz
Highest Output Level: –30 dBm ~ +25 dBm
Phase Noise: < –133 dBc/Hz @ 1 GHz, 10 kHz offset
Modulation Function: AM / FM / ØM / Pulse

Start From Rp731.676.272

Datasheet

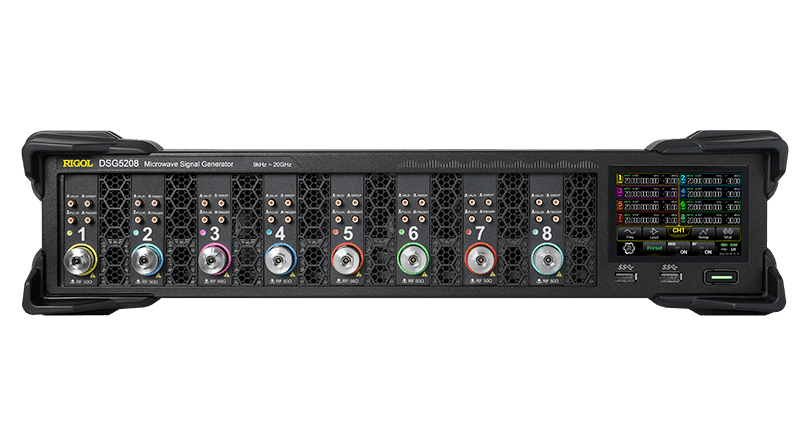

DSG5000 Series Product
DSG5000 Series thumbnail 1

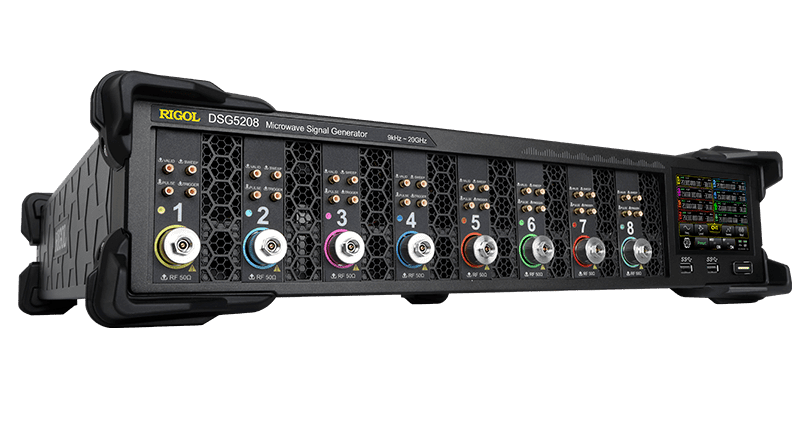

DSG5000 Series thumbnail 2

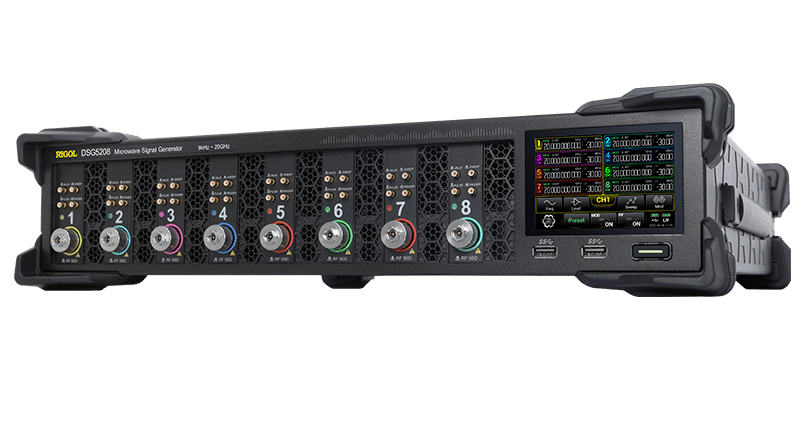

DSG5000 Series thumbnail 3
DSG5000 Series thumbnail 4

Features

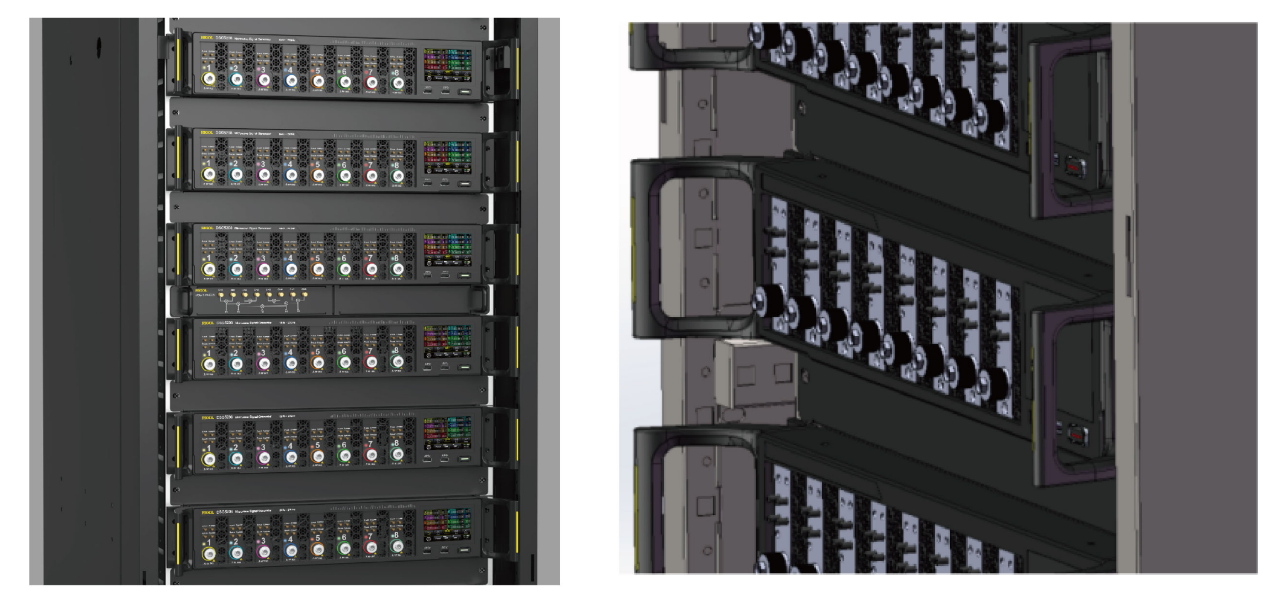

High Density, More Compact

DSG5000 series microwave signal generator single instrument supports up to 8-channel output, and the channels are independently controllable, which improves the integration density and helps simplify the test system setup. Only one instrument can be used to achieve stable phase coherence and ultra-low phase Noise multi-channel signal application, greatly saving your test space and cost.

High Density, More Compact – DSG5000 Series

High Performance, More Stable

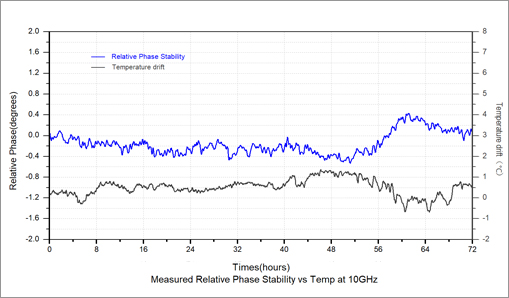

DSG5000 has excellent inter-channel phase stability, inter-channel phase stability <1°@10GHz, and phase adjustment resolution of 0.01°. The maximum output power is as high as 25dBm, which meets the test requirements of non-linear indicators such as amplifiers.

High Performance, More Stable – DSG5000 Series

Low Noise, More Pure

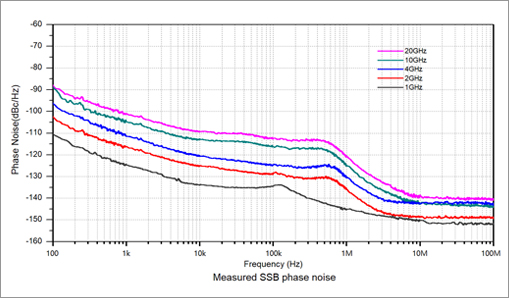

The typical value of phase noise is <-133dBc/Hz@1GHz, 10kHz, with high signal purity. After selecting a high-stable clock reference, you can get more outstanding nearby phase noise indicators.

Low Noise, More Pure – DSG5000 Series

High Scalability, Easier Control

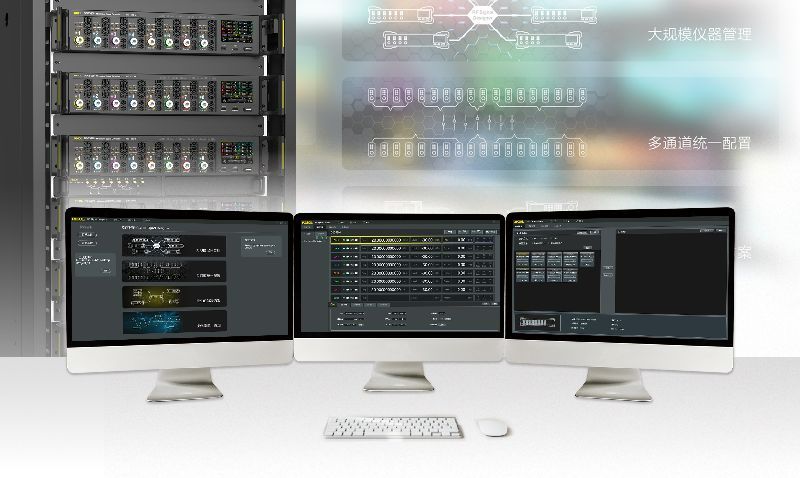

Adopt 2U full rack size standard chassis, with rack installation kit, easy to realize channel expansion, easy to integrate and apply, also has front and rear ventilation and heat dissipation design, when multiple units are integrated, the accuracy and stability will not be affected by heat.

High Scalability, Easier Control – DSG5000 Series

High Usability

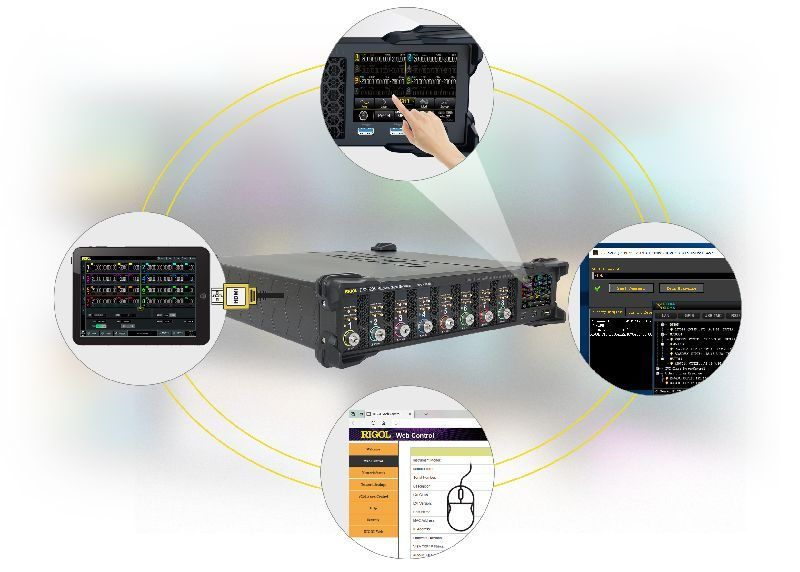

The DSG5000 series microwave signal generator comes with a touch screen and a standard USB/LAN interface, which can be automatically controlled by sending SCPI commands. Support external PAD, display, projector, etc. through the HDMI port on the rear panel, and realize single-unit remote control through Web Control.

High Usability – DSG5000 Series

Model

Model Frequency Range Amplitude Indicators Range SSB Phase Noise Modulation Function
DSG5208 9kHz-20GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5206 9kHz-20GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5204 9kHz-20GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5202 9kHz-20GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5128 9kHz-13GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5126 9kHz-12GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5124 9kHz-12GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
DSG5122 9kHz-12GHz -30dBm~+25dBm <-133dBc/Hz@1GHz,10kHz offset AM/FM/ØM/Pulse
*Prices may change without prior notice.

Accessories

Model Description Price
DSG5000-PUG Pulse Train Generator Option for the DSG5000 Rp43.681.000
OCXO-D08 High stability clock option for the DSG5000. Configurable in the field. OCXO clock shipped and user installed. Rp26.581.000
OCXO-D08 High stability clock option for the DSG5000. Configurable in the field. OCXO clock shipped and user installed. Rp26.581.000

User Manual

Name Version Release Date Download
DSG5000 User Manual V3.0 2024-10-23 Download
DSG5000 RackMountKit V1.0 2022-06-12 Download

Datasheet

Name Version Release Date Download
DSG5000 DataSheet V2.0 2023-01-31 Download

Programming Manual

Name Version Release Date Download
DSG5000 ProgrammingGuide V1.0 2022-06-12 Download

Quick Guide

Name Version Release Date Download
DSG5000_QuickGuide V2.0 2023-01-31 Download
