DG6000 Series

RIGOL's new-generation flagship signal source. Based on a 1GHz bandwidth and 16-bit high resolution, it features powerful 4-channel high-voltage differential direct-drive capabilities. Without the need for an external power amplifier and balun, it can output a strong 20Vpp signal and a 350ps ultra-fast square wave. Coupled with the fully isolated channel design, the DG6000 can directly replace the traditional complex link and provide you with a pure and powerful test excitation.

Maximum Output Frequency : 1GHz
Sample Rate : 2.5GSa/s
Vertical Resolution : 16bits
Number of Channels : 4CH
Arbitrary Waveform Length : 256M(512M opt.)
Square Wave Frequency : 300 MHz
Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

4-Channel High-Voltage Differential, Native Direct Drive

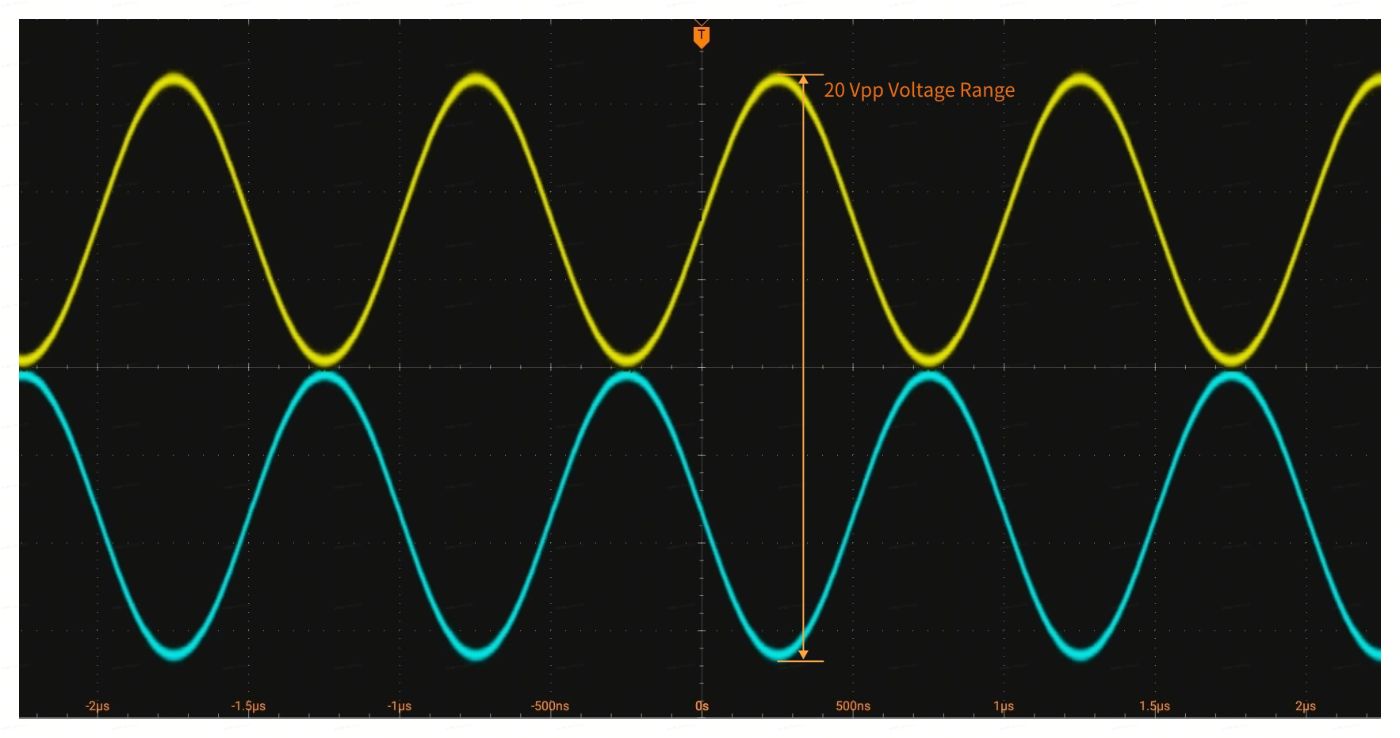

Breaking the limitations of traditional signal generators that require external baluns or amplifiers. All 4 channels of the DG6000 support differential output and offer switching between three modes: HBW (High Bandwidth), AMP (High Amplitude), and SND (Single-Ended) . In AMP mode, the instrument can directly output differential signals of up to 20 Vpp (100 Ω). You can directly drive the gates of SiC/GaN power devices or conduct high-voltage differential bus testing, resulting in a more streamlined signal chain and higher signal fidelity.

4-Channel High-Voltage Differential, Native Direct Drive

350ps Square Wave Fast Edge, Define the Time Domain Reference

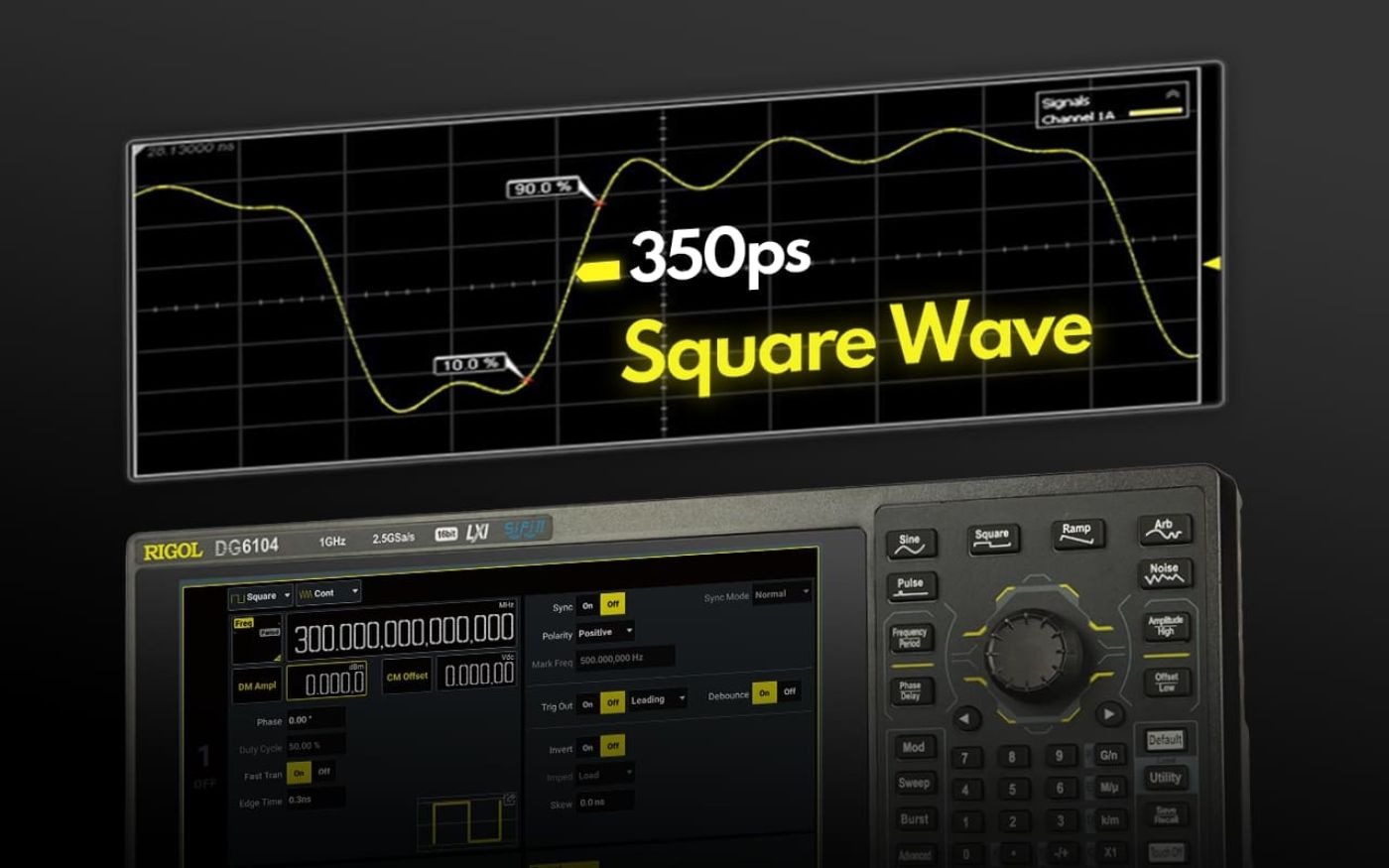

Square wave performance is the key to measuring the time-domain quality of a signal source. The DG6000 boosts the upper limit of the square wave frequency to 300 MHz. In the fast edge mode, the typical rise/fall time is only 350 ps. This provides a nearly ideal step response, making it the gold-standard clock source for verifying high-speed digital interfaces and testing the setup/hold time of logic circuits, with lower jitter and a more stable waveform.

350ps Square Wave Fast Edge, Define the Time Domain Reference

All Channels Are Fully Isolated, and Floating Ground Testing Is Safer

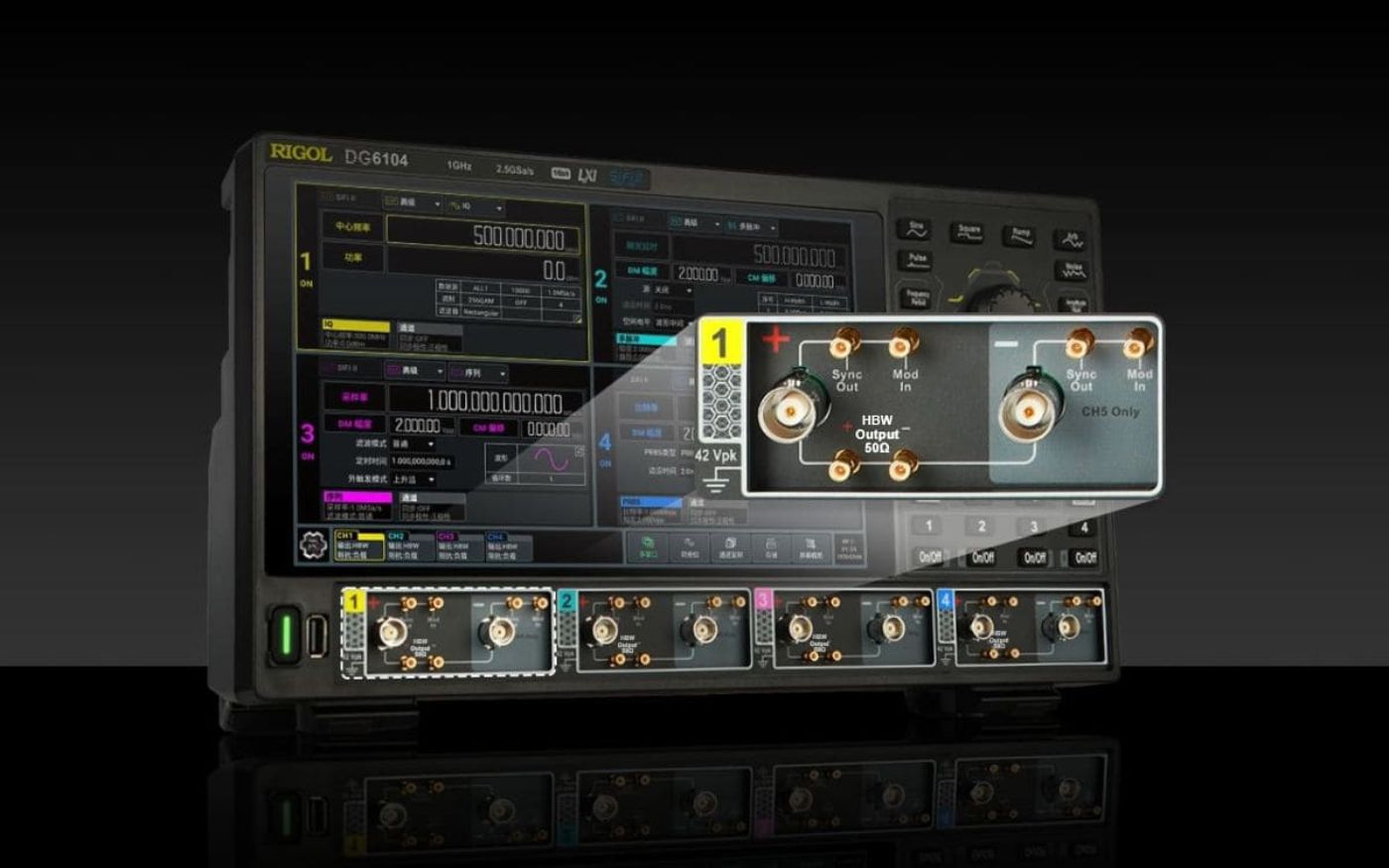

The DG6000 uses a fully electrically isolated design between channels, and each channel has an independent floating ground reference potential. Compared with instruments with traditional common ground design, this feature effectively cuts off the ground loop and eliminates the mutual crosstalk between channels. When conducting multi-channel parallel power supply tests, bioelectrical simulations, or industrial floating ground measurements, it not only has lower background noise but also prevents equipment damage caused by wiring errors.

All Channels Are Fully Isolated, and Floating Ground Testing Is Safer

1GHz Bandwidth and 16-Bit High Fidelity

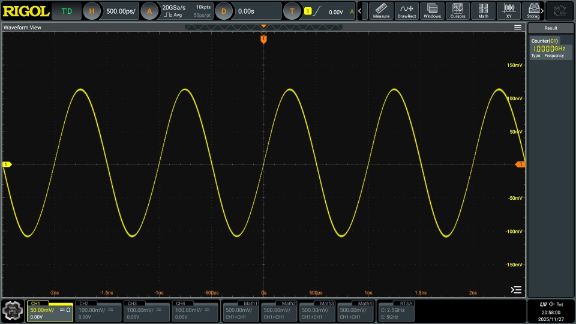

It takes into account both frequency width and waveform accuracy. The DG6000 provides a maximum sine wave output of 1 GHz, directly covering the test requirements from intermediate frequency to radio frequency. With a 16-bit vertical resolution and a sampling rate of 2.5 GSa/s, its quantization accuracy is four times that of traditional 14-bit instruments. In large dynamic range tests, even the tiny details superimposed on large-amplitude signals can be reproduced clearly and without jagged edges.

1GHz Bandwidth and 16-Bit High Fidelity

512Mpts Deep Storage to Reproduce Real Long Waveforms

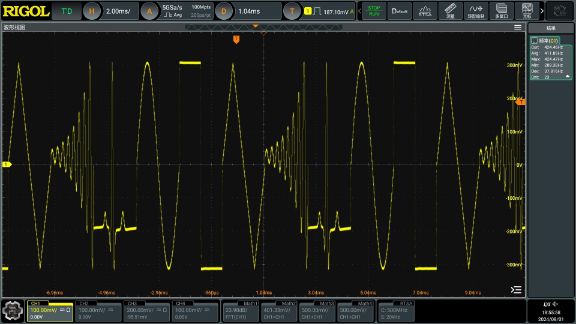

In radar, sonar, and complex environment simulations, the waveform length determines the authenticity of the simulation. The DG6000 can be optionally equipped with a maximum storage depth of 512 Mpts/CH.

512Mpts Deep Storage to Reproduce Real Long Waveforms

Standard With a High-Level Signal Library, One Machine With Multiple Uses

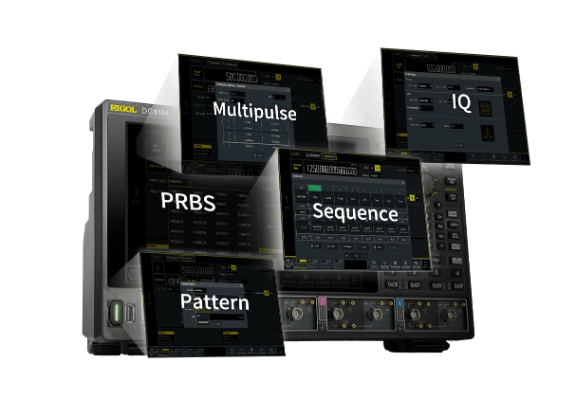

There is no need to rely on PC software. The DG6000 comes standard with a rich set of signal configuration templates. Built-in IQ modulation can directly generate digital communication signals; the PRBS pattern is used for bit error rate testing; the Multitone function enables fast audio intermodulation distortion analysis; the sequence and multi-pulse functions support the definition of complex waveform jump logic. One instrument can cover the multiple testing needs of communication, semiconductors, and general electronics.

Standard With a High-Level Signal Library, One Machine With Multiple Uses

Model

Model Maximum Output Frequency Sample Rate Vertical Resolution Number of Channels Arbitrary Waveform Length Square Wave Frequency Price
DG6054 500MHz 2.5GSa/s 16bits 4CH 256M(512M opt.) 300 MHz Get A Quote
DG6104 1GHz 2.5GSa/s 16bits 4CH 256M(512M opt.) 300 MHz Get A Quote
DG6102 1GHz 2.5GSa/s 16bits 2CH 256M(512M opt.) 300 MHz Get A Quote
DG6052 500MHz 2.5GSa/s 16bits 2CH 256M(512M opt.) 300 MHz Get A Quote
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan
