DG70000 Series

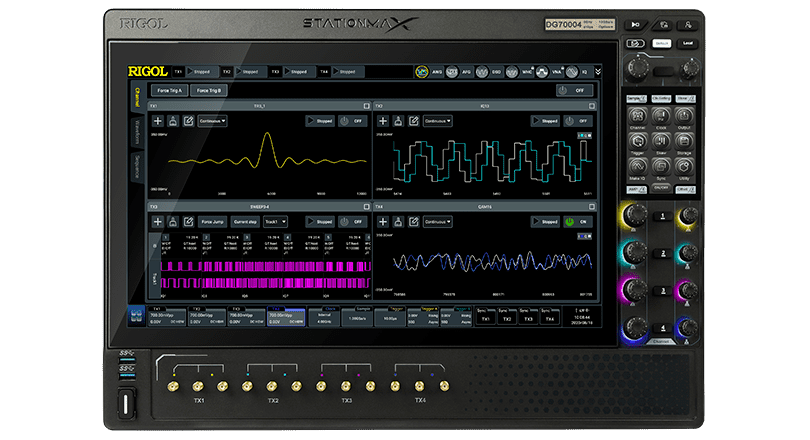

DG70000 series is the industry-leading high-performance arbitrary waveform generator with the highest 12Gsa/s sampling rate, 5GHz analog bandwidth, 16bit vertical resolution, and the longest 4Gpts wavetable length, with -70dBc spurious-free dynamic range, providing users with clearer and purer signals.

Bandwidth: 350MHz
Sample Rate: 5GSa/s (12GSa/s interpolated)
Vertical Resolution: 16bits
Channels: 4CH
Arbitary Wave Length: 1.5Gpts
Datasheet
DG70000 Series Product
DG70000 Series thumbnail 1

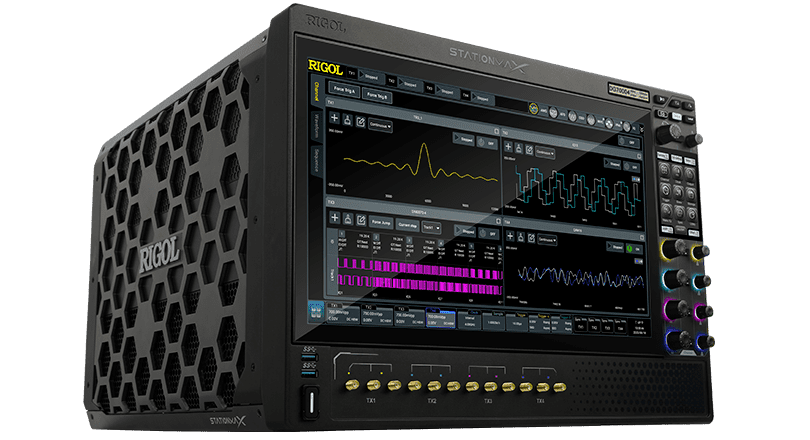

DG70000 Series thumbnail 2
DG70000 Series thumbnail 3
DG70000 Series thumbnail 4

Features

Complex Electromagnetic Scenario Simulation

In the laboratory conditions to build a complex dense, dynamically changing electromagnetic environment to simulate the real environment of electromagnetic radiation, through a reproducible way to effectively promote the speed of model optimization, test the adaptability of the system under test to the complex electromagnetic environment and anti-interference performance.

Complex Electromagnetic Scenario Simulation – DG70000 Series

High Speed Interface Reception Testing

Receive testing requires a signal source capable of creating a wide variety of test code patterns with precisely controlled signal derating capabilities in order to emulate the worst-case conditions as defined by the standard and to perform enhanced testing of the device under test.

High Speed Interface Reception Testing – DG70000 Series

Variable Sampling Rate from 100Sa/s to 12GSa/s for Realistic Signal Detail

With the new technology platform, the adjustable sampling rate from 100Sa/s to 12GSa/s can reproduce narrow pulses as low as 400ps to truly restore the signal

Variable Sampling Rate from 100Sa/s to 12GSa/s for Realistic Signal Detail – DG70000 Series

DC~5GHz Output Frequency Range to Meet more Scenario Applications

Provide a wider frequency output range for more scenario requirements

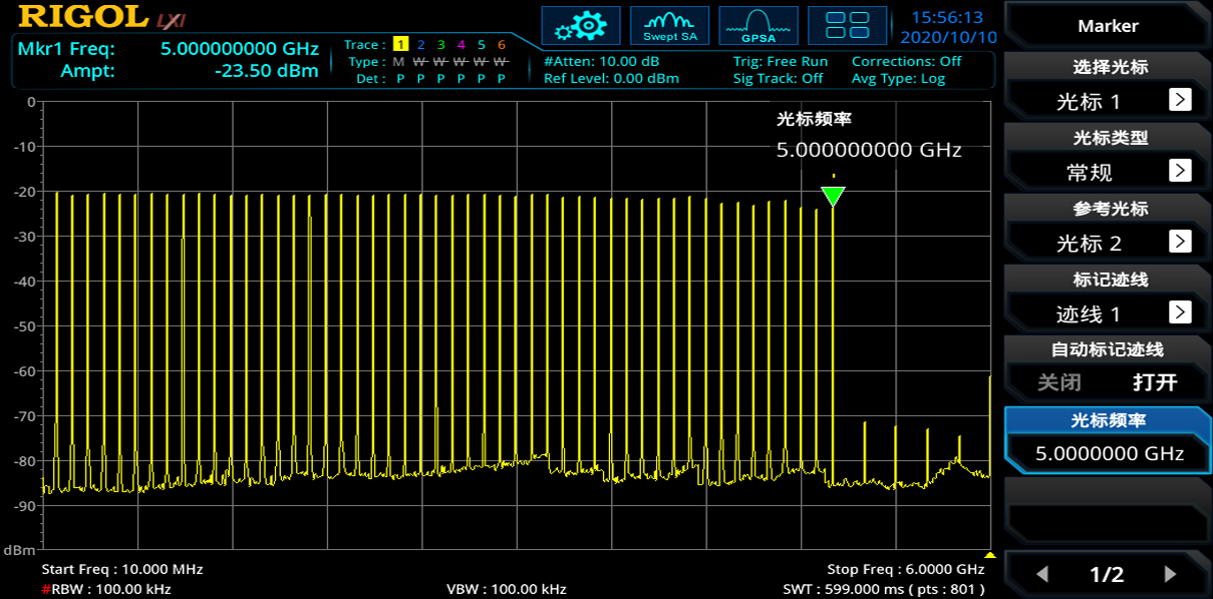

DC~5GHz Output Frequency Range to Meet more Scenario Applications – DG70000 Series

16bit Vertical Resolution for More Refined Level Quantization and Higher

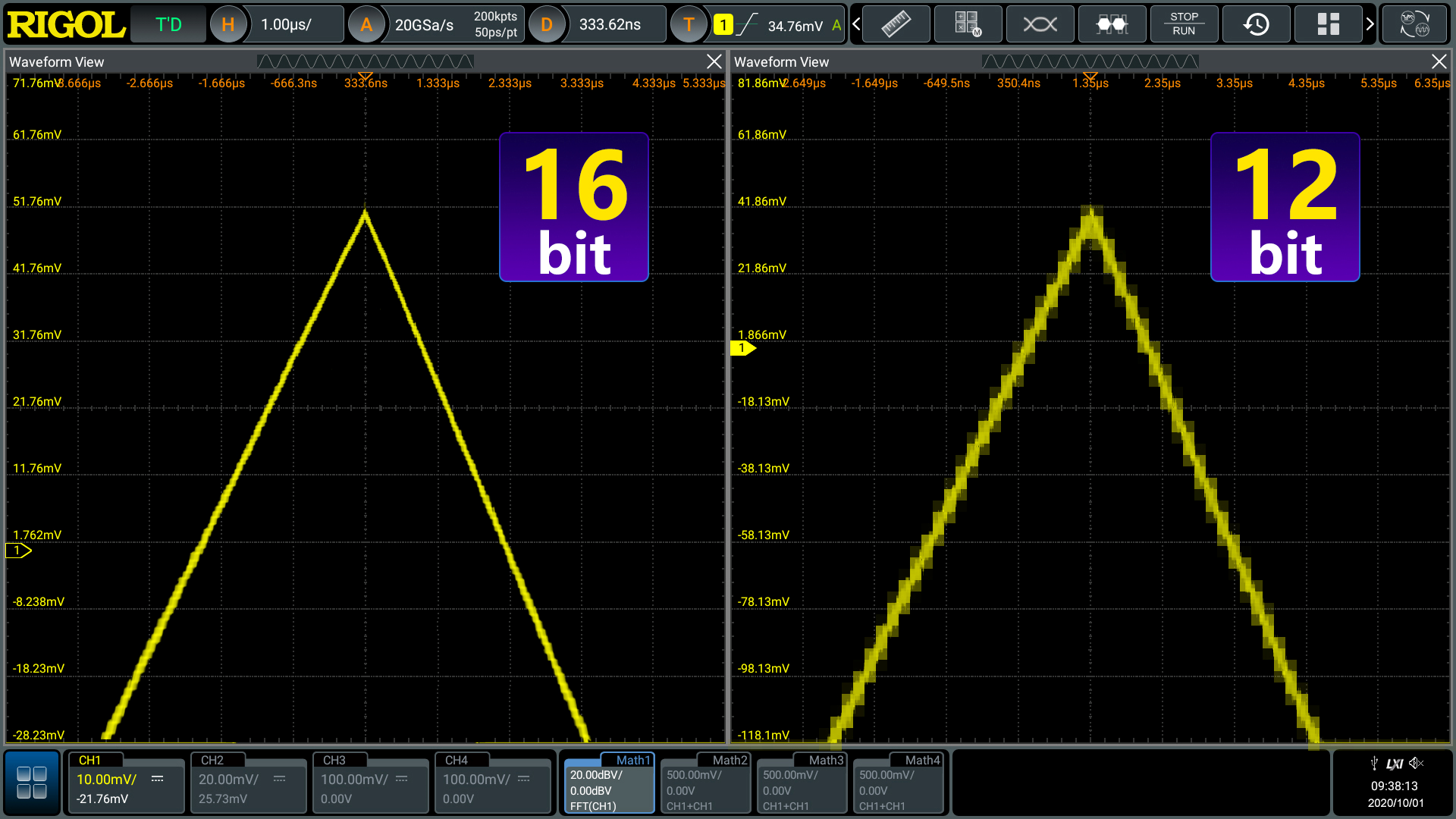

16bit vertical resolution is provided along with high sampling. Compared with 12bit or 14bit vertical resolution, 16bit vertical resolution has finer quantization level to ensure the quality of output signal.

16bit Vertical Resolution for More Refined Level Quantization and Higher – DG70000 Series

Support 1.5GHz Modulation Bandwidth to Meet a Variety of New

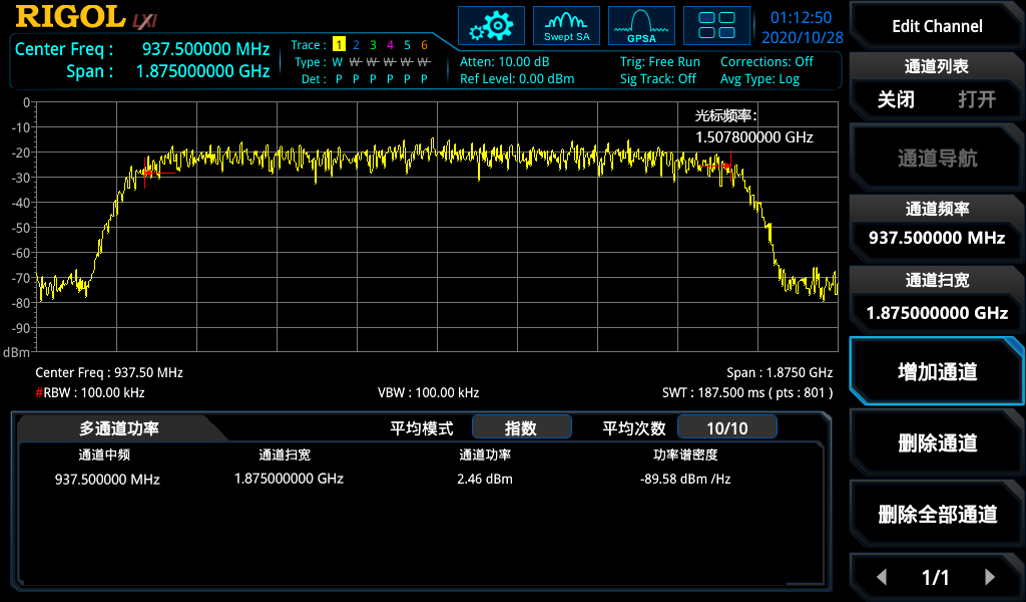

Up to 1.5GHz modulation bandwidth and digital upconversion function, through IQ modulator, it can output various modulation methods such as 1024QAM/256QAM, combined with built-in frequency hopping mode (frequency hopping interval as low as 128ns), to meet a variety of new broadband wireless standards

Support 1.5GHz Modulation Bandwidth to Meet a Variety of New – DG70000 Series

Single-Channel 4Gpts Wavetable Length to Ensure Long Signal Output at

Provide single-channel up to 1.5G sample points, sequence editor supports up to 16k waveform segments and flexible adjustment functions to meet the long time signal playback and sequence jumping and other functions

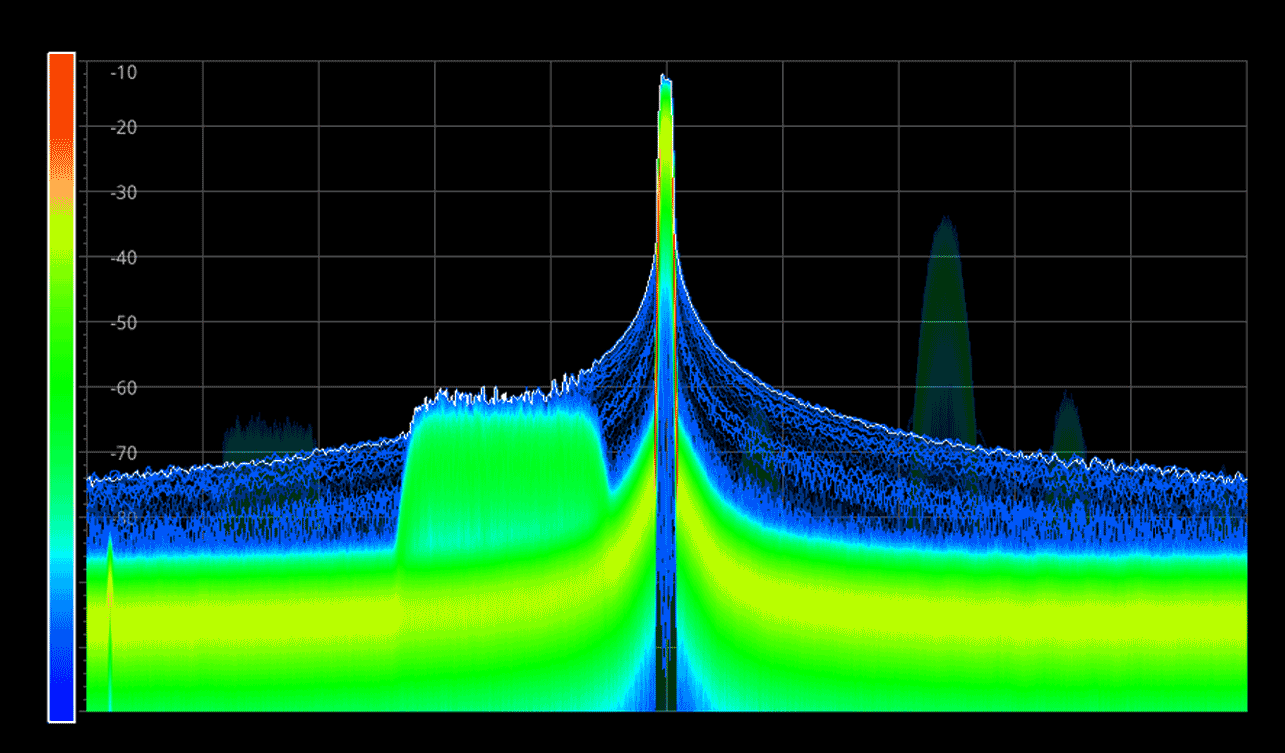

Single-Channel 4Gpts Wavetable Length to Ensure Long Signal Output at – DG70000 Series

Pure Signal Guarantee, -70dBc Spurious-Free Dynamic Range, 10ps

Provide high purity signal output, -70dBc spurious-free dynamic range, 10ps total jitter, 350fs random jitter, to ensure the true effect of the test

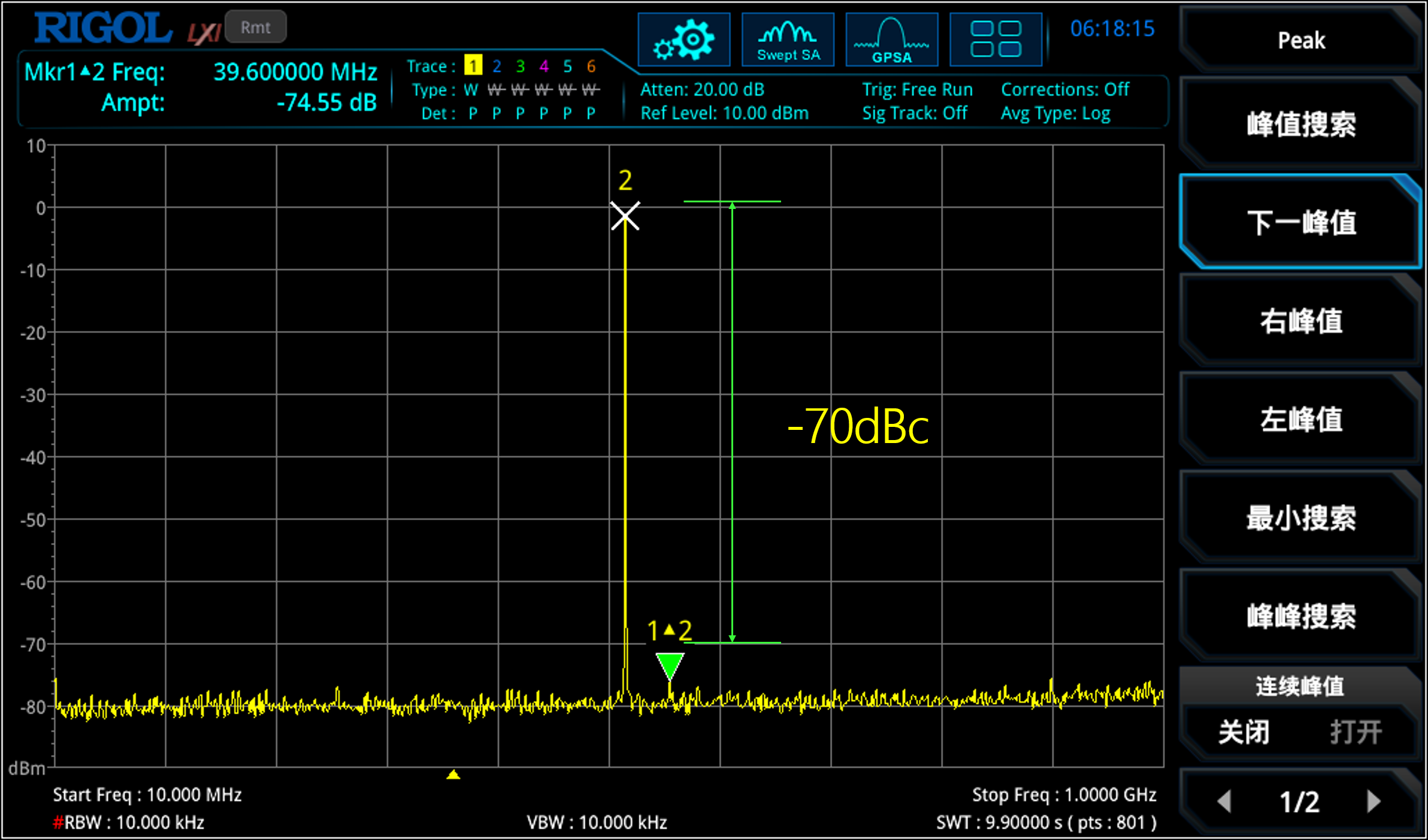

Pure Signal Guarantee, -70dBc Spurious-Free Dynamic Range, 10ps – DG70000 Series

15.6-inch Large Screen Design, Electric Adjustable Screen View

Based on the 15.6-inch 2k HD touch screen and user-friendly UI design, engineers can complete all operations without a PC. Motorized adjustable viewing angle, adapt to user's multi-angle waveform editing operation.

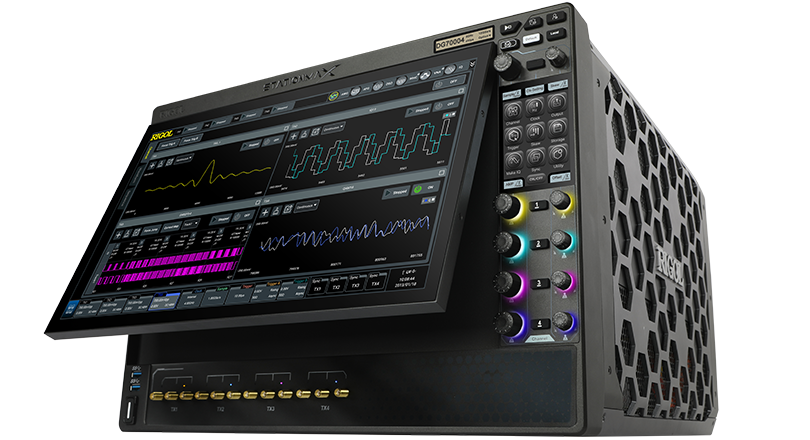

15.6-inch Large Screen Design, Electric Adjustable Screen View – DG70000 Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG70002 5GHz 5GSa/s(12GSa/s Interpolated) 16bits 2CH 1.5Gpts Get a Quote
DG70004 5GHz 5GSa/s(12GSa/s Interpolated) 16bits 4CH 1.5Gpts Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
DG70000-PJ DG70000 High-speed Serial Function Rp153.280.000
DG70000-SEQ DG70000 Complex Sequence Function Rp167.680.000

User Manual

Name Download
DG70000 Series User Manual Download

Datasheet

Name Download
DG70000 Series Data Sheet Download

Programming Manual

Name Download
DG70000 Series Programming Guide Download

Quick Guide

Name Download
DG70000 Series Quick Guide Download
