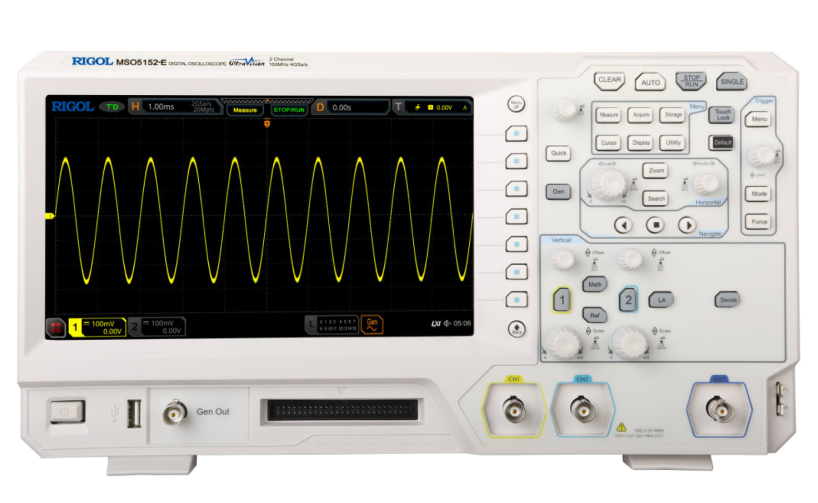

MSO5000-E Series

MSO5000-E series digital oscilloscope is based on the technology of RIGOL ultravision II, which is a high-performance and economical digital oscilloscope specially designed for professional engineers.

Bandwidth: 150 MHz
Analog Channels: 2
Real-time Sample Rate: 4 GSa/s
Max. Memory Depth: 100 Mpts
Digital Channels: 16
Waveform Capture Rate: 300,000 kwfms/s

Start From Rp22.921.500

Datasheet
MSO5000-E Series Product
MSO5000-E Series thumbnail 1
MSO5000-E Series thumbnail 2
MSO5000-E Series thumbnail 3

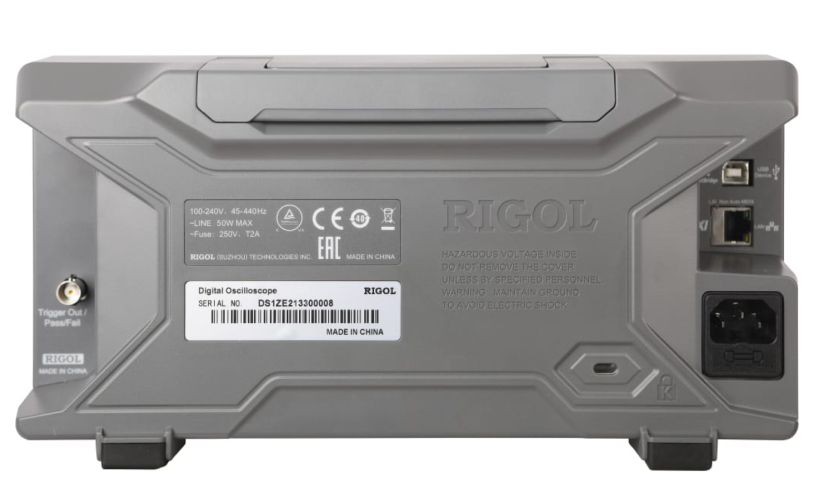

MSO5000-E Series thumbnail 4

Features

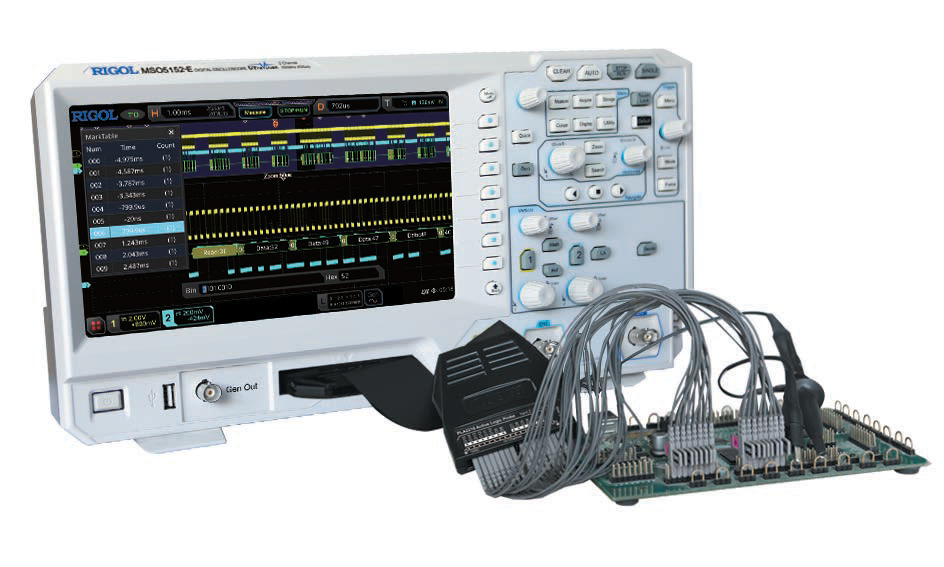

7 in 1 Product Design

MSO5000-E series digital oscilloscope integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

7 in 1 Product Design – MSO5000-E Series

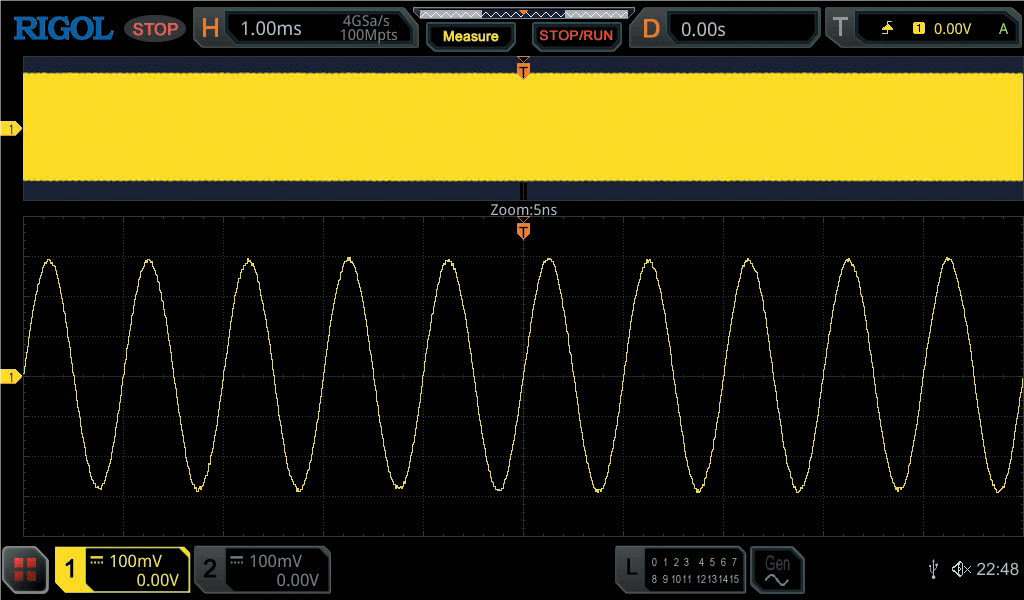

Super High Sampling Bandwidth Ratio

MSO5000-E series provides a real-time sampling rate of up to 4 GSA / s under 150 MHz bandwidth, 26 times of the sampling bandwidth ratio makes it a leader in the oscilloscope products of the same level, and at the same time, it has an ultra long waveform storage depth of 100 mpts.

Super High Sampling Bandwidth Ratio – MSO5000-E Series

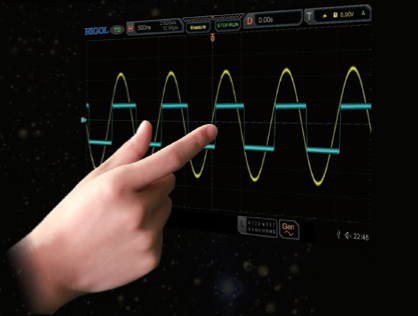

9 "Multi Touch Capacitive Screen

9-inch multi touch capacitive screen, supporting a variety of gesture operations, providing users with the most optimized interaction experience.

9 "Multi Touch Capacitive Screen – MSO5000-E Series

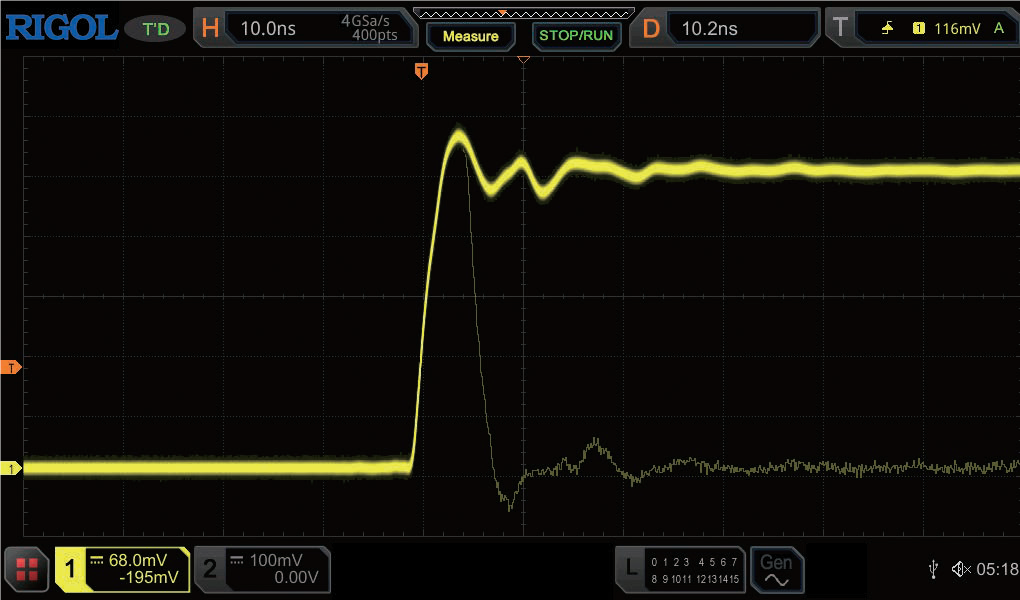

Waveform Capture Rate Up to 300000 Times Per Second

With a waveform capture rate of up to 300000 WFMS / s, the burr and other accidental events in the signal can be found quickly, which greatly improves the debugging efficiency of engineers.

Waveform Capture Rate Up to 300000 Times Per Second – MSO5000-E Series

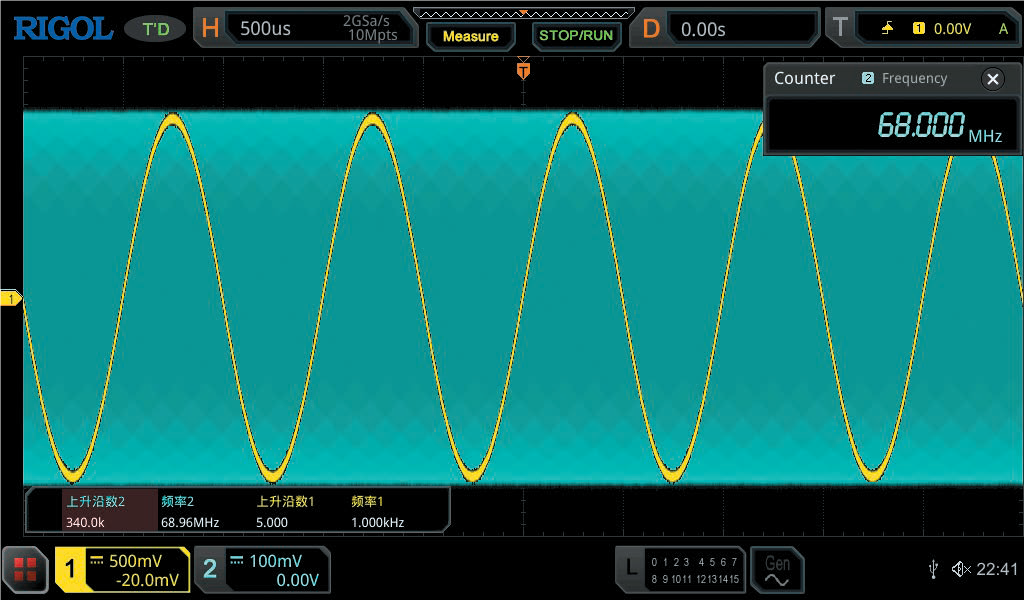

Full Memory Hardware Measurement

At the same time, observe and accurately measure the signals with large frequency difference between the two channels. The full memory hardware measurement can measure the accurate frequency value in the waveform with 340k rising edges.

Full Memory Hardware Measurement – MSO5000-E Series

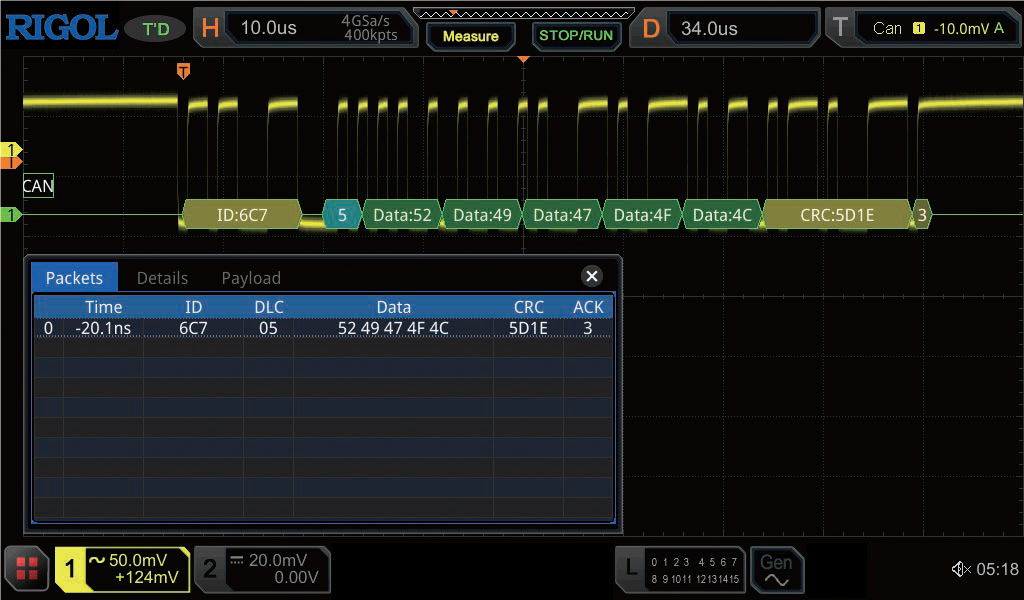

Rich Trigger and Protocol Decoding

Rich serial protocol decoding can decode 4 serial buses at the same time, and full memory data analysis and decoding event table display can help engineers quickly find system faults and locate the error waveform, greatly improving the debugging efficiency of the overall system signal.

Rich Trigger and Protocol Decoding – MSO5000-E Series

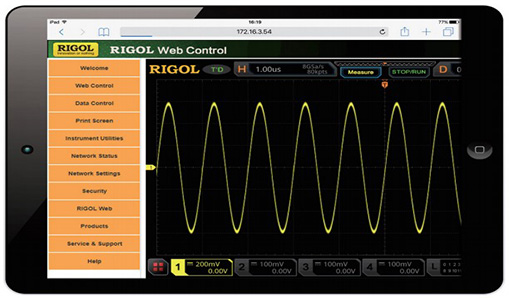

Convenient Web Control Remote Control

The user only needs to input the IP address of the oscilloscope in the address bar of the web browser, then he can open the web control control software and easily handle the remote control.

Convenient Web Control Remote Control – MSO5000-E Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
MSO5152-E 150 MHz 2 4 GSa/s 100 Mpts (option) 300,000 wfms/s 16 (Need to configure logic probe) 1CH Rp22.921.500
*Prices may change without prior notice.

Accessories

Model Description
MSO5000-E-FPC Front panel protective shell
MSO5000-RM Rack mount kit
CB-USBA-USBB-FF-150 USB Data line，150cm
CB-DB9-DB9-FF-150 RS232 Data line,2 Female，150cm
CB-BNC-BNC-MM-100 BNC Coaxial line，100cm
DK-DS6000 Demo board

Software

Model Description
UPA-DS Power Analysis Software for MSO/DS2000, MSO/DS4000, MSO8000, MSO/DS7000, MSO5000 series oscilloscopes

User Manual

Name Download
MSO5000E User's Guide Download

Datasheet

Name Download
MSO5000E Datasheet & Specs Download

Programming Manual

Name Download
MSO5000E Programming Manual Download

Quick Guide

Name Download
MSO5000E Quick Guide Download

Software

Name Download
MSO5000E Performance Verification Guide Download
