DG1000Z Series

DG1000Z series function / arbitary waveform generator is a multi-functional signal generator which integrates function generator, arbitrary waveform generator, noise generator, pulse generator, harmonic generator, analog / digital modulator, frequency meter and other functions.

Bandwidth: 60MHz
Sample Rate: 200MSa/s
Vertical Resolution: 14bits
Channels: 2CH
Arbitary Wave Length: 16Mpts

Start From Rp13.431.000

Datasheet

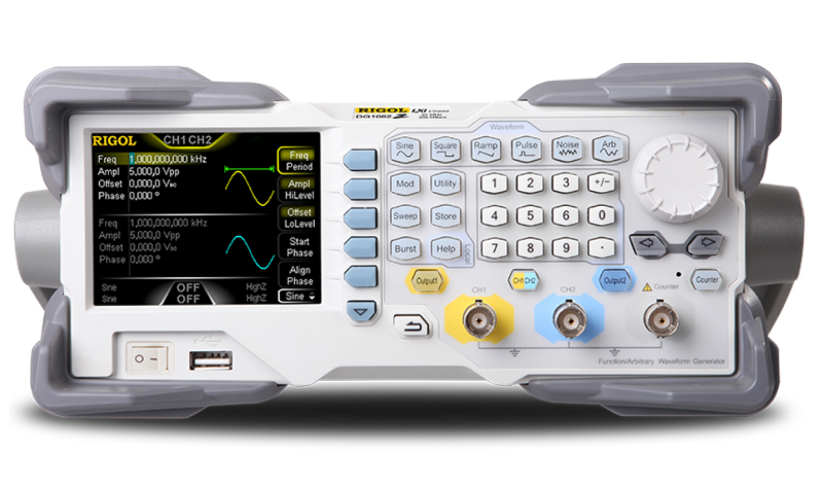

DG1000Z Series Product

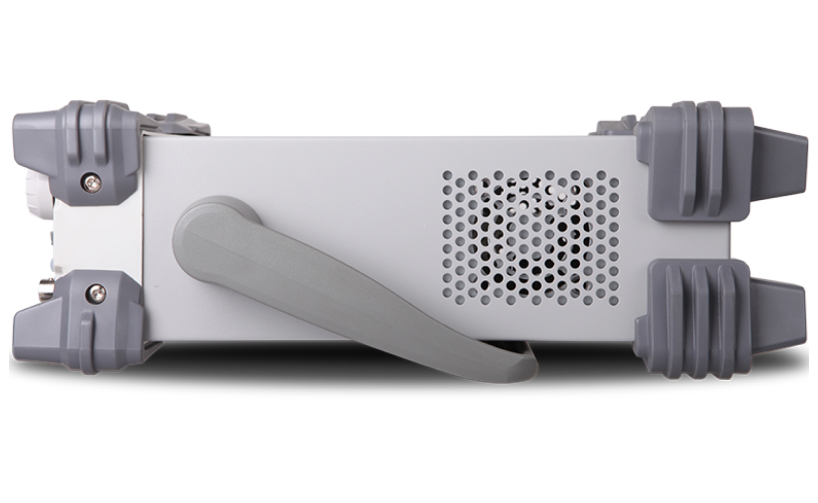

DG1000Z Series thumbnail 1

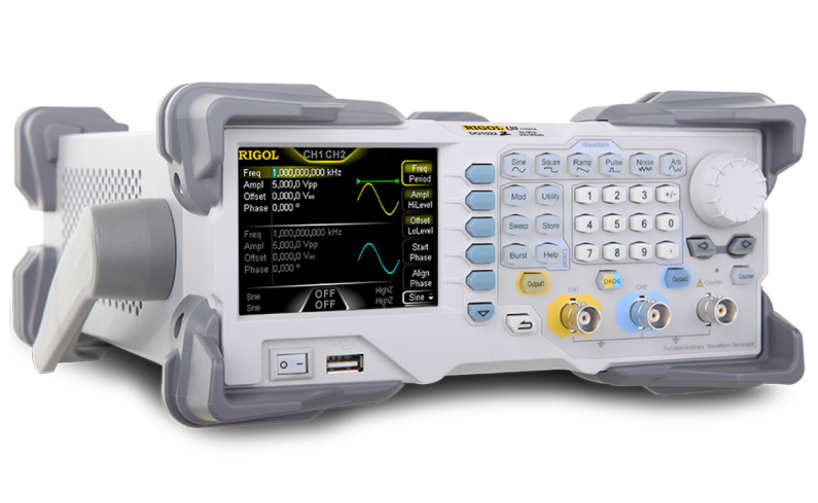

DG1000Z Series thumbnail 2
DG1000Z Series thumbnail 3

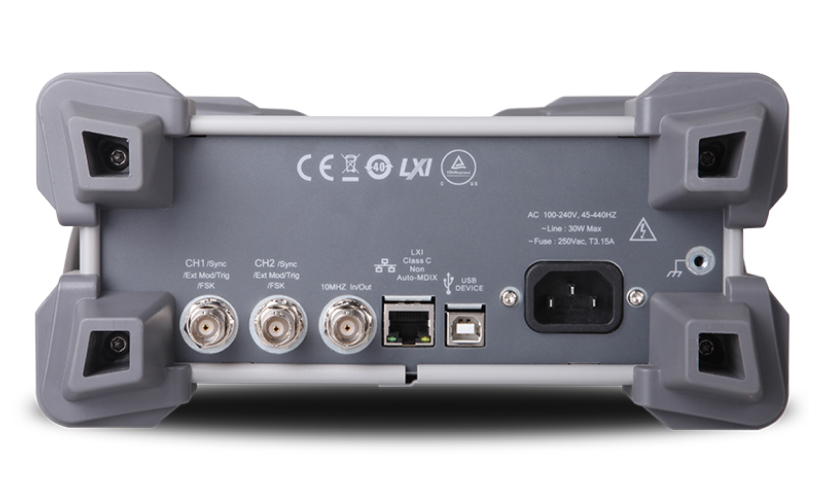

DG1000Z Series thumbnail 4

Features

SiFi Technology

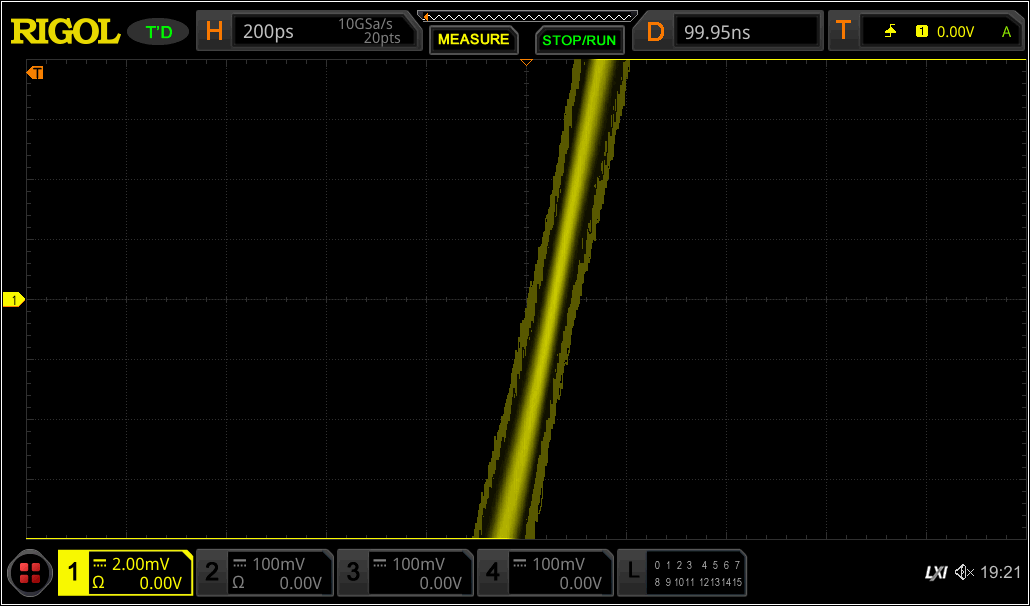

RIGOL's innovative Sifi technology can generate any waveform point by point, undistorted restore signal, accurate and a djustable sampling rate, reduce the signal jitter generated by traditional DDS signal source, and the jitter can be as low as 200ps.

SiFi Technology – DG1000Z Series

Built-in 160 arbitrary waves

As we all know, RIGOL's waveform generator includes many popular custom waveform types, which can limit waveform creation to any real application. The dg1000z continues this trend by including more than 160 different signal shapes, all of which are accessible from the front panel selection menu.

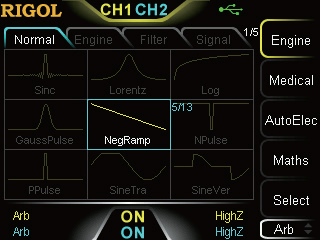

Built-in 160 arbitrary waves – DG1000Z Series

Sweep function & burst mode

It supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.

Sweep function & burst mode – DG1000Z Series

Multiple analog & digital modulation

Modulation types include am, FM, PM, ask, FSK, PSK and PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

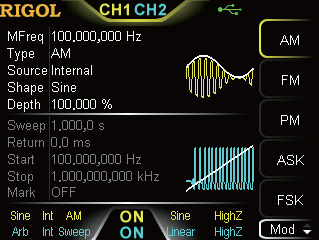

Multiple analog & digital modulation – DG1000Z Series

Harmonic generator

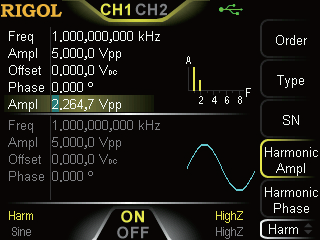

Built in 8-th harmonic generator function, output the harmonic with specified times, amplitude and phase, which is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Harmonic generator – DG1000Z Series

Waveform Overlay & Channel Tracking

It can stack the specified frequency and percentage amplitude waveform on the basic wave for output; when the channel tracking function is turned on, all parameters of the dual channel can be updated according to the user's configuration at the same time.

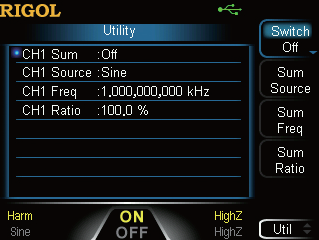

Waveform Overlay & Channel Tracking – DG1000Z Series

Built-in 7-bit frequency meter

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

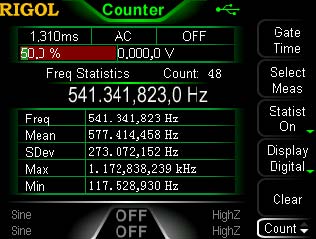

Built-in 7-bit frequency meter – DG1000Z Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG1062Z 60MHz 200MSa/s 14bits 2 8Mpts(16Mpts Option) Rp27.583.500
DG1032Z 30MHz 200MSa/s 14bits 2 8Mpts(16Mpts Option) Rp15.904.000
DG1022Z 25MHz 200MSa/s 14bits 2 8Mpts(16Mpts Option) Rp16.550.000
*Prices may change without prior notice.

Accessories

Model Description Price
BAG-G1 Common Instrument package (DSA800/DG4000/DS2000) Rp2.352.000
RM-2-DG1000Z 2-machine rack kit Rp1.568.000
RM-1-DG1000Z Stand-alone rack kit Rp1.184.000
USB-GPIB USB-GPIB adapter Rp5.264.000
CB-BNC-AC-100-L BNC to Alligator clip Adapter Rp160.000
CB-BNC-BNC-MM-100 BNC Coaxial line, 100cm Rp304.000
RA5040K 40 dB Attenuator (50Ω, 1W) Rp704.000
PA1011 10W Power amplifier module Rp6.864.000

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG1000Z User Manual V1.0 2021-10-26 Download
DG1000 RackmountKit Manual V1.0 2021-11-03 Download

Datasheet

Name Version Release Date Download
DG1000Z Datasheet V1.0 2021-10-26 Download

Programming Manual

Name Version Release Date Download
DG1000Z Programming Manual V1.0 2021-10-26 Download

Quick Guide

Name Version Release Date Download
DG1000Z_QuickGuide V1.0 2021-11-03 Download
