DM3000 Series

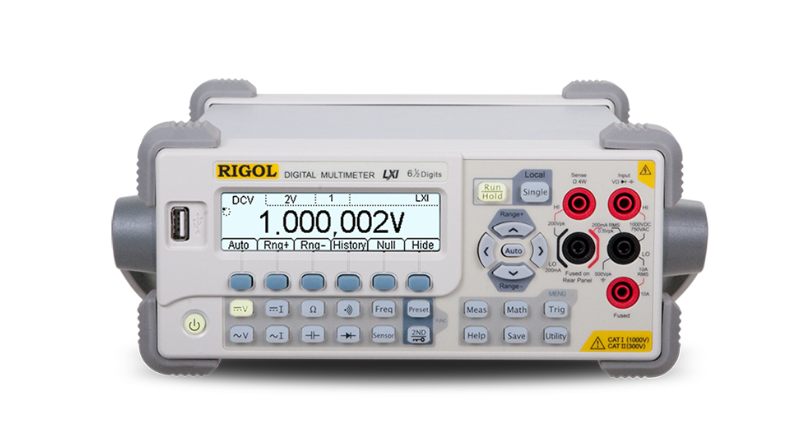

The RIGOL DM3000 Series is a high-performance bench digital multimeter designed for laboratory, production, and automated testing applications. It offers up to 6½-digit resolution, high-speed measurements, and multiple functions including voltage, current, resistance, capacitance, frequency, and temperature measurement. With USB, LAN, RS-232, and GPIB connectivity, the DM3000 Series is ideal for data logging and remote control applications.

Accuracy : 6.5 digits
DCV Yearly Accuracy : 0.0035%
Fastest Measurement Speed : 10K rdgs/s

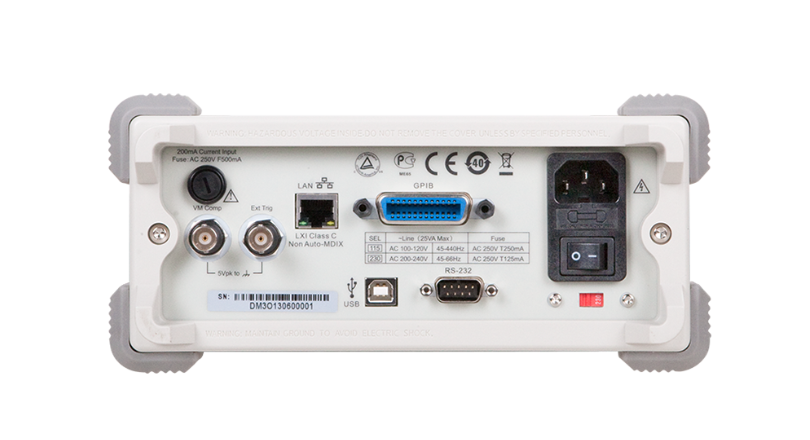

Connectivity : USB, GPIB, LAN(LXI-C), RS232
Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Features

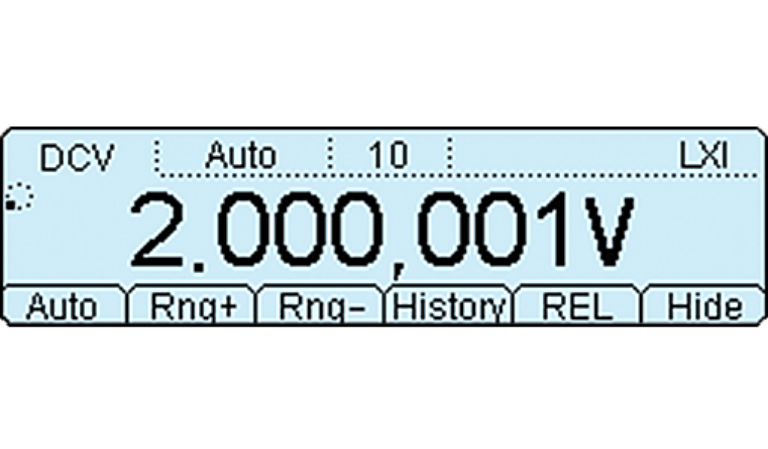

True 6 ½-digit reading

It has ± 2,200,000 counts, which is much larger than the ± 1,200,000 of similar products. Under the same reading resolution, it has a larger measurement range than similar products.

True 6 ½-digit reading

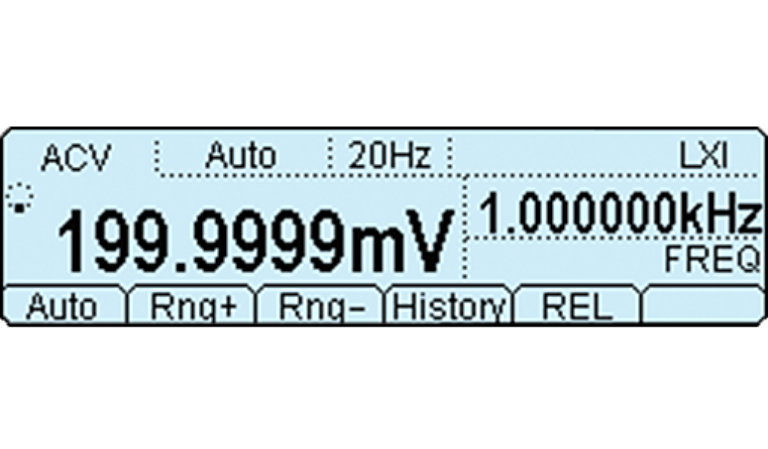

Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

Double Screen Display

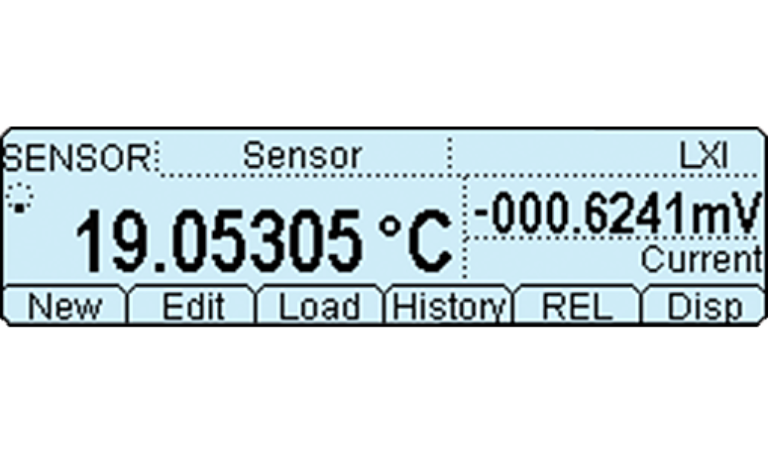

Support Any Sensor Measurement

The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.

Support Any Sensor Measurement

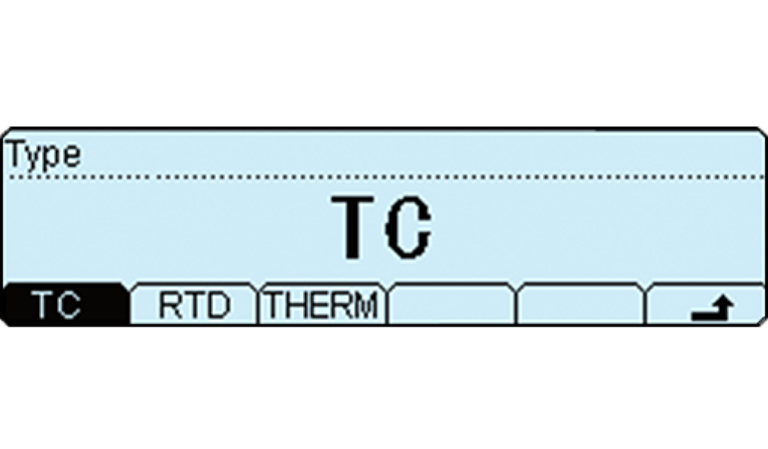

Supports a Variety of Temperature Sensors

Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.

Supports a Variety of Temperature Sensors

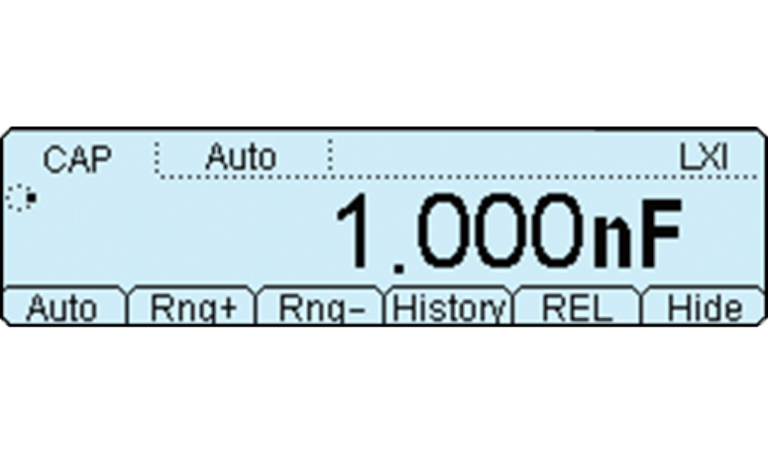

Capacitance Test Function

It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).

Capacitance Test Function

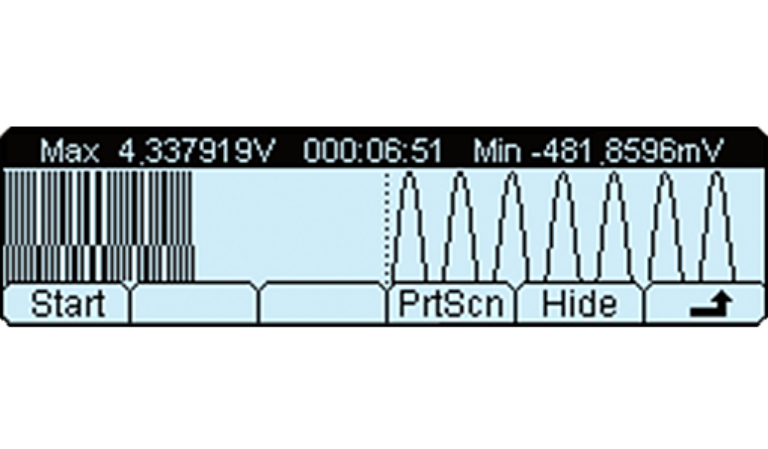

Trend Chart Display

By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.

Trend Chart Display

Histogram Display

Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.

Histogram Display

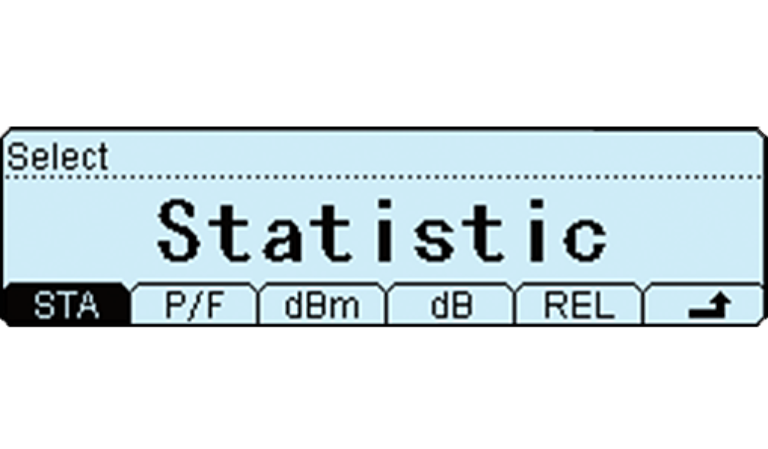

Statistical Analysis Function

Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.

Statistical Analysis Function

Model

Model Accuracy DCV Yearly Accuracy Fastest Measurement Speed Connectivity Price
DM3058 5.5 digits 0.015% 123 rdgs/s USB, GPIB（only DM3058）, LAN(only DM3058), RS232 Rp.15.873.000
DM3068 6.5 digits 0.0035% 10K rdgs/s USB, GPIB, LAN(LXI-C), RS232 Rp.17.926.500
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Version Release Date Download
DM3058 V2.0 2021-11-24 Download
DM3068 V1.0 2021-11-24 Download

Quick Guide

Name Version Release Date Download
DM3068 V1.0 2021-11-24 Download
