DS1000Z-E Series

DS1000Z-E series digital oscilloscope is designed by RIGOL based on the mainstream demand. It is a high-performance and economic digital oscilloscope specially contributed by e-commerce.

Bandwidth: 200 MHz
Analog Channels: 2 Real-time
Sample Rate: 1 GSa/s
Max. Memory Depth: 24 Mpts
Waveform Capture Rate: 30,000 kwfms/s
Digital Channels: N/A

Start From Rp7.492.000

Datasheet

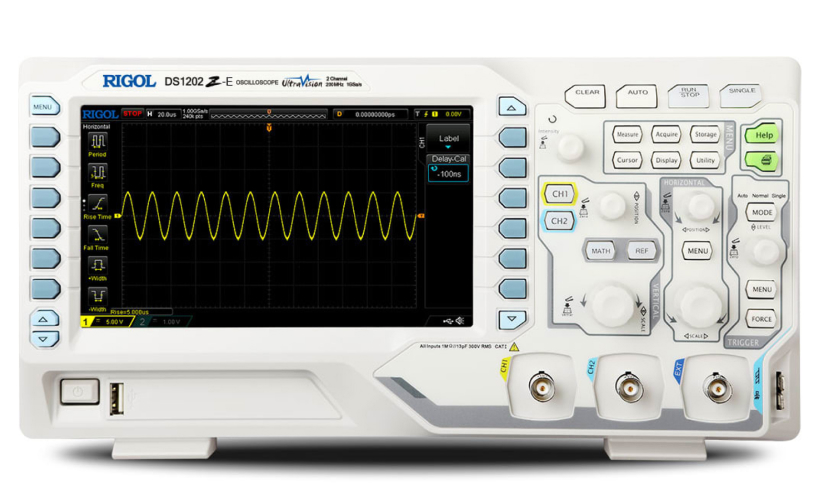

DS1000Z-E Series Product
DS1000Z-E Series thumbnail 1

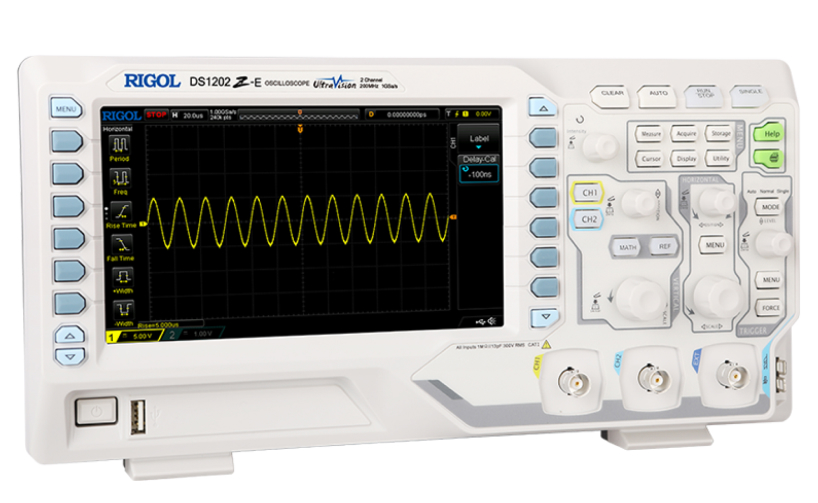

DS1000Z-E Series thumbnail 2

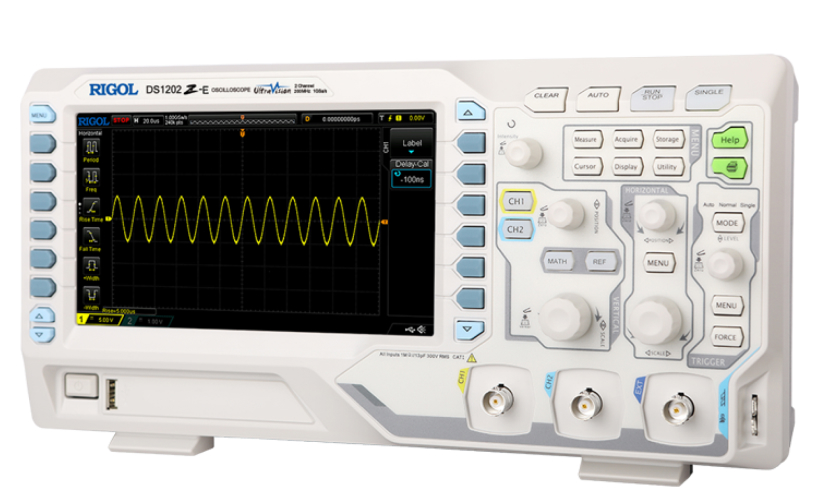

DS1000Z-E Series thumbnail 3

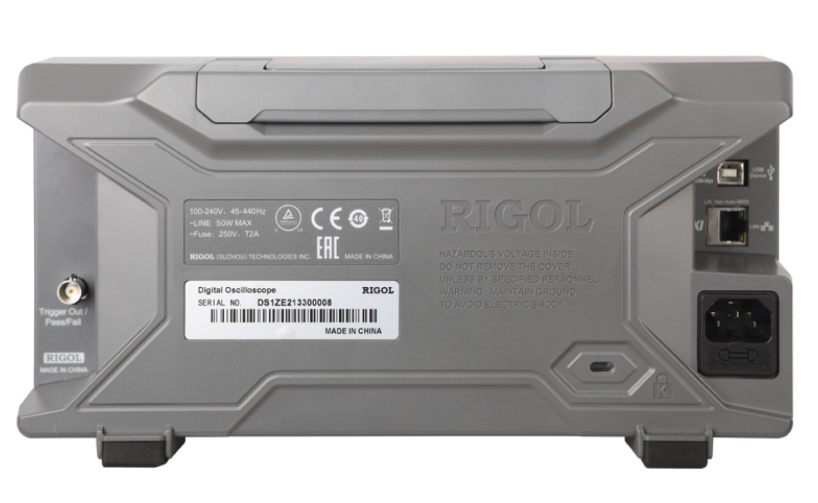

DS1000Z-E Series thumbnail 4

Features

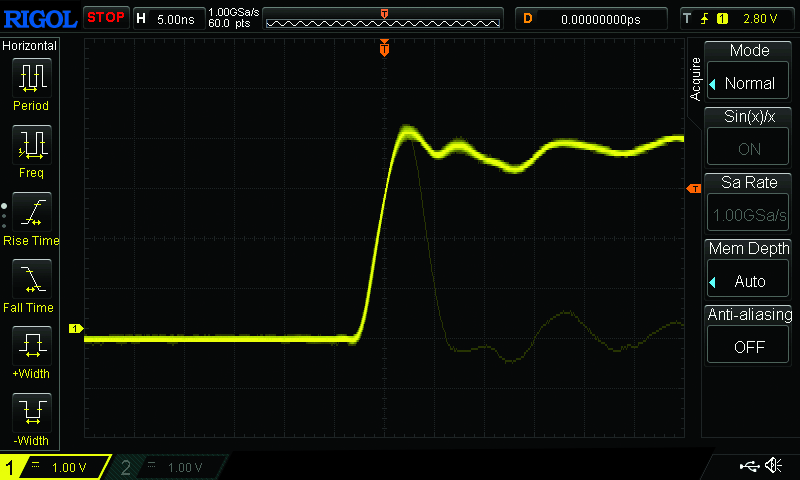

Waveform Refresh Rate of 30000 WFMS / S

30000 WFMS / s waveform refresh rate makes it easier to catch occasional abnormal signals.

Waveform Refresh Rate of 30000 WFMS / S – DS1000Z-E Series

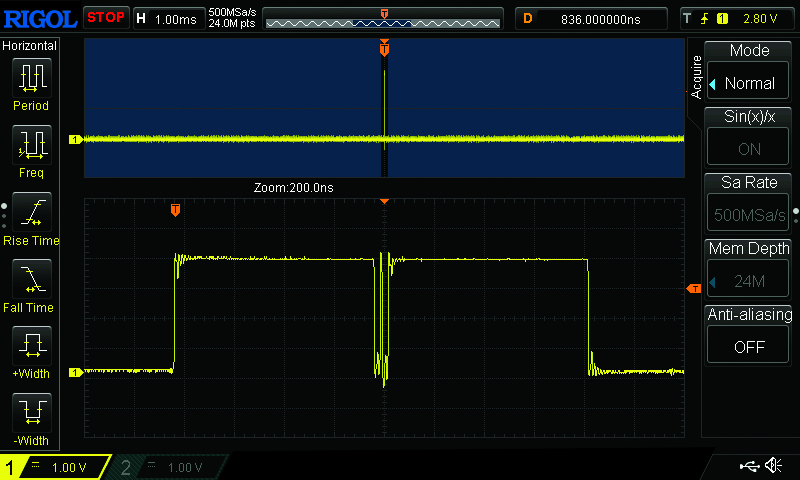

24m Storage Depth

Standard 24m ultra long storage depth. It allows the user to give full consideration to the overall situation and details of the waveform, maintain the highest sampling rate for a longer period of time, without missing any waveform change.

24m Storage Depth – DS1000Z-E Series

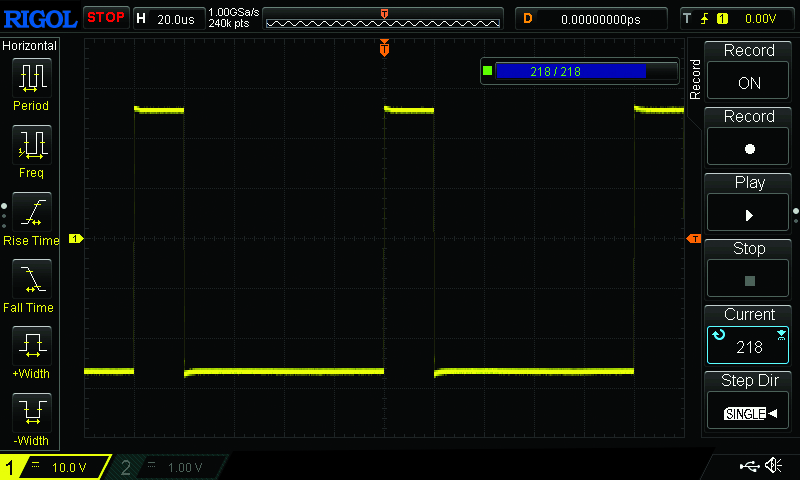

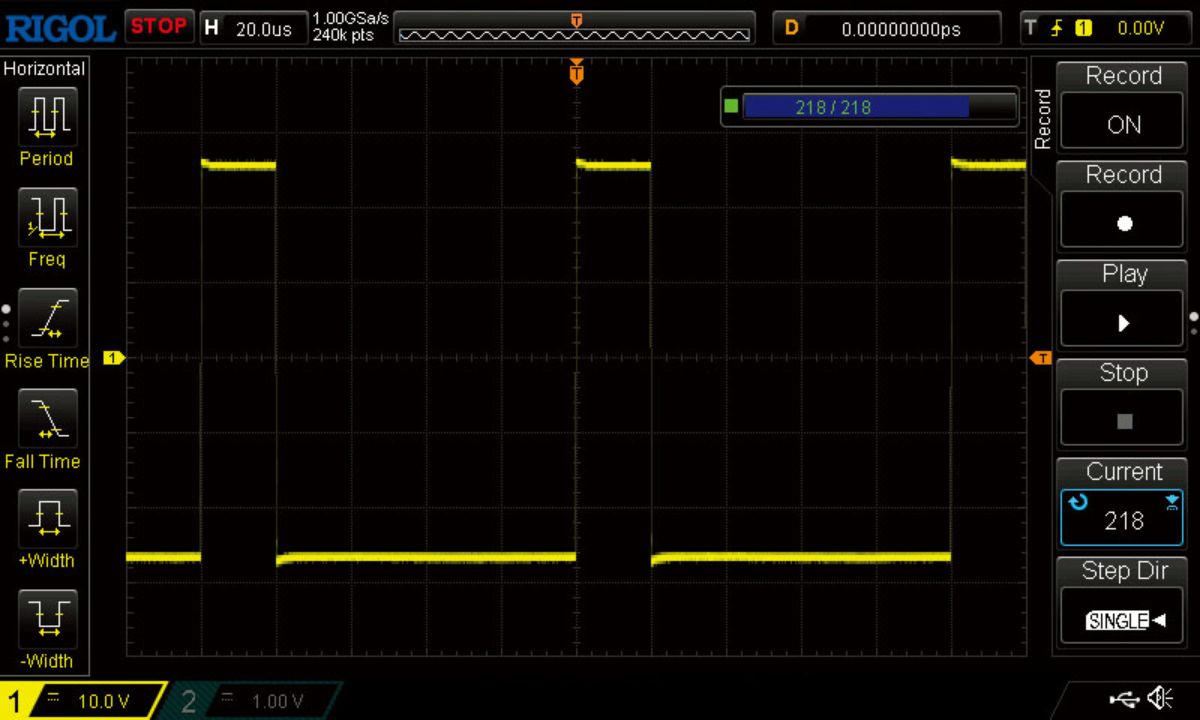

Hardware Waveform Recording and Playback Function

Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location.

Hardware Waveform Recording and Playback Function – DS1000Z-E Series

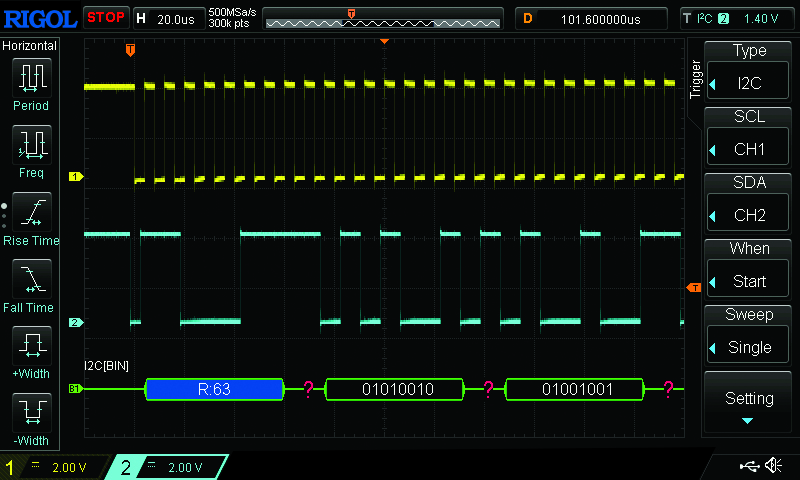

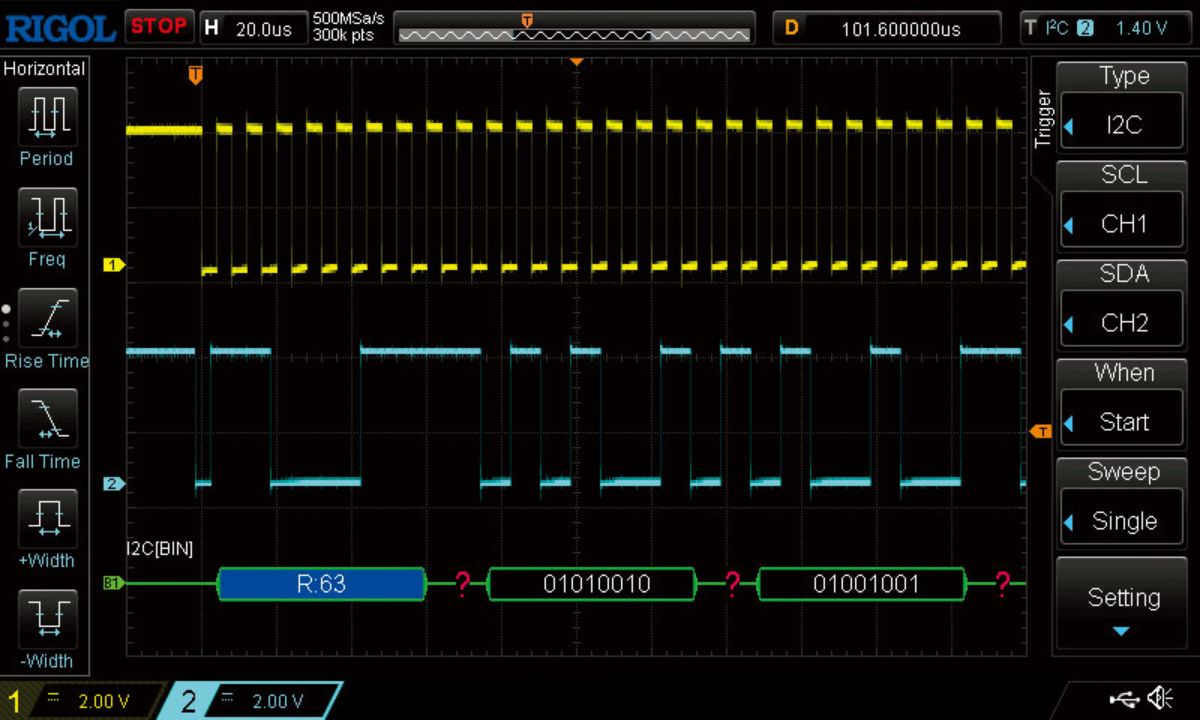

Serial Bus Triggering and Decoding

Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus.

Serial Bus Triggering and Decoding – DS1000Z-E Series

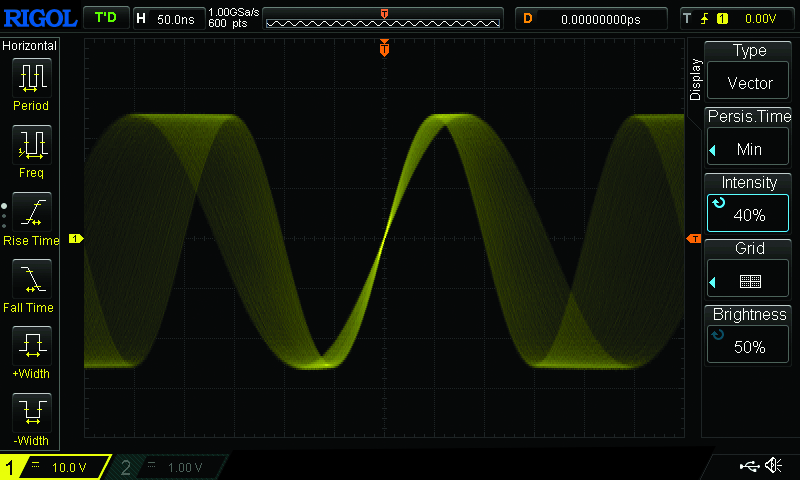

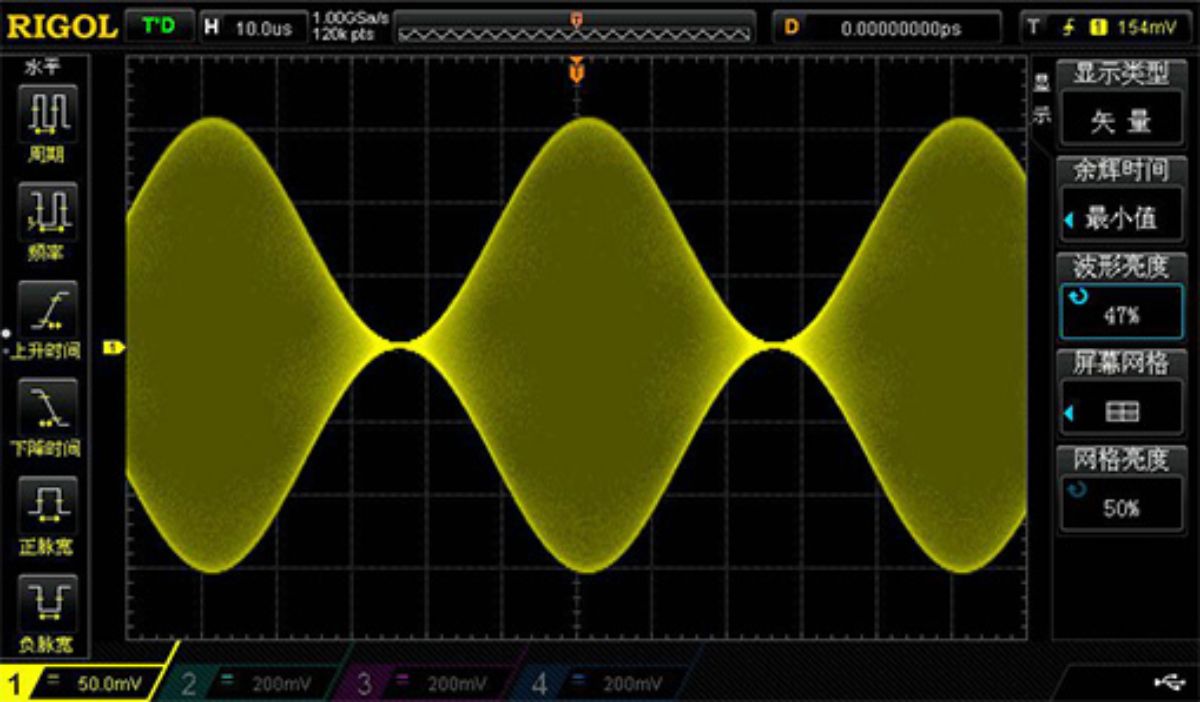

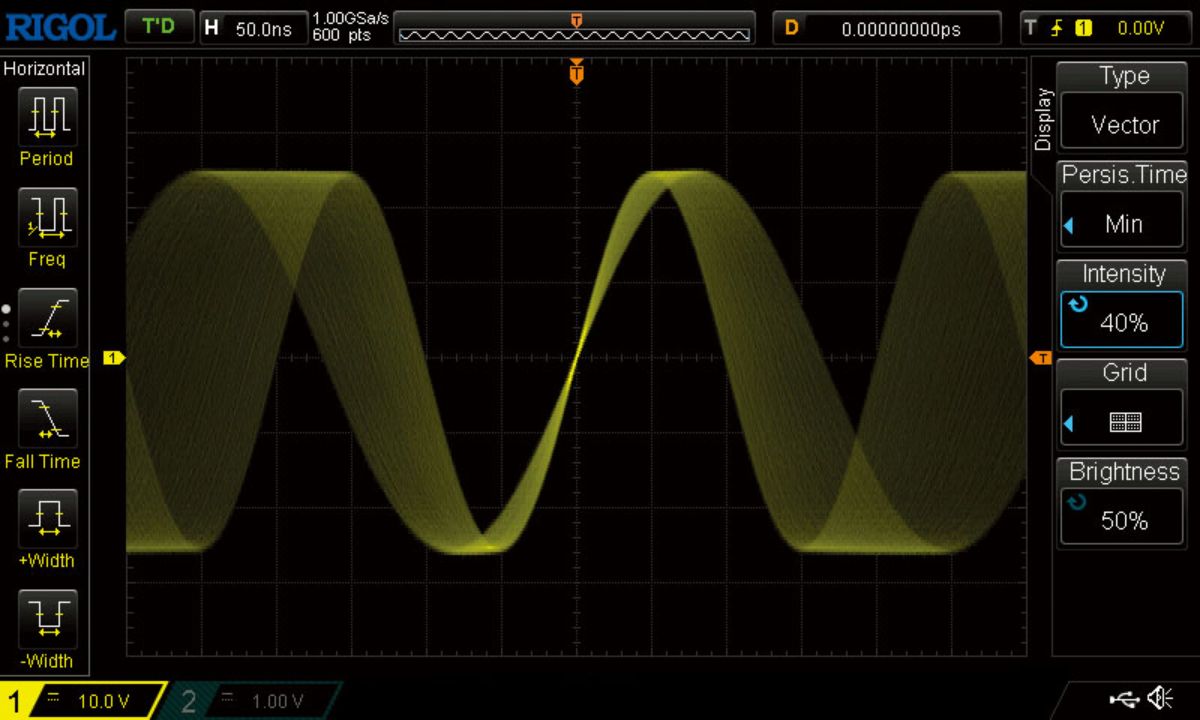

Digital Fluorescent Display

Multi level gray level display capability, providing similar fluorescent display effect, and the change of waveform can be seen at a fraction of a millisecond.

Digital Fluorescent Display – DS1000Z-E Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Price
DS1102Z-E 100 MHz 2 1 GSa/s 24 Mpts 30,000 wfms/s Rp6.937.500
DS1202Z-E 200 MHz 2 1 GSa/s 24 Mpts 30,000 wfms/s Rp8.103.000
*Prices may change without prior notice.

Accessories

Model Description
RM-DG4000/DS1000Z Rack Mounting Kit for DG4000/DS1000Z

User Manual

Name Version Release Date Download
DS1000Z-E User Manual V1.0 2019-09-27 Download

Datasheet

Name Version Release Date Download
DS1000Z-E Datasheets V1.0 2020-04-10 Download

Programming Manual

Name Version Release Date Download
DS1000Z-E Programming Manual V1.0 2019-09-27 Download
