DS8000-R Series

DS8000-R series digital oscilloscope is a compact mid-to-high-end digital oscilloscope based on RIGOL's UltraVision II platform. With a compact design, DS8000-R supports multi-machine system integration, suitable for rack installation. It also allows remote control, and meet the standards of industrial automation test systems

Bandwidth: 2 GHz
Channels: 4
Real-time Sample Rate: 10 GSa/s
Max. Memory Depth: 500 Mpts
Waveform Capture Rate: 500,000 kwfms/s
Datasheet

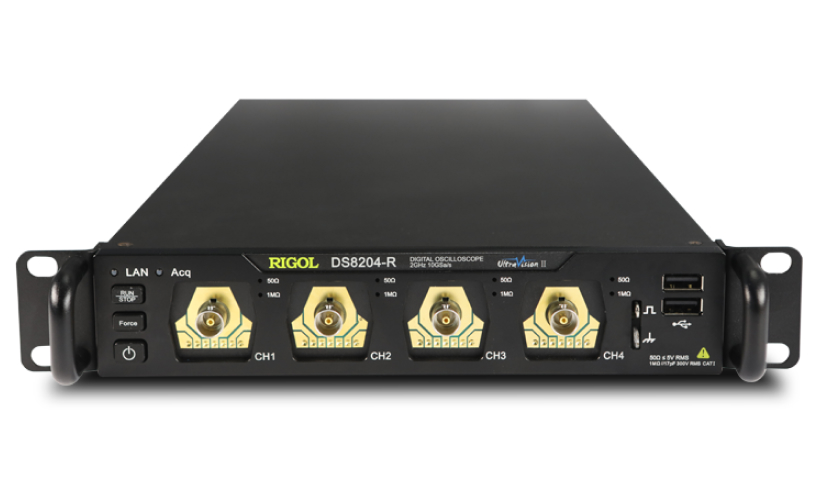

DS8000-R Series Product
DS8000-R Series thumbnail 1

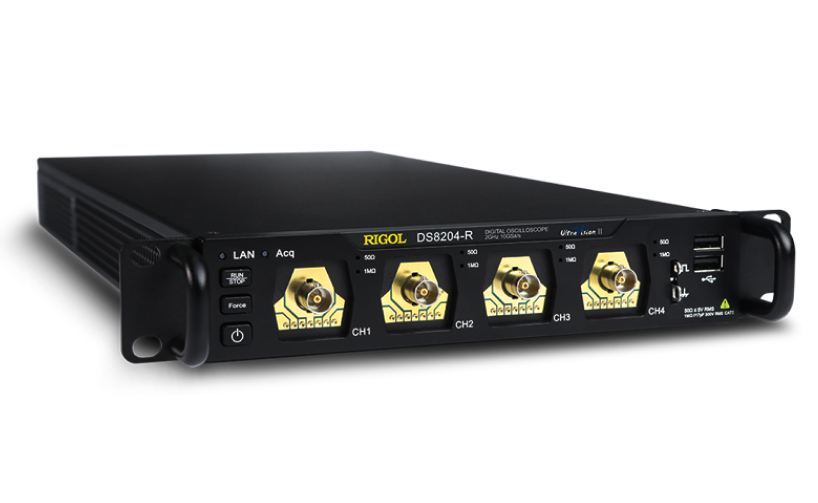

DS8000-R Series thumbnail 2
DS8000-R Series thumbnail 3

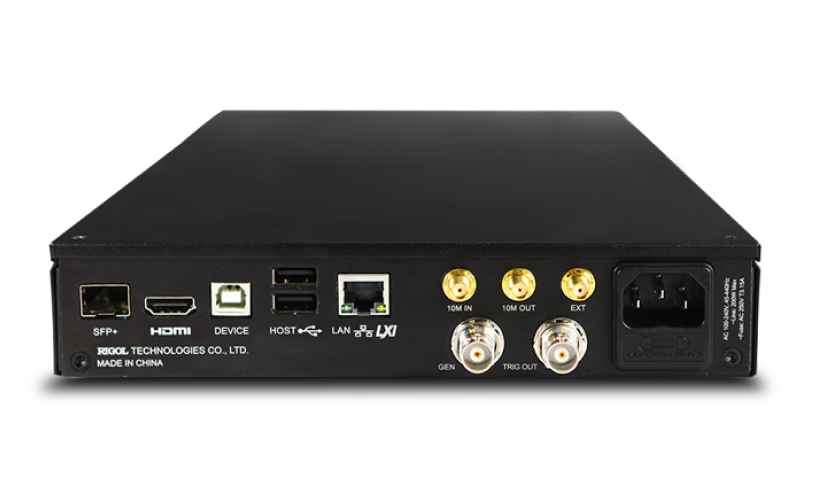

DS8000-R Series thumbnail 4

Features

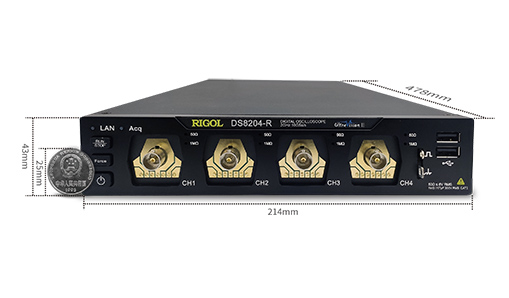

Compact design

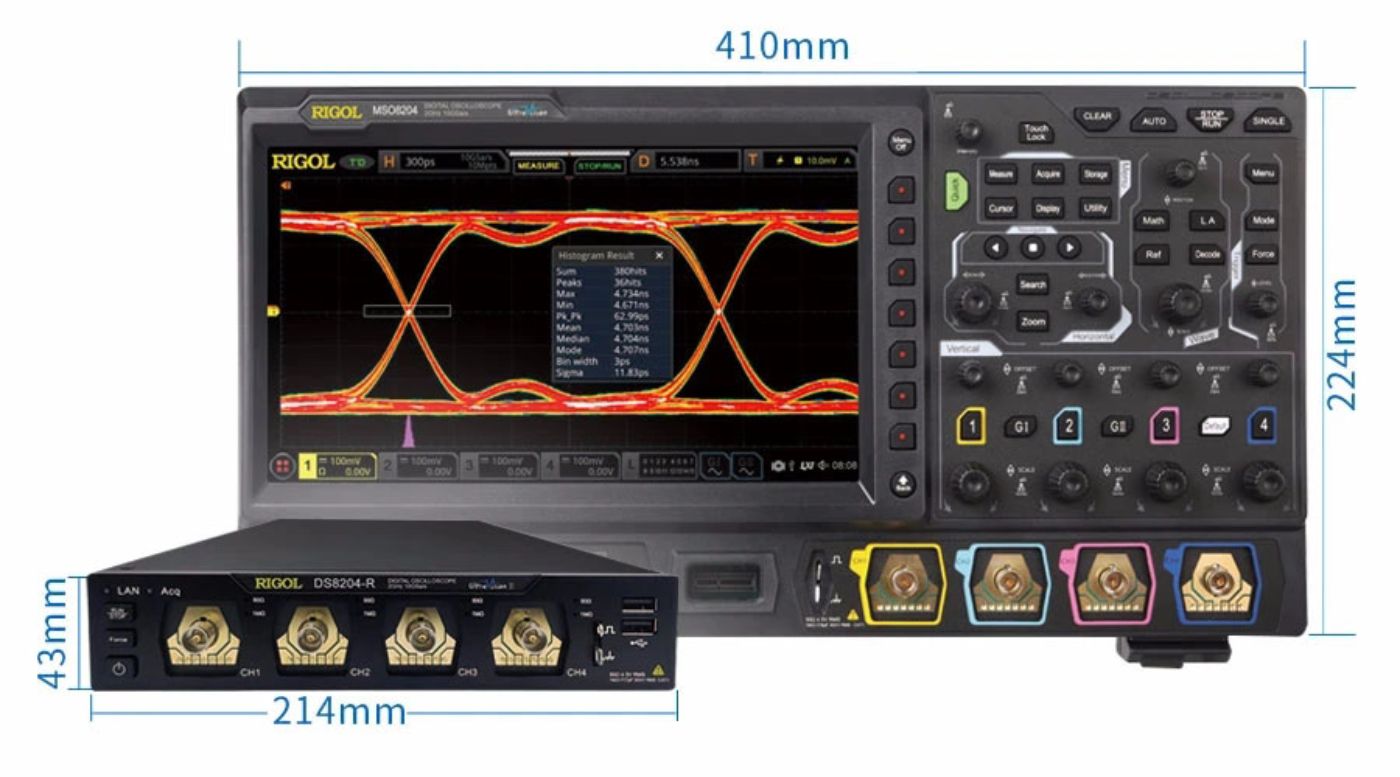

Space-saving compact design, small size, 214 mm (width) × 43 mm (height) × 478 mm (depth), which can be placed in a narrow space.

Compact design – DS8000-R Series

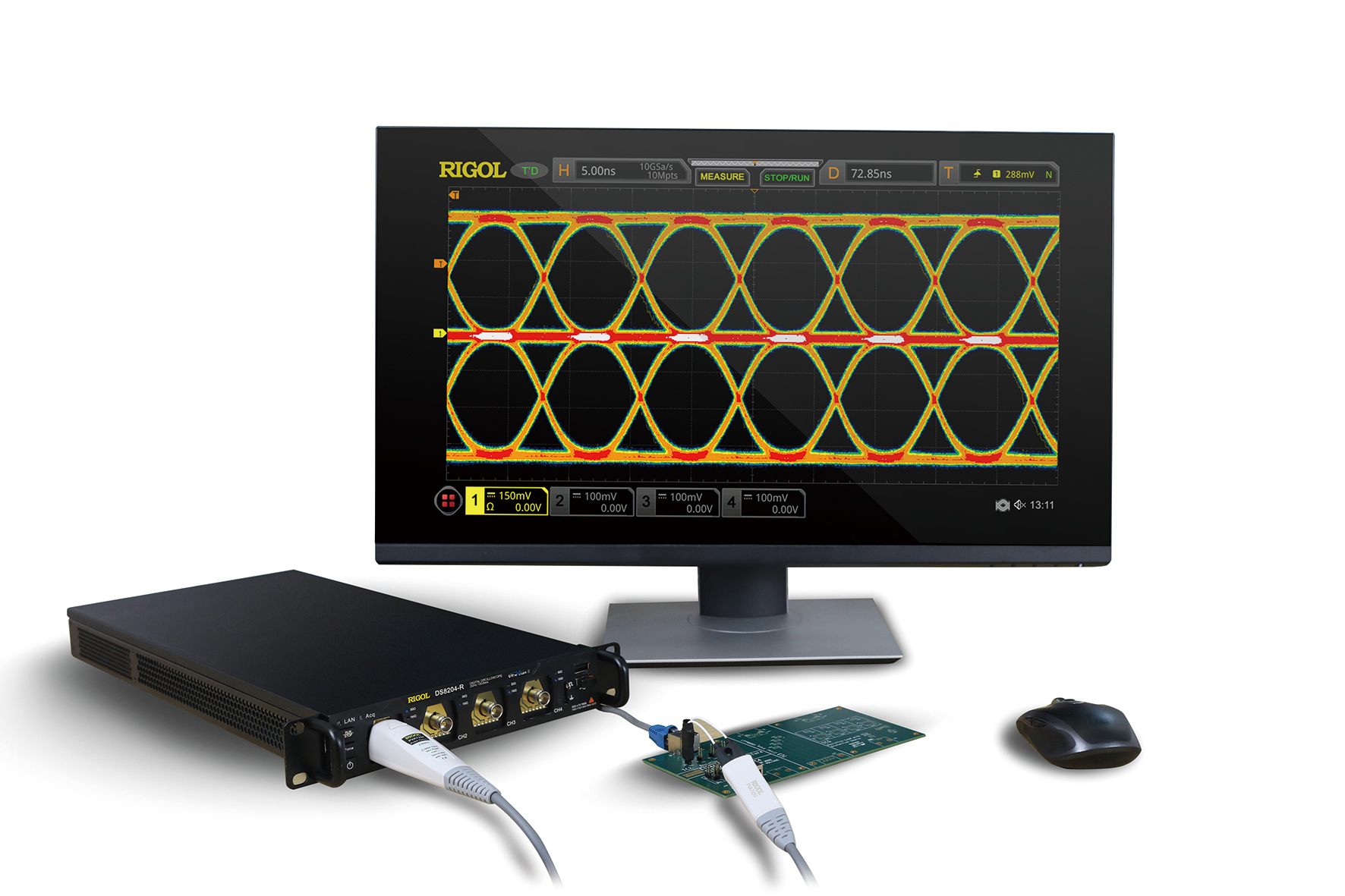

Convenient stand-alone working mode

A single device with peripherals can meet traditional oscilloscope applications: connect the display device through the HDMI interface to view the user interface, connect the mouse through the USB Host interface to click and drag, and connect the keyboard to set numbers or strings.

Convenient stand-alone working mode – DS8000-R Series

Suitable for low temperature working environment

Without a LCD screen, the minimum working temperature for DS8000R is -40℃, and it can be applied to signal monitoring in special environments

Suitable for low temperature working environment – DS8000-R Series

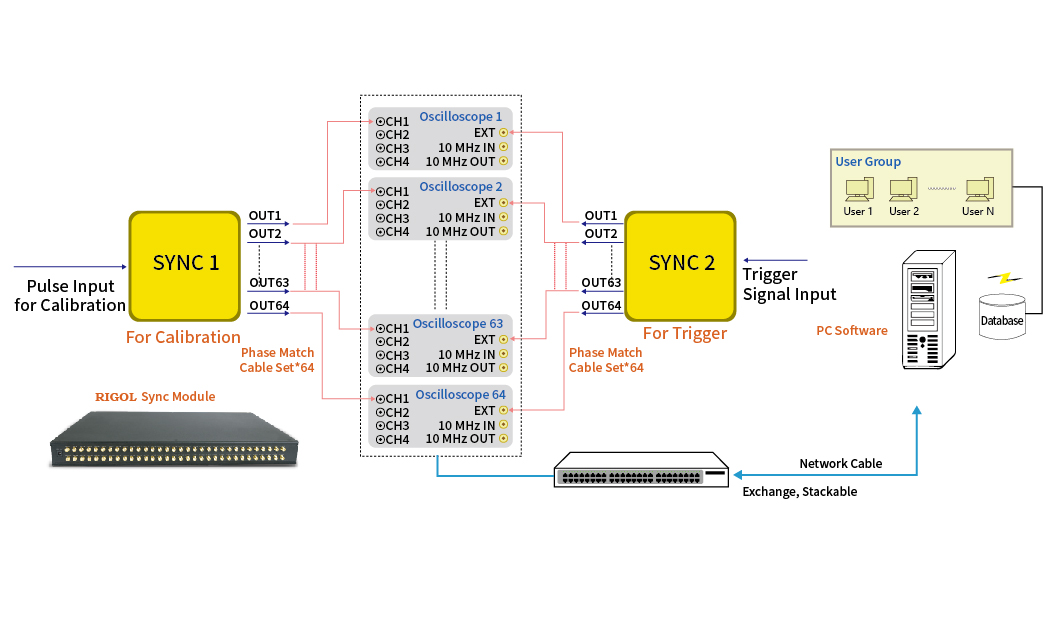

Scalable to 512 channels of synchronous trigger

Using the matching synchronous machine, it can provide a multi-machine synchronous trigger scheme, and can realize on-site calibration to ensure the requirements of multi-channel synchronous observation

Scalable to 512 channels of synchronous trigger – DS8000-R Series

Multi-channel high-speed data acquisition

For multi-channel integration, the optional multi-channel high-speed data acquisition software can meet the configuration of multi-machine and multi-channel, and provide a friendly interface to display the waveforms collected by each channel

Multi-channel high-speed data acquisition – DS8000-R Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Built-In Source Price
DS8104-R 1 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 1CH (Option) Get a Quote
DS8204-R 2 GHz 4 10 GSa/s 500 Mpts 600,000 wfms/s 1CH (Option) Get a Quote
DS8034-R 350 MHz 4 5 GSa/s 500 Mpts 600,000 wfms/s 1CH (Option) Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
DS SYNC64 64-channel synchronization module Rp143.984.000
RPA246 Power analysis phase difference calibration fixture Rp1.104.000
DK-DS6000 Demo board Rp3.520.000

User Manual

Name Download
DS8000 User's Guide Download
DS8000 UltraDaq Lite Help Guide Download
DS8000 Rack Kit Guide Download

Datasheet

Name Download
DS8000 Datasheet Download

Programming Manual

Name Download
DS8000 Programming Manual Download

Open Source

Name Download
7000 & 8000 Open Source Acknowledgement Download

Quick Guide

Name Download
DS8000 Quick Guide Download

Software

Name Download
DS8000 Performance Verification Guide Download
