DG5000 Pro Series

The DG5000 Pro Function/Arbitrary Waveform Generator is RIGOL's new generation of isolated waveform generators. Based on the Si-Fi II technology platform, it achieves a maximum sampling rate of 2.5 GSa/s, an output frequency of 500 MHz, and a 16-bit vertical resolution, along with several new feature upgrades to meet the needs of various industries and application scenarios.

Max Output Frequency: 500MHz
Channels: 2CH
Sampling Rate: 2.5GSa/s
Arbitary Wave Length: 128Mpts .opt
Vertical Resolution: 16bits

Start From Rp77.000.000

Datasheet

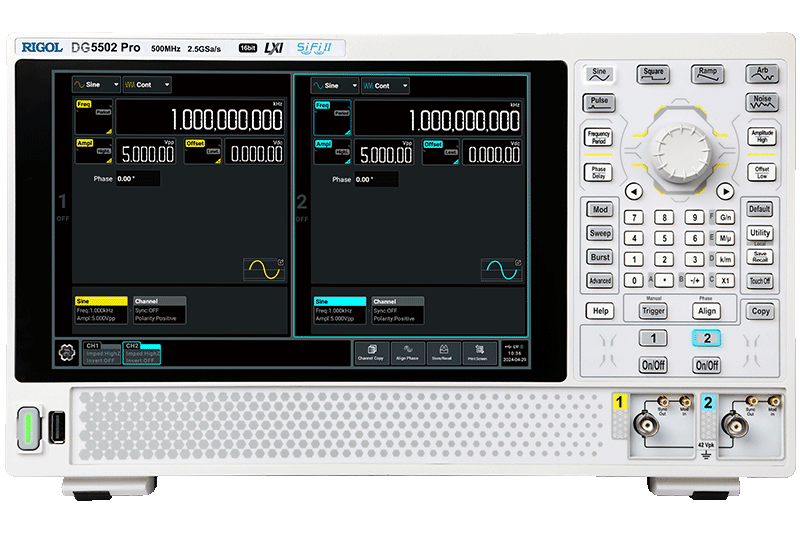

DG5000 Pro Series Product
DG5000 Pro Series thumbnail 1

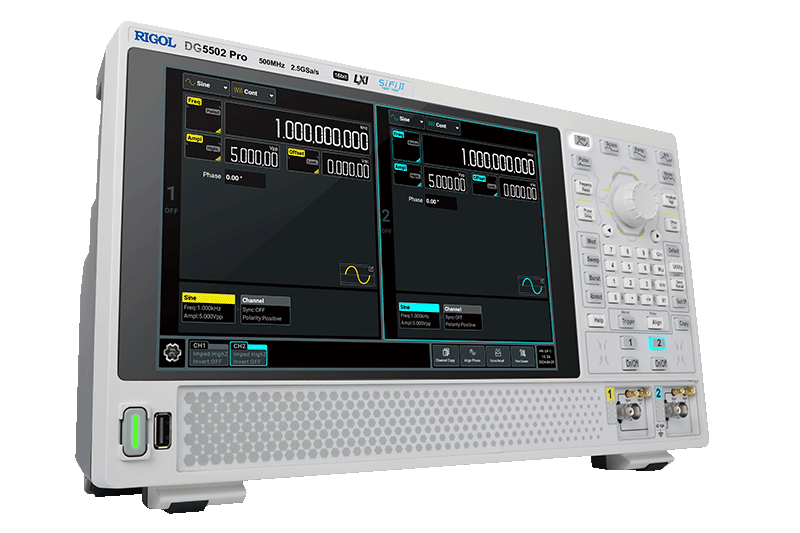

DG5000 Pro Series thumbnail 2

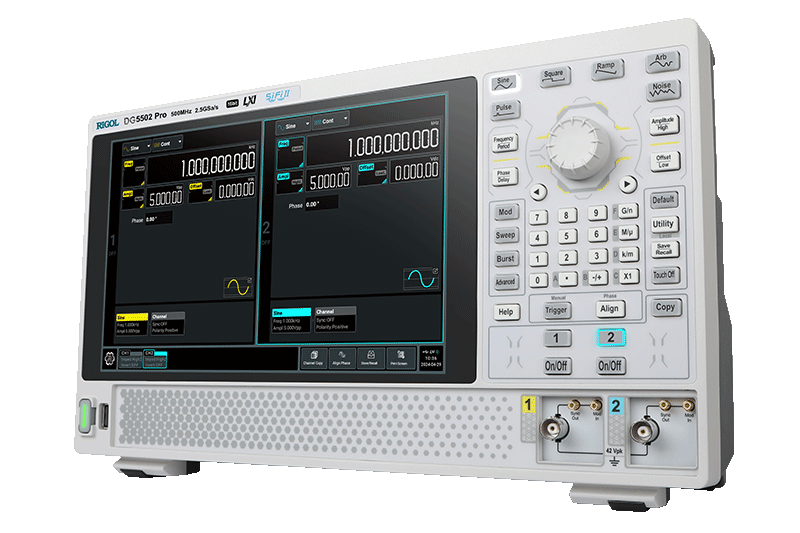

DG5000 Pro Series thumbnail 3

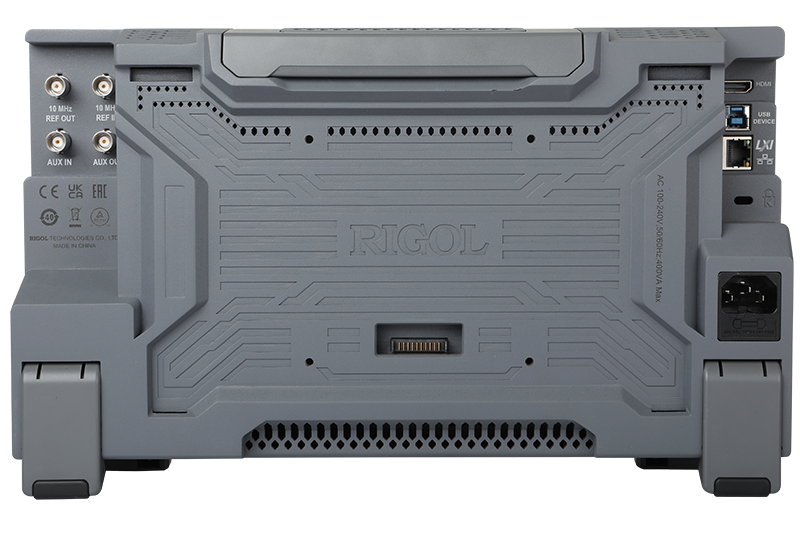

DG5000 Pro Series thumbnail 4

Features

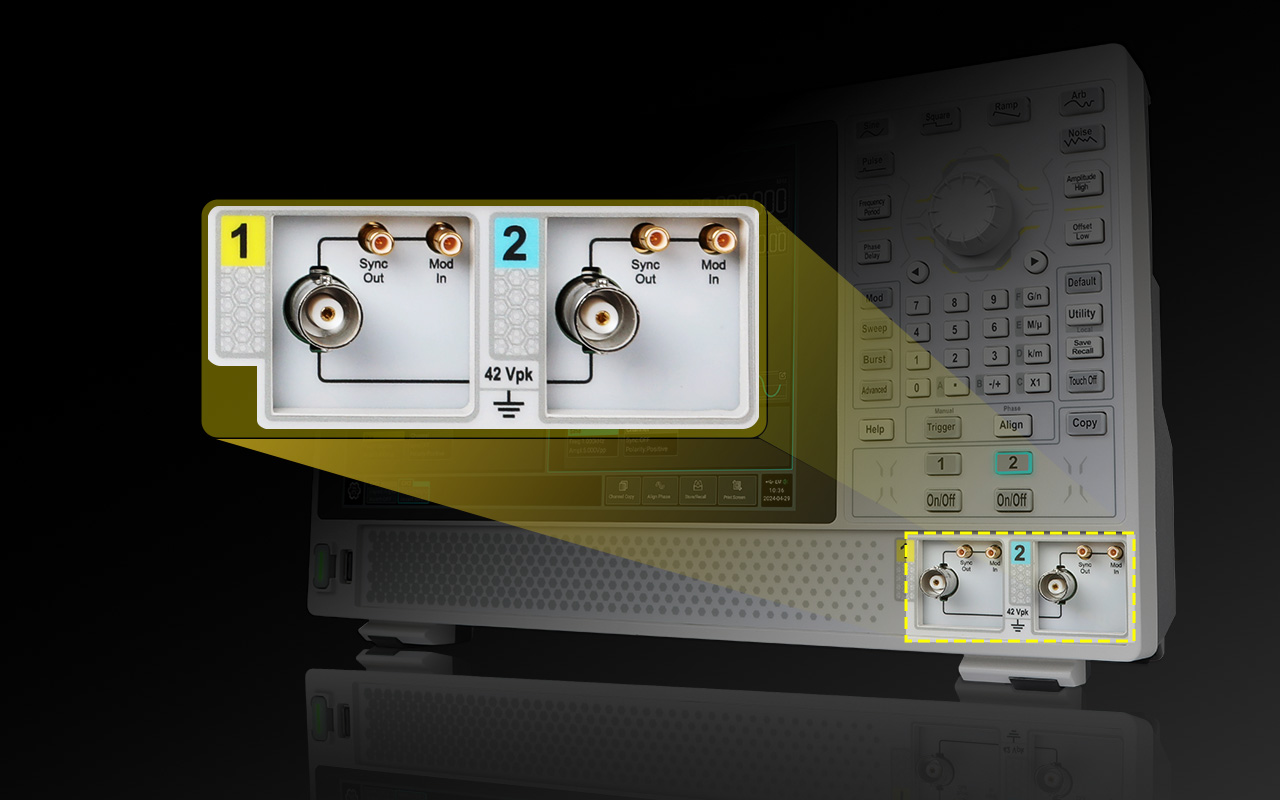

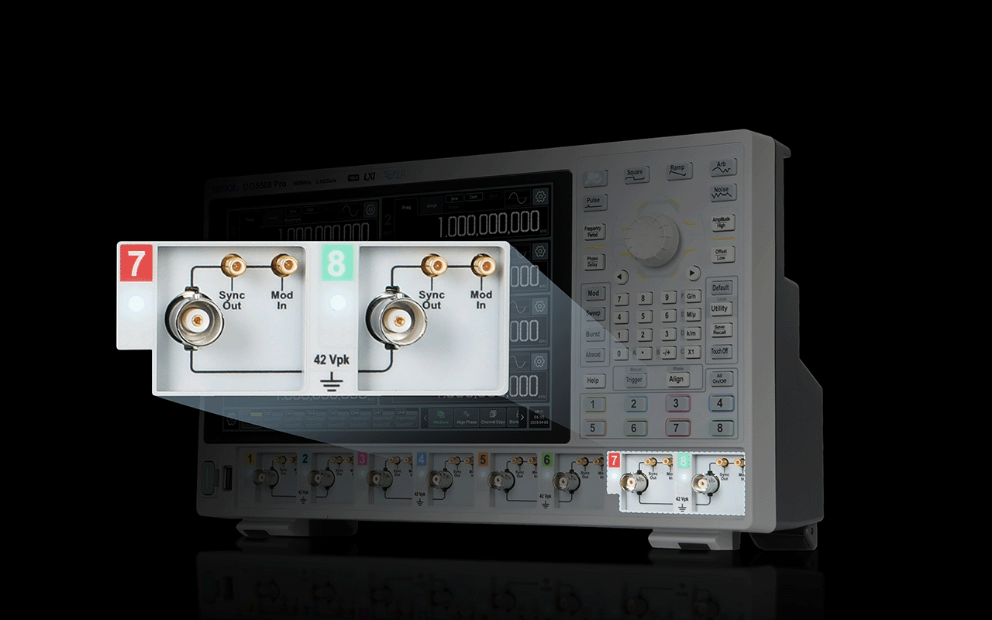

Dual-Channel Ground Isolation

Eliminates interference and noise caused by ground loops, enhancing output stability and protecting components and circuits are sensitive to potential differences.

Dual-Channel Ground Isolation – DG5000 Pro Series

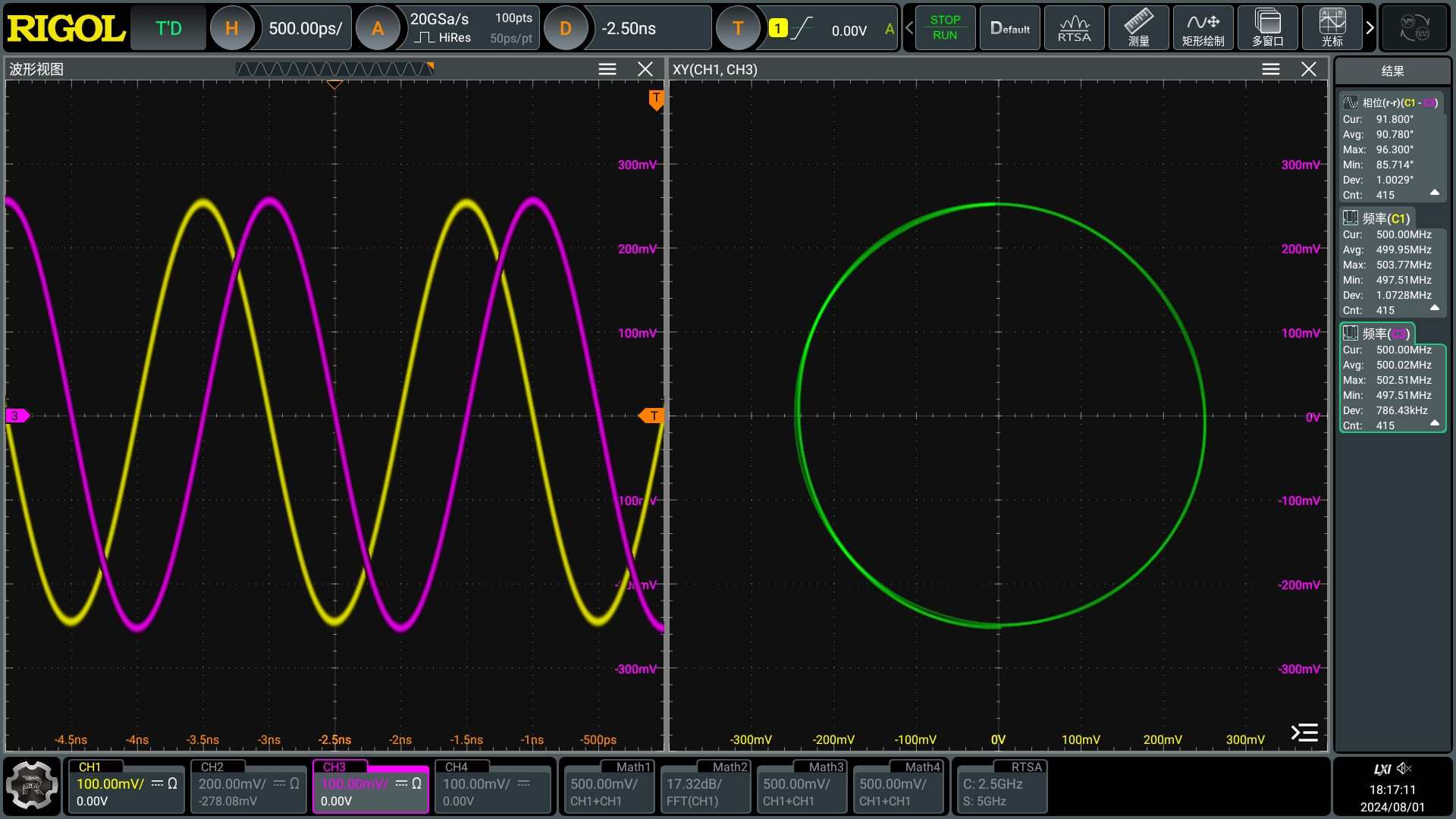

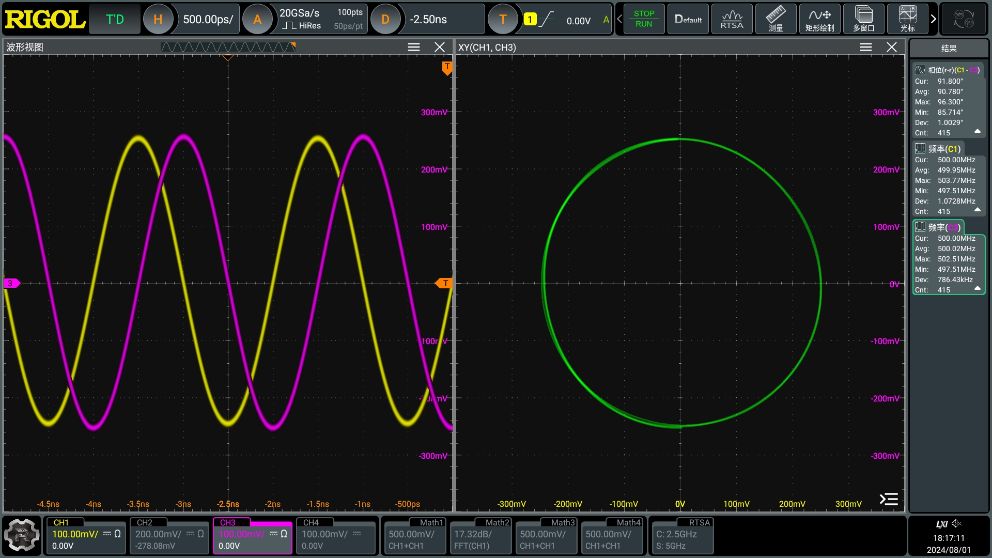

High Sampling, Low Distortion

With a 2.5 GSa/s sampling rate and a maximum output \ frequency of 500 MHz, the DG5000 Pro provides stable assurance for your waveform outputs.

High Sampling, Low Distortion – DG5000 Pro Series

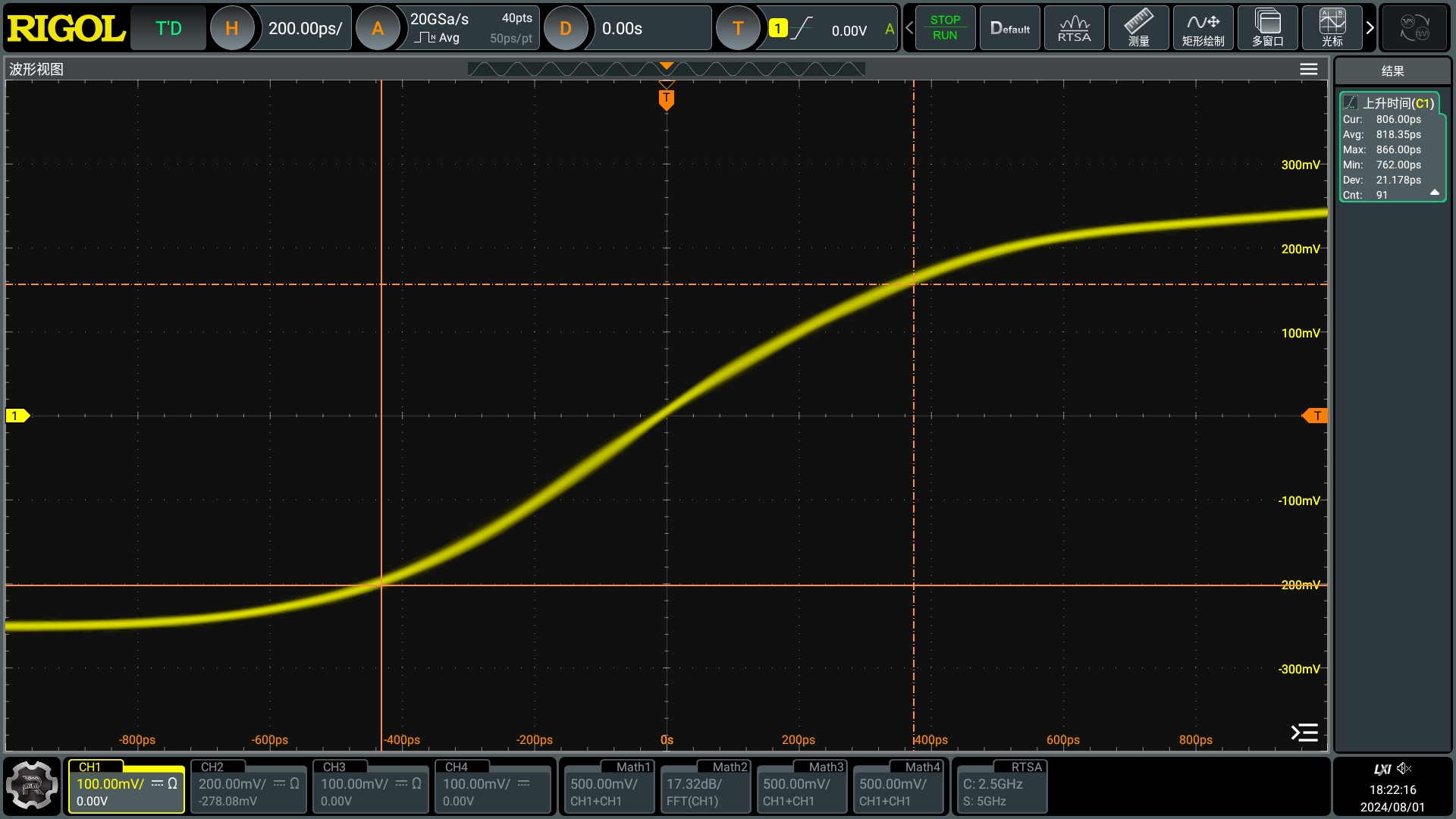

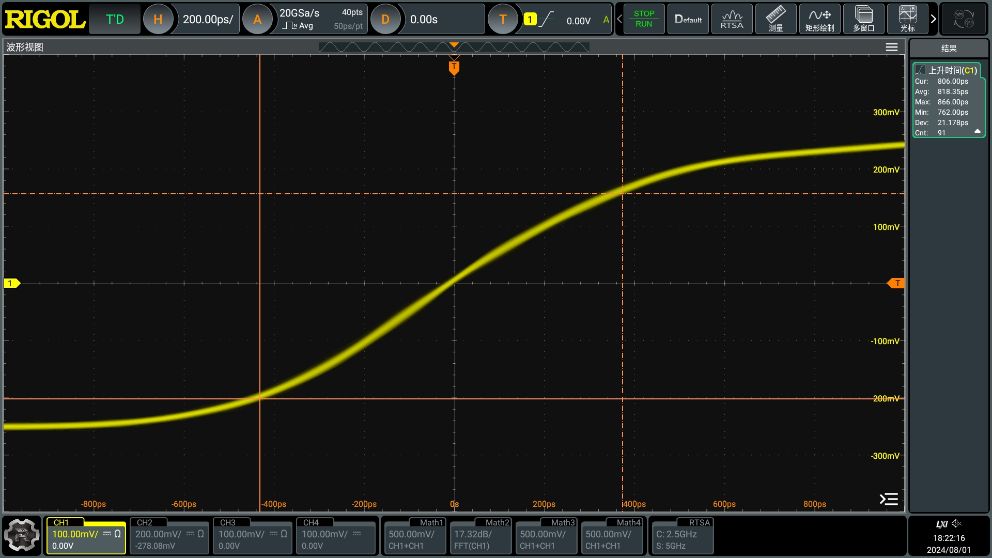

The DG5000 Pro Series Supports a 170 MHz Square Wave, with a Rise

The DG5000 Pro series supports square wave frequencies up to 170 MHz, \ with a minimum rise time improved to 0.8 ns (typical). Performance is uncompromised, offering high-end configurations even at entry-level.

The DG5000 Pro Series Supports a 170 MHz Square Wave, with a Rise – DG5000 Pro Series

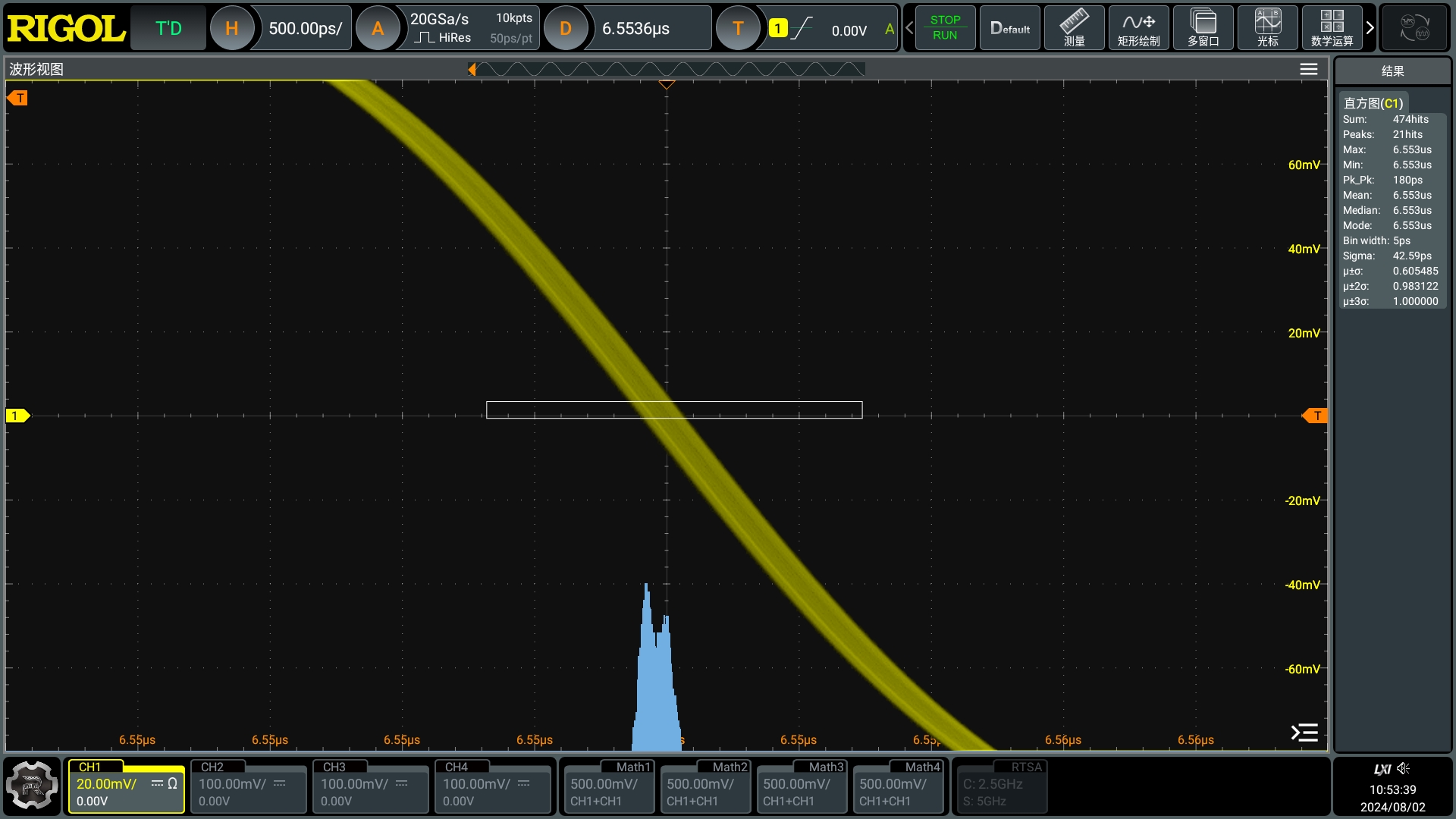

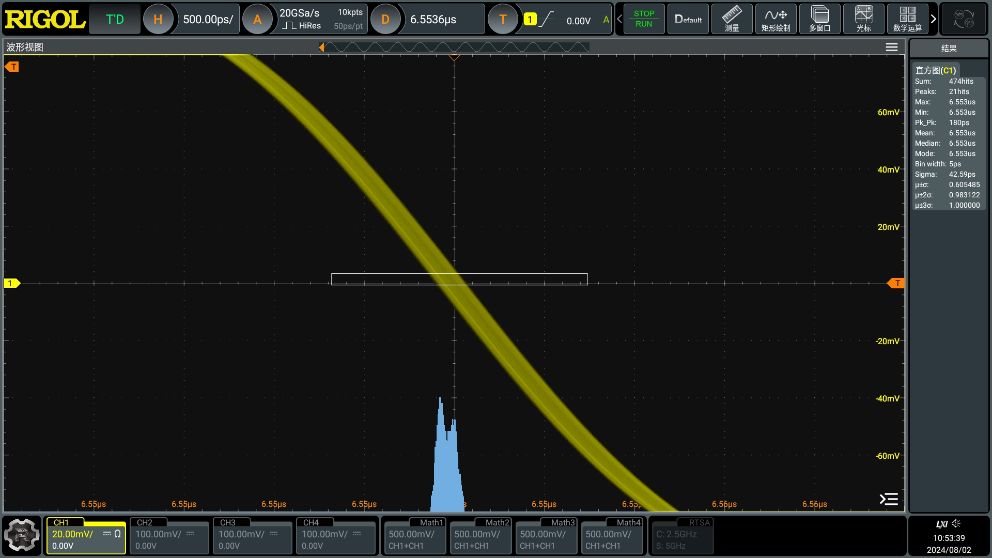

High-Fidelity Signal with Low Jitter

Utilizing RIGOL's Si-Fi II high-fidelity signal technology, jitter is reduced to as low as 200 ps. Point-by-point output ensures stable, non-fluctuating waveforms.

High-Fidelity Signal with Low Jitter – DG5000 Pro Series

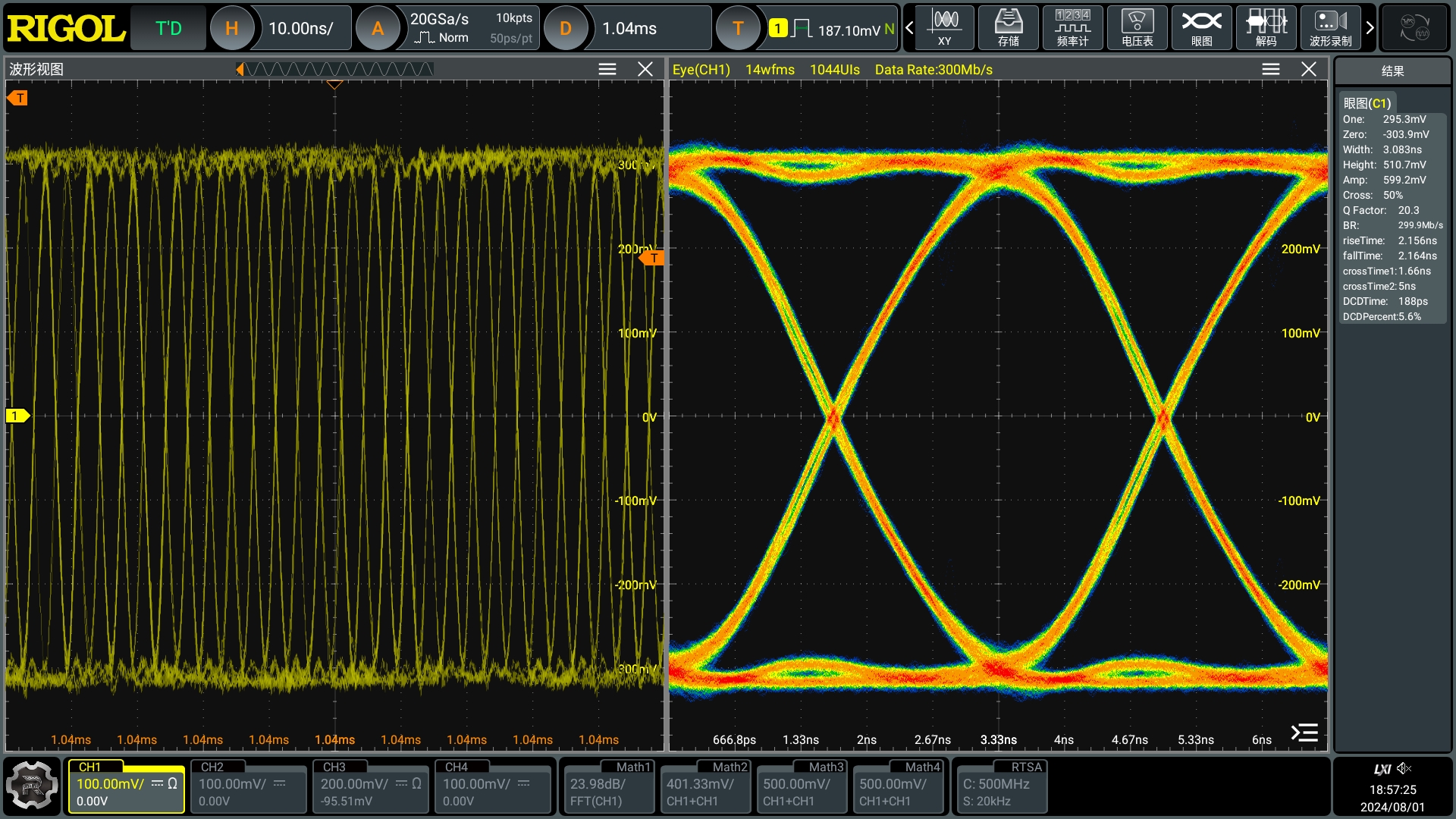

Custom Pattern Output

TProviding a range of Pseudo Random Binary Sequence signals from PRBS2 to PRBS32, along with custom pattern output functionality at baud rates up to 300M, offers engineers direct assistance in verifying the performance of digital I/O interface receivers.

Custom Pattern Output – DG5000 Pro Series

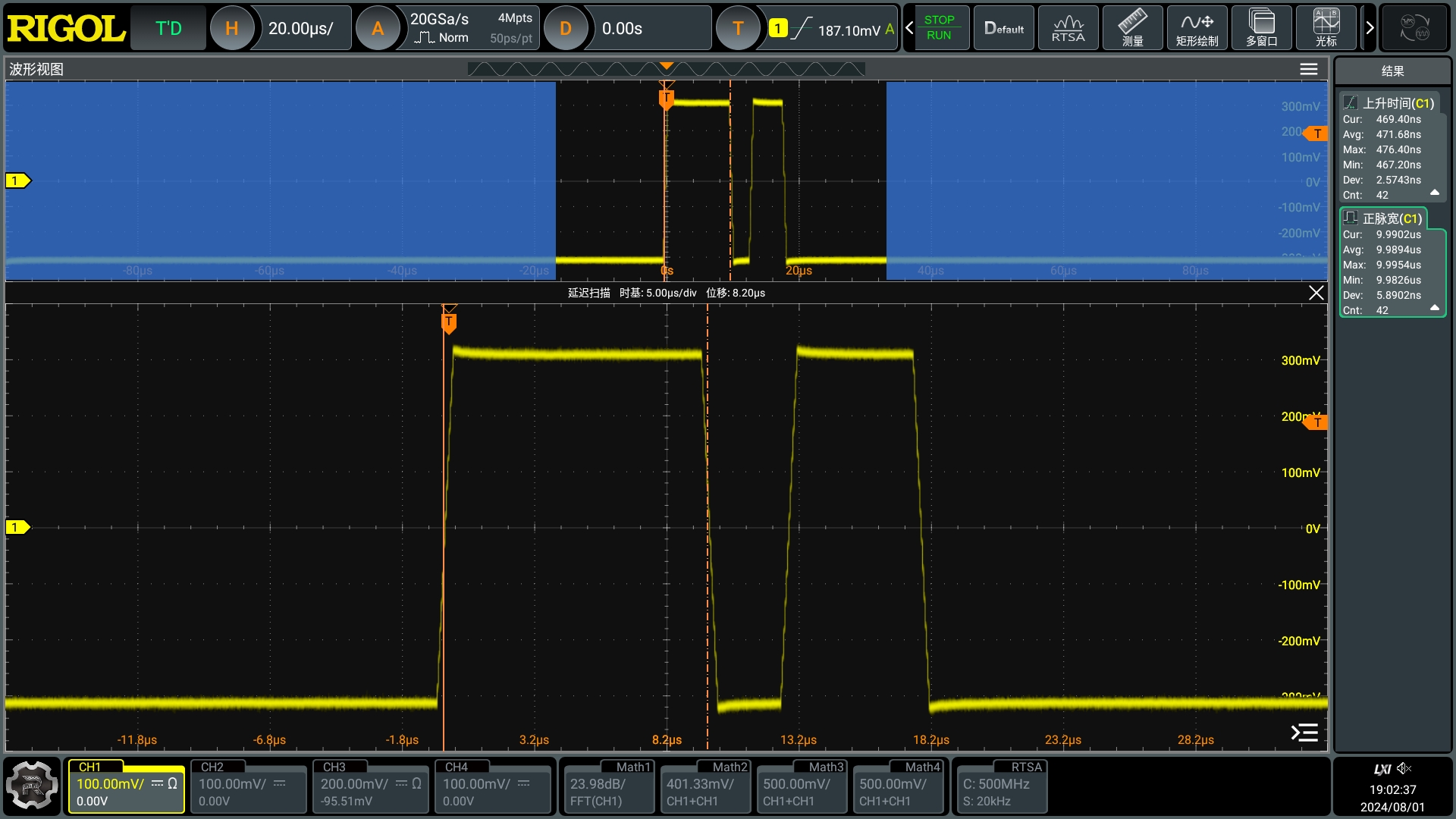

New Multi-Pulse Functionality

Supports editing of 2 to 16 pulses, ideal for quickly generating dual-pulse signals to drive components such as MOSFETs, IGBTs, and third-generation semiconductor power devices, enabling the testing of dynamic performance parameters of power devices.

New Multi-Pulse Functionality – DG5000 Pro Series

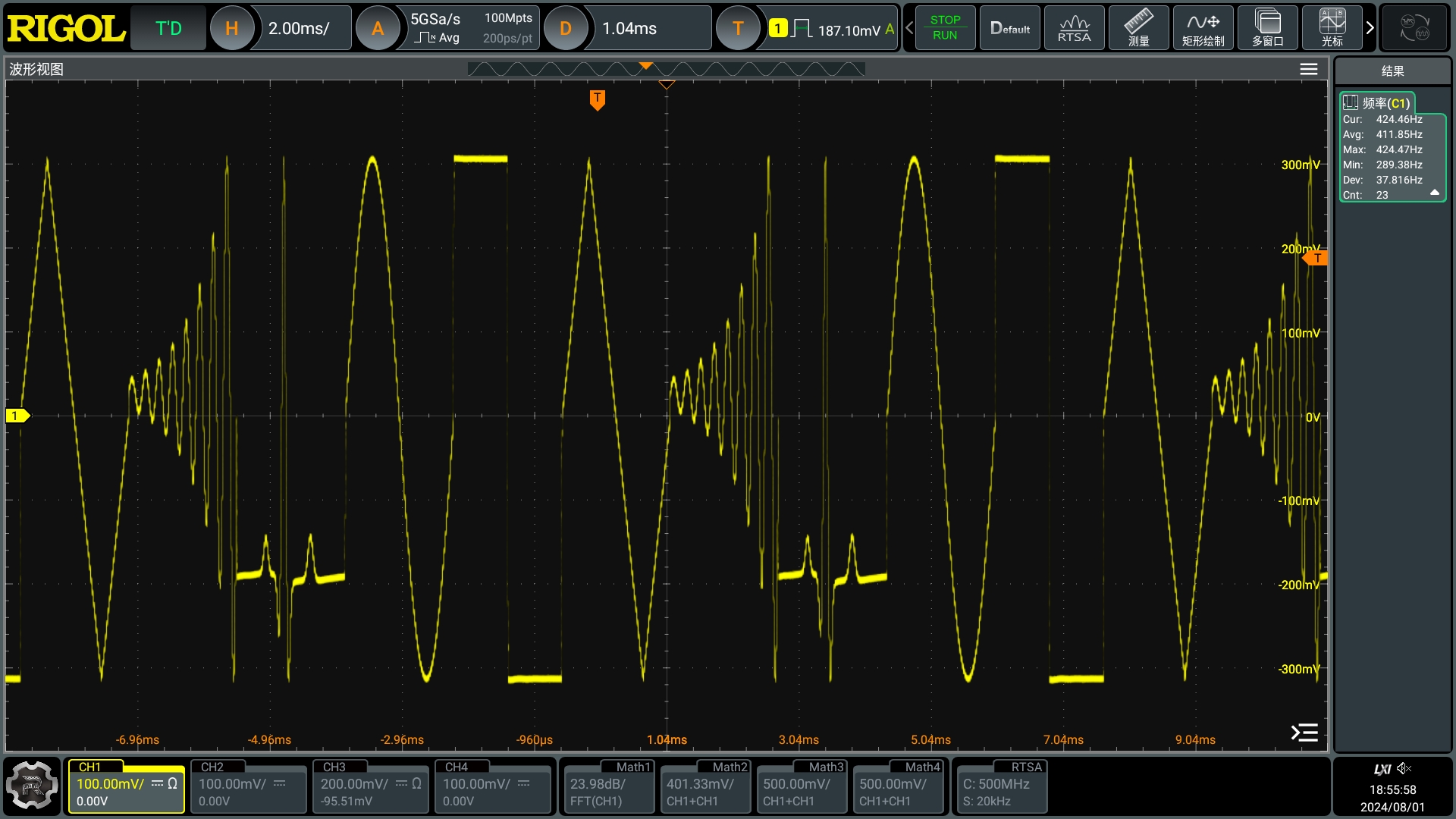

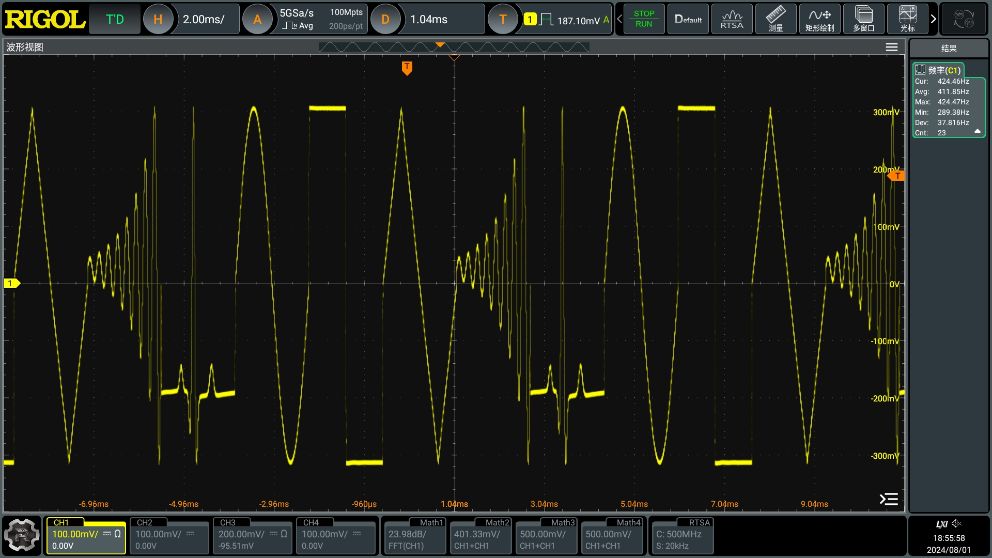

512-Event Advanced Waveform Sequencing Capability

Transforms what previously required multiple repetitions of waveform construction and test environment setup into a single, comprehensive test case, saving users time and enhancing testing efficiency.

512-Event Advanced Waveform Sequencing Capability – DG5000 Pro Series

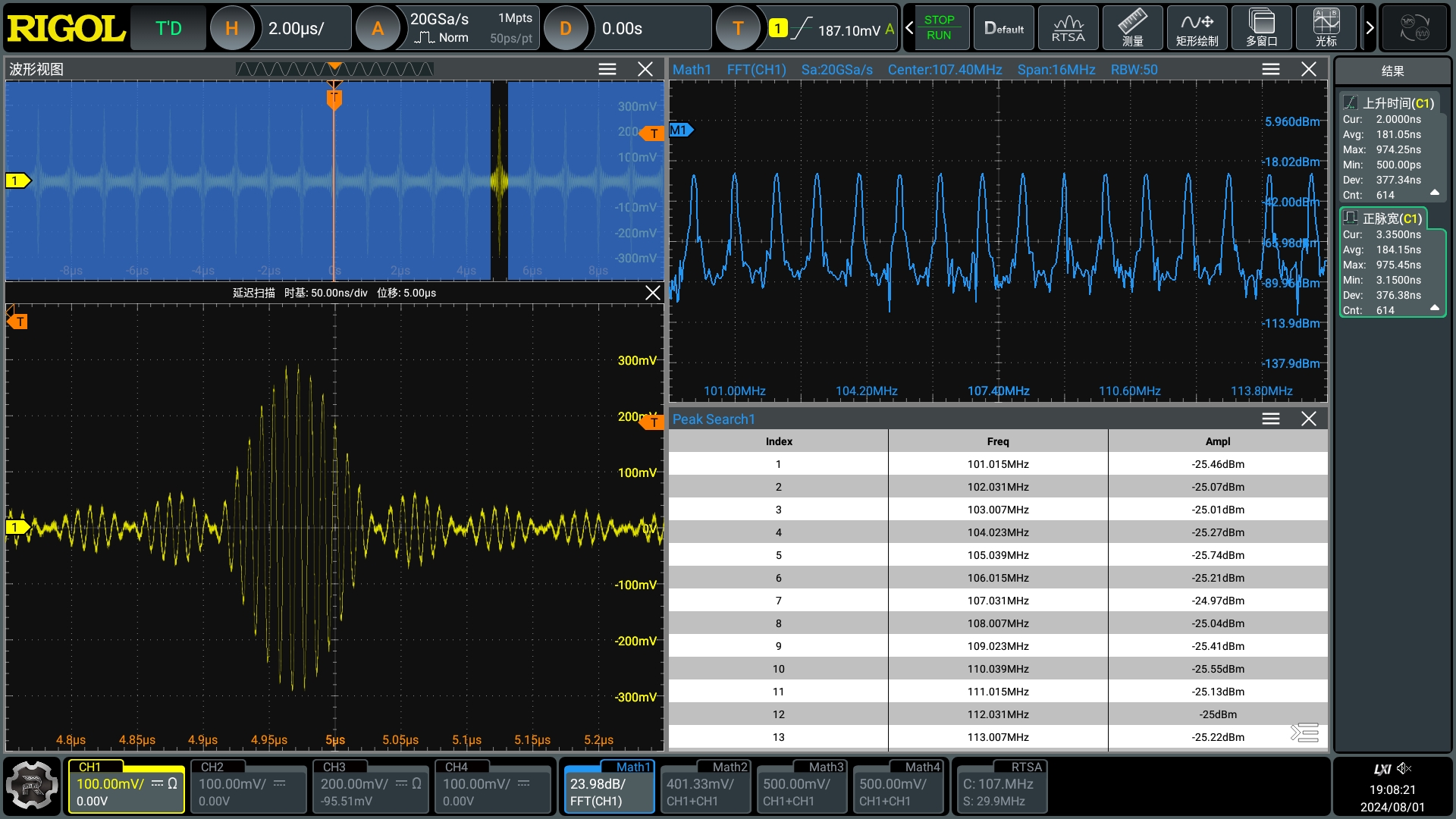

New Multi-Tone Modulation Functionality

It supports users in generating waveforms ranging from simple dual-tone to a maximum of 16 tones, with flexible editing of tone amplitude and phase, offering a more efficient and convenient testing method for evaluating the performance of devices such as amplifiers and filters.

New Multi-Tone Modulation Functionality – DG5000 Pro Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG5352 Pro 350MHz 2.5GSa/s 16bits 2CH 128Mpts .opt Rp66.413.392
DG5502 Pro 500MHz 2.5GSa/s 16bits 2CH 128Mpts .opt Rp97.967.642
DG5252 Pro 250MHz 2.5GSa/s 16bits 2CH 128Mpts .opt Rp29.876.892
DG5254 Pro 250MHz 2.5GSa/s 16bits 4CH 128Mpts .opt Rp51.466.642
DG5258 Pro 250MHz 2.5GSa/s 16bits 4CH 128Mpts .opt Get a Quote
DG5354 Pro 350MHz 2.5GSa/s 16bits 4CH 128Mpts .opt Rp107.932.142
DG5504 Pro 500MHz 2.5GSa/s 16bits 4CH 128Mpts .opt Rp151.111.642
DG5358 Pro 350MHz 2.5GSa/s 16bits 8CH 128Mpts .opt Get a Quote
DG5508 Pro 500MHz 2.5GSa/s 16bits 8CH 128Mpts .opt Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
DG5000 Pro-BND DG5000 Pro BND Option Rp15.984.000
DG5000 Pro-2RL DG5000 Pro 128 Mpts/CH (Max.) Arb Length Upgrade Option Rp5.424.000
