DL3000 Series

The DL3000 series is a cost-effective, economical programmable DC electronic load with a friendly human-machine interface and excellent performance specifications.

Total Power: 200W/350W
Voltage: 150V
Current: 40/50A
Highest Frequency: 30kHz
Current Slope: 5A/us
Current Readback Resolution: 1mA
Voltage Readback Resolution: 1mV

Start From Rp10.000.000

Datasheet

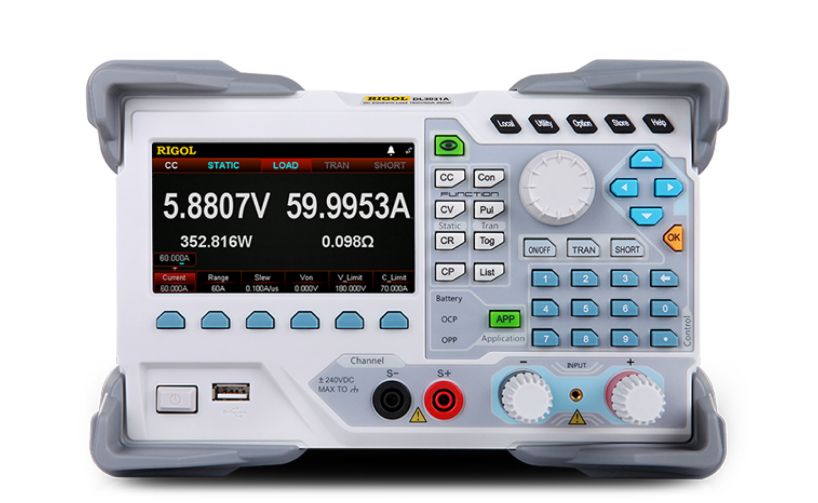

DL3000 Series Product
DL3000 Series thumbnail 1
DL3000 Series thumbnail 2

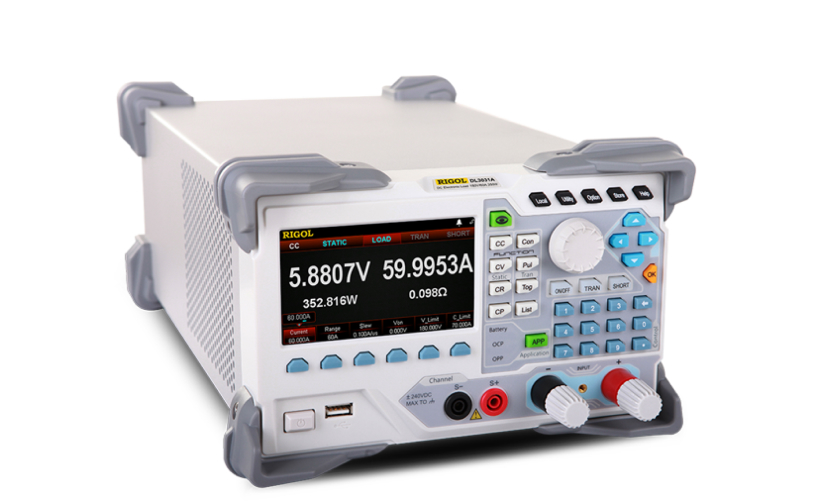

DL3000 Series thumbnail 3

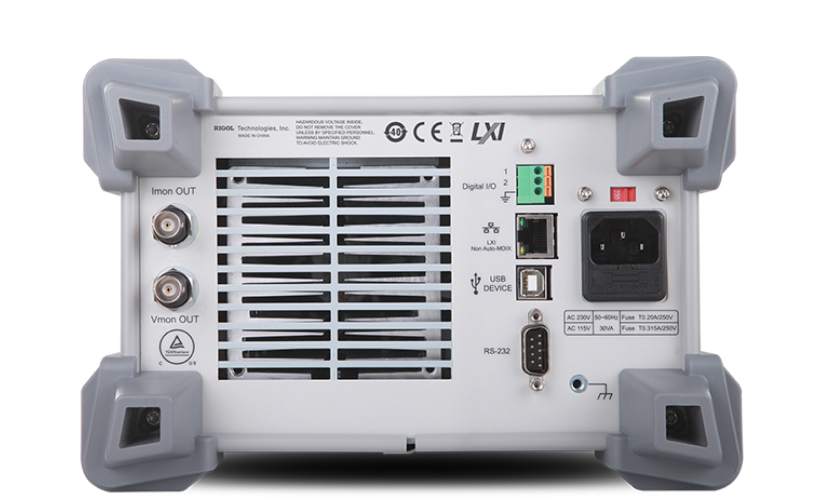

DL3000 Series thumbnail 4

Features

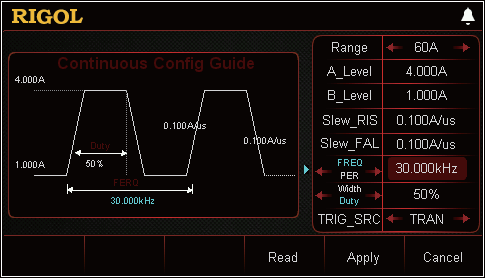

30kHz Dynamic Mode

The advanced DL3000A models provide up to 5 A/us and 30 kHz frequency settings for transient mode testing. Emulate more dynamic real world power demands with this flexibility. That ultimately results in higher reliability and known behavior for batteries and power systems.

30kHz Dynamic Mode – DL3000 Series

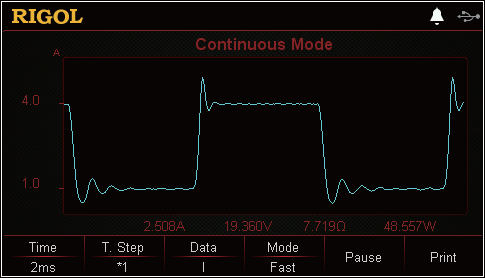

Dynamic Load Performance and Visualization

View the actual load performance on the front panel of the DL3000 in a static or transient mode. Optimize tests with customizable slew rates and frequency adjustments in Power, Voltage, Current, or Resistance modes.

Dynamic Load Performance and Visualization – DL3000 Series

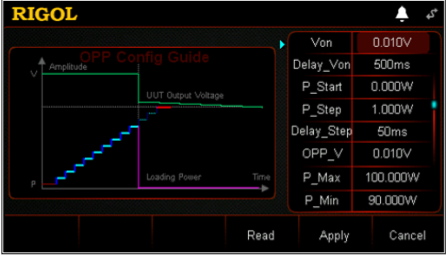

3 Built in application setups for battery testing or Current or Power optimization

Quickly characterize your device with automated battery and power step tests without any programming.

3 Built in application setups for battery testing or Current or Power optimization – DL3000 Series

Free UltraLoad Software for remote operation and monitoring

Easily reconfigure or investigate the setup of the DL3000 remotely over USB or Ethernet with the free UltraLoad software. Record captured data over time and save long term test results to characterize and better understand your power system performance.

Free UltraLoad Software for remote operation and monitoring – DL3000 Series

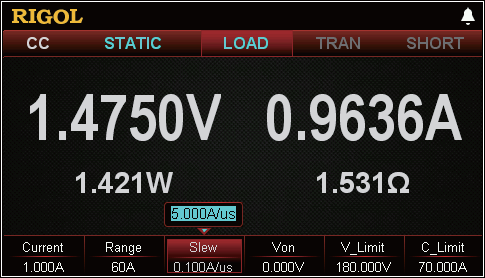

High resolution and accuracy on voltage and current load conditions

DL3000 Series provide specifications and capabilities that make measuring your power system under different conditions quick and easy. Monitor static conditions from the front panel or software interface and capture transient events with the built in waveform capture or by using an oscilloscope connected to the rear panel pulse shape outputs.

High resolution and accuracy on voltage and current load conditions – DL3000 Series

Model

Model Total Power Voltage Current Highest Frequency Current Slope Current Readback Resolution Voltage Readback Resolution Action
DL3021 200W 150V 40A 15kHz 2.5A/us 1mA 1mV Rp9.657.000
DL3021A 200W 150V 40A 30kHz 3.0A/us 0.1mA 0.1mV Rp13.320.000
DL3031 350W 150V 60A 15kHz 2.5A/us 1mA 1mV Rp20.979.000
DL3031A 350W 150V 60A 30kHz 5.0A/us 0.1mA 0.1mV Rp26.085.000
DL3041 450W 200V 70A 30kHz 5.0A/us 0.1mA 0.1mV Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
RM-2-DP800 Rack Mounting Kit for quantity 2 DP800 Power Supplies or 2 DL3000 Loads. May be different than image. Rack kits are different for each instrument. Rp2.035.366
CB-60A-780MM Load input 60 A cable. Cable is 30 inches long. Rp650.087
DL-02 Terminal Shield Terminal Shield for covering front inputs of DL3000 Series Loads. Clear Plastic. Rp318.147
CB-20A-780MM Load input 20 A cable. Cable is 30 inches long. Rp318.147
CB-40A-780MM Load input 40 A cable. Cable is 30 inches long. Rp483.253
CB-SENSE Sense Cable for DL3000 Sense inputs Rp318.147
RM-1-DP800 Rack Mounting Kit for quantity 1 DP800 Power Supplies or 1 DL3000 Load. May be different than image. Rack kits are different for each instrument. Rp2.287.221

User Manual

Name Version Release Date Download
DL3000 User Manual V1.0 2020-06-29 Download

Datasheet

Name Version Release Date Download
DL3000 Datasheets V2.0 2024-05-21 Download

Programming Manual

Name Version Release Date Download
DL3000 Programming Manual V1.0 2022-07-02 Download

Quick Guide

Name Version Release Date Download
DL3000 Quick Guide v1.0 2021-11-23 Download
