MSO/DS4000 Series

The 4000 series digital oscilloscope is a versatile, high performance mixed signal oscilloscope that incorporates many of today’s most advanced technologies and processes.

Bandwidth: 100 MHz ~ 500 MHz
Analog Channels: 2/4
Digital Channels: 16 (Only MSO Model)
Real-time Sample Rate: 4 GSa/s
Max. Memory Depth: 140 Mpts
Waveform Capture Rate: 110,000 kwfms/s

Start From Rp58.275.000

Datasheet

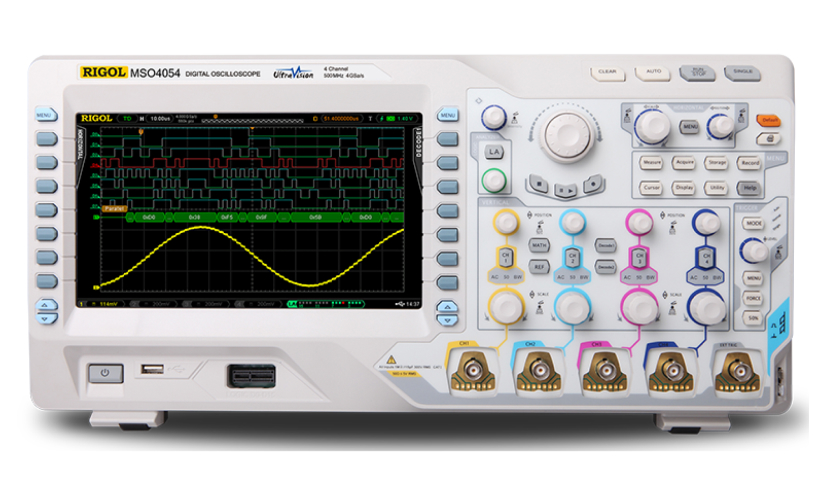

MSO/DS4000 Series Product
MSO/DS4000 Series thumbnail 1

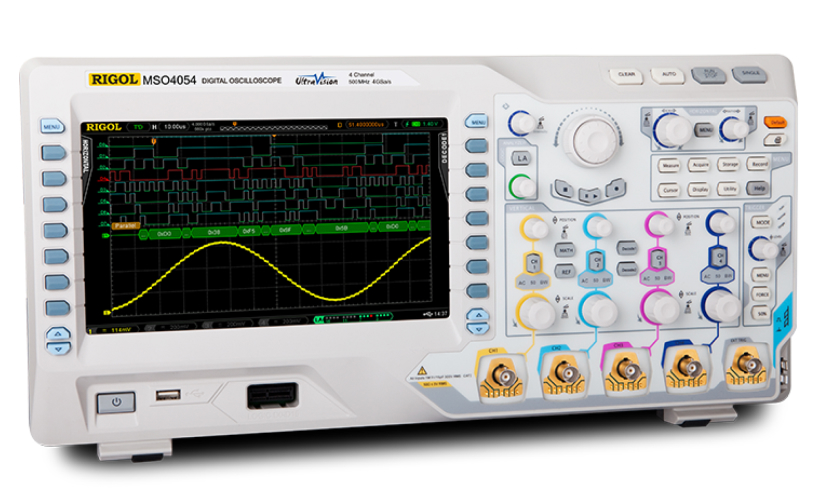

MSO/DS4000 Series thumbnail 2
MSO/DS4000 Series thumbnail 3

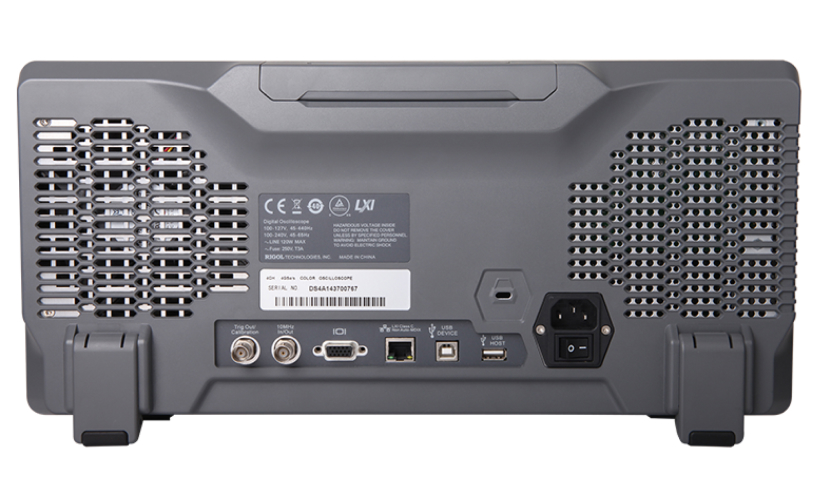

MSO/DS4000 Series thumbnail 4

Features

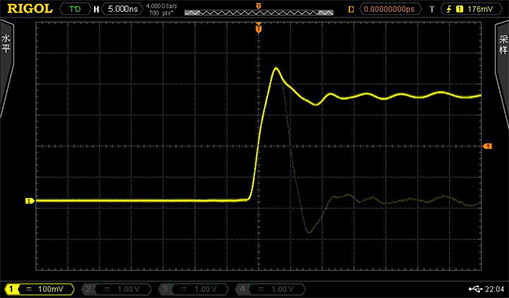

Up to 110,000 wfms/s Waveform Capture rate

Minimize scope “dead time” between trigger events and increases observations of random and sporadic events.

Up to 110,000 wfms/s Waveform Capture rate – MSO/DS4000 Series

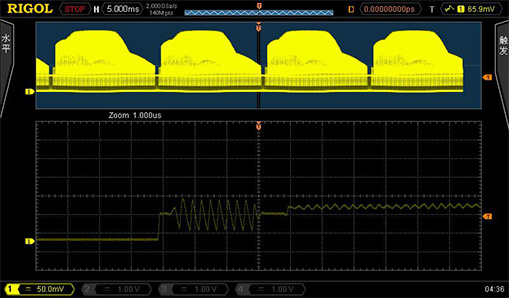

140Mpts Standard Record Length

Long acquisitions at high sample rates help debug elusive problems in complex digital streams.

140Mpts Standard Record Length – MSO/DS4000 Series

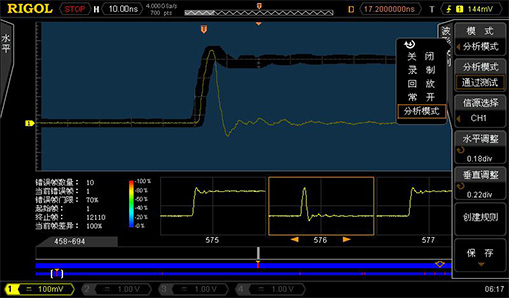

200,000-frame waveform recording, preview and analysis

The real-time recording function record up to 200,000 frames of waveforms, and the dedicated data analysis navigation knob makes possible to quickly view the recorded content, conveniently play back, analyze and compare the waveforms to find out the fault.

200,000-frame waveform recording, preview and analysis – MSO/DS4000 Series

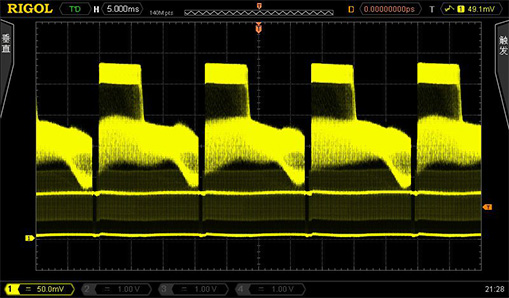

Intensity Color graded display

With RIGOL’s advanced color graded display engineers can visualize signal anomalies in an intensity color grading even when overlapping with other signals artifacts in the current trigger mode.

Intensity Color graded display – MSO/DS4000 Series

Serial bus triggering and decoding

Comes with I2C, SPI, RS232, CAN/LIN, Flexray trigger function, add options to support the above bus decoding as standard offer.

Serial bus triggering and decoding – MSO/DS4000 Series

Mixed signal analysis capability

The MSO model with 16 digital logic channels works for easier simultaneous testing of multiple analog and digital signals for easier digital logic and mixed-signal analysis.

Mixed signal analysis capability – MSO/DS4000 Series

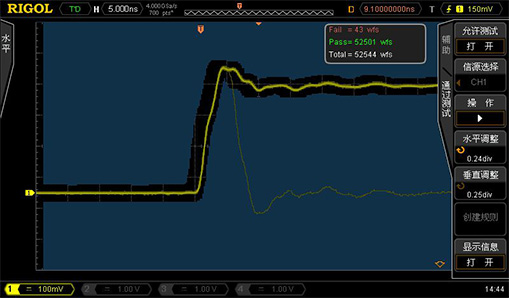

Standard waveform template test function

Standard template test function, with Pass/Fail statistics, error stop and alarm functions, convenient for production line testing and long-term monitoring applications.

Standard waveform template test function – MSO/DS4000 Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Price
DS4054 500 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4052 500 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4034 350 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4032 350 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4024 200 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4022 200 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4014 100 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
DS4012 100 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s - Get a Quote
MSO4054 500 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4052 500 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4034 350 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4032 350 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4024 200 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4022 200 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4014 100 MHz 4 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
MSO4012 100 MHz 2 4 GSa/s 140 Mpts 110,000 wfms/s 16 Get a Quote
*Prices may change without prior notice.

Accessories

Model Description
RM-DG4000/DS1000Z Rack Mounting Kit for DG4000/DS1000Z

User Manual

Name Version Release Date Download
MSO/DS4000 User Manual V1.0 2019-08-29 Download
RM-DS4000 RackmountKit User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
MSO/DS4000 Datasheets V1.0 2019-08-29 Download
