DHO1000 Series

The DHO1000 Series Digital Oscilloscopes are equipped with a second generation chipset developed by RIGOL. With a low noise floor and 12 bits, these high-resolution oscilloscopes are capable of finding the tiniest signals.

Bandwidth: 200 MHz
Sample Rate: 2GSa/s
Vertical Resolution: 1,500,000wfms/s
Channels: 4 Channels
Arbitary Wave Length: 100 Mpts
Datasheet

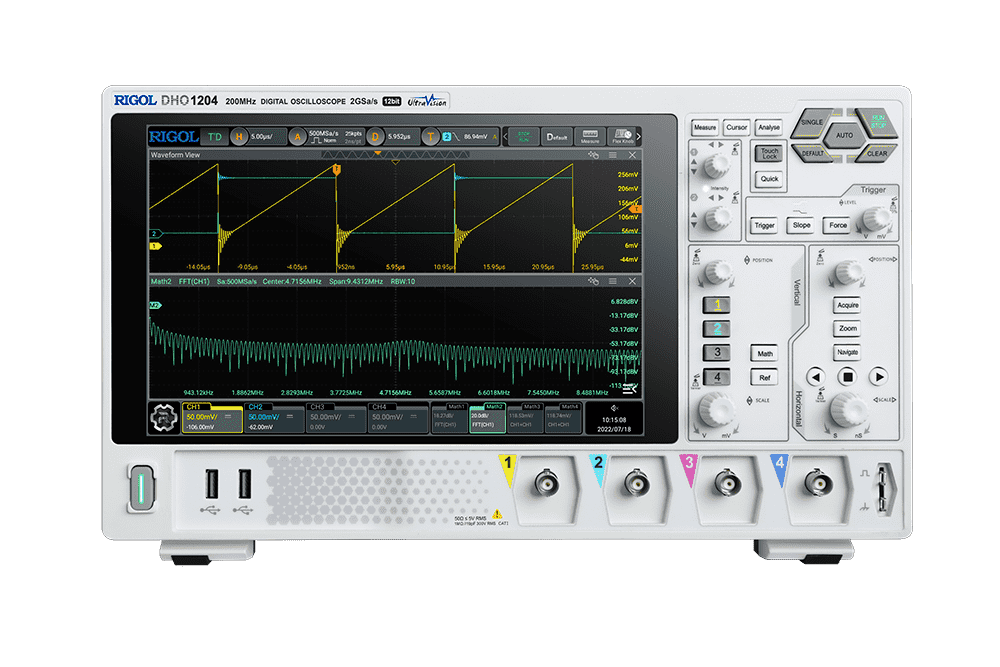

DHO1000 Series Product
DHO1000 Series thumbnail 1

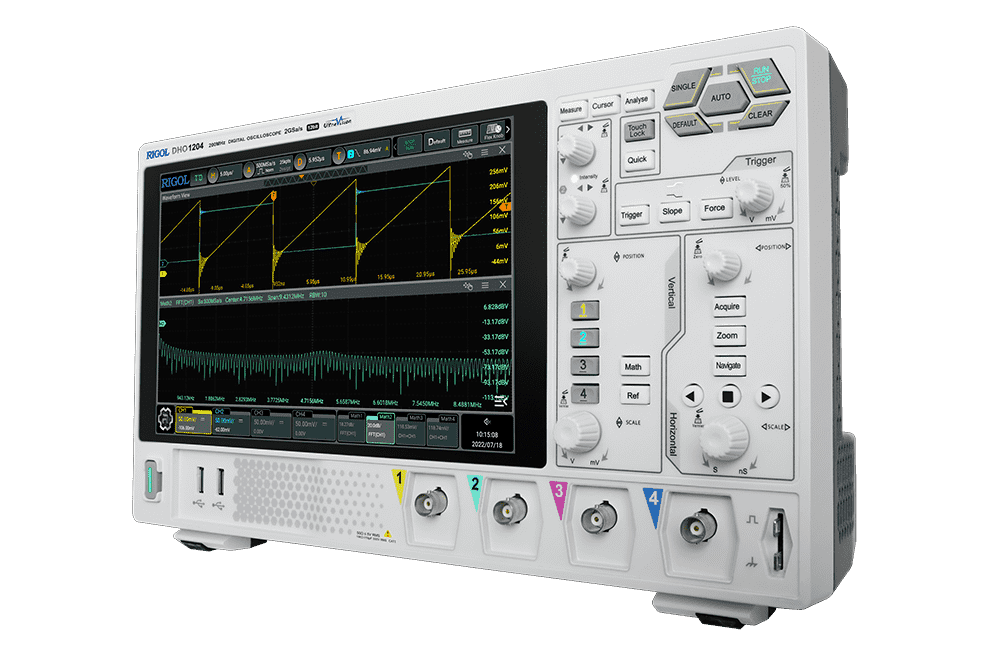

DHO1000 Series thumbnail 2

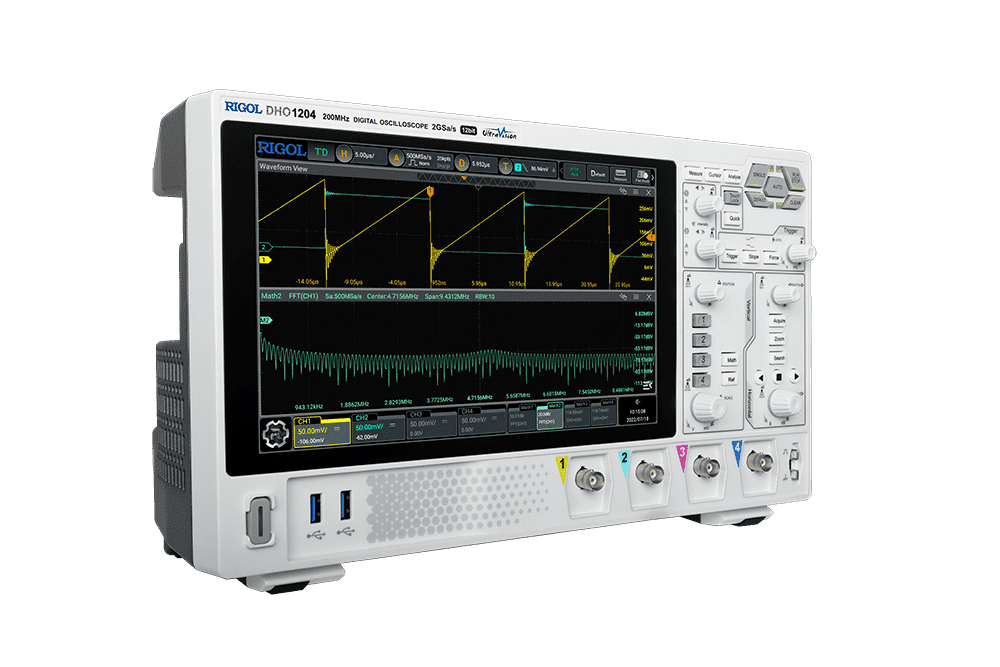

DHO1000 Series thumbnail 3

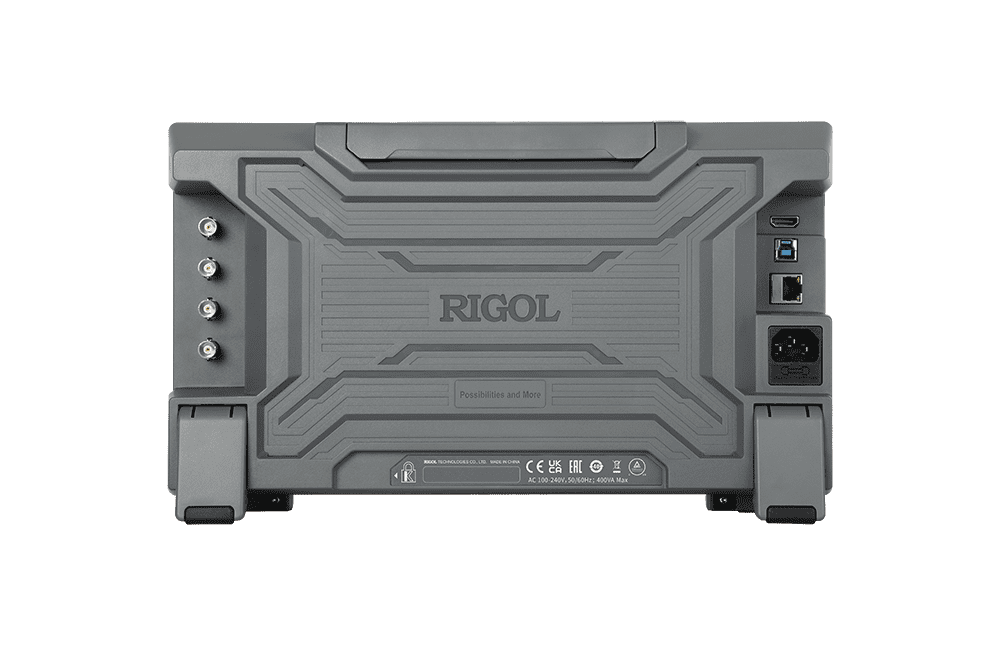

DHO1000 Series thumbnail 4

Features

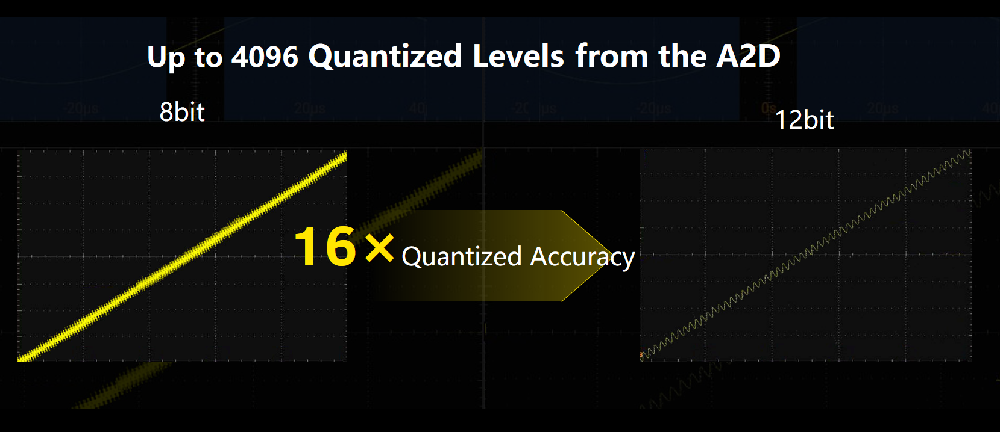

12-bit vertical resolution

12-bit resolution (212=4096) to see the most signal detail.

12-bit vertical resolution – DHO1000 Series

UltraAcquire

Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire moderequency to meet the needs of more amplitude frequency test applications.

UltraAcquire – DHO1000 Series

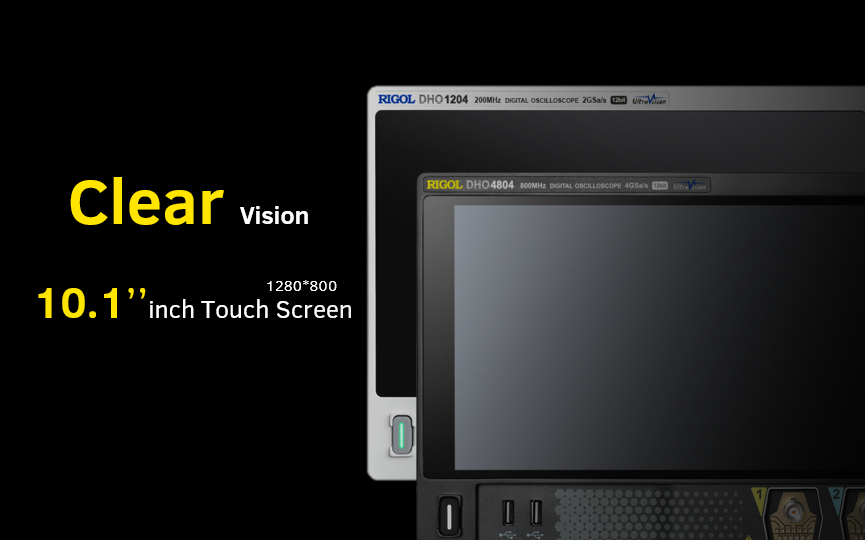

Clear vision

10.1'' 1280*800 HD touch display.

Clear vision – DHO1000 Series

Flex knob

RIGOL's new UI and 10.1" HD touch panel, supporting engineers with high efficiency.

Flex knob – DHO1000 Series

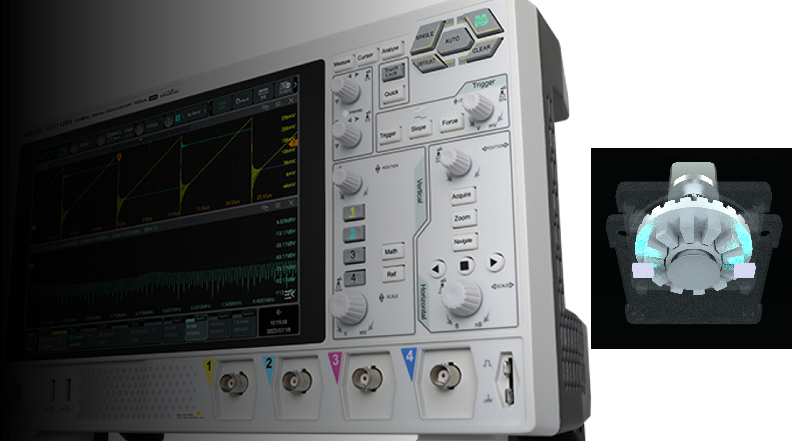

Photoelectric encoder

Standard photoelectric encoder operating knobs, effectively prolonging its service life.

Photoelectric encoder – DHO1000 Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Price
DHO1204U 200MHz 1GSa/s2GSa/s 500,000wfrms/s 4 50 Mpts Get a Quote
DHO1202U 200MHz 2GSa/s 500,000wfrms/s 2 50 Mpts Get a Quote
DHO1204 200MHz 2GSa/s 1,500,000wfrms/s 4 100 Mpts Rp.40.656.000
DHO1202 200MHz 2GSa/s 1,500,000wfrms/s 2 100 Mpts Get a Quote
DHO1104 100MHz 2GSa/s 1,500,000wfrms/s 4 100 Mpts Rp34.354.700
DHO1102 100MHz 2GSa/s 1,500,000wfrms/s 2 100 Mpts Rp.24.531.000
DHO1072 70MHz 2GSa/s 1,500,000wfrms/s 2 100 Mpts Rp.17.205.000
DHO1074 70MHz 2GSa/s 1,500,000wfrms/s 4 100 Mpts Rp24.531.000
*Prices may change without prior notice.

Accessories

Model Description Price
RP1002C Current Probe, DC-1 MHz,70A peak Rp29.880.363
ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators Rp317.167
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter) Rp333.860
PHA2150 200 MHz 1500 V Differential Voltage Probe Rp21.227.196
RP1001C Current Probe, DC-300 kHz,100 Apeak Rp14.471.031
RP1001C Current Probe, DC-50 MHz,50A peak. Requires RP1000P power supply. Rp14.471.031
RP1004C RP1004C Rp81.936.037
RP1005C Current Probe, DC-10 MHz,300A peak. Requires RP1000P power supply. Rp72.379.476
RP1300H Current Probe, DC-2 MHz,500A peak. Requires RP1000P power supply. ≤25mArms noise Rp4.055.199
P1010H High Voltage Probe with 40MHz bandwidth, 10kV max DC voltage, 1000:1 attenuation Rp8.746.000
RP1018H High Voltage Probe with 150MHz bandwidth, 18kV max DC voltage, 1000:1 attenuation Rp17.327.000
RP1300H 100:1 300 MHz TO 2KV PASSIVE PROBE Rp4.055.199

User Manual

Name Version Release Date Download
DHO1000 User Manual V2.0 2025-02-13 Download
DHO1000U User Manual V1.0 2024-01-25 Download

Datasheet

Name Version Release Date Download
DHO1000 Datasheets V1.0 2023-01-10 Download
DHO1000U Datasheets V1.0 2024-01-25 Download

Programming Manual

Name Version Release Date Download
DHO1000 Programming Manual V1.0 2023-01-10 Download

Quick Guide

Name Version Release Date Download
DHO1000 Quick Guide V1.0 2023-01-10 Download
DHO1000U Quick Guide V1.0 2024-01-25 Download

Software

Name Version Release Date Download
DHO1000 Performance Verification Guide V1.0 2025-06-13 Download
