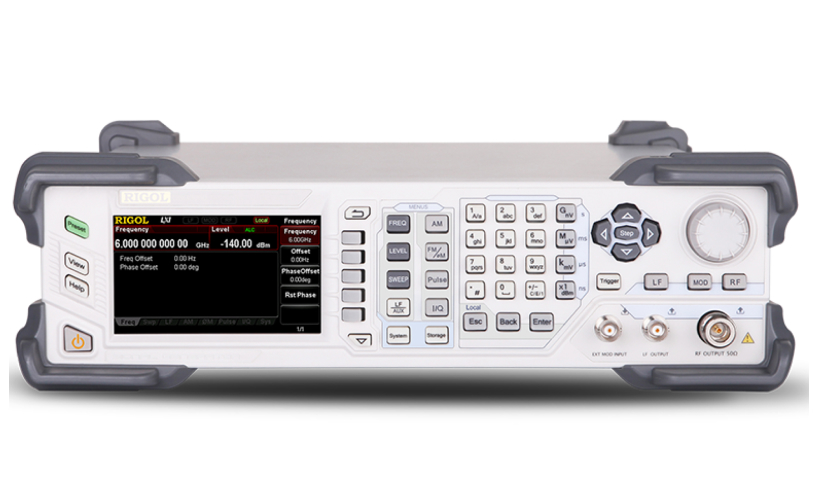

DSG3000 Series

High Performance RF signal generation and modulation 3 and 6 GHz models with optional built-in IQ baseband generator and OCXO timebase.

Frequency Range: 9kHz ~ 3/6GHz
Amplitude Indicators Range: -130dBm ~ +13dBm
Aplitude Accuracy: < 0.5dB SSB
Phase Noise: <-110dBc/Hz
Modulation Function: AM/FM/Øm/Pulse/IQ
Datasheet
DSG3000 Series Product
DSG3000 Series thumbnail 1

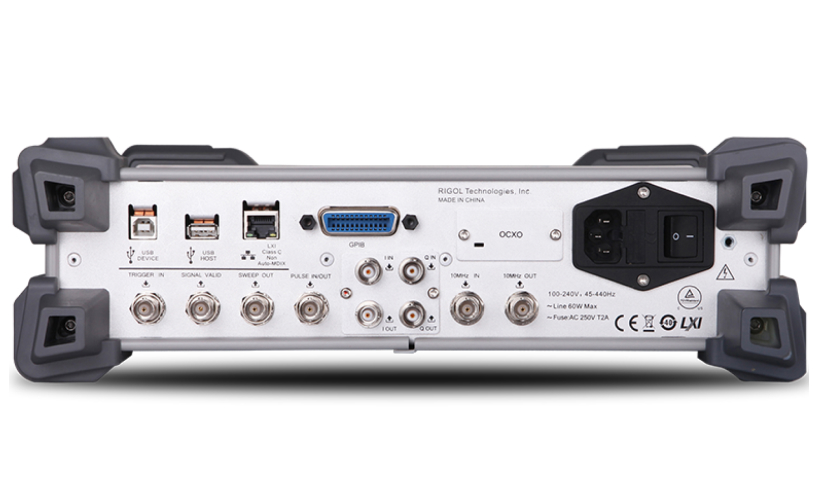

DSG3000 Series thumbnail 2

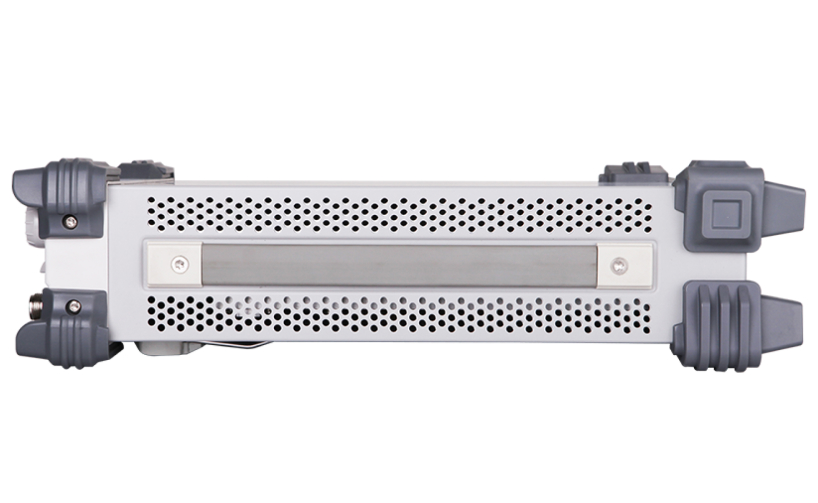

DSG3000 Series thumbnail 3

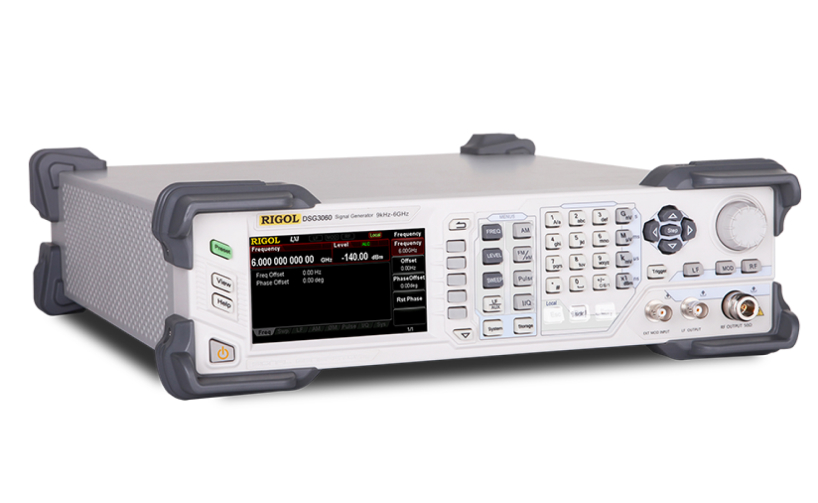

DSG3000 Series thumbnail 4

Features

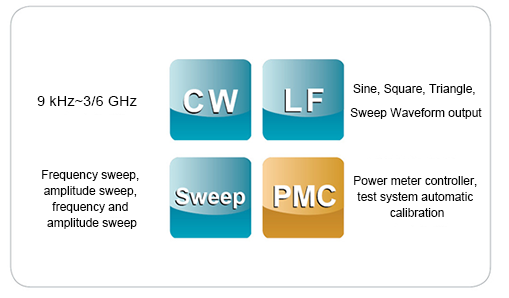

Signal Output Function

DSG3000 output signal frequency up to 12GHz, can produce continuous wave, various forms of low frequency signals and a variety of parameters can be set frequency / amplitude scanning signal, the output signal is accurate and reliable, and provides automatic calibration through the power meter.

Signal Output Function – DSG3000 Series

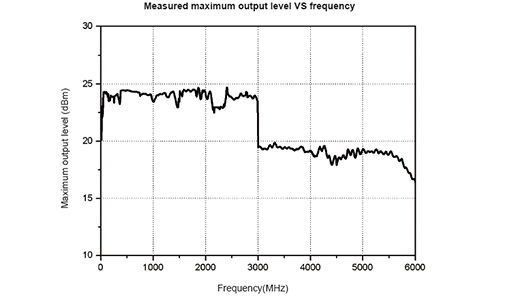

High Power Signal Generation Capability

The maximum output amplitude is +13dBm (nominal value), which can be set to +25dBm, which meets the non-linearity test of the amplifier.

High Power Signal Generation Capability – DSG3000 Series

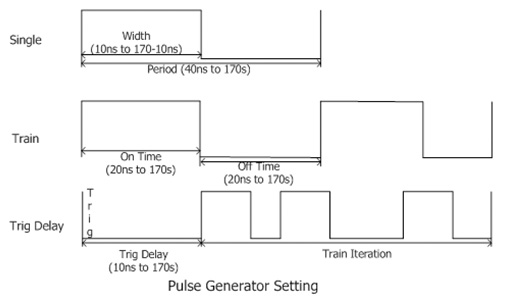

Pulse Modulation, Providing Up to 80dB Switching Ratio

Standard pulse modulation, pulse on/off ratio up to 80dB, optional custom pulse sequence, can generate single pulse, double pulse and arbitrary pulse sequence, with analog modulation external modulation input function, can easily realize ASK, FSK, Simple digitally modulated output such as PSK.

Pulse Modulation, Providing Up to 80dB Switching Ratio – DSG3000 Series

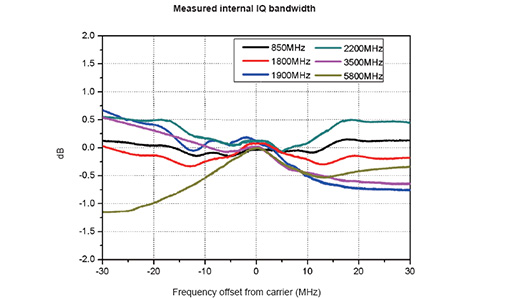

Internal and External IQ Modulation

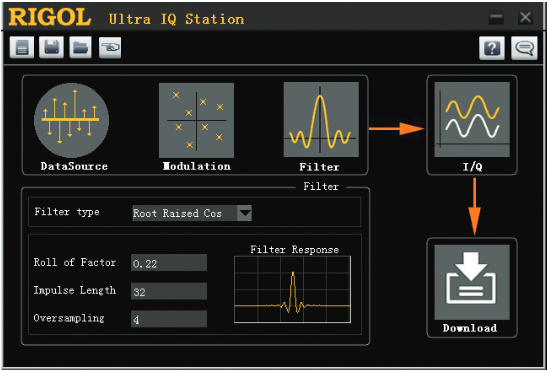

Users can choose both internal and external IQ modulation modes, internal I+Q modulation bandwidth up to 60MHz, EVM < 0.7%, external I+Q modulation bandwidth 240MHz, EVM < 0.8% (typical), and Ultra IQ Station for convenience Generated vector signal waveform.

Internal and External IQ Modulation – DSG3000 Series

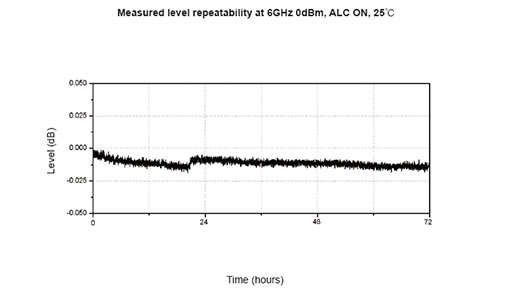

Reliable Output Amplitude Stability

Excellent repeatability provides engineers with sufficient test confidence that the 72-hour output amplitude variation is less than 0.02dB.

Reliable Output Amplitude Stability – DSG3000 Series

Multiple Modulation Methods

Standard amplitude modulation, frequency modulation, equal modulation analog modulation and pulse modulation and pulse generator, optional user-defined pulse sequence, and I / Q modulation and IQ baseband generator can generate QAM, ASK, PSK, FSK, Various commonly used modulation signals such as MSK; all modulations support internal and external modulation sources.

Multiple Modulation Methods – DSG3000 Series

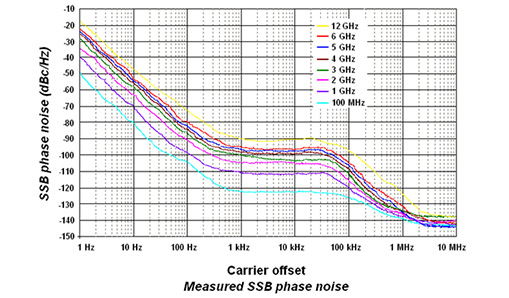

Phase Noise Metric

High signal purity, phase noise typical value <-110dBc/Hz@20kHz, similar products in the United States; better high-stability clock reference can get better near-phase noise index.

Phase Noise Metric – DSG3000 Series

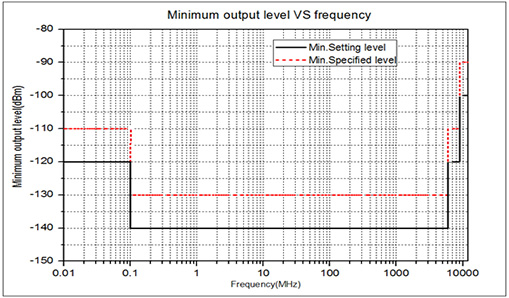

Small Signal Output Capability

Minimum output amplitude of -130dBm (can be set to -140dBm) for demanding receiver sensitivity testing.

Small Signal Output Capability – DSG3000 Series

Model

Model Frequency Range Description Phase Noise DANL Tracking Source Price
DSG3030 9 kHz ë±³ 3 GHz -130dBm ~ +13dBm < 0.5dB <+110dBc/Hz@20kHz AM/FM/∅°M/Pulse Get a Quote
DSG830-IQ 9 kHz ë±³ 3 GHz -130dBm ~ +13dBm < 0.5dB <+110dBc/Hz@20kHz AM/FM/∅°M/Pulse/IQ Get a Quote
DSG3060 9 kHz ë±³ 6 GHz -130dBm ~ +13dBm < 0.5dB <+110dBc/Hz@20kHz AM/FM/∅°M/Pulse Get a Quote
DSG3060-IQ 9 kHz ë±³ 6 GHz -130dBm ~ +13dBm < 0.5dB <+110dBc/Hz@20kHz AM/FM/∅°M/Pulse/IQ Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
RM-DSG3000 Rack mount kit Rp1.881.000
CB-USBA-USBB-FF-150 USB Data line, 150cm Rp323.000
CB-BNC-BNC-MM-100 BNC Coaxial line, 100cm Rp361.000
USB-GPIB USB-GPIB adapter Rp6.251.000
ATT03301H 30dB High Power Attenuator, Maximum power is 100W Rp4.370.000
RF Attenuator Kit Include: 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) Rp9.956.000
CB-NM-SMAM-75-L-12GN(M)-SMA(M) RF Cable Rp3.762.000
CB-NM-NM-75-L-12GN(M)-N(M) RF Cable Rp3.762.000

User Manual

Name Download
DSG3000 User's Guide Download

Datasheet

Name Download
DSG3000 Data Sheet Download

Programming Manual

Name Download
DSG3000 Programming Guide Download

Quick Guide

Name Download
DSG3000 Quick Start Guide Download

Software

Name Download
DSG3000 Performance Verification Guide Download
