MHO2000 Series

The MHO2000 series is a high-resolution, reliable, and cost-effective mixed-signal digital oscilloscope with up to 350 MHz bandwidth. It features a 12-bit ADC and integrates functions such as protocol analysis, logic analysis, and signal generation. Ideal for power, medical, and automotive electronics, the MHO2000 enables efficient, multi-dimensional testing and analysis.

Bandwidth: 350MHz
Sample Rate: 2GSa/s
Vertical Resolution: 1,000,000 wfms/s
Channels: 4 Channels
Arbitary Wave Length: 500 Mpts
Datasheet

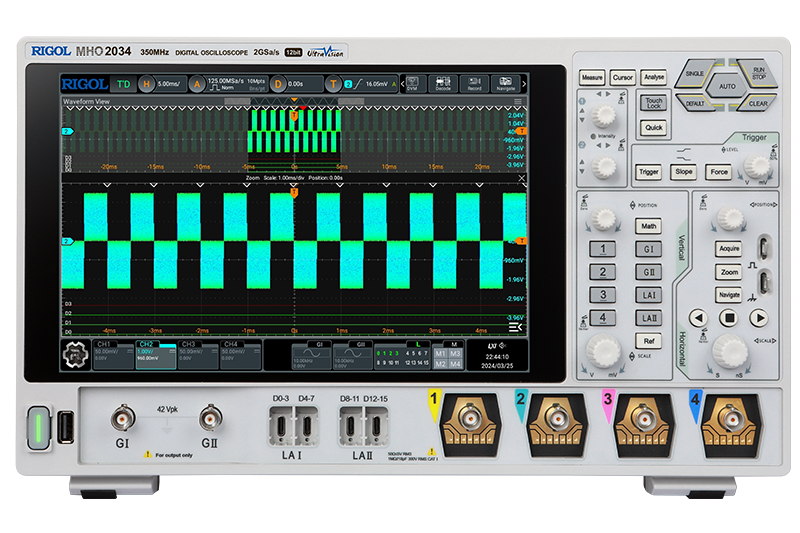

MHO2000 Series Product
MHO2000 Series thumbnail 1

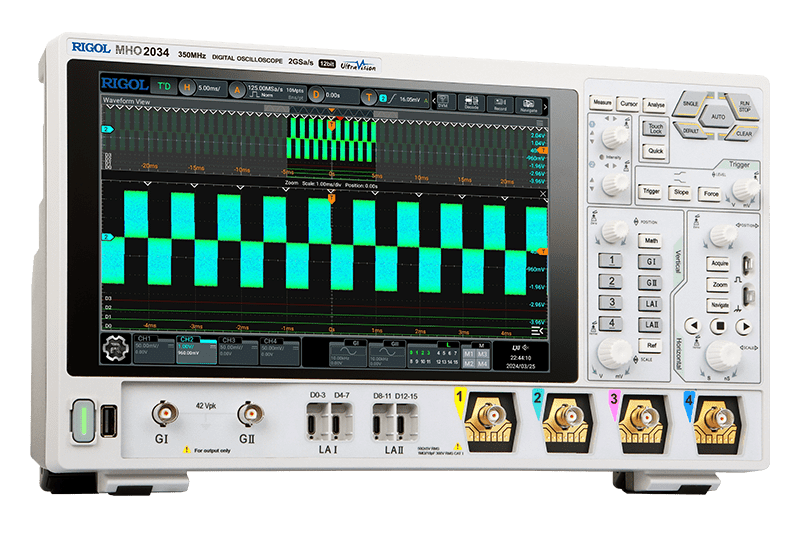

MHO2000 Series thumbnail 2

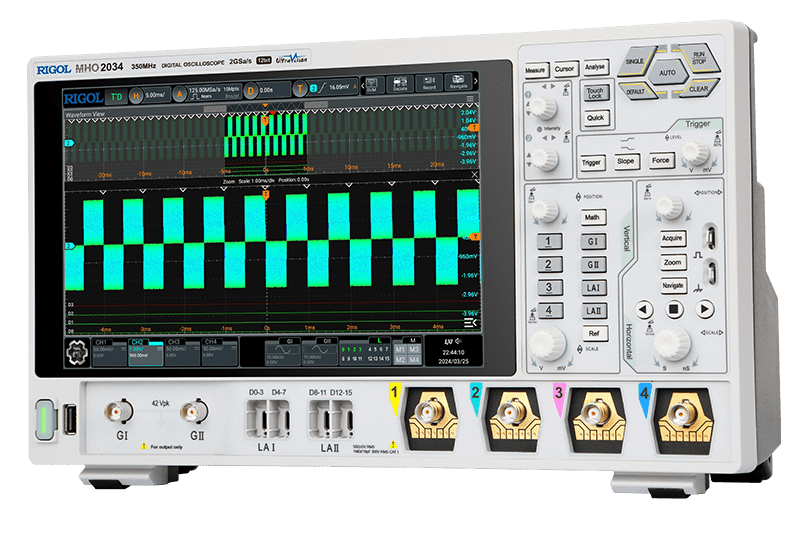

MHO2000 Series thumbnail 3

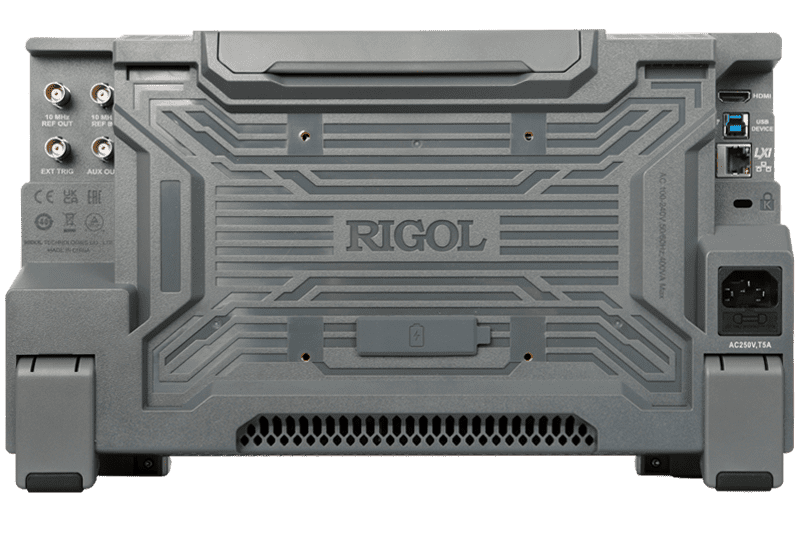

MHO2000 Series thumbnail 4

Features

Ultra-high resolution capturing tiny details

The MHO2000 series features excellent 12-bit resolution with up to 4096 quantization levels, greatly improving measurement accuracy. Compared to 8-bit oscilloscopes, it delivers up to 16× detail, capturing subtle signal variations. With vertical sensitivity down to 200 μV/div, it’s ideal for power ripple or medical signal testing, ensuring precise analysis for innovation and reliability.

Ultra-high resolution capturing tiny details – MHO2000 Series

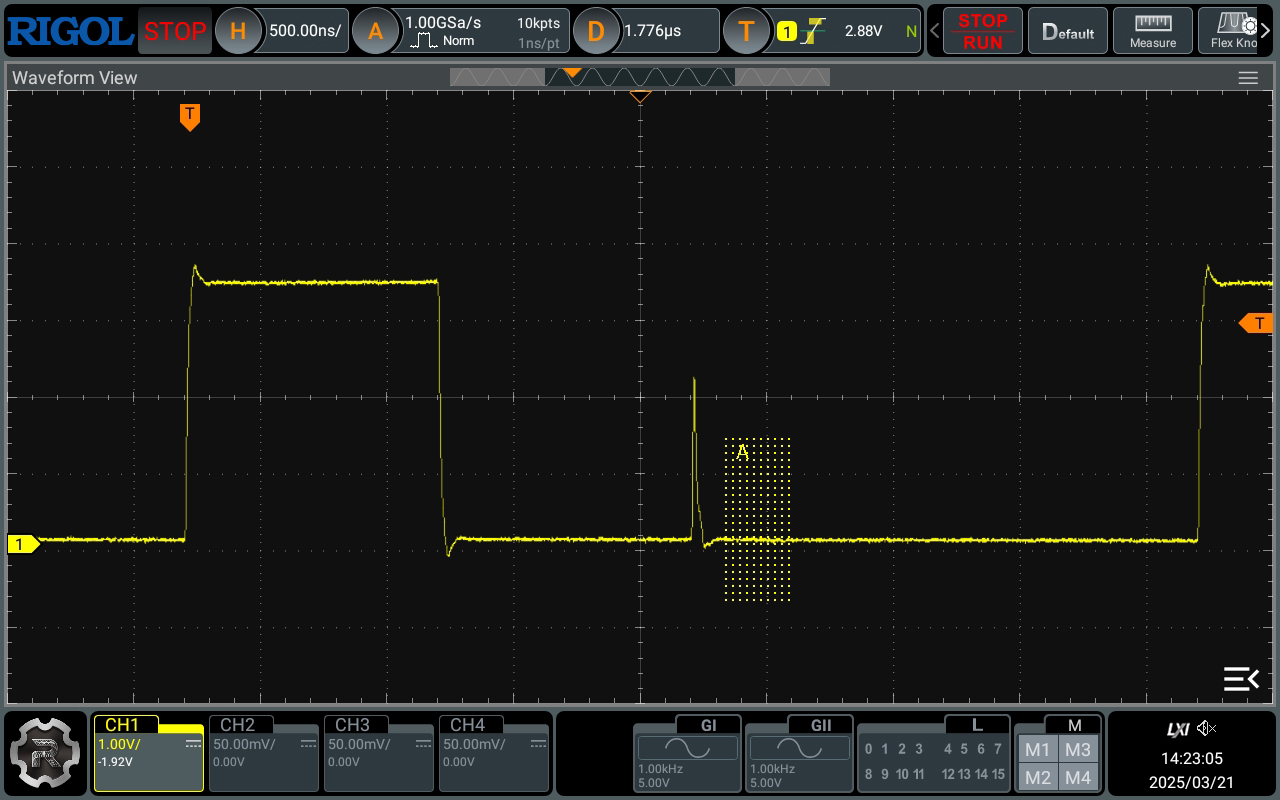

Versatile Triggering and Decoding for Diverse Industries

The MHO2000 series offers multiple trigger types—edge, interval, timeout, video, serial bus, and area trigger—for reliable capture of abnormal signals. It also supports I2C, SPI, CAN, CAN-FD, FlexRay, I2S, MIL-STD-1553B, and more, meeting bus testing needs across embedded, automotive, and computing industries.

Versatile Triggering and Decoding for Diverse Industries – MHO2000 Series

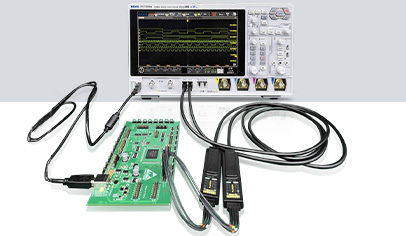

Standard Digital Channel, Stable Signal Transmission

The MHO2000 series comes standard with digital channels and supports the PLA3204 logic probe for efficient analog and digital signal debugging. This setup enables deep digital analysis and precise capture of signal interactions in complex systems, ensuring high efficiency and accuracy in R&D, troubleshooting, and performance optimization to boost project success rates.

Standard Digital Channel, Stable Signal Transmission – MHO2000 Series

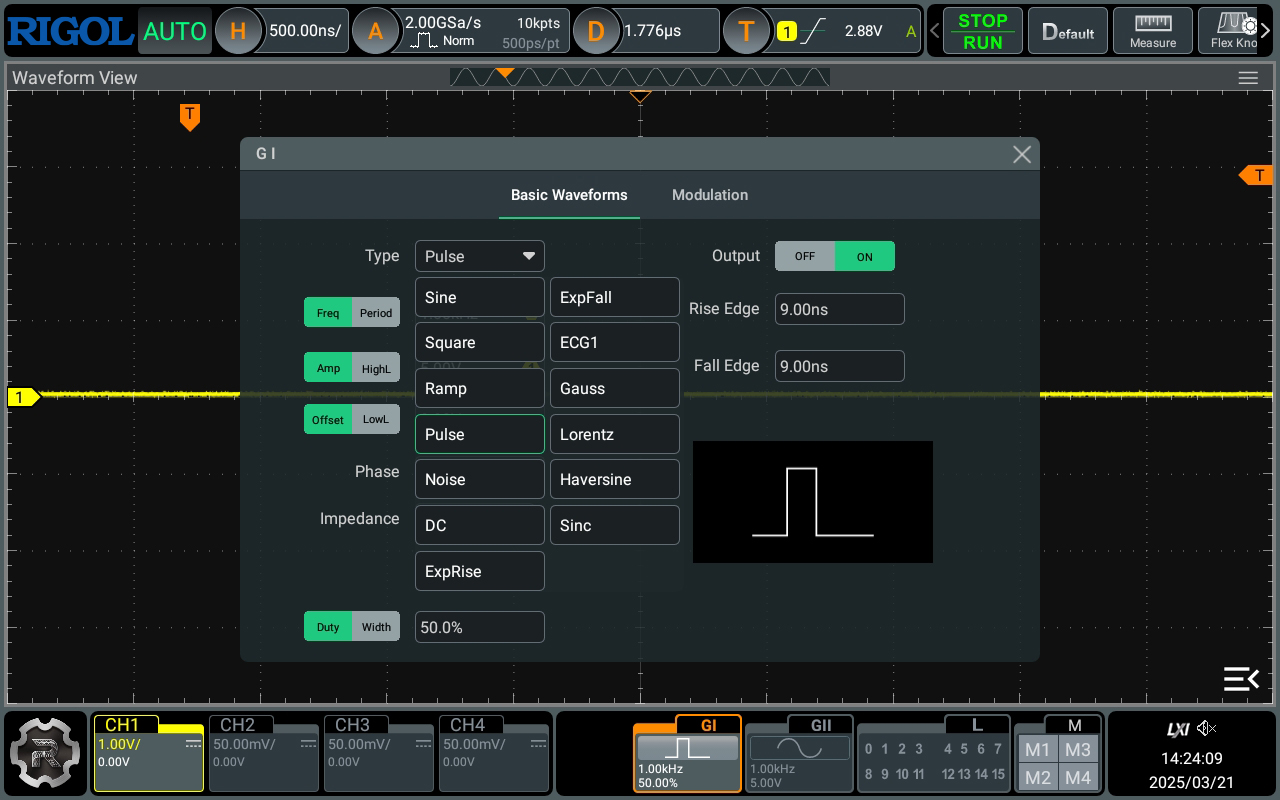

Built-in Function Generator for Advanced Analysis

The MHO2000 series high-resolution digital oscilloscope supports a built-in dual-channel signal generator with 16-bit resolution, providing waveform output up to 50MHz, including sine wave, square wave, triangle wave, pulse wave, noise, DC, and a variety of built-in arbitrary waves, which can be widely used in various scientific experiments and industrial control fields..

Built-in Function Generator for Advanced Analysis – MHO2000 Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-in Signal Source Price
MHO2034 350 MHz 4 2 GSa/s 500 Mpts 1,000,000 wfrms/s 16 (Probe opt.) 50 MHz, 2CH (opt.) Rp58.109.642
MHO2024 200 MHz 4 2 GSa/s 500 Mpts 1,000,000 wfrms/s 16 (Probe opt.) 50 MHz, 2CH (opt.) Rp43.162.892
*Prices may change without prior notice.

User Manual

Name Version Release Date Download
MHO2000 User Guide V1.0 2025-05-08 Download

Datasheet

Name Version Release Date Download
MHO2000 Datasheets V1.0 2025-05-08 Download

Programming Manual

Name Version Release Date Download
MHO2000 Programming GuideMHO2000 Programming Guide V1.0 2025-05-13 Download
