RSA3000 Series

The RSA3000 real-time spectrum analyzer with real-time analysis and sweep analysis capabilities, optional EMI measurement application software (EMI), with excellent performance and specifications.

Frequency Range: 9kHz ~ 3/4.5GHz
Max. Real-time Bandwidth: 40MHz
RBW: 1Hz~10MHz
Phase Noise: -102dBc/Hz@10kHz
DANL: -161dBm/Hz
Tracking Source: -TG

Start From Rp48.174.000

Datasheet

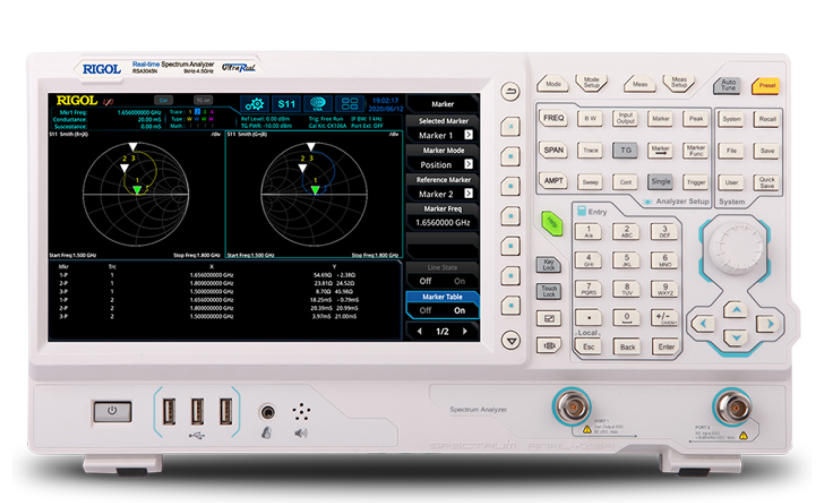

RSA3000 Series Product
RSA3000 Series thumbnail 1

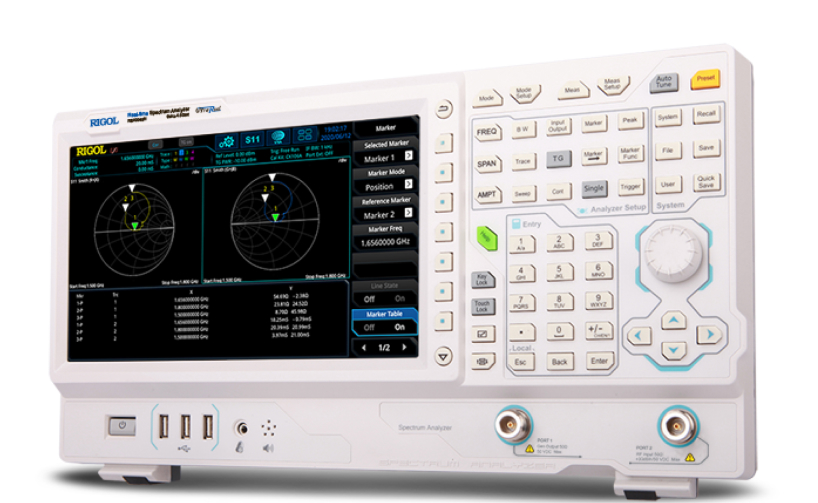

RSA3000 Series thumbnail 2

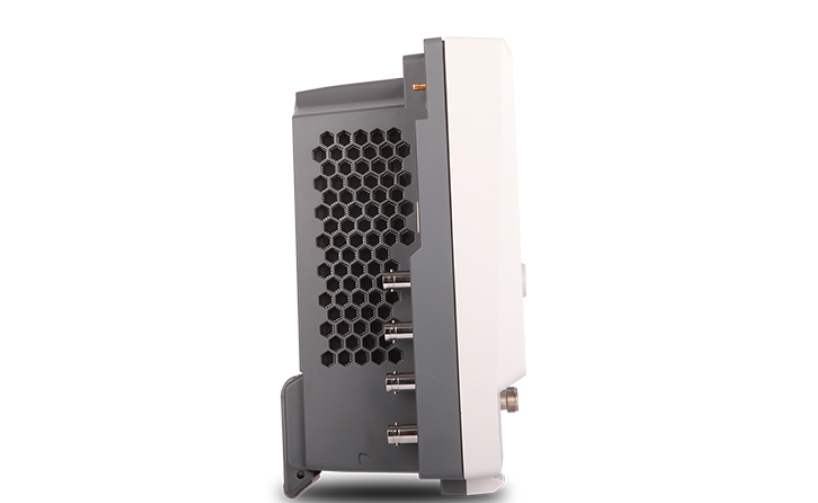

RSA3000 Series thumbnail 3

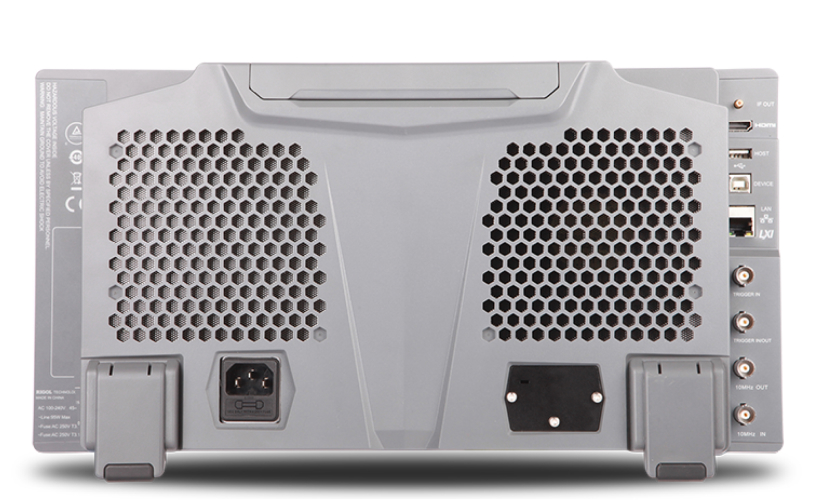

RSA3000 Series thumbnail 4

Features

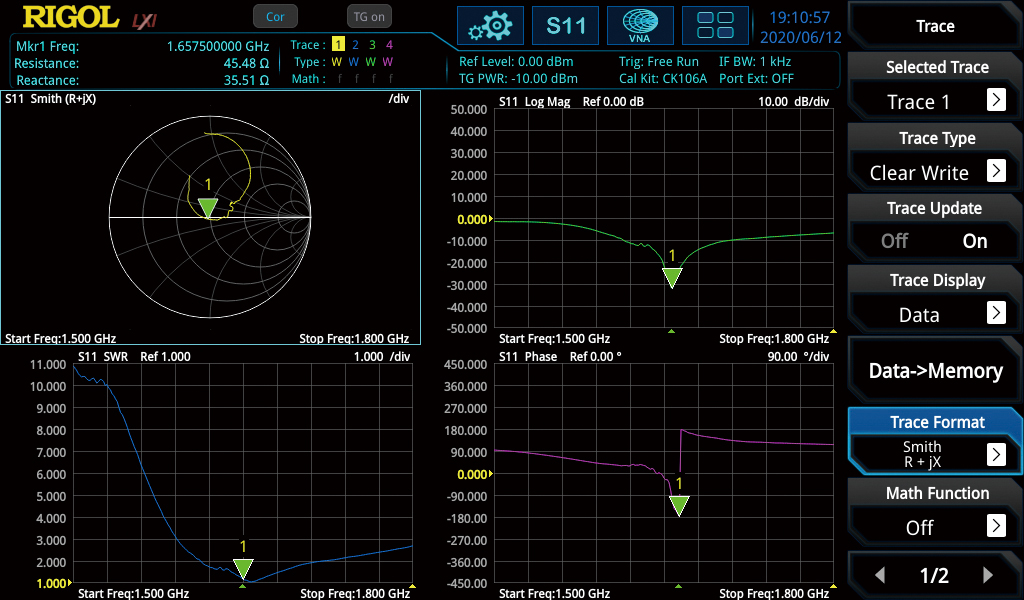

Built-in Vector Network Analysis mode

In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats

Built-in Vector Network Analysis mode – RSA3000 Series

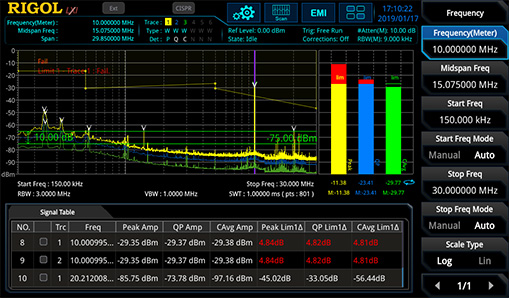

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market

Conduction/Radiation Pre-compliance with Built-in Emi Test Software – RSA3000 Series

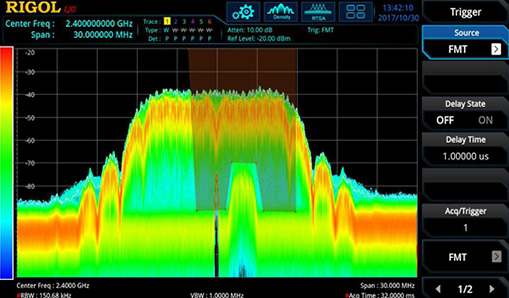

Signal Triggering and Monitoring Via Fmt Mode

The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range

Signal Triggering and Monitoring Via Fmt Mode – RSA3000 Series

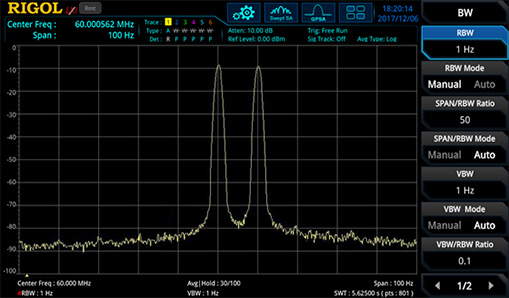

Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals

Resolution Bandwidth As Low As 1 Hz – RSA3000 Series

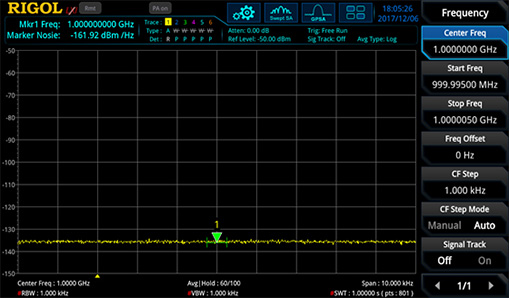

DANL As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode

DANL As Low As -161 Dbm with Optional Preamp – RSA3000 Series

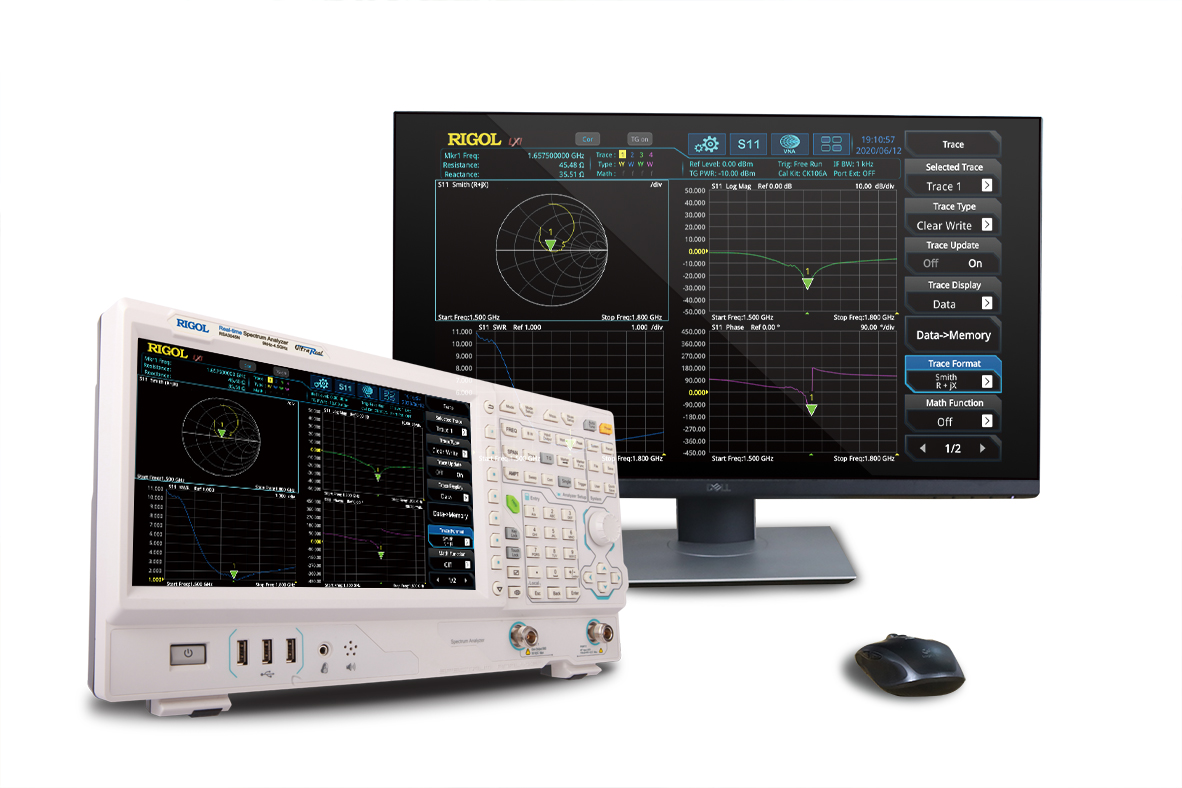

Multiple interfaces to improve the connectivity of the instruments

The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control

Multiple interfaces to improve the connectivity of the instruments – RSA3000 Series

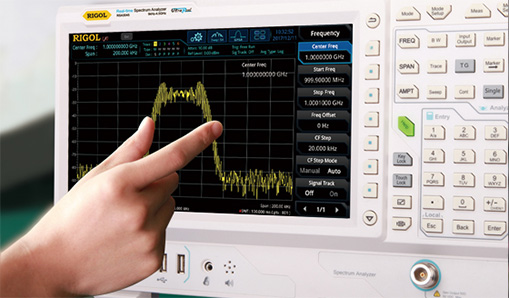

Complete Operations with a Multi-touch Screen

RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time

Complete Operations with a Multi-touch Screen – RSA3000 Series

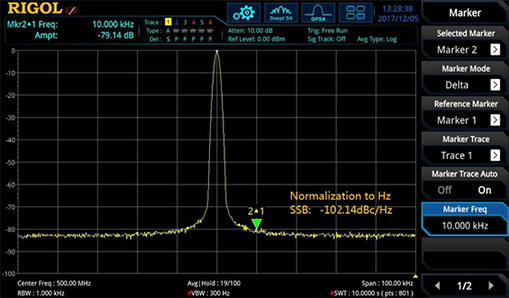

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz

Excellent Phase Noise Metric – RSA3000 Series

Model

Model Frequency Range Description Phase Noise DANL Tracking Source Price
RSA3045 9kHz-4.5GHz 1Hz-10MHz -102dBc/Hz@10kHz -161dBm N/A Rp89.980.000
RSA3045-TG 9kHz-4.5GHz 1Hz-10MHz -102dBc/Hz@10kHz -161dBm Yes Rp111.650
RSA3045N 9kHz-4.5GHz 1Hz-3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes Rp99.999.999
RSA3030 9kHz-3GHz 1Hz-10MHz -102dBc/Hz@10kHz -161dBm N/A Rp75.591.000
RSA3030-TG 9kHz-3GHz 1Hz-10MHz -102dBc/Hz@10kHz -161dBm Yes Rp99.888.900
RSA3030N 9kHz-3GHz 1Hz-3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes Rp99.999.999
RSA3015N 9kHz-1.5GHz 1Hz-3MHz(10MHz opt.) -102dBc/Hz@10kHz -161dBm Yes Rp46.509.000
*Prices may change without prior notice.

Accessories

Model Description Price
ATT03301H 30dB High Power Attenuator, Max Power 100W Rp3.680.000
CB-NM-NM-75-L-12G N(M)-N(M) RF Cable Rp3.184.000
CB-NM-SMAM-75-L-12G N(M)-SMA(M) RF Cable Rp3.184.000
RF Adaptor Kit RF Cable and adaptor kit Rp5.024.000
RF Attenuator Kit Kit Includes 6dB Attenuator (1pcs), 10dB Attenuator (2pcs) Rp8.384.000
RF CATV Kit Kit Includes 50 to 75 Ohm Adaptors (2pcs) Rp6.704.000
VB1032 VSWR Bridge + VSWR-DSA800/DSA1000 licenses. Range: 1 MHz – 3.2 GHz, Directivity ≥ 25 dB, Requires TG Option Rp10.544.000
VB1040 800 MHz – 4 GHz VSWR Bridge + software for DSA800 (Not for DSA1000). Requires TG Option Rp14.768.000
VB1080 2–8 GHz VSWR Bridge + DSA800-VSWR software (Not for DSA1000). Requires TG Option Rp11.744.000
CK106A Vector Network Analysis Calibration kit for RSA N models, DC to 6.5 GHz Rp15.984.000
CK106E Vector Network Analysis Calibration kit for RSA N models, DC to 1.5 GHz Rp5.584.000
NFP-3 Near Field Probe Kit Rp7.984.000
RM6041 Rack Mounting Kit for DS/MSO7000, MSO8000, RSA3000, RSA5000 Series Rp4.784.000
USB-GPIB USB-GPIB Converter (Connect USB to instrument, control via GPIB. Does not connect directly to PC) Rp5.536.000
DSA Utility Kit Accessories Package including cables, adaptors, and antennas Rp13.296.000

User Manual

Name Version Release Date Download
RSA3000 User Manual V1.0 2020-12-23 Download
EMI User Manual V1.0 2019-08-29 Download
RSA3000 Rackmount Kit Manual V1.0 2021-11-03 Download
NFP-3 V1.0 2020-05-14 Download

Datasheet

Name Version Release Date Download
RSA3000 Datasheets V3.0 2025-02-07 Download

Programming Manual

Name Version Release Date Download
VNA Programming Manual V1.0 2020-06-17 Download
RSA3000 Programming Manual V1.0 2019-08-29 Download
EMI Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
RSA3000 Quick Guide V2.0 2020-07-06 Download
