DG800 Series

The DG800 redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators.

Bandwidth: 35MHz
Sample Rate: 125MSa/s
Vertical Resolution: 16bits
Channels: 1CH, 2CH
Arbitary Wave Length: 8Mpts

Start From Rp6.875.000

Datasheet

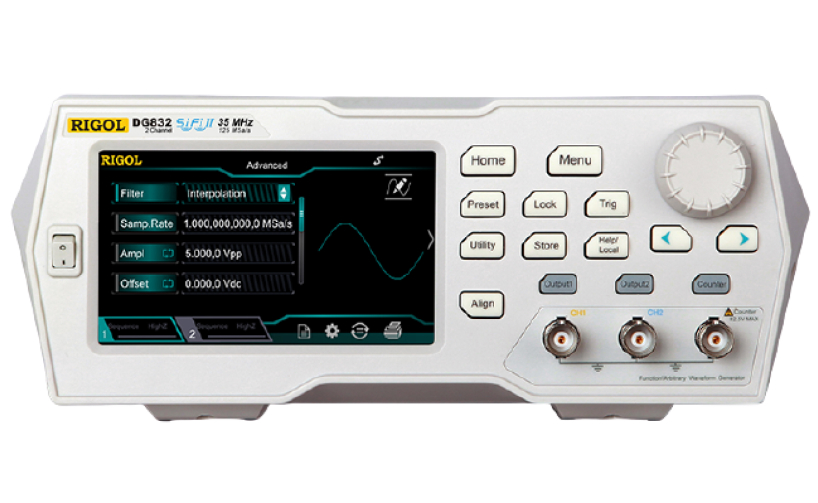

DG800 Series Product
DG800 Series thumbnail 1
DG800 Series thumbnail 2

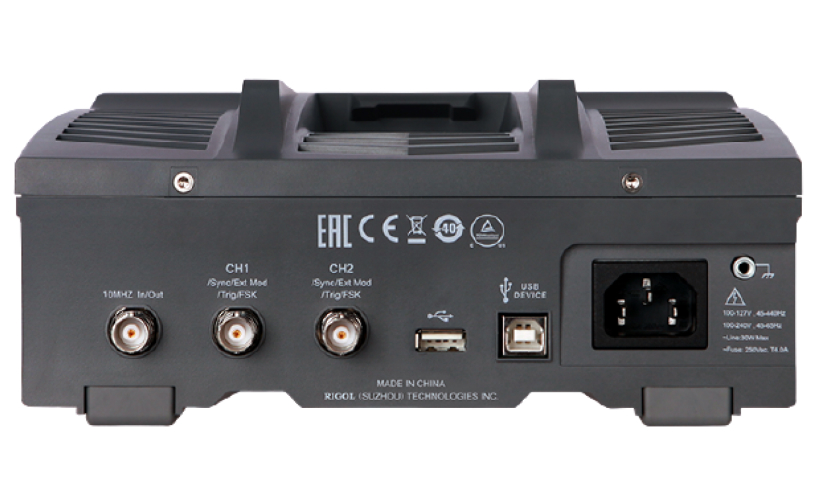

DG800 Series thumbnail 3

Features

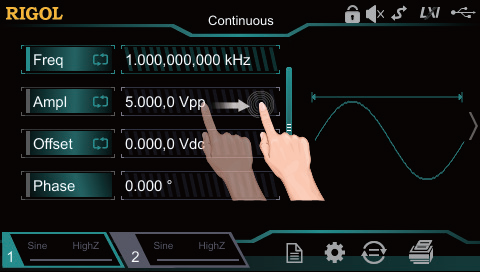

4.3 Inch Touch Screen

4.3-inch TFT color touch screen, new UI design

4.3 Inch Touch Screen – DG800 Series

16bit Vertical Resolution

DG800 series generators extend output at 16 bit resolution The resolution of the output voltage is 4 times that of the traditional 14 bit generator. DG2000 can reproduce any waveform more reliably and improve the fidelity and performance of the signal.

16bit Vertical Resolution – DG800 Series

Signal Jitter As Low As 200ps

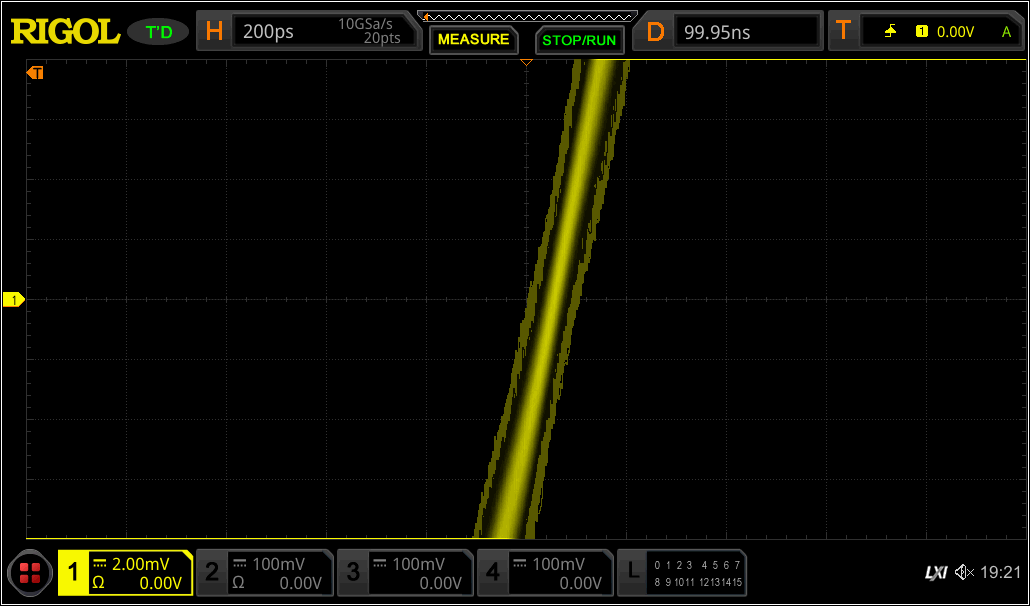

The sampling rate can be adjusted precisely, compared with the traditional DDS signal source, the signal jitter is lower, and the jitter of all output signals is as low as 200ps.

Signal Jitter As Low As 200ps – DG800 Series

SiFi II Technology

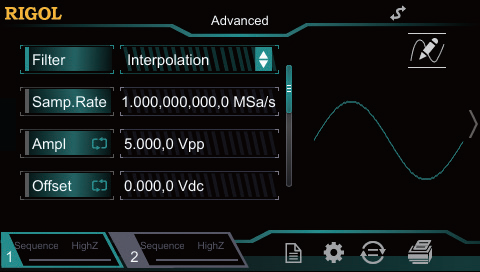

Sifi II technology allows you to output signals flexibly through filtering options such as stepping, smoothing and interpolation These options in the powerful signal sorting function can provide precise roll down control for the signal you select. Combine these flexible playback options or use edge time in interpolation mode to define the range of broadband components in the signal.

SiFi II Technology – DG800 Series

Support Multiple Signal Outputs

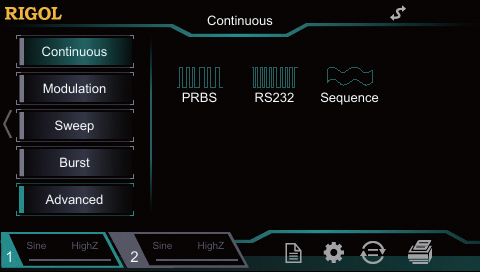

Support PRBS, RS232 and sequence output.

Support Multiple Signal Outputs – DG800 Series

Arb Sequencing

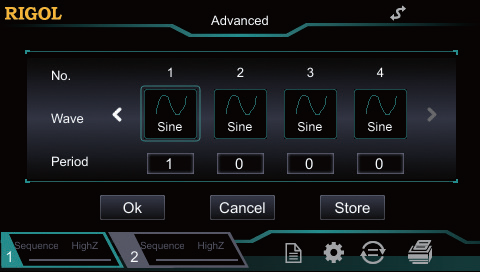

Create and combine complicated sequences of signals for emulation or failure analysis with the touch of a finger. Combine cycles of different waveform types including dual tone, arbitrary waves, and noise to mimic a broad set of test signals.

Arb Sequencing – DG800 Series

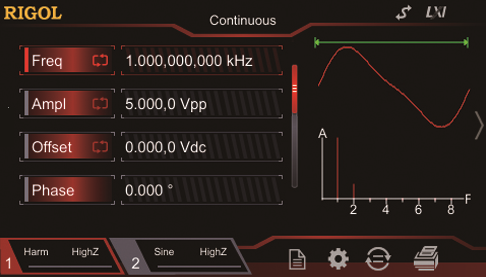

Harmonic Generator

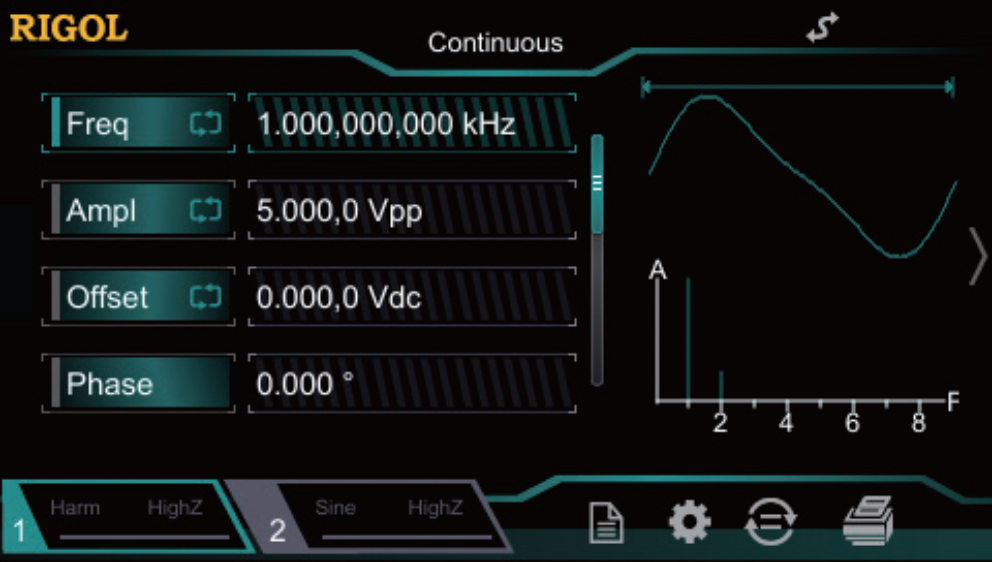

DG800 has built-in 8-th harmonic generator function and outputs harmonics with specified times, amplitude and phase. It is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Harmonic Generator – DG800 Series

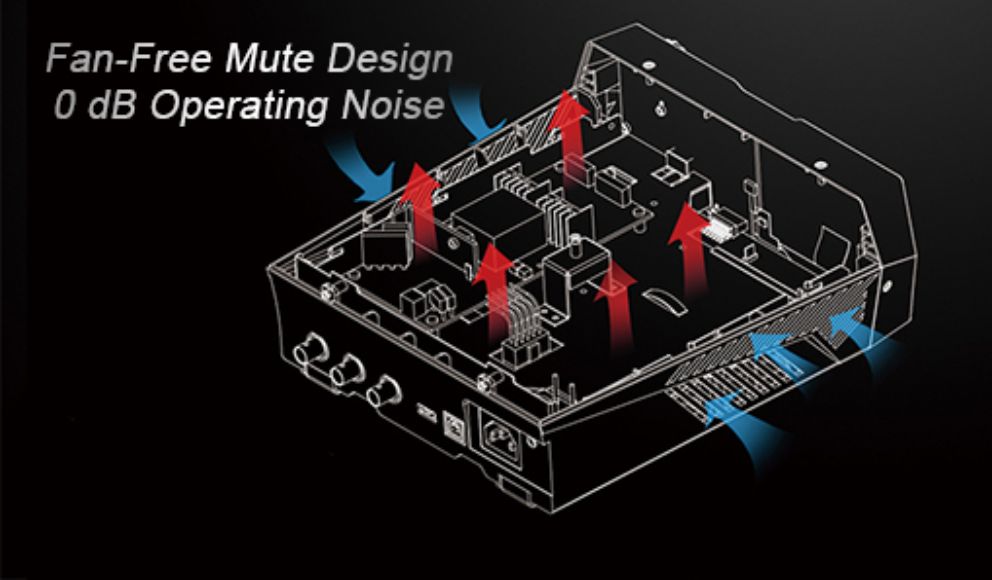

Fanless Silent Operation

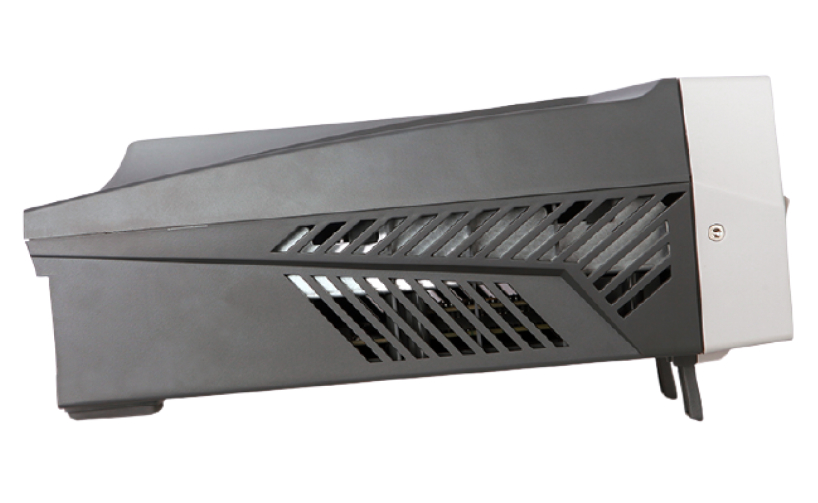

No fan design structure, no noise interference operation.

Fanless Silent Operation – DG800 Series

200 Mhz Hardware Counter

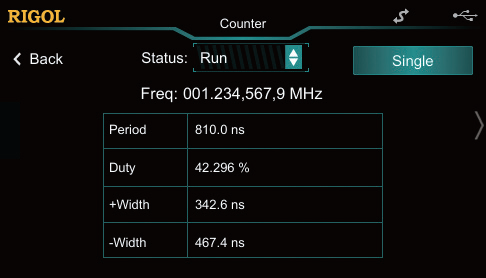

It provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

200 Mhz Hardware Counter – DG800 Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitrary Wave Length Price
DG811 10 MHz 125 Msa/s 16 bits 1 CH 2 Mpts (8 Mpts opt.) Rp8.680.000
DG812 10 MHz 125 Msa/s 16 bits 2 CH 2 Mpts (8 Mpts opt.) Rp7.881.000
DG821 25 MHz 125 Msa/s 16 bits 1 CH 2 Mpts (8 Mpts opt.) Rp9.520.000
DG822 25 MHz 125 Msa/s 16 bits 2 CH 2 Mpts (8 Mpts opt.) Rp9.968.000
DG831 35 MHz 125 Msa/s 16 bits 1 CH 2 Mpts (8 Mpts opt.) Get a Quote
DG832 35 MHz 125 Msa/s 16 bits 2 CH 2 Mpts (8 Mpts opt.) Get a Quote
*Prices may change without prior notice.

Accessories

Model Description Price
BAG-G1 Common Instrument package(DSA800/DG4000/DS2000) Rp2.193.000
USB-LAN USB2.0 to 100Mbps Ethernet Adaptor Rp170.000
USB-GPIB USB-GPIB adapte Rp5.423.000
CB-BNC-AC-100-L BNC to Alligator clip Adapter Rp170.000
CB-BNC-BNC-MM-100 BNC Coaxial line, 100cm Rp255.000
RA5040K 40dB Attenuator (50Ω, 1W) Rp765.000

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG800 User Manual V1.0 2019-08-29 Download
DG800 SelectionGuide V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG800 Datasheet V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DG800 Programming Manual V1.0 2019-08-29 Download

Open Source

Name Version Release Date Download
DG800/900 series Open Source Acknowledgment V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DG800 Quick Guide V1.0 2019-08-29 Download
