MSO/DS7000 Series

The MSO/DS7000 series digital oscilloscope is a mid-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

Bandwidth: 100 MHz~500 MHz
Analog Channels: 4
Real-time Sample Rate: 10 GSa/s
Max. Memory Depth: 500 Mpts
Waveform Capture Rate: 600,000 wfms/s
Digital Channels: 16 (Only MSO Model)

Start From Rp65.934.000

Datasheet

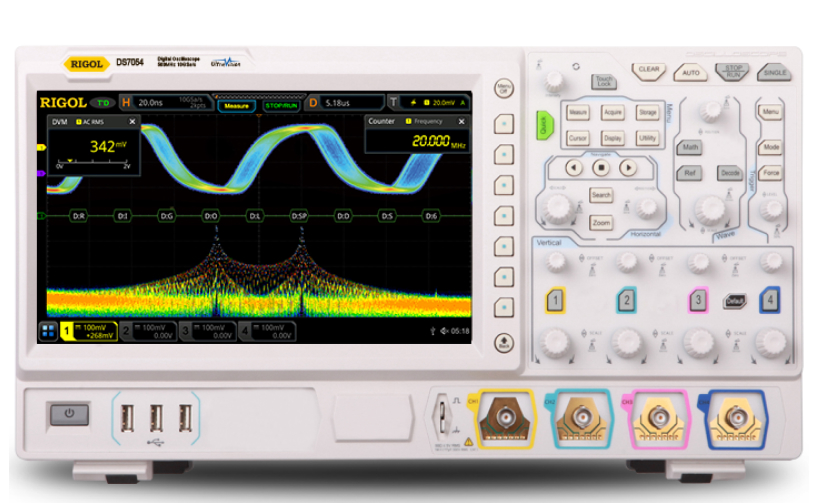

MSO/DS7000 Series Product

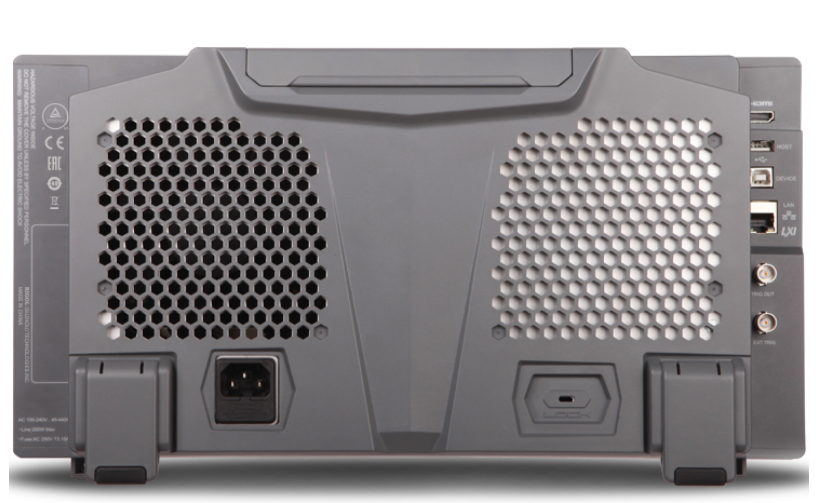

MSO/DS7000 Series thumbnail 1

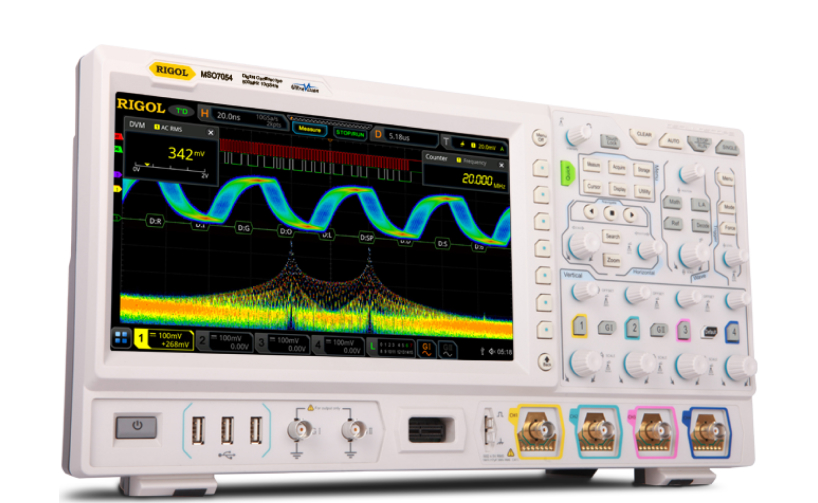

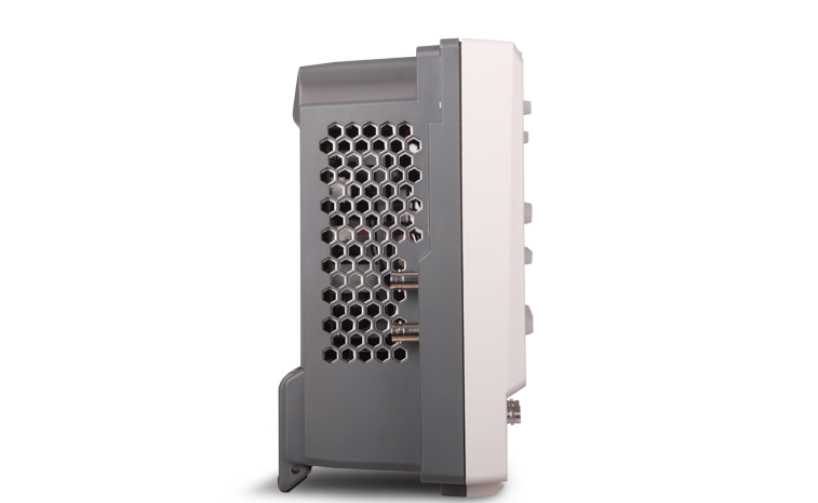

MSO/DS7000 Series thumbnail 2
MSO/DS7000 Series thumbnail 3
MSO/DS7000 Series thumbnail 4

Features

7 Instruments in 1

Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.

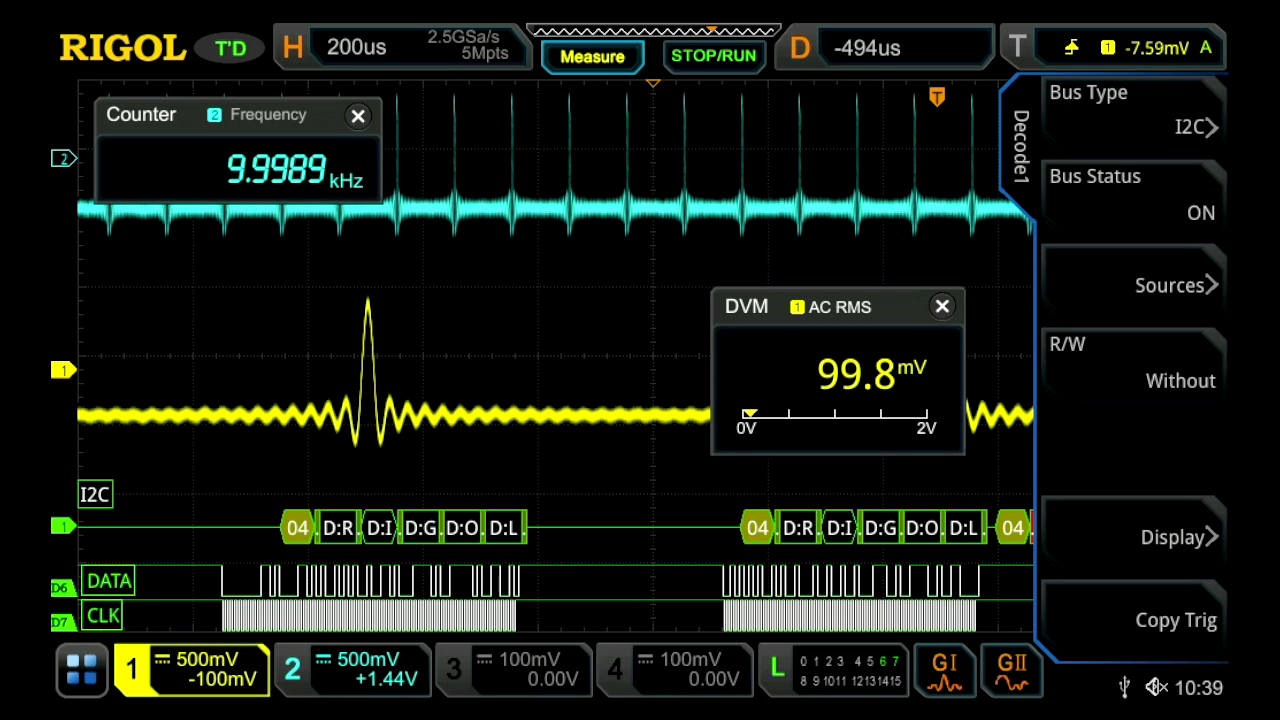

7 Instruments in 1 – MSO/DS7000 Series

Long Record Length (100M std/500M opt)

Find elusive problems in complex digital streams with long acquisitions at high sample rates.

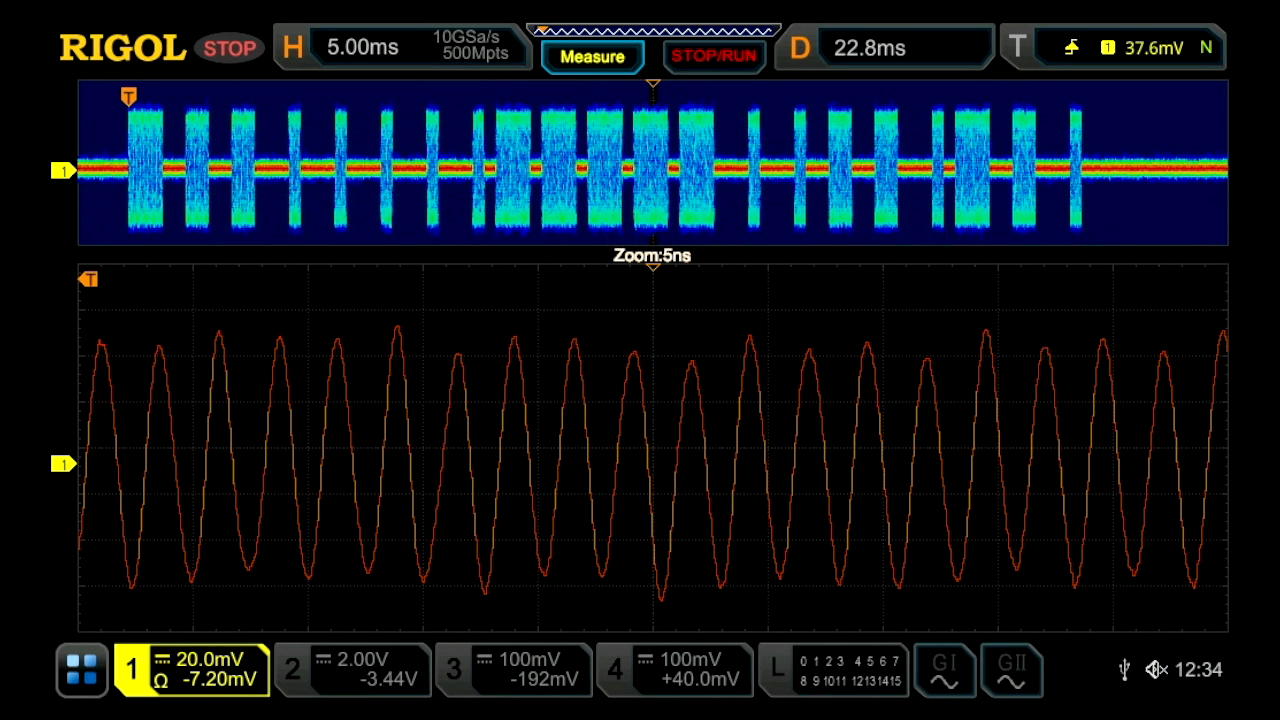

Long Record Length (100M std/500M opt) – MSO/DS7000 Series

Flexible user interface combining touch, mouse, knob/button, web, and remote control

With a 10.1 inch touchscreen, full set of knobs and buttons, and mouse support the 7000 makes it easy to analyze signals whichever way works best in your lab. The included interactive browser control allows interactive control from a phone or tablet. PC software provides remote operation and control. The programming interface makes it possible to automate complex test sequences.

Flexible user interface combining touch, mouse, knob/button, web, and remote control – MSO/DS7000 Series

Protocol Analysis for today’s common serial communication buses

Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs.

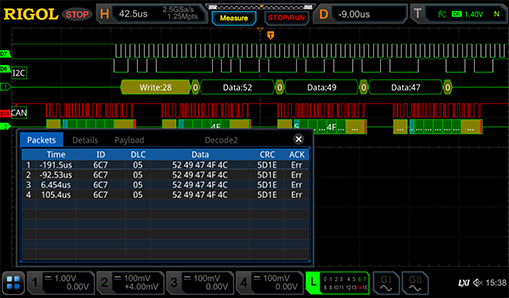

Protocol Analysis for today’s common serial communication buses – MSO/DS7000 Series

Full Memory Hardware Measurement

No longer limited to the waveform effects visible on the screen, the results can still be accurately obtained for multi-cycle high-frequency signal testing.

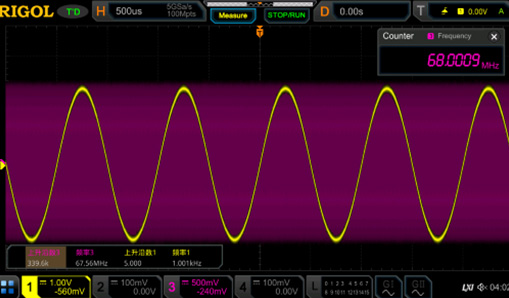

Full Memory Hardware Measurement – MSO/DS7000 Series

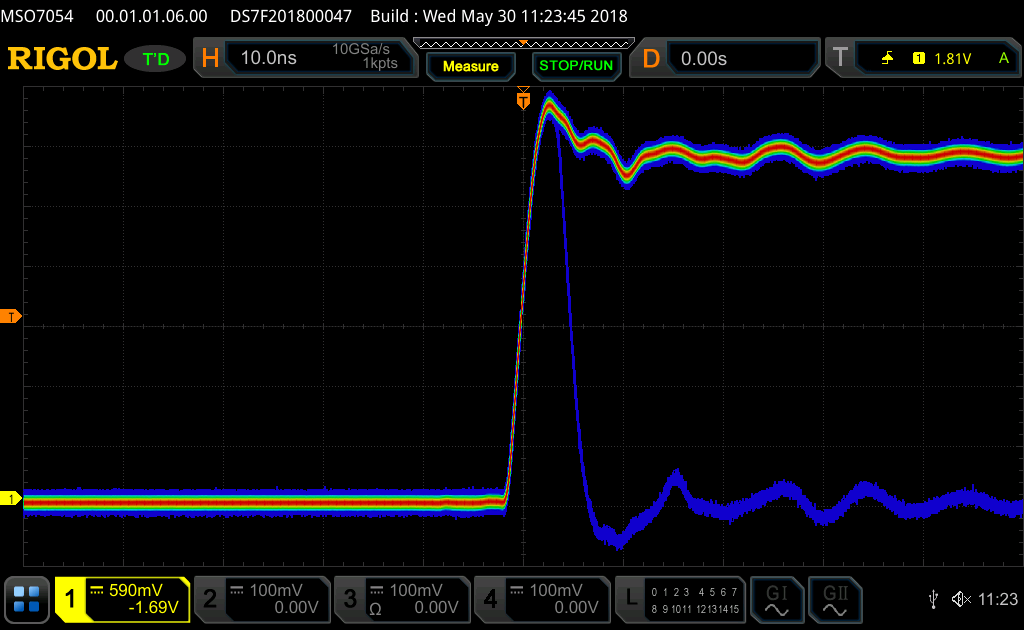

Over 600K wfms/s Waveform Capture rate

Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.

Over 600K wfms/s Waveform Capture rate – MSO/DS7000 Series

Enhanced Color FFT

The FFT capability on the 7000 utilizes up to 1 million points for fine resolution. The 7000 Series advanced user controls makes it easier to find signals of interest in the frequency domain. The color FFT function provides a probability colorization that highlights transient and hopping RF signals much like a real-time spectrum analyzer.

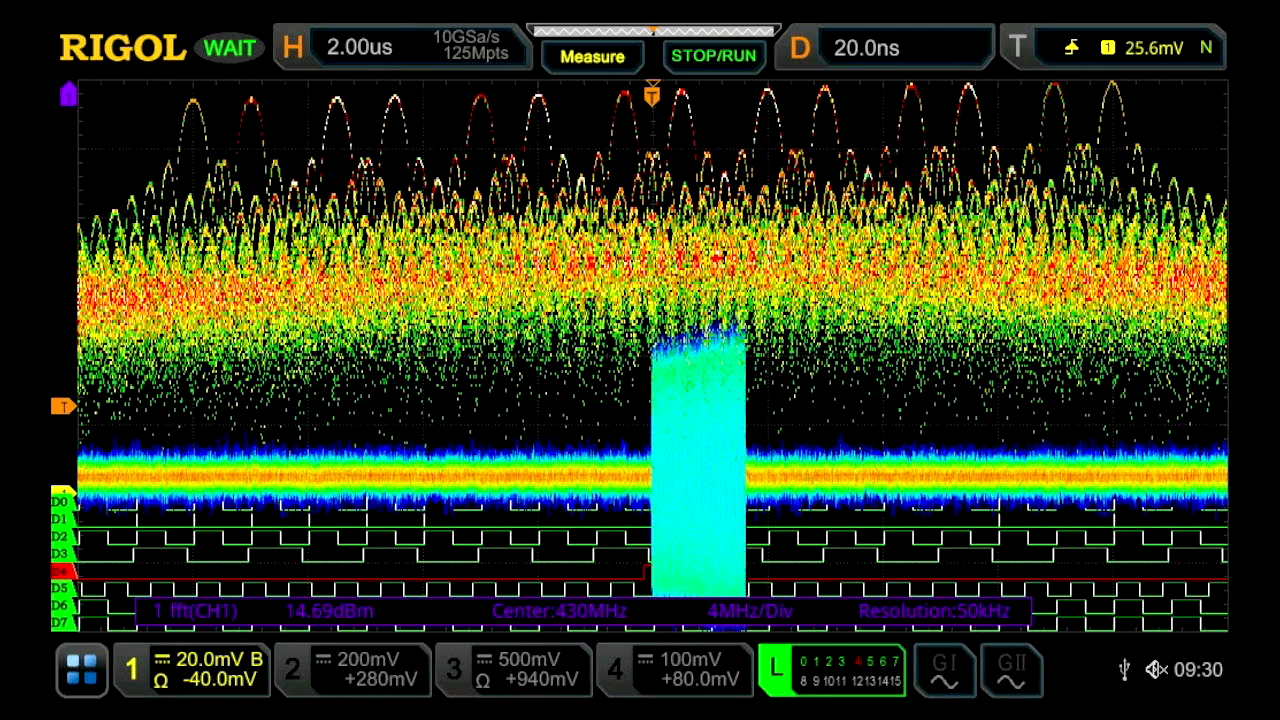

Enhanced Color FFT – MSO/DS7000 Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
MSO7054 500 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s 16 2CH (option) Get a Quote
MSO7034 350 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s 16 2CH (option) Get a Quote
MSO7024 200 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s 16 2CH (option) Get a Quote
MSO7014 100 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s 16 2CH (option) Get a Quote
DS7054 500 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s - - Get a Quote
DS7034 350 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s - - Get a Quote
DS7024 200 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s - - Rp76.120.000
DS7014 100 MHz 4 10 GSa/s 500 Mpts (option) 600,000 wfms/s - - Rp65.934.000
*Prices may change without prior notice.

User Manual

Name Version Release Date Download
MSO7000 User Manual V1.0 2021-11-01 Download

Datasheet

Name Version Release Date Download
MSO7000 Datasheets V2.0 2025-05-20 Download

Programming Manual

Name Version Release Date Download
MSO7000 Programming Manual V1.0 2021-11-01 Download

Open Source

Name Version Release Date Download
MSO&DS7000&8000 Open Source Acknowledgment V1.0 2021-11-01 Download

Quick Guide

Name Version Release Date Download
MSO7000&DS7000 QUICK GUIDE V1.0 2024-01-25 Download
