SUA8000G

The RIGOL SUA8000-G Series is a high-performance digital transceiver platform that combines arbitrary waveform generation, signal acquisition, and waveform recording in a compact modular system. Equipped with a powerful GPU-AI controller based on the NVIDIA Orin AGX platform, it is designed for advanced signal processing, AI-driven analysis, and large-scale automated testing applications. , and AI-enhanced signal analysis.

Main Controller : GPU AI
Analog Bandwidth : 3.5GHz
Maximum Buffer Depth : 1Gpts
Analog Channels T|R : 4|0
Sample Rate T|R : 8GSa/s | -
Datasheet

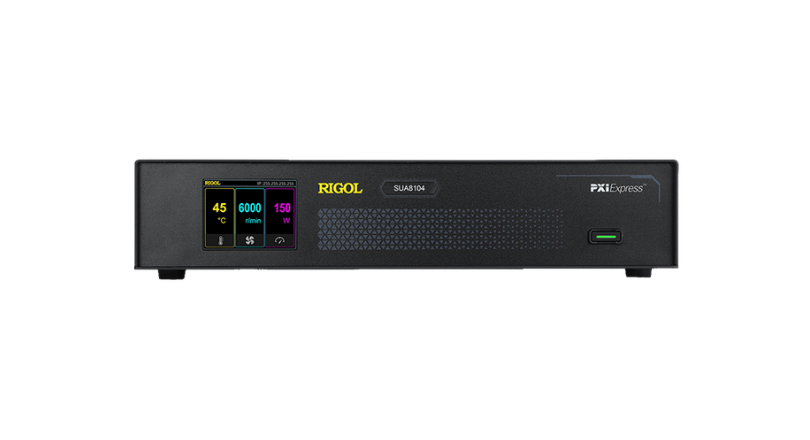

Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

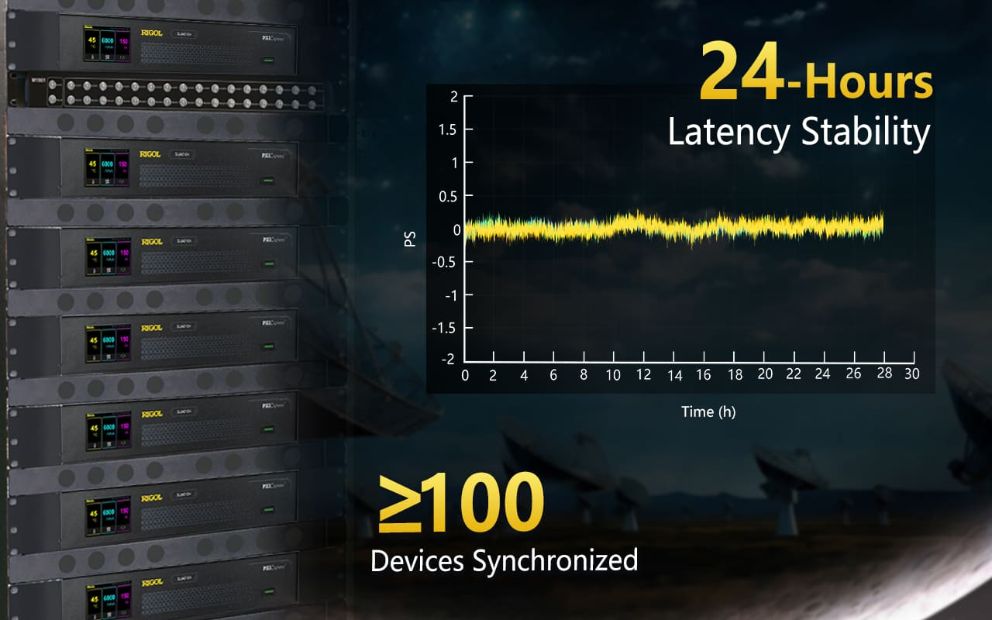

Long - time synchronous operation of multiple devices

The SUA8000 Series supports synchronized operation of more than 100 instruments with exceptional long-term stability: intra-device channel-to-channel delay stays within 1 ps, while inter-device channel synchronization holds within 10 ps—reliable enough for 24/7 array transceiver systems. Such outstanding timing performance sharply boosts system coherence, delivering robust technical support for large-scale distributed transceiver applications.

Long - time synchronous operation of multiple devices

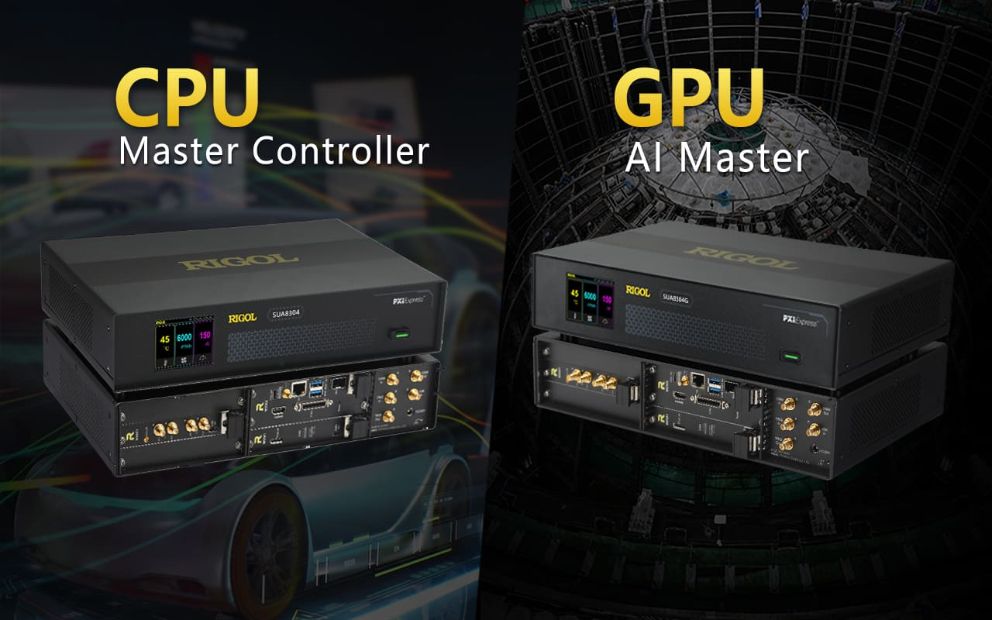

Main control dual selection

The SUA8000 Series offers two master-control options to suit different application needs: a CPU control module built around a high-performance V2000 processor for superior computation and task scheduling, and a GPU-AI control module based on the powerful Orin AGX platform, optimized for AI and deep-learning workloads to handle complex data analytics and intelligent processing.

Main control dual selection

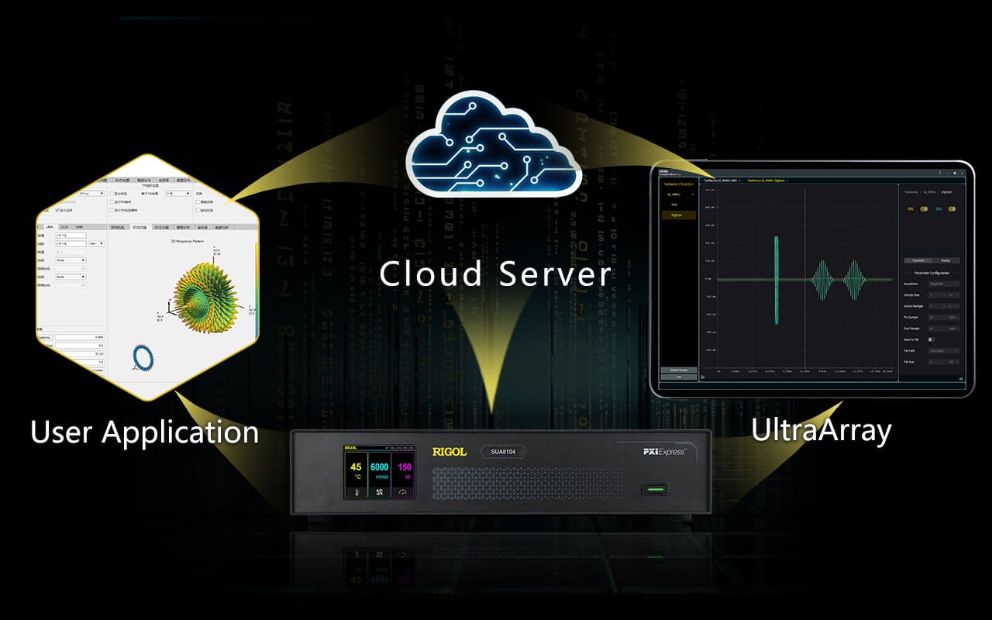

Arrayed console

The SUA8000 Series adopts the web-based UltraArray control platform, enabling local and remote device management with true plug-and-play convenience. A comprehensive library of built-in APIs simplifies secondary development: users may operate the instruments directly through the interface or tap the APIs to quickly build and deploy customized systems, execute complex tasks, and meet diverse application needs.

Arrayed console

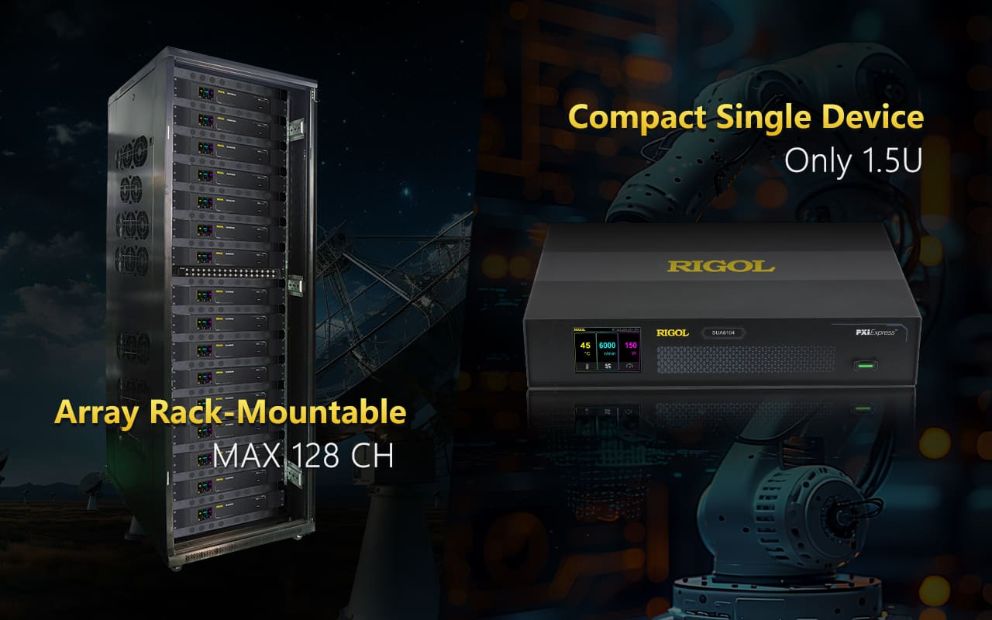

Highly integrated with a compact body

Compact SUA8000 units slip easily into existing systems, custom benches, or tight nested setups. A 1.5-U chassis holds up to eight channels, so a 32-U rack can host 128—maximizing space and simplifying layouts in labs, production lines, and other centralized test sites.

Highly integrated with a compact body

Multi-industry solution applications

From radio-astronomy asteroid hunts and power-grid partial-discharge monitoring to automotive-radar IF tests, engineers rely on the SUA8000. Its precise generate/capture paths and smart processing yield accurate, efficient results across demanding research, industrial, and commercial tasks.

Multi-industry solution applications

Model

Model Main Controller Analog Bandwidth Maximum Buffer Depth Analog Channels T|R Sample Rate T|R
SUA8104G GPU AI 3.5GHz 1Gpts 4|0 8GSa/s | -
SUA8204G GPU AI 1.5GHz 1Gpts 0|4 - | 4GSa/s
SUA8208G GPU AI 1.5GHz 512Mpts 0|8 - | 4GSa/s
SUA8304G GPU AI 1.5GHz 1Gpts 2|2 4GSa/s | 4GSa/s
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Version Release Date Download
SUA8000 DataSheet DSK01100-1110 2025-06-05 Download

Quick Guide

Name Version Release Date Download
SUA8000 QuickGuide QGK01000-1110 2025-06-05 Download
