DG5000 Series

DG5000 series has 6 functions, including any waveform generator, pulse generator, IQ baseband / if source, frequency hopping source, code generator and function generator. The series includes single and dual channel models. The functions of the two channels are completely equal, and the phase between channels is precisely adjustable.

Bandwidth: 350MHz
Sample Rate: 1GSa/s
Vertical Resolution: 14bits
Channels: 1CH, 2CH
Arbitary Wave Length: 128Mpts

Start From Rp77.000.000

Datasheet

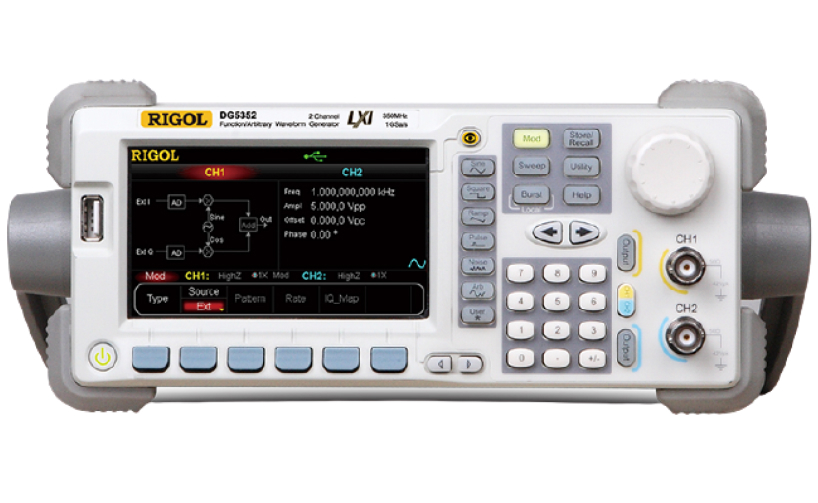

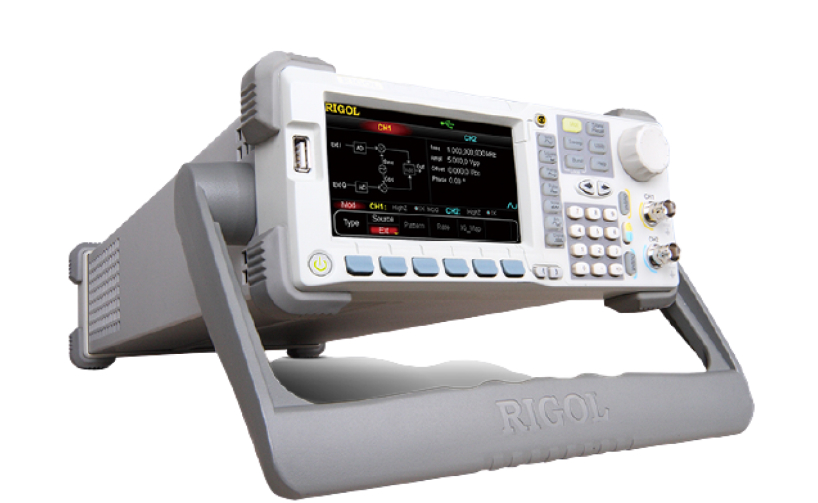

DG5000 Series Product

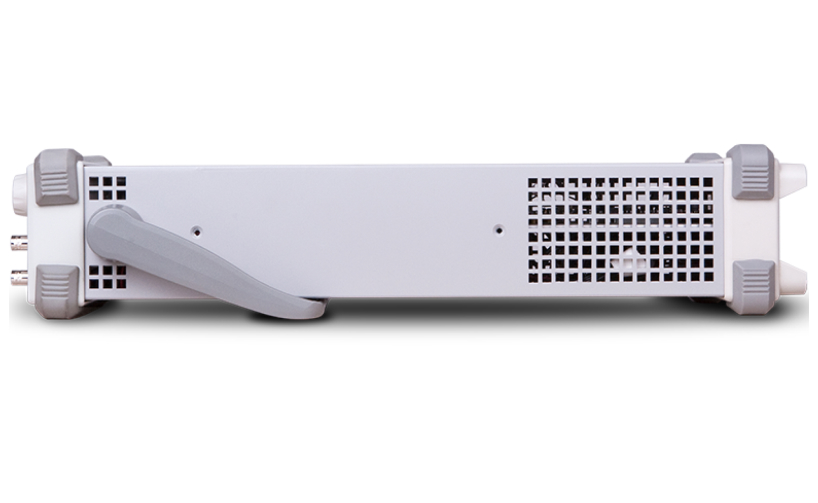

DG5000 Series thumbnail 1
DG5000 Series thumbnail 2
DG5000 Series thumbnail 3
DG5000 Series thumbnail 4

Features

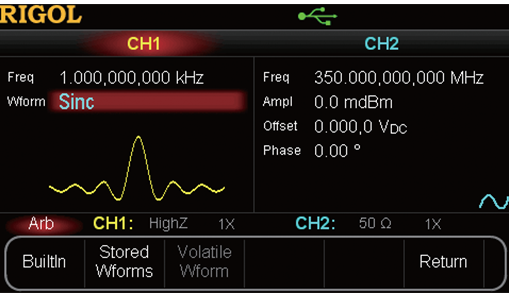

1GSa/s Sampling Rate, 14Bits Vertical Resolution

The frequency of any wave is up to 50MHz, and the sampling rate can be adjusted in the playback mode. The amplitude accuracy reaches 1% ± 1mvpp of ± setting value.

1GSa/s Sampling Rate, 14Bits Vertical Resolution – DG5000 Series

Rich Sweep Function

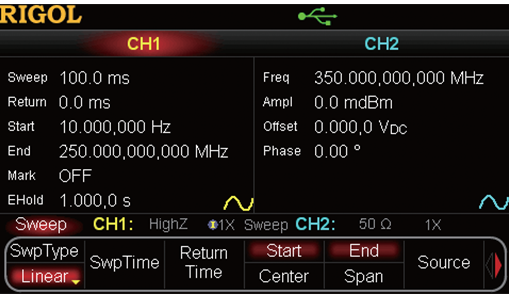

DG5000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.

Rich Sweep Function – DG5000 Series

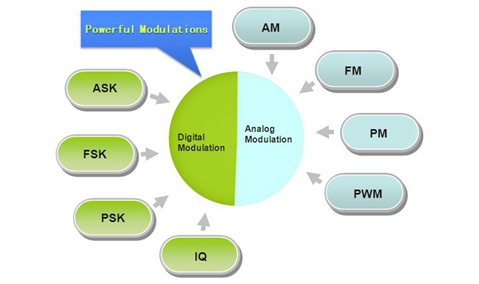

Rich Analog / Digital Modulation Functions

Modulation types include am, FM, PM, ask, FSK, PSK, PWM, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

Rich Analog / Digital Modulation Functions – DG5000 Series

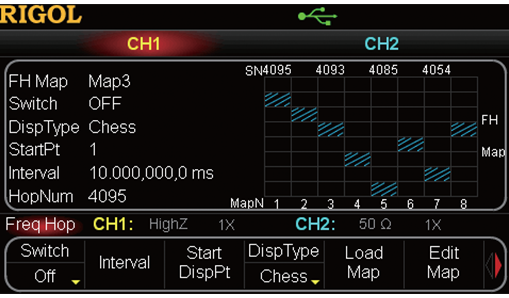

Support Frequency Hopping Function

The minimum frequency hopping interval is 80ns, and 4096 frequency hopping points can be edited at most. It can meet the common needs of FH communication teaching and related tests.

Support Frequency Hopping Function – DG5000 Series

Support Internal And External IQ Modulation Function

The modulation mode includes 4QAM, 8qam, 16QAM, 32qam, 64QAM, BPSK, QPSK, OQPSK, 8PSK, 16PSK, and supports internal and external modulation sources.

Support Internal And External IQ Modulation Function – DG5000 Series

Rich Interfaces

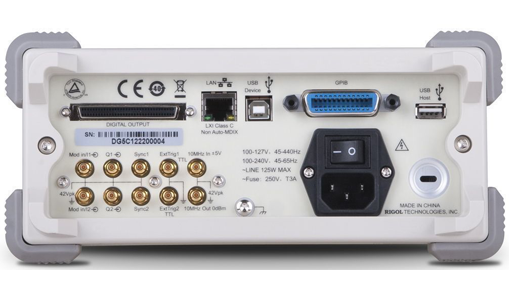

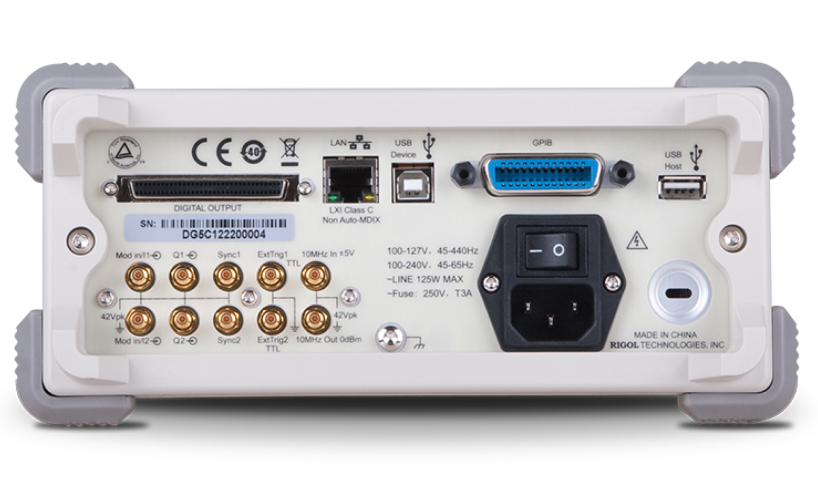

It provides standard USB, GPIB, LAN (LXI) remote communication interface and adopts standard visa driver, which is convenient for system integration customer's test requirements. 16 channels of digital signals can be output by selecting digital logic output module dg-pod-a to realize the function of analog mixed signal generator.

Rich Interfaces – DG5000 Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG5352 350MHz 1Gsa/s 14bits 2 128Mpts Rp28.687.950
DG5351 350MHz 1Gsa/s 14bits 1 128Mpts Rp204.050
DG5252 250MHz 1Gsa/s 14bits 2 128Mpts Rp169.950
DG5251 250MHz 1Gsa/s 14bits 1 128Mpts Rp139.150
DG5102 100MHz 1Gsa/s 14bits 2 128Mpts Rp98.290.500
DG5101 100MHz 1Gsa/s 14bits 1 128Mpts Rp77.000.000
DG5072 70MHz 1Gsa/s 14bits 2 128Mpts Rp62.720.000
DG5071 70MHz 1Gsa/s 14bits 1 128Mpts Rp40.700.000
*Prices may change without prior notice.

Accessories

Model Description Price
RM-DG5000 Rack Mounting Kit for a DG5000 Series Generator. Rack kits may differ per instrument. Rp3.696.000
PA1011 10W Power Amplifier for Generators. Requires generator to function. Rp7.216.000

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG5000 User Manual V2.0 2021-10-25 Download
DG5000 Rackmount Kit Manual V1.0 2021-11-23 Download

Datasheet

Name Version Release Date Download
DG5000 Datasheet V2.0 2021-10-25 Download

Quick Guide

Name Version Release Date Download
DG5000 Quick Guide V1.0 2021-11-23 Download
