RSA3000E-TG

The RIGOL RSA3000E-TG Series is a versatile 5-in-1 real-time spectrum analyzer that combines a swept spectrum analyzer, real-time spectrum analyzer, scalar network analyzer, EMI receiver, and digital demodulation functions in a single instrument. Featuring an integrated Tracking Generator, the RSA3000E-TG is ideal for RF design, wireless communication testing, EMI troubleshooting, education, and production applications. With frequency coverage up to 3 GHz, real-time bandwidth up to 10 MHz, and advanced signal analysis capabilities, it delivers outstanding performance at an affordable price.

Frequency Range : 9kHz~1.5GHz
Resolution Bandwidth (RBW) : 1Hz~3MHz
Phase Noise (Typ.) : -102dBc/Hz@10kHz
Displayed Average Noise Level (DANL) : -161dBm
Tracking Generator : Yes
Datasheet

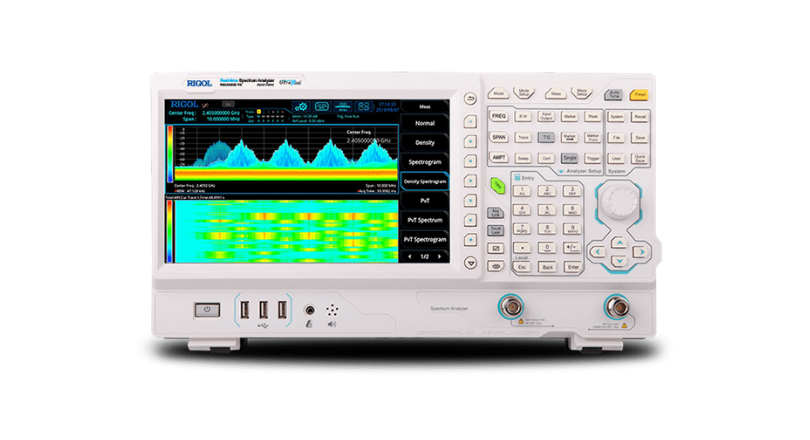

Main Image
Thumbnail 1

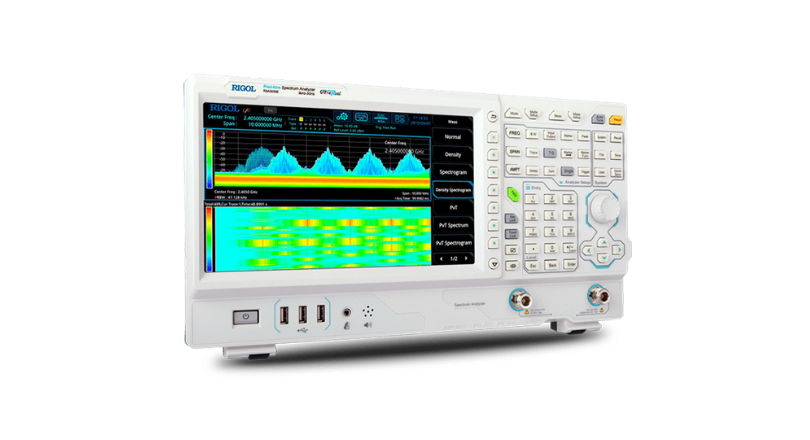

Thumbnail 2

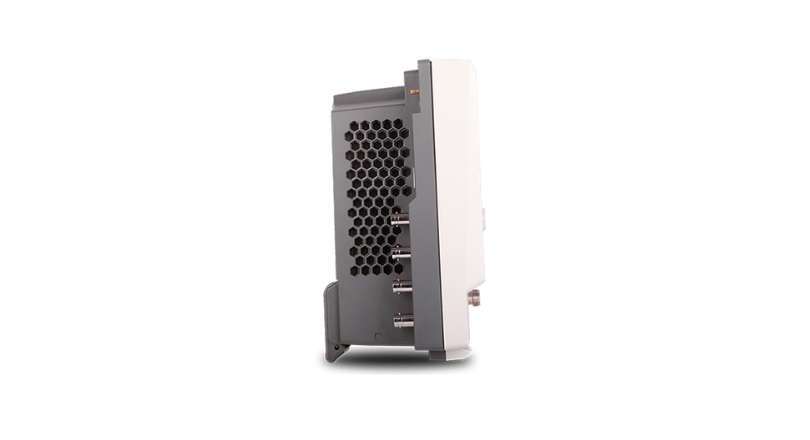

Thumbnail 3

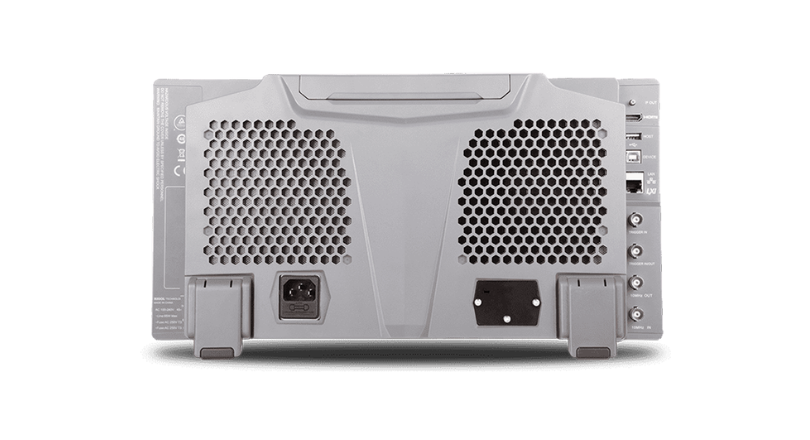

Thumbnail 4

Features

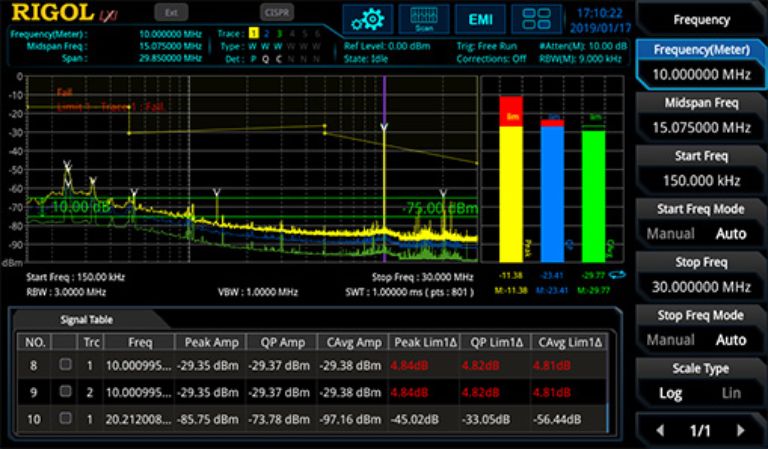

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

The RSA3000E's built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.

Conduction/Radiation Pre-compliance with Built-in Emi Test Software

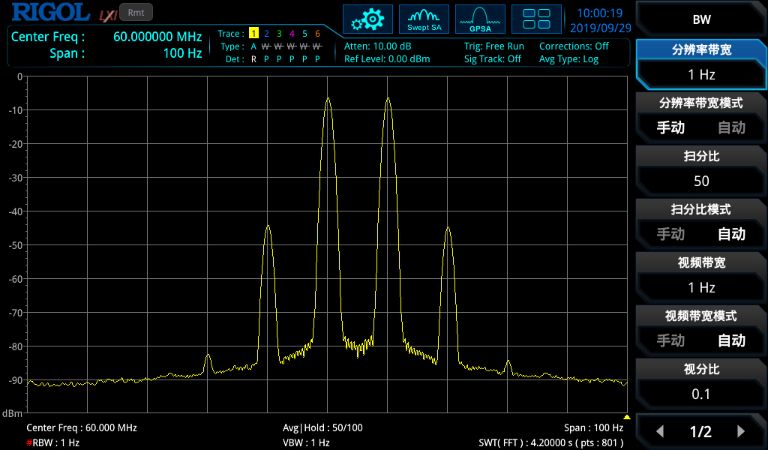

Resolution Bandwidth As Low As 1 Hz

Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000E, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.

Resolution Bandwidth As Low As 1 Hz

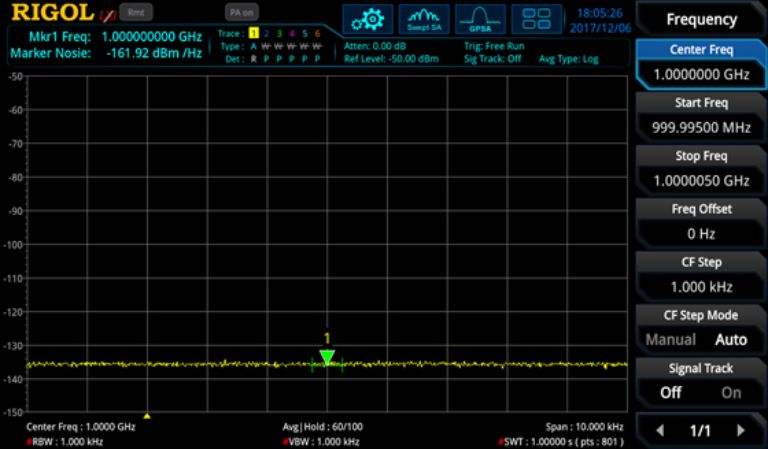

Danl As Low As -161 Dbm with Optional Preamp

View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.

Danl As Low As -161 Dbm with Optional Preamp

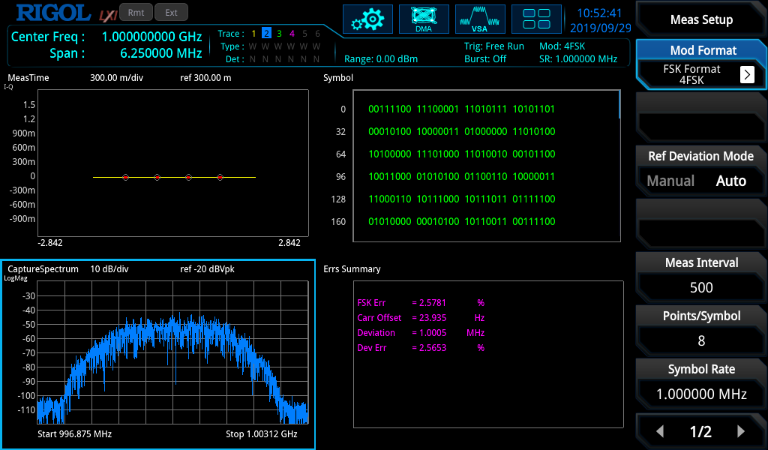

ASK/FSK Demodulation Analysis

ASK/FSK demodulation analysis software can help engineers demodulate and analyze signals such as TPMS, PKE/RKE, and obtain parameters of signal modulation quality to help products get listed quickly.

ASK/FSK Demodulation Analysis

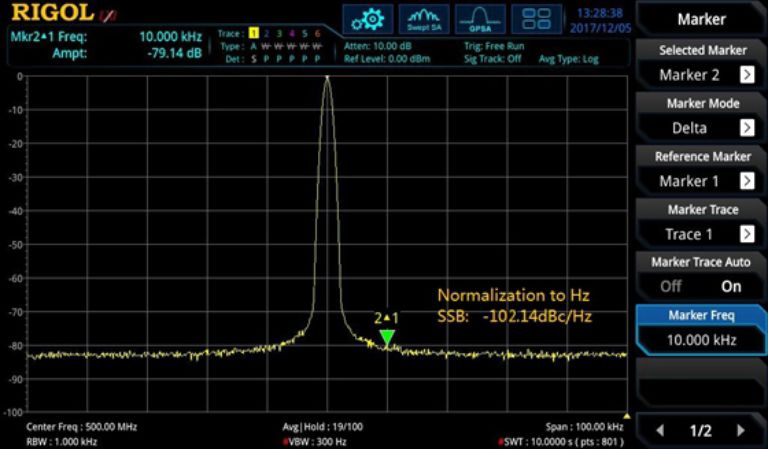

Excellent Phase Noise Metric

Excellent sweep performance, phase noise as low as -102dBc/Hz

Excellent Phase Noise Metric

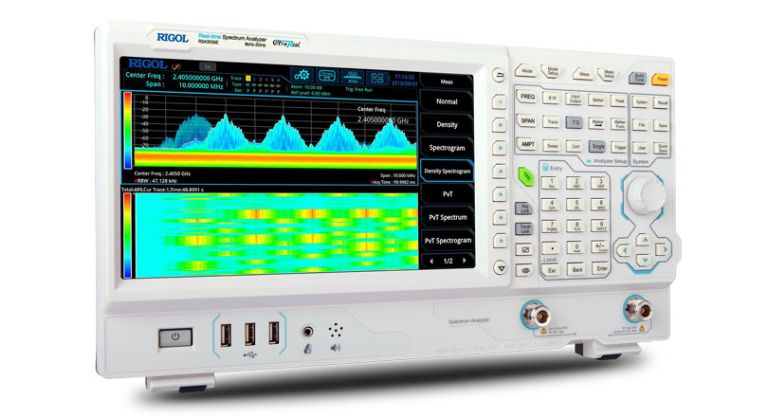

Complete Operations with a Multi-touch Screen

RSA3000E with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.

Complete Operations with a Multi-touch Screen

Model

Model Frequency Range Resolution Bandwidth (RBW) Phase Noise (Typ.) Displayed Average Noise Level (DANL) Tracking Generator
RSA3015E-TG 9kHz~1.5GHz 1Hz~3MHz -102dBc/Hz@10kHz -161dBm Yes
RSA3030E-TG 9kHz~3GHz 1Hz~3MHz -102dBc/Hz@10kHz -161dBm Yes
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Datasheet

Name Version Release Date Download
RSA3000E-TG Datasheet V2.0 2025-02-07 Download

Quick Guide

Name Version Release Date Download
RSA3000E-TG QuickGuide QGD24100-1110 2024-01-31 Download
