DG4000 Series

DG4000 series multi-function signal generator with functions of function generator, arbitrary waveform generator, pulse generator, harmonic generator, analog / digital modulator, frequency meter, etc.; all models of this series have two channels with identical functions and phase adjustable between channels.

Bandwidth: 200MHz
Sample Rate: 500MSa/s
Vertical Resolution: 14bits
Channels: 2CH
Arbitary Wave Length: 16kpts
Datasheet

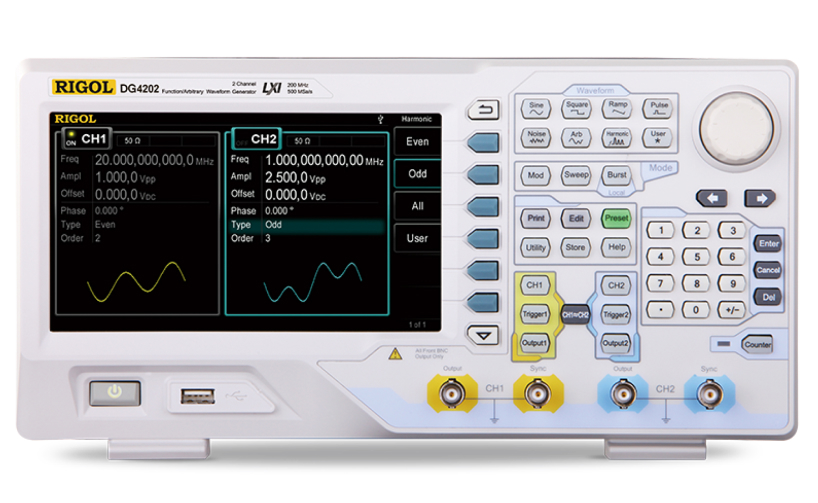

DG4000 Series Product
DG4000 Series thumbnail 1

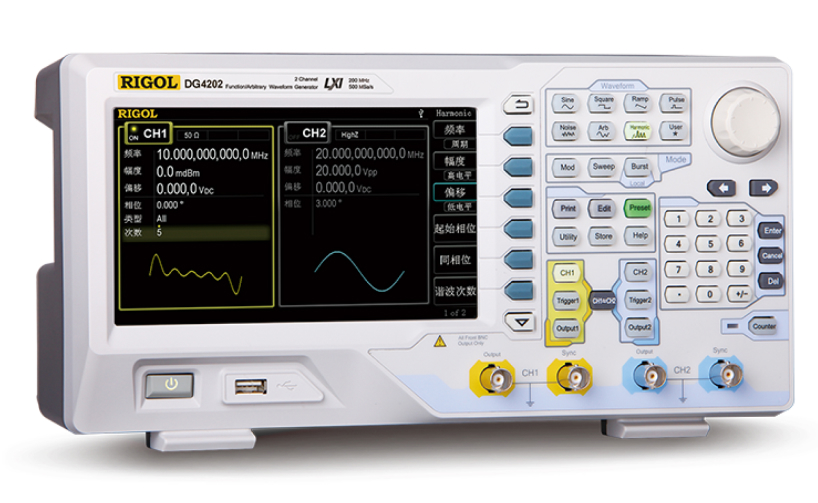

DG4000 Series thumbnail 2

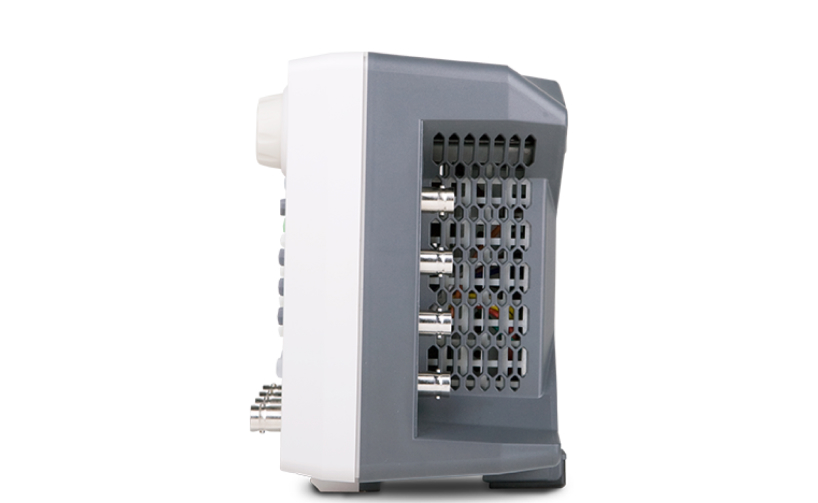

DG4000 Series thumbnail 3

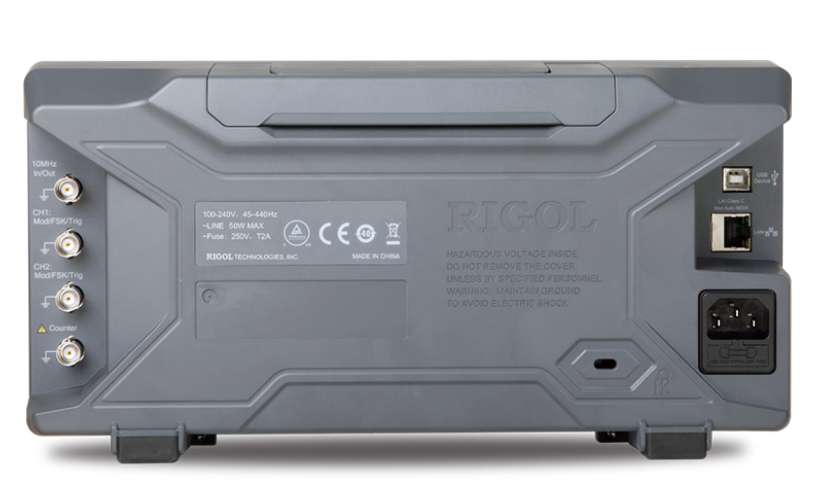

DG4000 Series thumbnail 4

Features

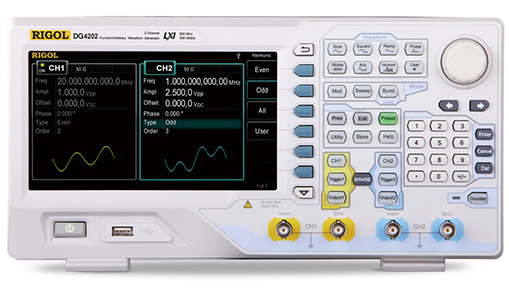

Wide Screen, Novel Appearance

The parameter setting value, waveform shape and output configuration of the channel are clearly displayed, so that the user can see the current output state of the instrument at a glance.

Wide Screen, Novel Appearance – DG4000 Series

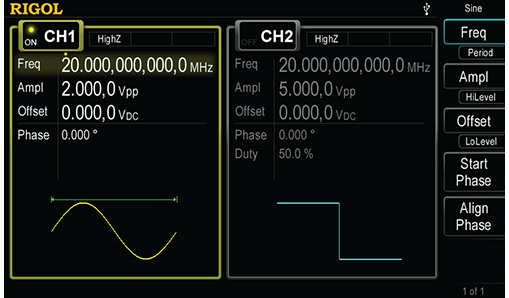

Dual Channels With Equal Performance And Precise Phase Adjustment Between

The dual channel performance is the same, including basic wave, arbitrary wave, modulation wave, scanning, pulse series and other waveform output. Between channels, waveform or state can be copied, and frequency / amplitude / phase coupling can also be performed. The phase between channels can be adjusted accurately.

Dual Channels With Equal Performance And Precise Phase Adjustment Between – DG4000 Series

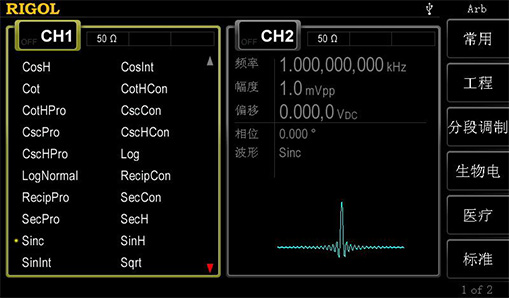

Built In 150 Arbitrary Waveforms

Various common waveforms in built-in teaching and circuit debugging are classified according to common, engineering, subsection modulation, bioelectricity, medical treatment, standard, mathematics, trigonometric function, anti trigonometric function and window function. Special user key is provided on the panel to quickly call out specified arbitrary waves.

Built In 150 Arbitrary Waveforms – DG4000 Series

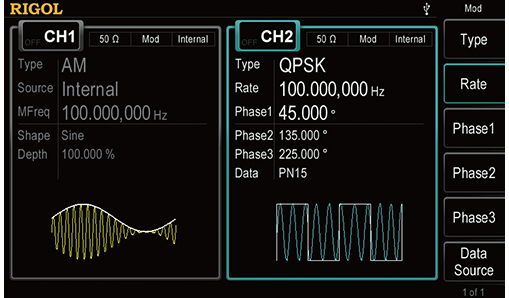

Rich Analog And Digital Modulation Functions

Modulation types include am, FM, PM, ask, FSK, 3fsk, 4FSK, PSK, BPSK, QPSK, PWM and OSK, and support internal and external modulation sources to meet the needs of more teaching or communication system testing.

Rich Analog And Digital Modulation Functions – DG4000 Series

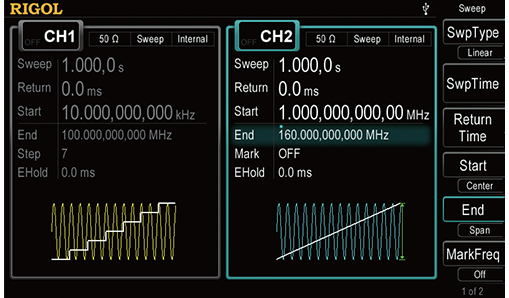

Multiple Sweep Modes

DG4000 supports scanning output from low frequency to high frequency or from high frequency to low frequency. The scanning type includes linear, logarithmic and step. It can set the "mark" frequency to meet the needs of more amplitude frequency test applications.

Multiple Sweep Modes – DG4000 Series

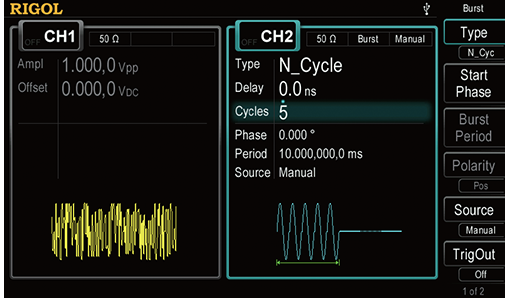

Noise Generation Function And Burst Mode Function

DG4000 can generate white noise with a maximum bandwidth of 120mhz. In addition, it has the function of noise superposition, which supports the superposition of a Gaussian noise on the main output signal. It can be used to test the anti noise performance of the equipment. Burst mode function provides N-cycle, infinite and gating three types of pulse strings.

Noise Generation Function And Burst Mode Function – DG4000 Series

Up To 16th Harmonic Output Function

The output harmonic with specified frequency, amplitude and phase is usually used in the test of harmonic detection equipment or harmonic filter equipment.

Up To 16th Harmonic Output Function – DG4000 Series

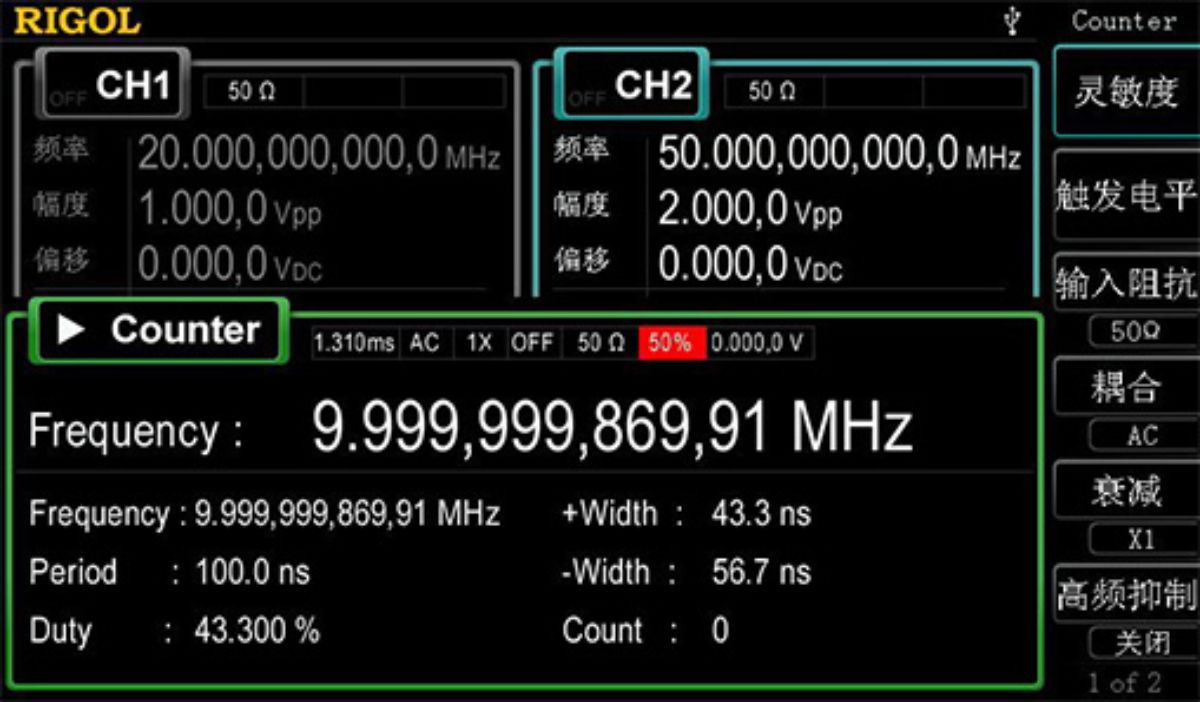

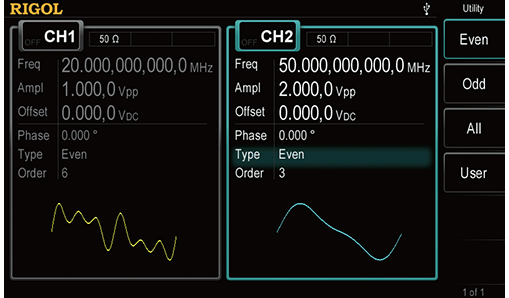

High Resolution Function Of Frequency Meter

DG4000 provides 7-bit frequency meter measurement function, which can measure the frequency, period, duty cycle, positive pulse width, negative pulse width and other parameters of external input signal, and supports the statistics of measurement results. The frequency meter can work simultaneously with the dual channel output.

High Resolution Function Of Frequency Meter – DG4000 Series

Model

Model Max. Output Frequency Sample Rate Vertical Resolution Channels Arbitary Wave Length Price
DG4202 200MHz 500Msa/s 14bits 2 16 kpts Rp41.720.000
DG4162 160MHz 500Msa/s 14bits 2 16 kpts Rp27.195.000
DG4102 100MHz 500Msa/s 14bits 2 16 kpts Rp22.558.500
DG4062 60MHz 500Msa/s 14bits 2 16 kpts Rp19.488.000
*Prices may change without prior notice.

Accessories

Model Description Price
RM-DS1000Z/DG4000 Rack Mounting Kit for a DS1000Z Series Oscilloscope or DG4000 Series generator Rp2.544.000
BAG-G1 Instrument Carry Case for a DSA800 Spectrum Analyzer, DG4000 generator, or DS2000 scope Rp2.480.000
PA1011 10W Power Amplifier for Generators. Requires generator to function Rp7.216.000

Software

Model Description
Ultra Station-adv Full advanced version of UltraStation wave generation software for DG4000 and DG5000 Series generators. This is a software upgrade license

User Manual

Name Version Release Date Download
DG4000 User Manual V1.0 2019-08-29 Download
RM-DG4000_DS1000 User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DG4000 Datasheet V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DG4000 Quick Guide V1.0 2019-08-29 Download
