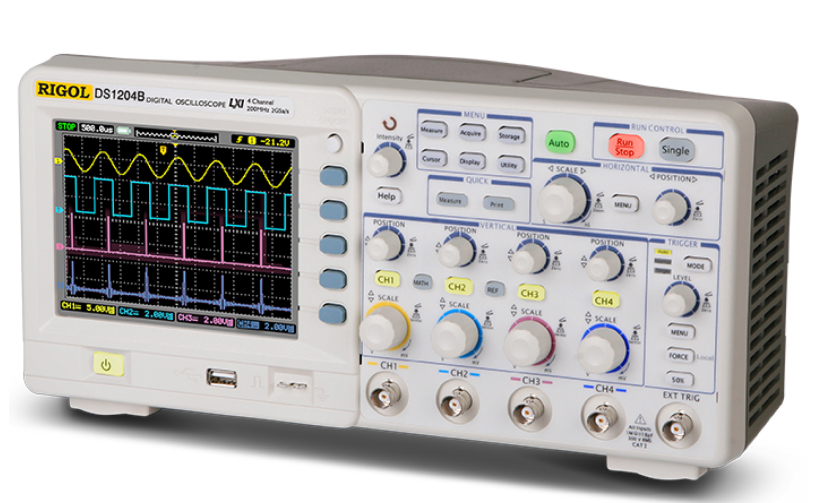

DS1000B Series

DS1000B series its powerful triggering and analysis ability makes it easy to capture and analyze waveforms, clear liquid crystal display and mathematical operation functions, and convenient for users to observe and analyze signals faster and more clearly.

Bandwidth: 70 MHz ~ 200 MHz
Analog Channels: 4
Real-time Sample Rate: 2 GSa/s
Max. Memory Depth: 16 kpts
Waveform Capture Rate: 30,000 kwfms/s
Digital Channels: N/A

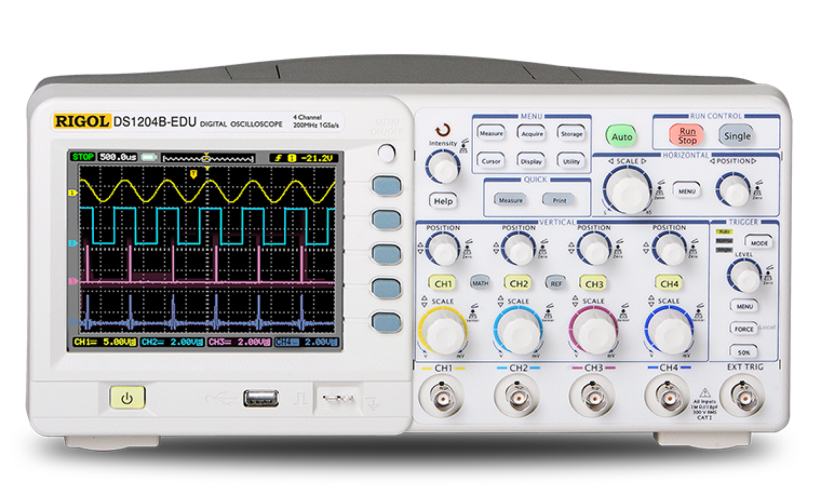

DS1000B Series Product

Features

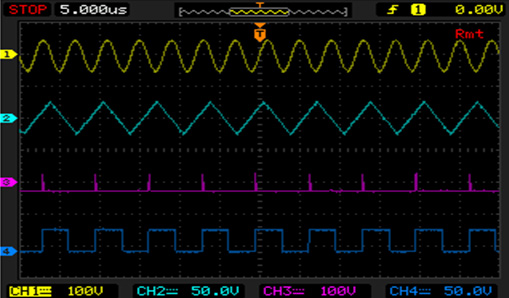

4 Independent Analog Channels

The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals..DS1000B series provides 4 analog input channels, which can be controlled vertically independently, and users can observe multiple signals at the same time. Each channel button and the corresponding channel mark and waveform in the display screen will be distinguished by a specific color.

4 Independent Analog Channels – DS1000B Series

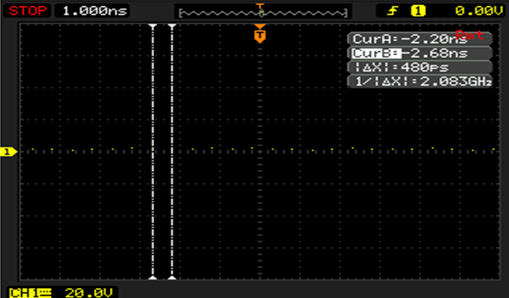

2Gsa / s High-Speed Real-Time Sampling

2GSa/s real-time sampling rate, 50gsa / s equivalent sampling rate.

2Gsa / s High-Speed Real-Time Sampling – DS1000B Series

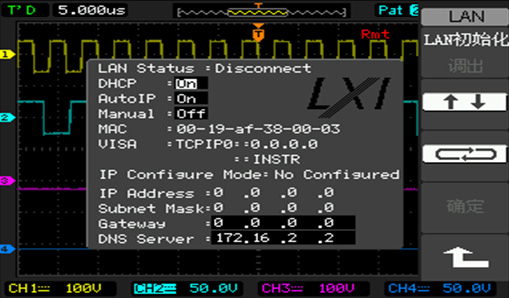

Conform To LXI Alliance Class C Instrument Standard

DS1000B conforms to the C-class instrument standard of LXI alliance, and can quickly, economically and efficiently create and reconfigure the test system, and easily realize system integration

Conform To LXI Alliance Class C Instrument Standard – DS1000B Series

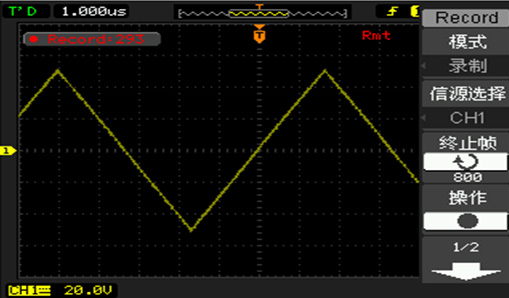

Waveform Recording and Playback Function

The waveform recording function of DS1000B series can not only record the input waveforms of 4 channels, but also record the waveforms that pass or fail the pass / fail detection. Up to 1000 frames can be recorded, played back and saved.

Waveform Recording and Playback Function – DS1000B Series

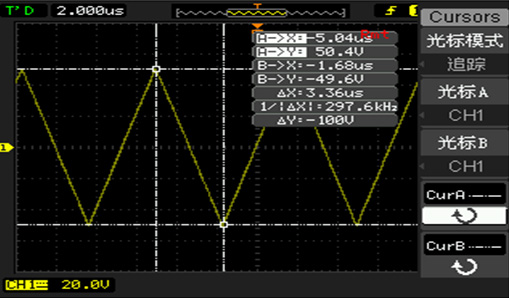

Dynamic Cursor Tracking

Cursor mode allows the user to measure by moving the cursor. There are three methods of cursor measurement: automatic measurement, manual measurement and tracking measurement.

Dynamic Cursor Tracking – DS1000B Series

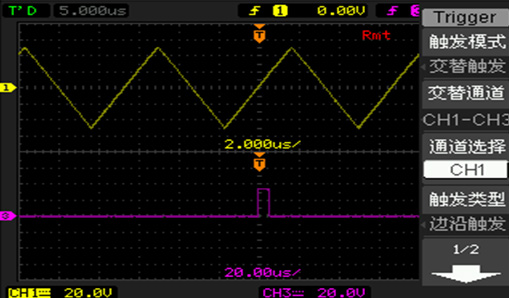

Rich Trigger Functions

DS1000B series has rich triggering functions: edge, pulse width, video, code type and alternating triggering. The unique adjustable trigger sensitivity function can effectively filter out the noise superimposed on the trigger signal and prevent false triggering.

Rich Trigger Functions – DS1000B Series

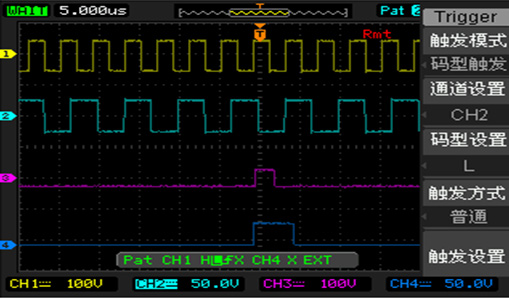

High Performance Code Type Trigger Function

Standard with high-performance code type trigger function, stable trigger MSO digital signal. Among them, the code type trigger can capture special digital information according to the logical relationship between the four channels.

High Performance Code Type Trigger Function – DS1000B Series

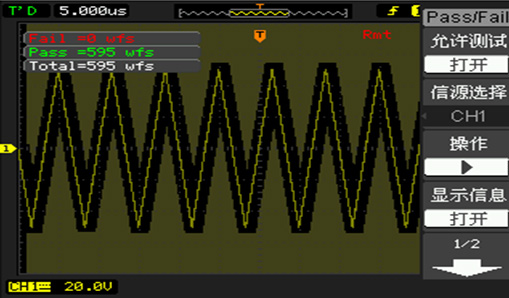

Pass / Fail Test

Pass / fail detection function is convenient for the production line to quickly detect product quality.

Pass / Fail Test – DS1000B Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Price
DS1204B 200 MHz 3 2 GSa/s 16 kpts Get a Quote
DS1104B 200 MHz 4 2 GSa/s 16 kpts Rp26.950.000
DS1074B 70 MHz 4 2 GSa/s 16 kpts Get a Quote
*Prices may change without prior notice.

Accessories

Model Description
RM-DS1000B Rack Mounting Kit for DS1000B
BAG-DS1000 Instrument Carry Case for a DS1000 Series Oscilloscope
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
CB-USBA-USBB-FF-100 50 Ohm impedance adapter for oscilloscopes or generatorsUSB Cable
USB-GPIB USB-GPIB Converter. Connect USB directly to instrument and control it via GPIB. This does not connect to a PC directly

User Manual

Name Version Release Date Download
DS1000B User Manual V1.0 2019-08-29 Download

Datasheet

Name Version Release Date Download
DS1000B Datasheets V1.0 2019-08-29 Download

Programming Manual

Name Version Release Date Download
DS1000B Programming Manual V1.0 2019-08-29 Download

Quick Guide

Name Version Release Date Download
DS1000B QuickGuide V1.0 2021-11-23 Download
