MSO/DS1000Z Series

The DS1000Z series of digital oscilloscopes use the Ultravision technology platform, which continues the characteristics of deep storage and high waveform capture rate, and has an excellent cost performance advantage.

Bandwidth: 50 MHz ~ 100 MHz
Analog Channels: 4 Real-time
Sample Rate: 1 GSa/s
Max. Memory Depth: 24 Mpts
Waveform Capture Rate: 30,000 kwfms/s
Digital Channels: 16 (plus Model)

Start From Rp7.659.000

Datasheet

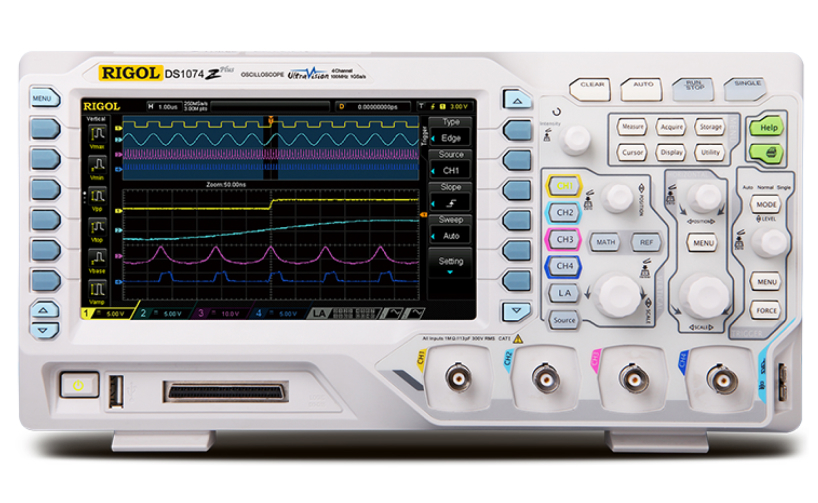

MSO/DS1000Z Series Product

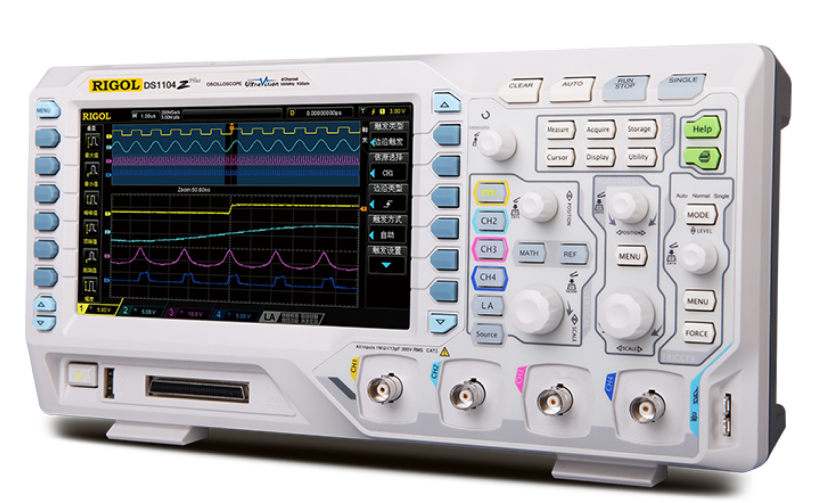

MSO/DS1000Z Series thumbnail 1

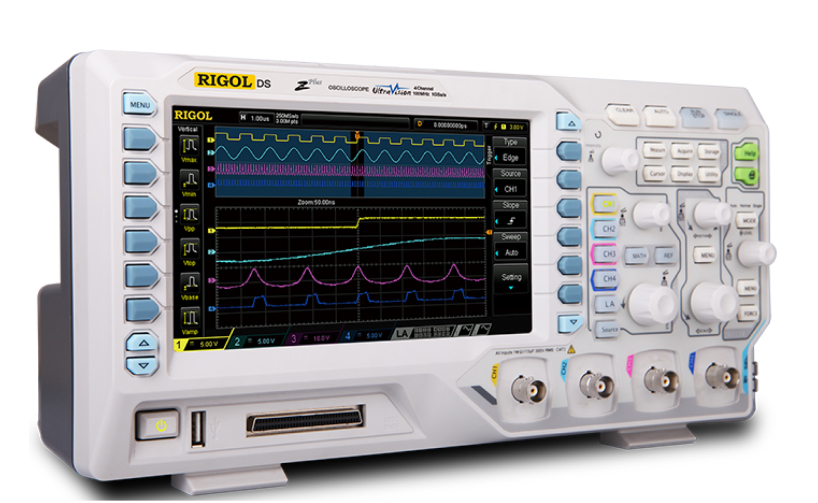

MSO/DS1000Z Series thumbnail 2
MSO/DS1000Z Series thumbnail 3

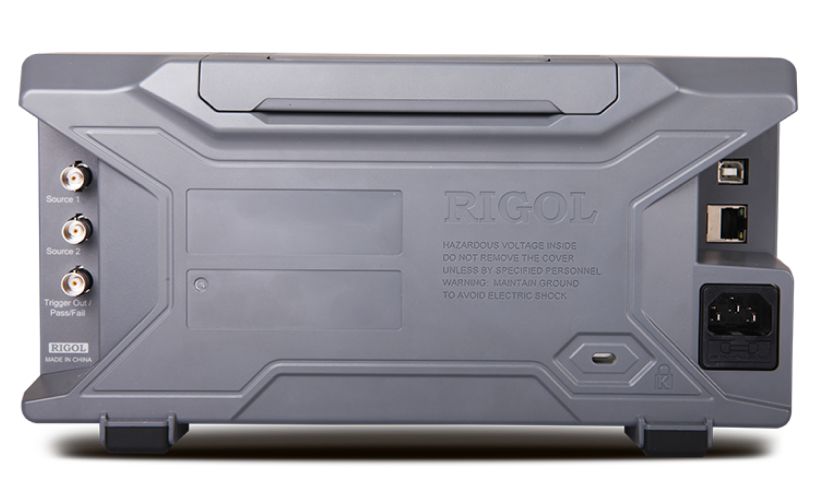

MSO/DS1000Z Series thumbnail 4

Features

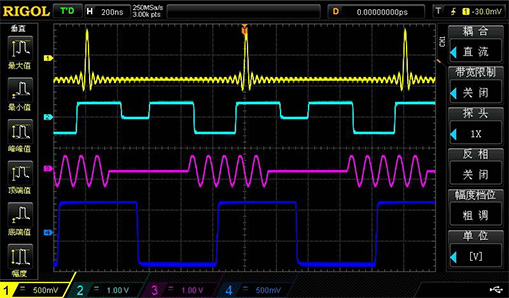

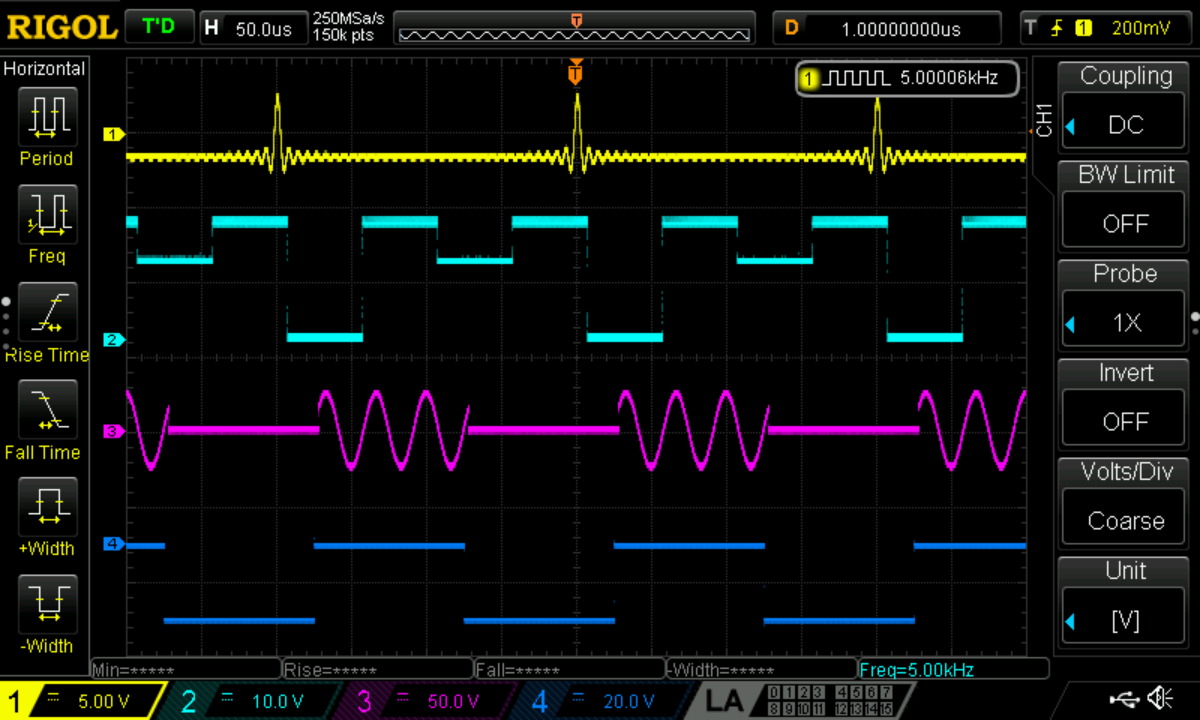

4 Channels As Standard

The price of 2-channel can obtain 4-channel products, and 4 analog channels are configured as standard to facilitate simultaneous measurement of multiple signals

4 Channels As Standard – MSO/DS1000Z Series

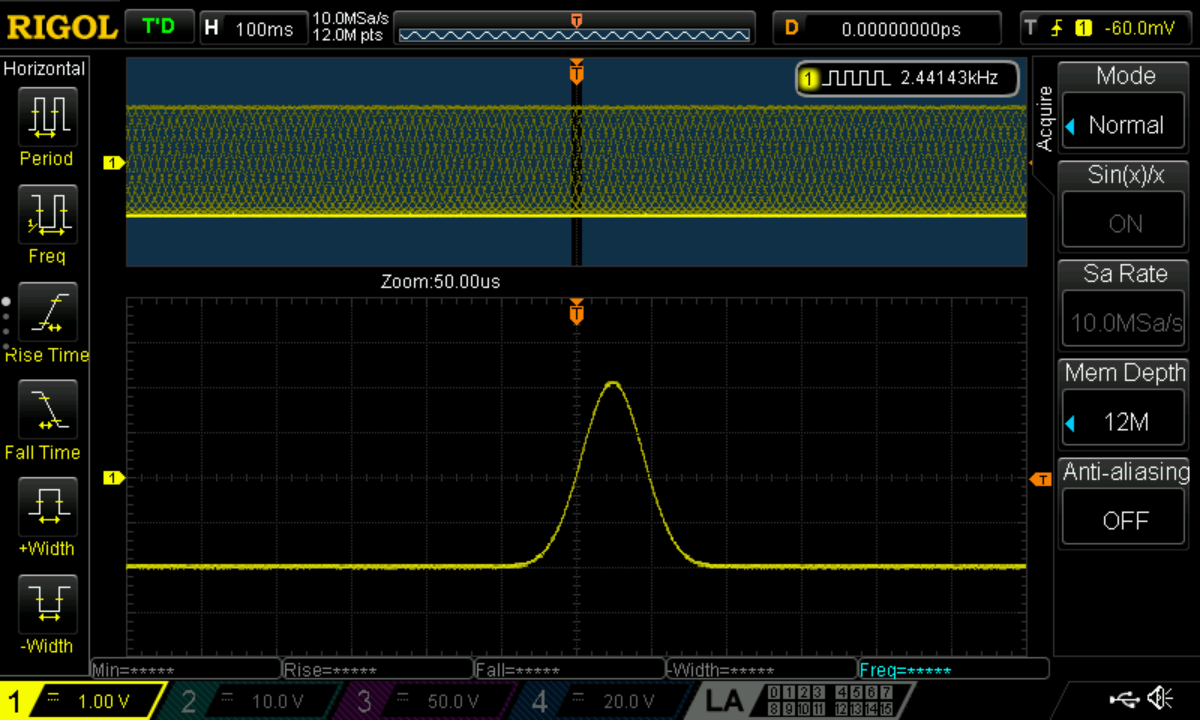

12Mpts Storage Depth

Standard with 12M, optional with 24m super long storage depth. (standard configuration of digital channel 6m, optional 12m) allows the user to give full consideration the overall situation and details of the waveform, maintain the highest sampling rate in a longer period of time, without missing any waveform changes

12Mpts Storage Depth – MSO/DS1000Z Series

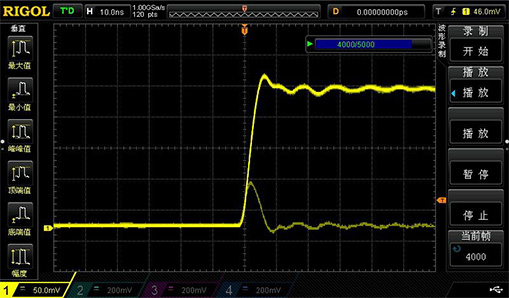

Hardware Waveform Recording and Playback Function

Provide waveform recording function options, record waveform changes, easily replay waveform, find out the fault location

Hardware Waveform Recording and Playback Function – MSO/DS1000Z Series

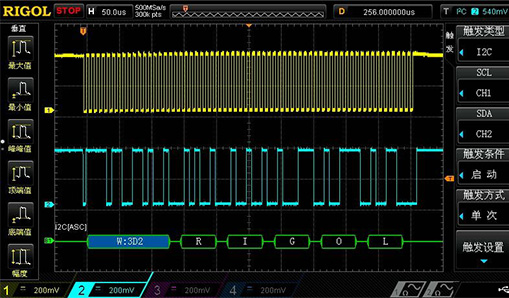

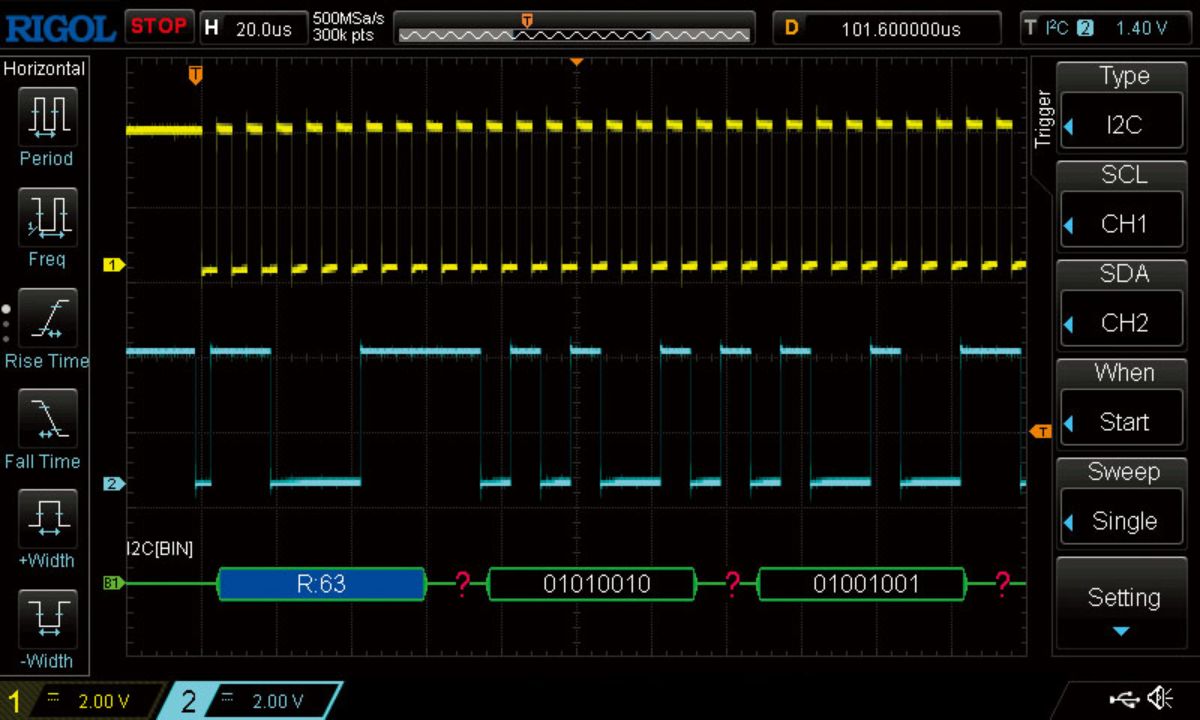

Serial Bus Triggering and Decoding

Provide bus triggering and decoding options, support RS232 / UART, I2C, SPI bus

Serial Bus Triggering and Decoding – MSO/DS1000Z Series

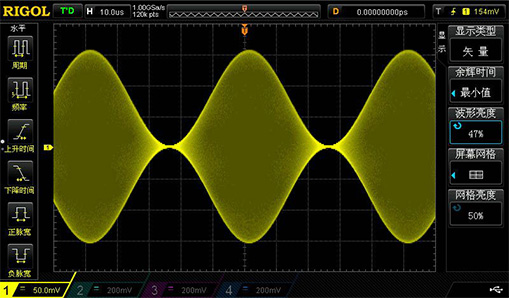

Digital Fluorescent Display

Gray level display capability, similar to fluorescent display effect, with minute change of waveform

Digital Fluorescent Display – MSO/DS1000Z Series

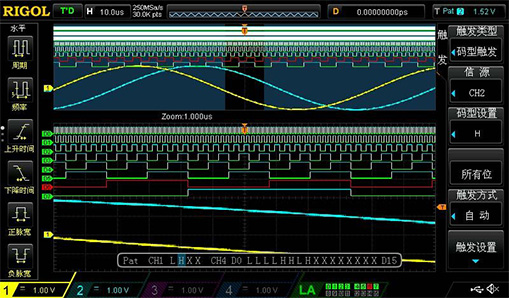

Mixed Signal Analysis Capability

The plus model provides 16 digital logic channels, which makes it more convenient to test multiple analog and digital signals at the same time and analyze logic signals more conveniently. DS1000z plus can be upgraded to MSO

Mixed Signal Analysis Capability – MSO/DS1000Z Series

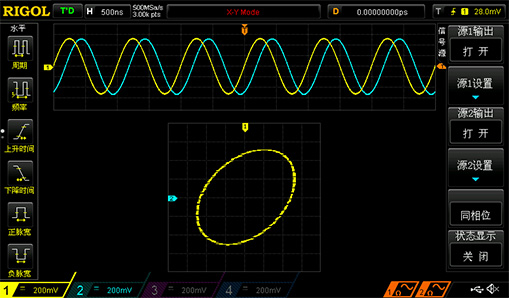

Two 25MHz Signal Sources

With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience

Two 25MHz Signal Sources – MSO/DS1000Z Series

Two 25MHz Signal Sources

With two 25MHz arbitrary waveform generator models, the oscilloscope, logic analyzer and signal source are combined to give you a more efficient test experience

Two 25MHz Signal Sources – MSO/DS1000Z Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max. Memory Depth Waveform Capture Rate Digital Channels Built-In Source Price
DS1054Z 50 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s - - Rp7.714.500
DS1074Z Plus 70 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16 (Need to configure logic probe) - Rp10.101.000
DS1074Z-S Plus 70 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16 (Need to configure logic probe) 2CH Rp13.764.000
DS1104Z Plus 100 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16 (Need to configure logic probe) - Rp13.597.500
DS1104Z-S Plus 100 MHz 4 1 GSa/s 24 Mpts 30,000 wfms/s 16 (Need to configure logic probe) 2CH Rp15.096.000
*Prices may change without prior notice.

Accessories

Model Description
BAG-DS1000 Instrument Carry Case for a DS1000 Series Oscilloscope
CB-USBA-USBB-FF-100 USB Cable
CB-DB9-DB-FF-150 RS232 Cable, Female to Female, 150cm
CB-BNC-BNC-MM-100 BNC Cable (length 1 meter)
ADP0150BNC 50 Ohm impedance adapter for oscilloscopes or generators

Software

Model Description
UPA-DS Power Analysis Software for MSO/DS2000, MSO/DS4000, MSO8000, MSO/DS7000, MSO5000 series oscilloscopes

User Manual

Name Version Release Date Download
DS1000Z User Manual V1.0 2021-10-26 Download
RM-DG4000 DS1000Z User Manual V1.0 2021-11-29 Download

Datasheet

Name Version Release Date Download
DS1000Z Datasheets V1.0 2021-10-26 Download

Programming Manual

Name Version Release Date Download
DS1000Z Programming Manual V1.0 2021-10-26 Download

Quick Guide

Name Version Release Date Download
DS1000Z Quick Guide V1.0 2021-11-19 Download
