EMI Test&EMC Pre-Compliance Applications
EMC Pre-Compliance Test

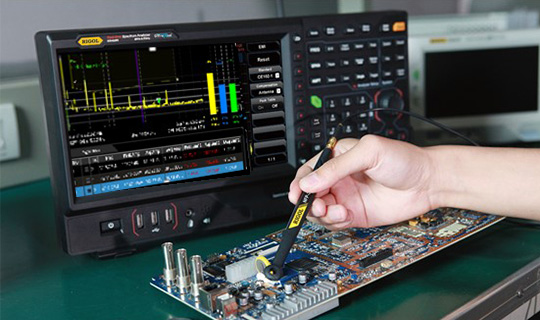

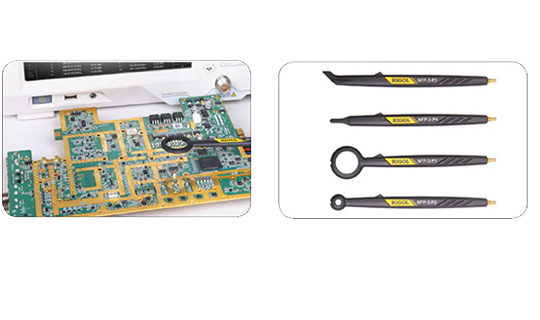

EMC test is a far-field testing, which gives frequency information about which frequency points are overstandard, but there is no location information. Near-field measurement sits very convenientally for interference positioning, and even accurate to the IC pin to specific line, thus determining the cause of interference.
Conduction Pre-Compliance Test
Conduction interference is mainly based on frequencies below 30MHz, for the power terminal conduction interference mainly measures the device under test along the power cord to the power supply network of the harassment voltage, but also includes through the signal line to the other surrounding equipment transmitted to the harassment signal.

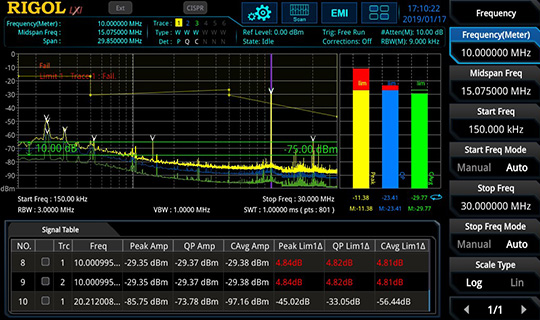

Expanded Capabilities Within RSA Series Spectrum Analyzers
- Built in CISPR bandwidths and detectors
- Automated scans of multiple segment
- Limit Lines and automated peak/limit searches
- Up to 3 traces with different detectors
- Log Frequency Display
- Live measurements with 3 detectors at marker or signal
- Corrections for antennas, LISNs, cables, and preamps
