DM3068 Series

DM3068 series digital multimeter has the highest accuracy of 6.5 bits. It is designed for the test requirements of high accuracy, multi-function and automatic measurement, and integrates the functions of automatic measurement, multiple mathematical transformations and arbitrary sensor measurement.

Precision: 6.5 DVC
Annual Accuracy: 0.0035%
Fastest Test Rate: 10k rdgs/s
Connectivity: USB, GPIB, LAN(LXIC), RS232

Start From Rp17.731.500

Datasheet

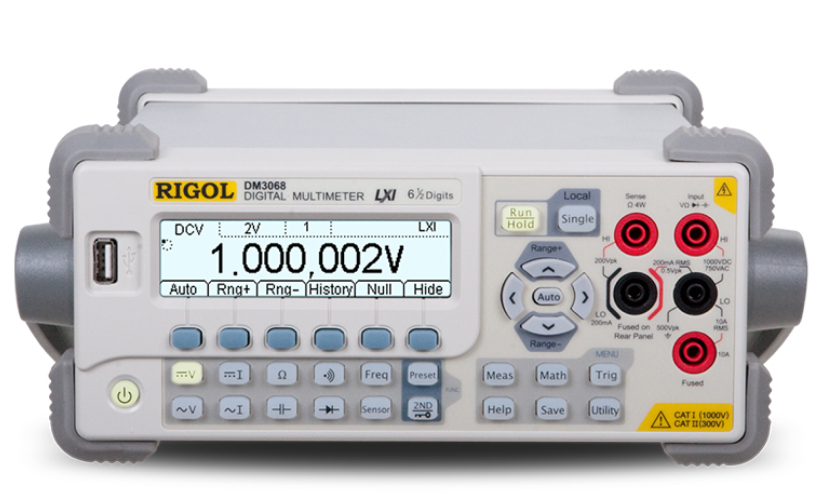

DM3068 Series Product
DM3068 Series thumbnail 1

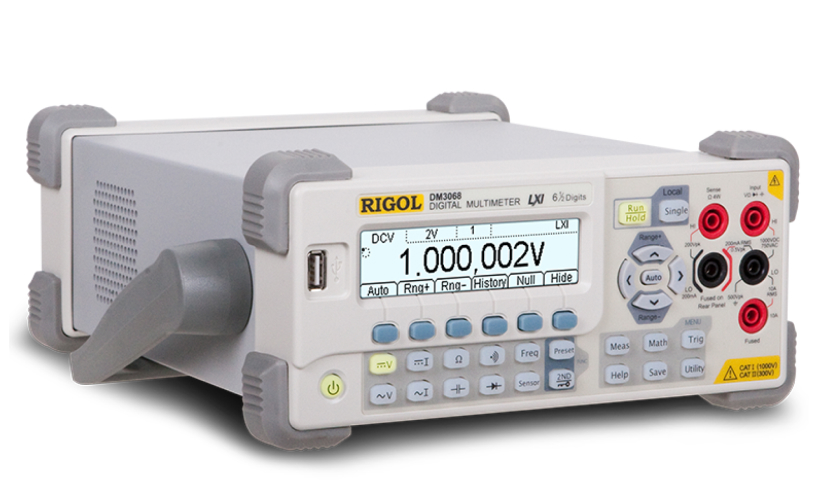

DM3068 Series thumbnail 2

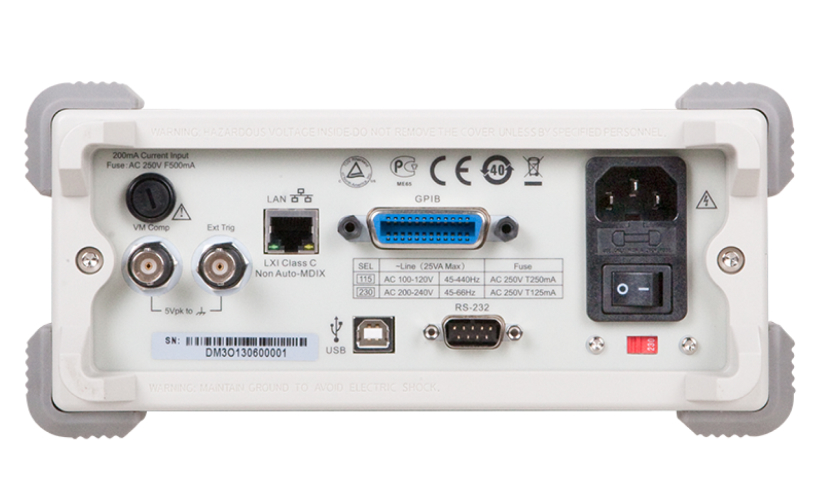

DM3068 Series thumbnail 3

Features

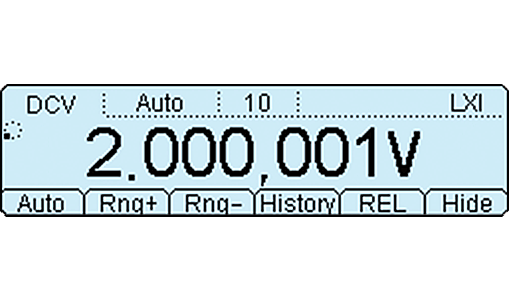

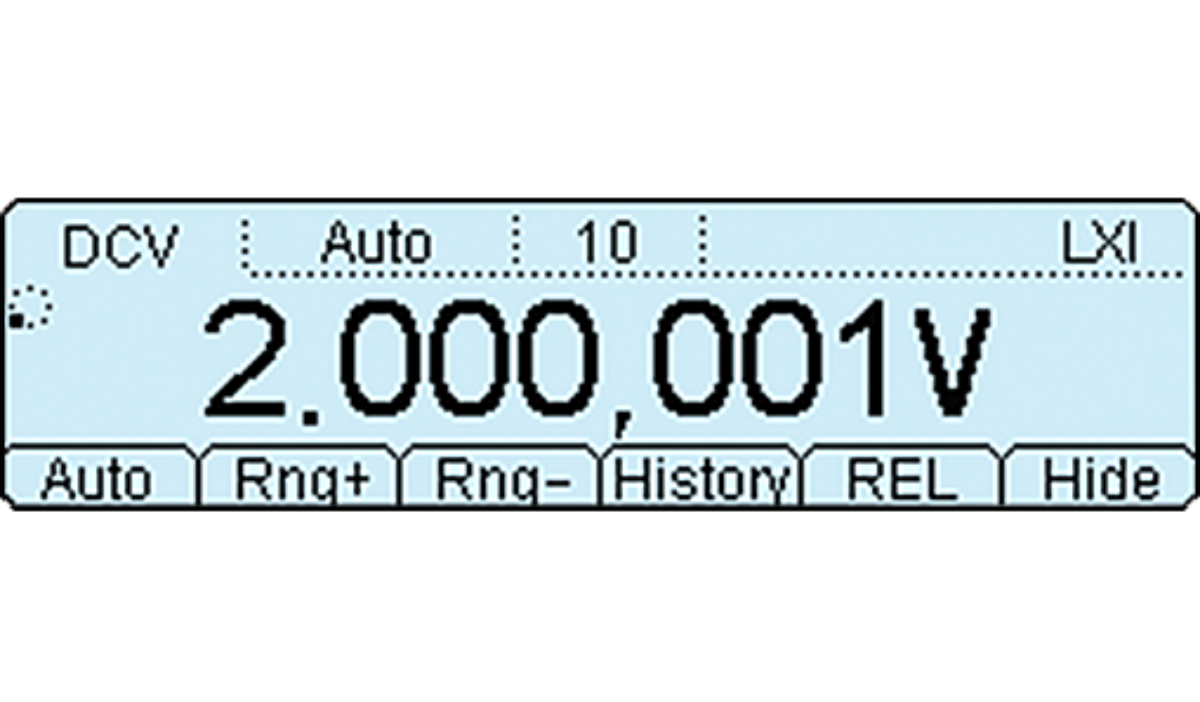

True 6.5 Bits Multimeter

WIt has ± 2200000 counts, which is much greater than ± 1200000 of similar products. At the same reading resolution, it has a larger measurement range than similar products.

True 6.5 Bits Multimeter – DM3068 Series

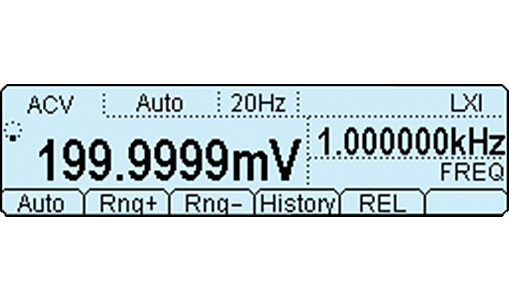

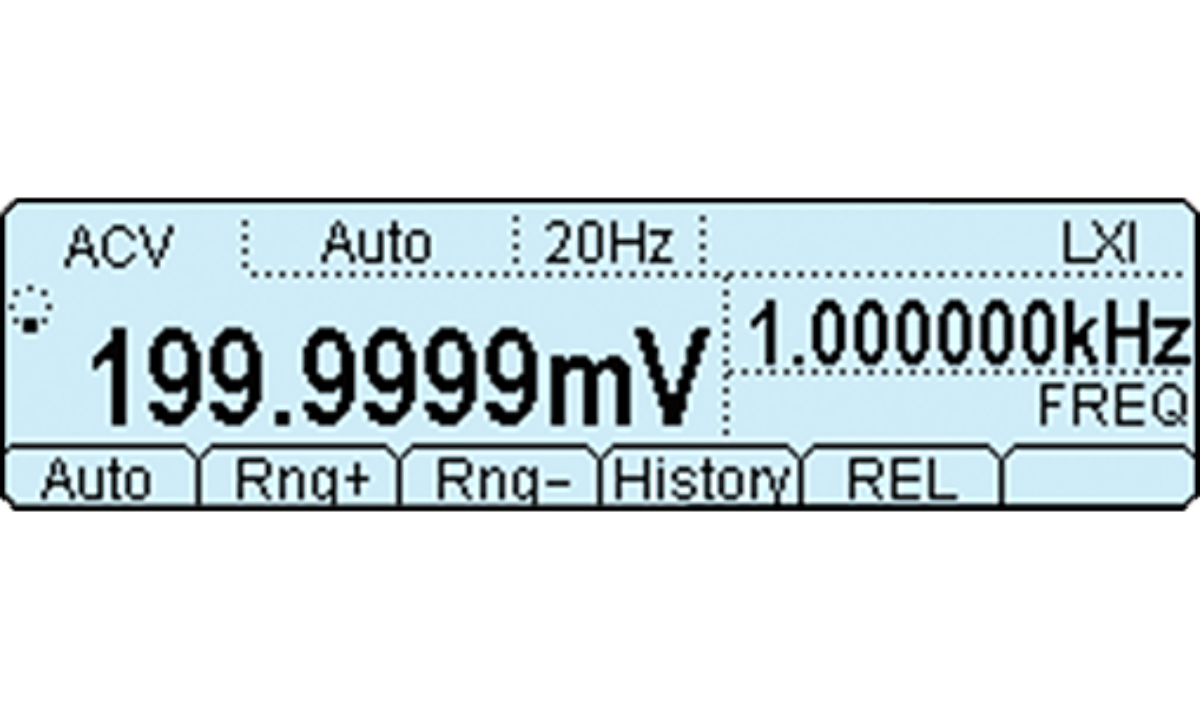

Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

Double Screen Display – DM3068 Series

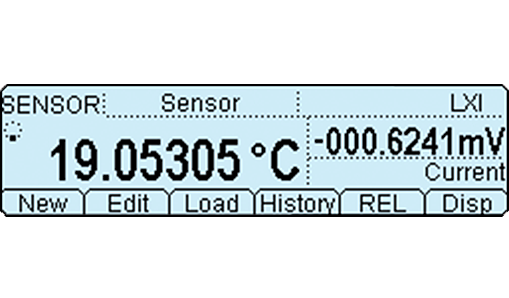

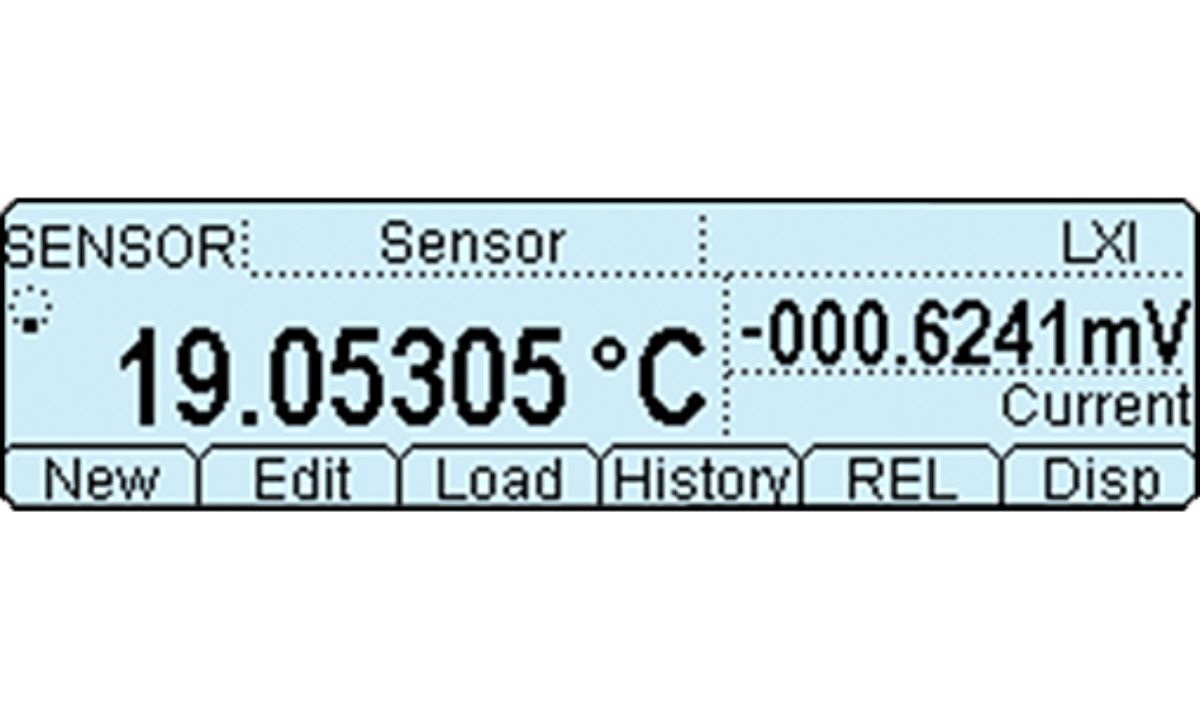

Support Any Sensor Measurement

The measured physical quantities (pressure, flow rate, temperature, etc.) can be converted into voltage, current, resistance and other easily measured physical quantities for measurement, and the measured value and corresponding value can be displayed on the screen at the same time.

Support Any Sensor Measurement – DM3068 Series

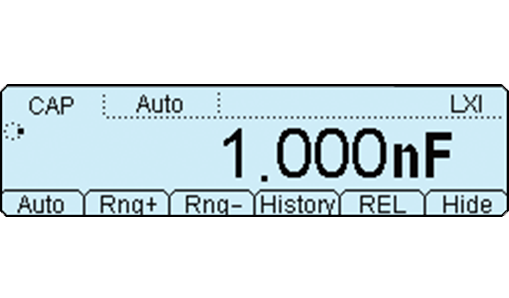

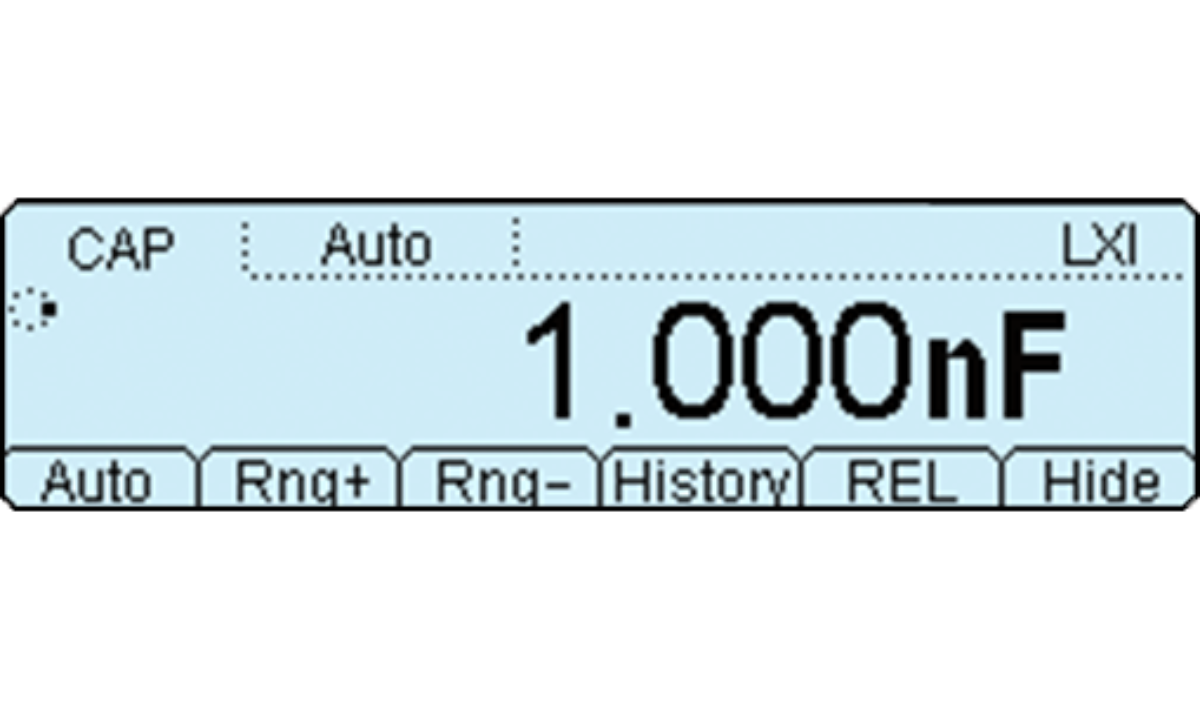

Capacitance Test Function

It can be used for capacitance measurement with a maximum display resolution of 1pf (2NF range).

Capacitance Test Function – DM3068 Series

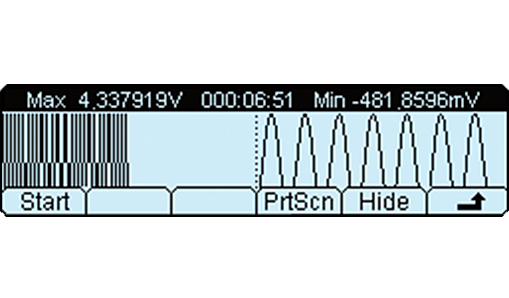

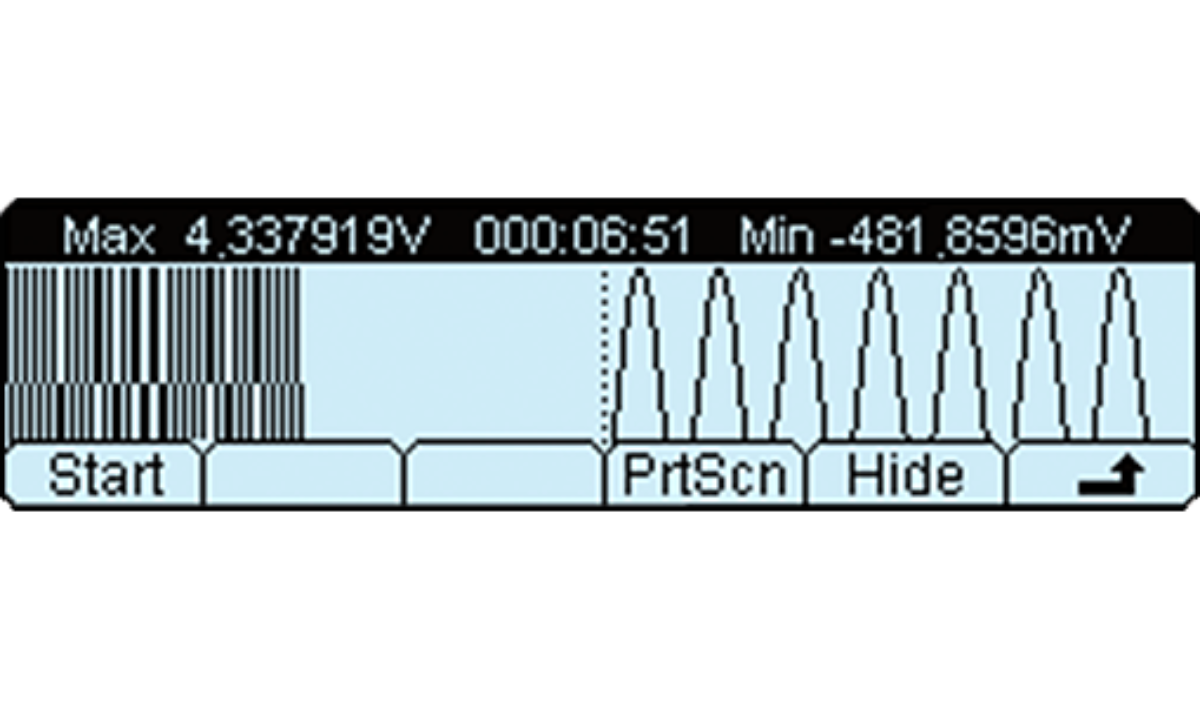

Trend Chart Display

By drawing the trend chart of real-time measurement data, users can observe the change of measurement data without other auxiliary means.

Trend Chart Display – DM3068 Series

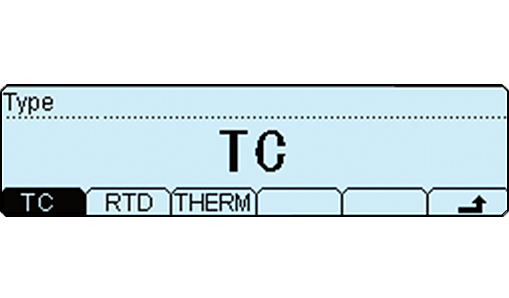

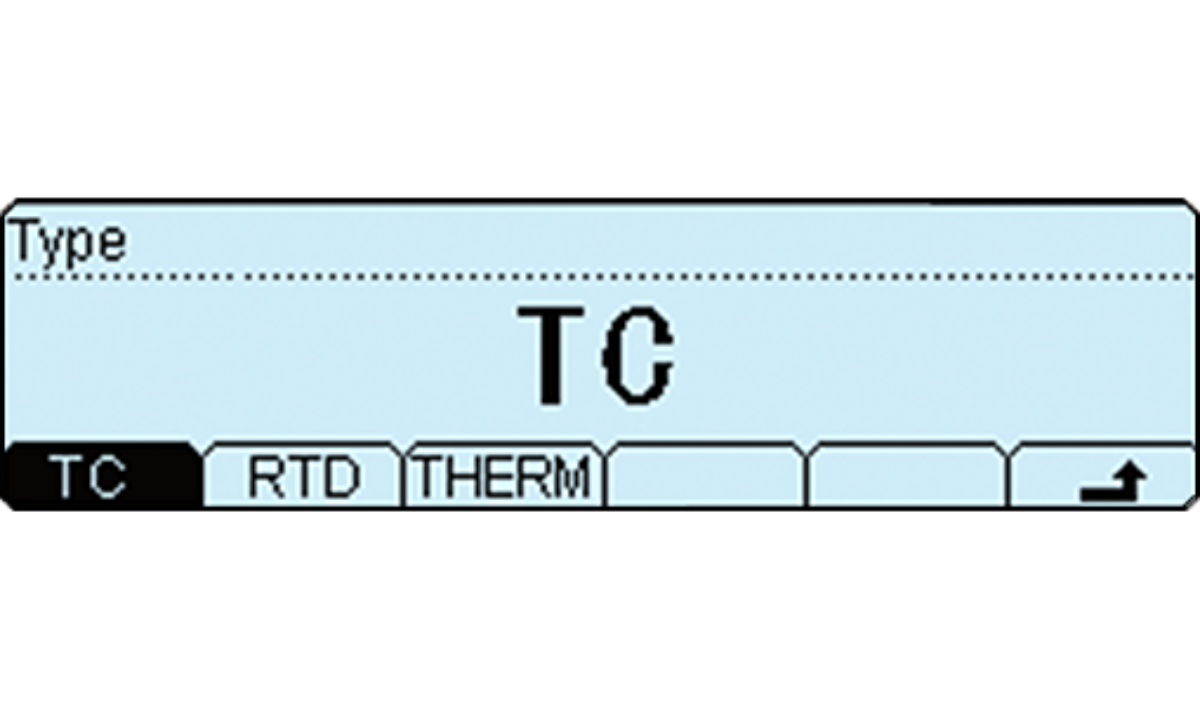

Supports a Variety of Temperature Sensors

Directly use TC (thermocouple), RTD (thermistor) and therm (thermistor) temperature sensors to measure temperature The temperature sensor used meets the international temperature standard ITS-90.

Supports a Variety of Temperature Sensors – DM3068 Series

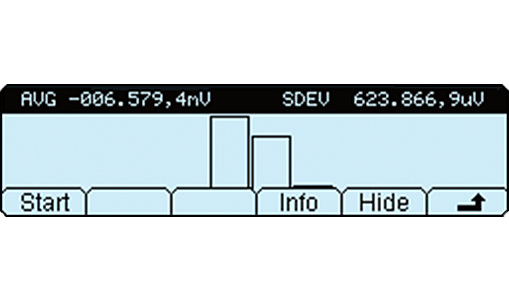

Histogram Display

Display the distribution of measured data in real time, including AVG, SDEV and histogram of measured data, and change constantly in the measurement process.

Histogram Display – DM3068 Series

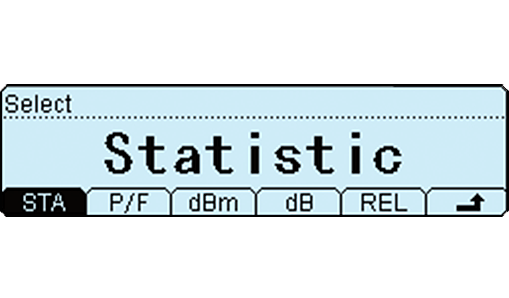

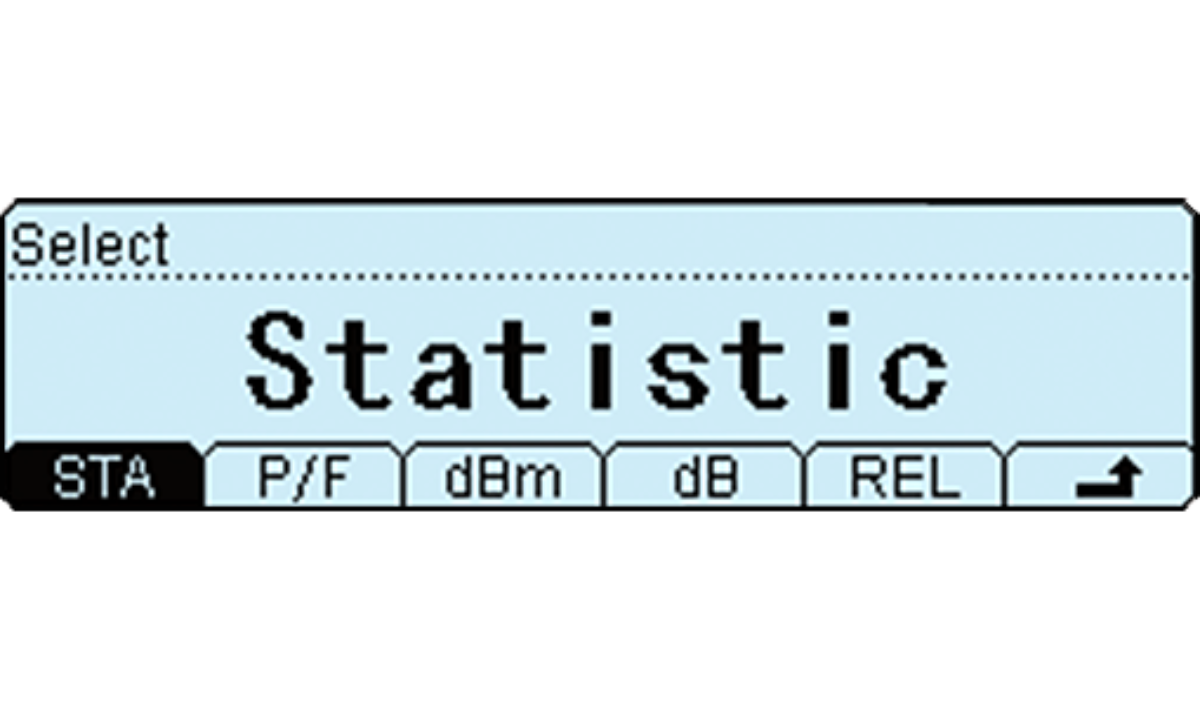

Statistical analysis function

Perform mathematical statistics on the current measurement data, giving the minimum, maximum, average, and mean square error of the measured data.

Statistical analysis function – DM3068 Series

Model

Model Precision DVC Annual Accuracy Fastest Test Rate Connectivity Action
DM3068 6.5 0.0035% 10k rdgs/s USB, GPIB, LAN(LXI-C), RS232 Rp17.926.500
*Prices may change without prior notice.

Accessories

Model Description Price
CB-USBA-USBB-FF-150 USB Data line, 150cm Rp263.500
RM-DM3000 Rack mount kit Rp2.046.000
LD-DM Multimeter test lead Rp511.500

User Manual

Name Version Release Date Download
DM3068 User Manual V1.0 2024-02-11 Download
RM-DM3000 Rackmount Kit Manual V1.0 2021-10-27 Download

Datasheet

Name Version Release Date Download
DM3068 Datasheet V1.0 2024-02-19 Download

Quick Guide

Name Version Release Date Download
DM3068 Quick Guide v1.0 2021-11-24 Download
