DM3058-E Series

DM3058 / DM3058E is an economical 5.5-digit digital multimeter. It is designed for the test requirements of high accuracy, multi-function and automatic measurement. It integrates the functions of automatic measurement, multiple mathematical transformations and any sensor measurement.

Accuracy : 5.5 digits
DCV Yearly Accuracy : 0.015%
Fastest Measurement Speed : 123 rdgs/s

Start From Rp10.989.000

Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3

Features

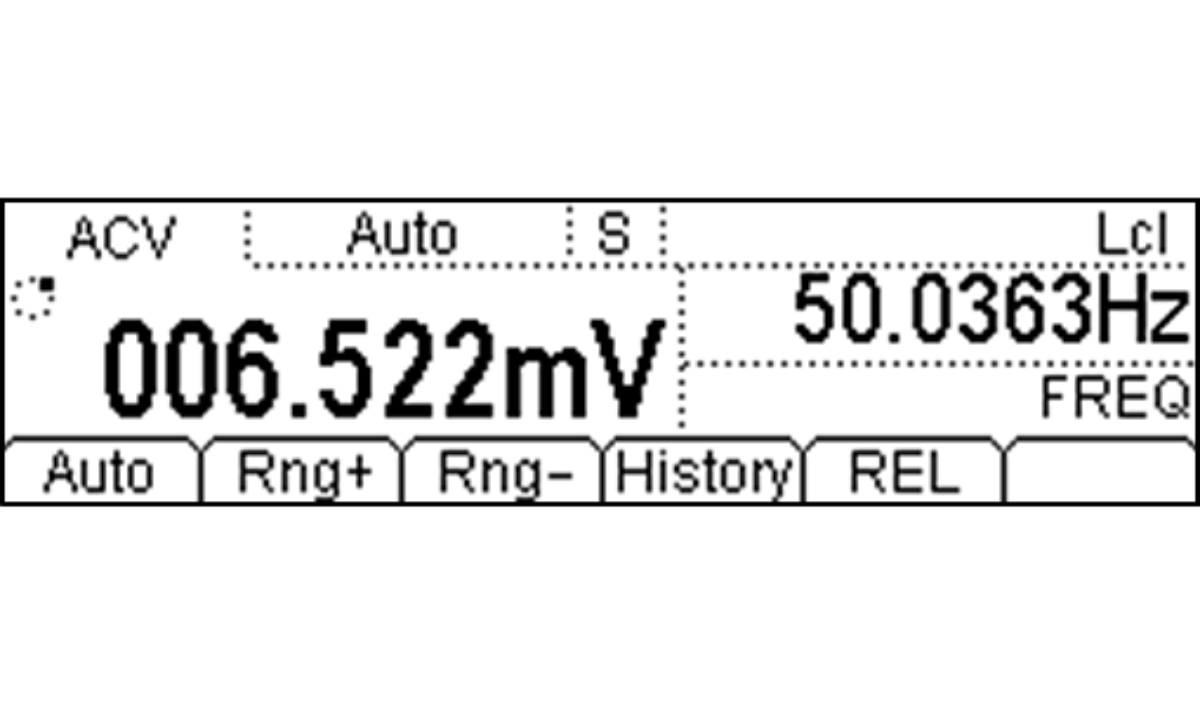

Double Screen Display

When measuring the voltage or current of the AC signal, the frequency can also be measured. At this time, the voltage or current is displayed on the main display screen and the frequency is displayed on the secondary display screen.

Double Screen Display

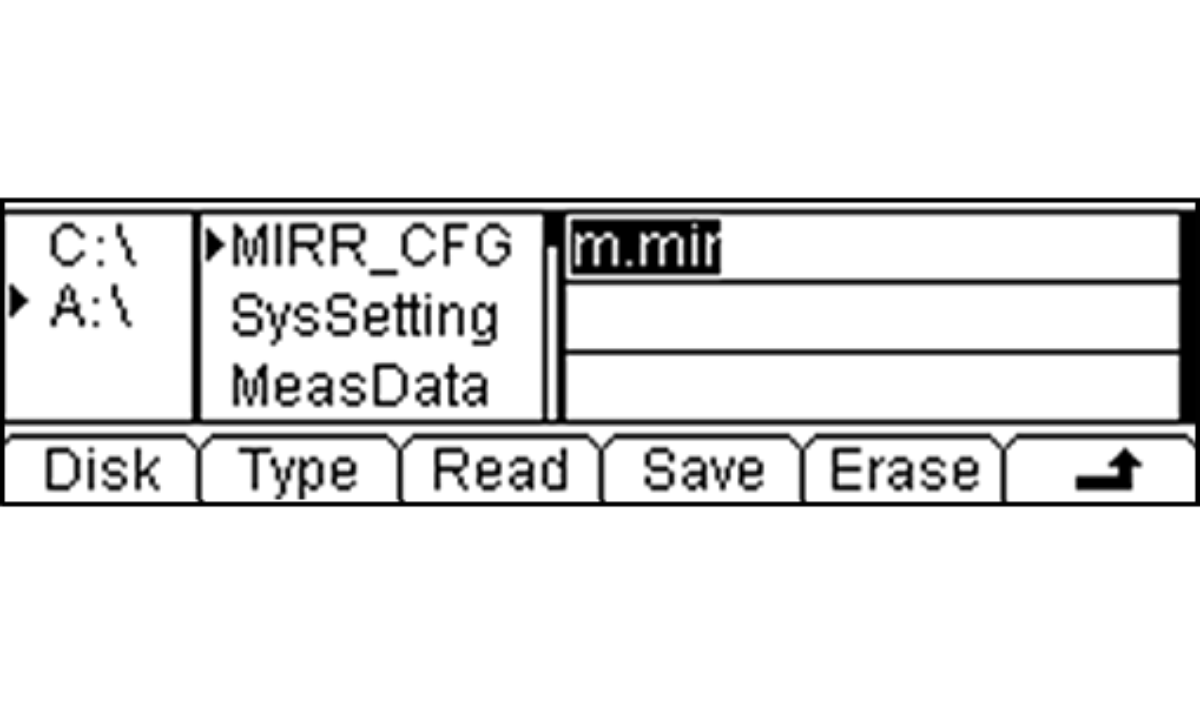

Mirror Image Configuration

All the configurations (system and sensor configuration) can be cloned into other DM3058/DM3058E on product line via USB storage device to improve work efficiency.

Mirror Image Configuration

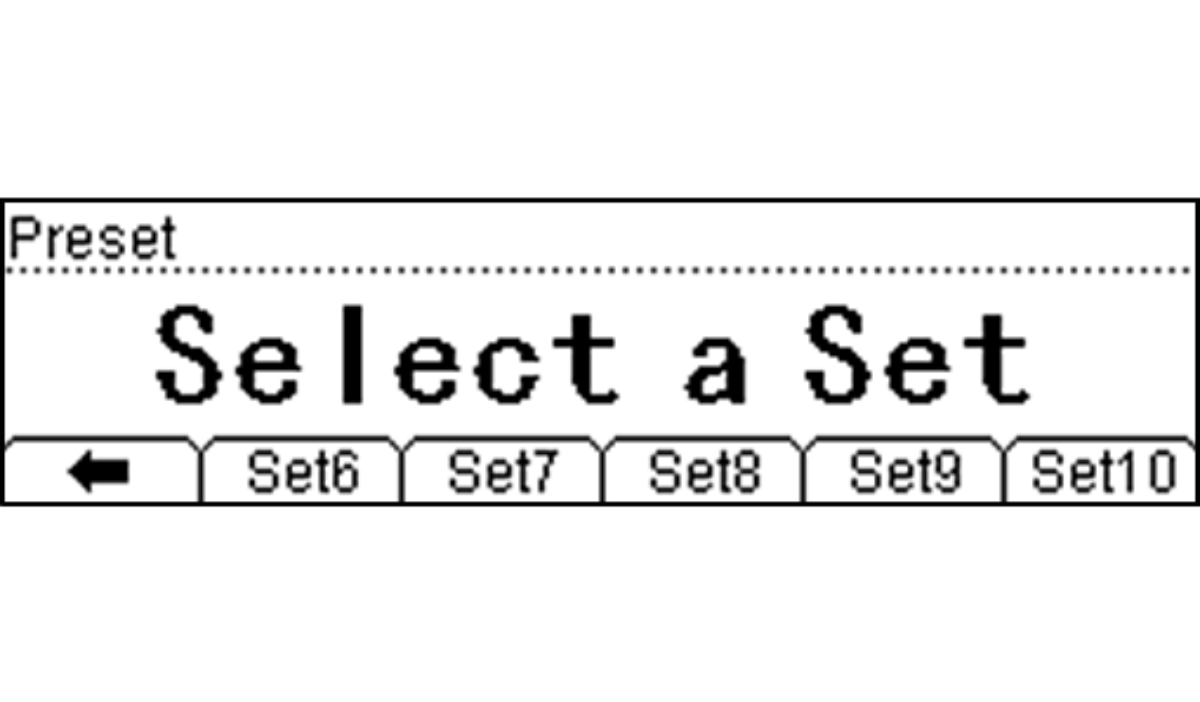

Preset Mode

Based on Preset Mode, the worker operation on product line could be greatly simplified. Besides, 10 groups of Preset Configuration are available to be stored and recalled.

Preset Mode

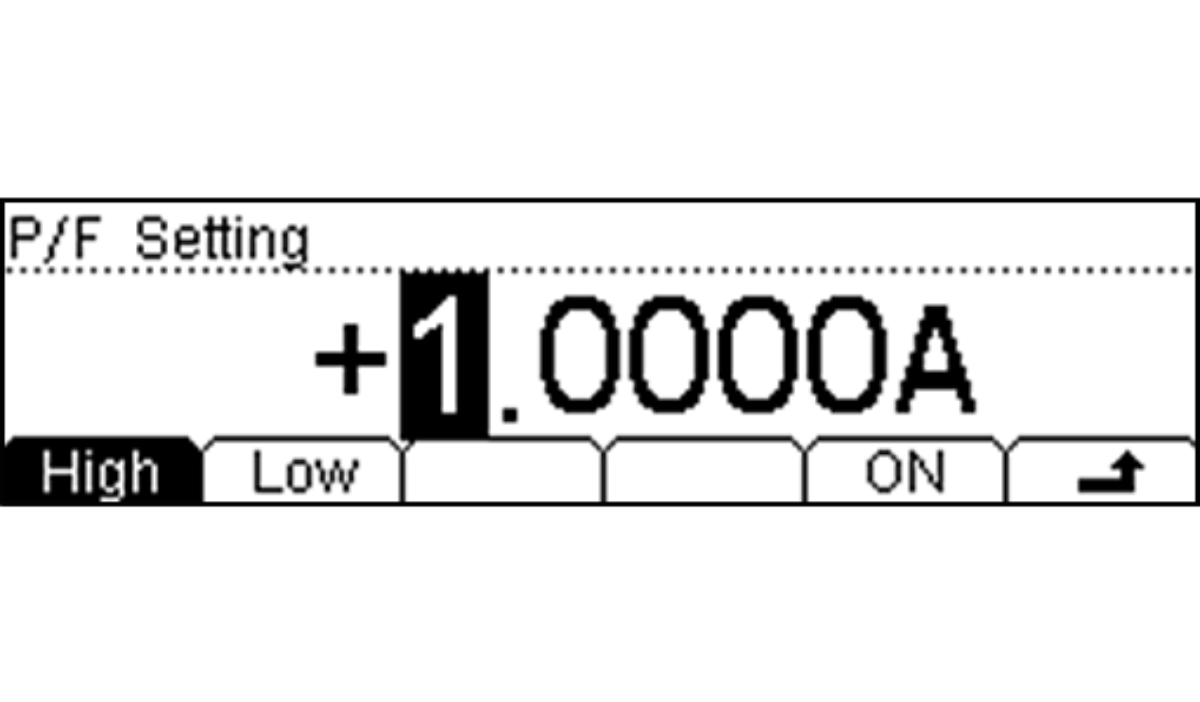

Pass/Fail

According to the set upper and lower limit parameters, the signal out of range is prompted, which is suitable for production line test.

Pass/Fail

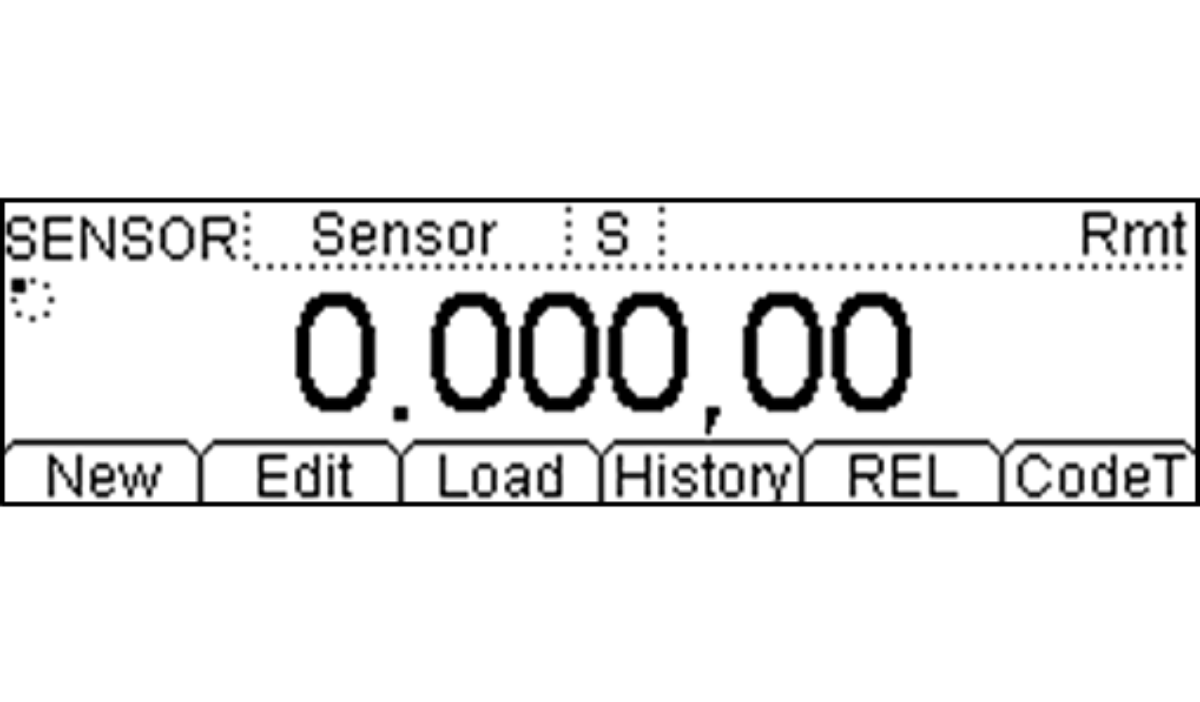

Any Sensor Measurement

It supports 6 sensor types, including DCV, DCI, freq, 2wr, 4wr and thermocouple TC, and also preset 10 groups of standard sensor types.

Any Sensor Measurement

Model

Model Accuracy DCV Yearly Accuracy Fastest Measurement Speed Connectivity Price
DM3058 5.5 digits 0.015% 123 rdgs/s USB, GPIB（only DM3058）, LAN(only DM3058), RS232 Rp15.873.000
DM3058E 5.5 digits 0.015% 123 rdgs/s USB，RS232 Rp10.989.000
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
CB-DB9-DB9-F-F-150 RS232 Data line，2 Female，150cm
CB-USBA-USBB-FF-150 USB Data line，150cm
RM-DM3000 Rack mount kit
LD-DM Multimeter test lead

User Manual

Name Version Release Date Download
DM_CalibrationGuide_EN CGC13100-1110 2026-04-14 Download
DM3058 User Guide V2.0 2024-02-18 Download

Datasheet

Name Version Release Date Download
DM3058 DataSheet V2.0 2024-06-18 Download

Programming Manual

Name Version Release Date Download
DM3058 Programming Guide v1.0 2019-08-29 Download
