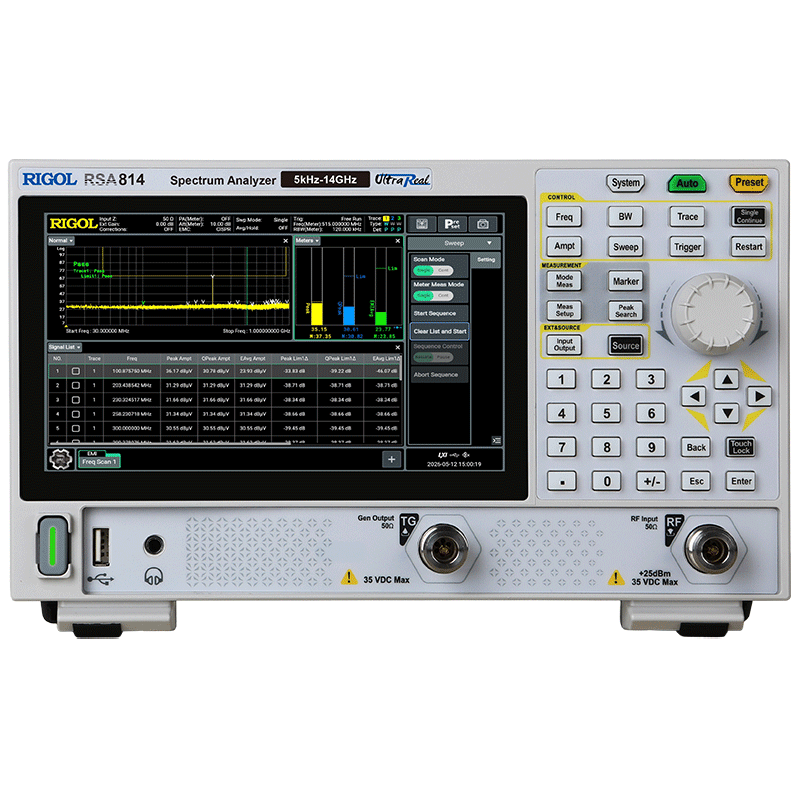

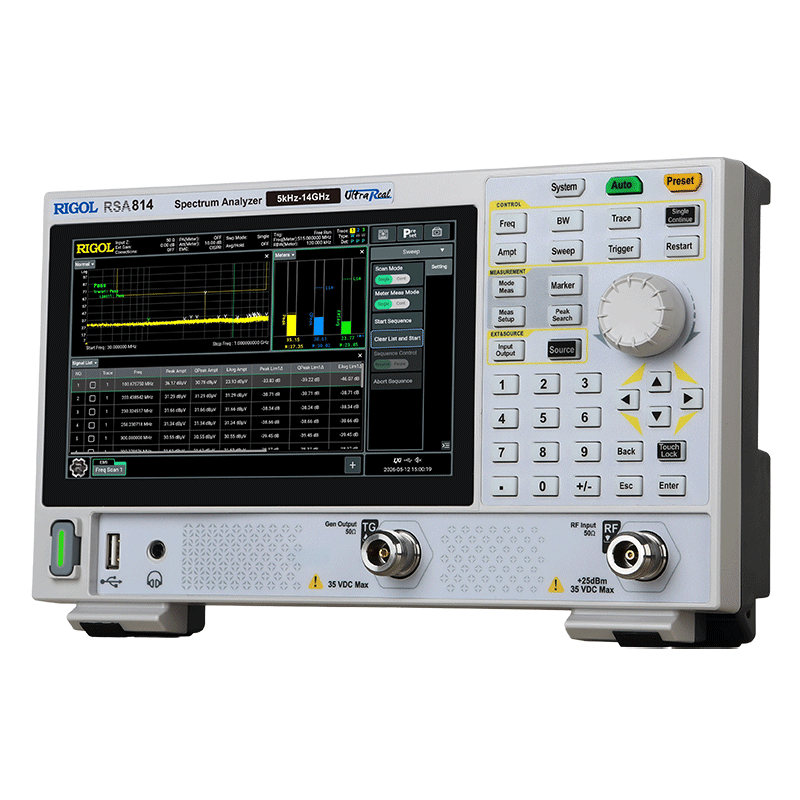

RSA800 Series

The RSA800 Series is designed for electronics R&D, education and research, and RF enthusiasts. It combines 40 MHz real-time bandwidth, a standard preamplifier, low residual responses, a 7-inch multi-touch display, and SCPI remote programming in a compact platform. Covering 5 kHz to 14 GHz, it supports spectrum analysis for cellular, Wi-Fi, short-range wireless, and satellite C- and Ku-band applications. Front-panel RF input and tracking-generator output ports, plus optional analog modulation analysis, vector signal analysis, and EMI pre-compliance applications, deliver a portable yet full-featured RF analysis solution.

Frequency Range : 5 kHz ~ 14 GHz
The resolution bandwidth (RBW) : 1Hz~10MHz
Phase noise (typ) : -112dBc/Hz@10kHz
Displayed average noise level (DANL) : -168 dBm (typ.)
Tracking Generator : Yes
Datasheet
Main Image
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4

Features

Compact Size. Powerful Performance.

Every model weighs just 4.2 lb and fits easily into the RIGOL Ultra-Portable Instrument Bag, so you can take RF measurements wherever the job takes you.

Compact Size. Powerful Performance.

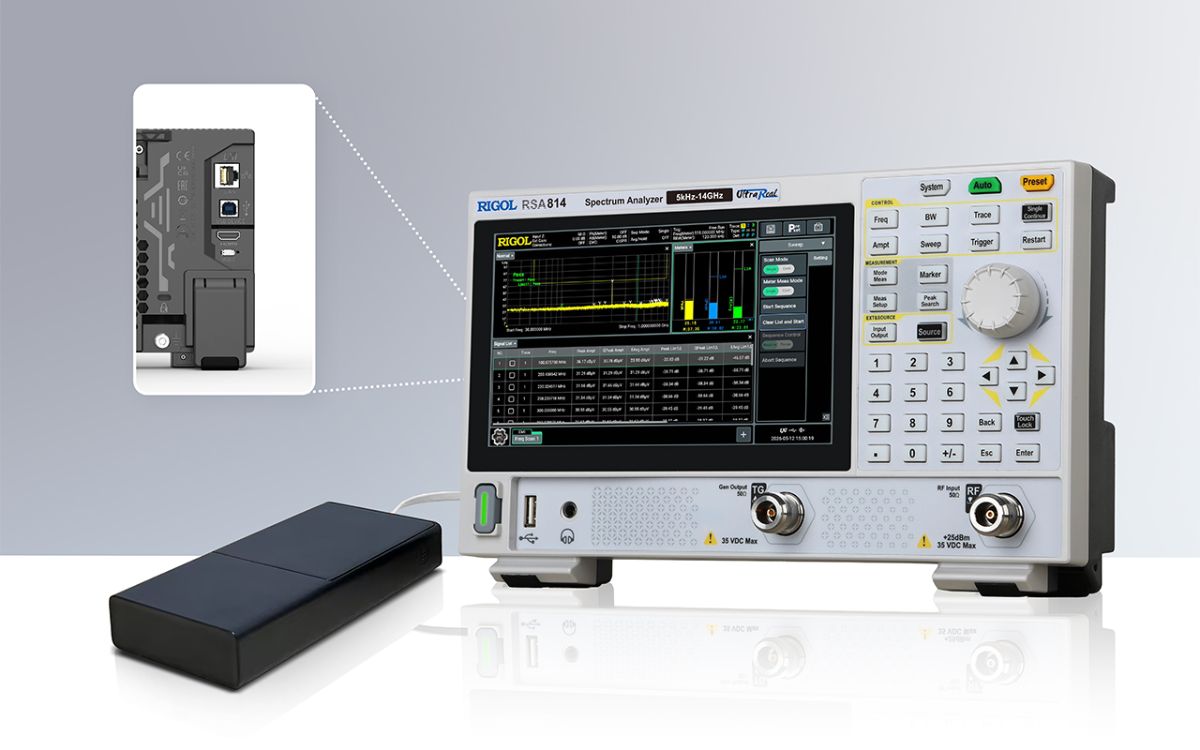

Standard USB Type-C Power Delivery

The USB-C port supports widely used USB PD protocols. Pair the instrument with a compatible power bank to stay powered during travel, remote work, and field testing.

Standard USB Type-C Power Delivery

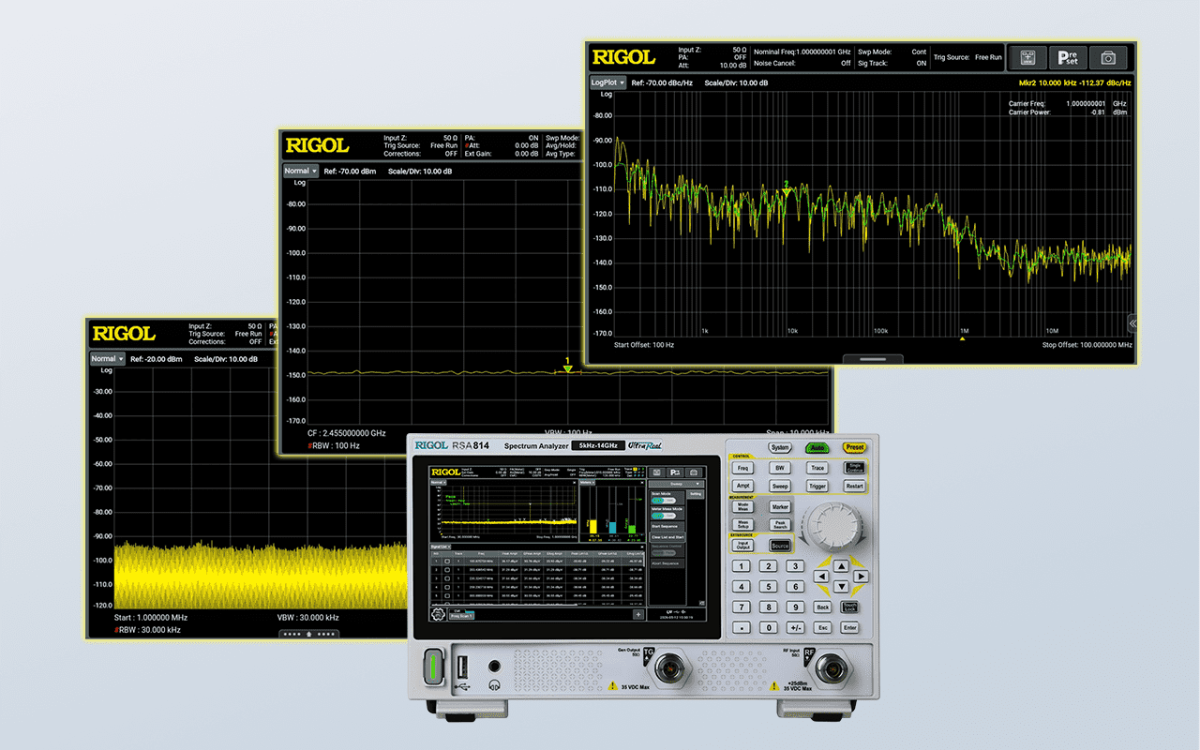

Professional RF Performance for Demanding Measurements

Frequency Coverage: 5 kHz to 4.5 / 8.5 / 14 GHz Phase Noise: -112 dBc/Hz @ 1 GHz, 10 kHz offset (typ.)

Professional RF Performance for Demanding Measurements

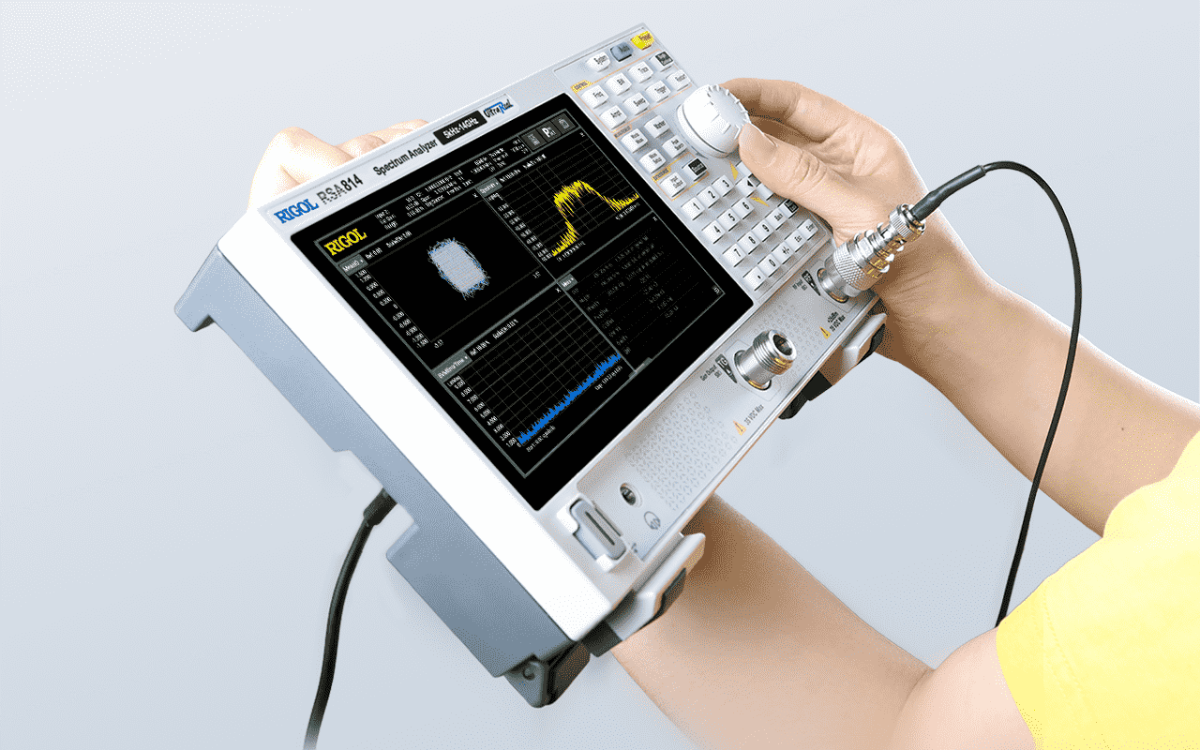

Real-Time Spectrum Analysis for Transient Signal Capture

40 MHz Real-Time Spectrum Analysis: Capture multiple signals and intermittent interference in complex RF environments. 40 MHz Vector Signal Analysis Bandwidth: Perform in-depth analysis and performance evaluation of broadband communication signals.

Real-Time Spectrum Analysis for Transient Signal Capture

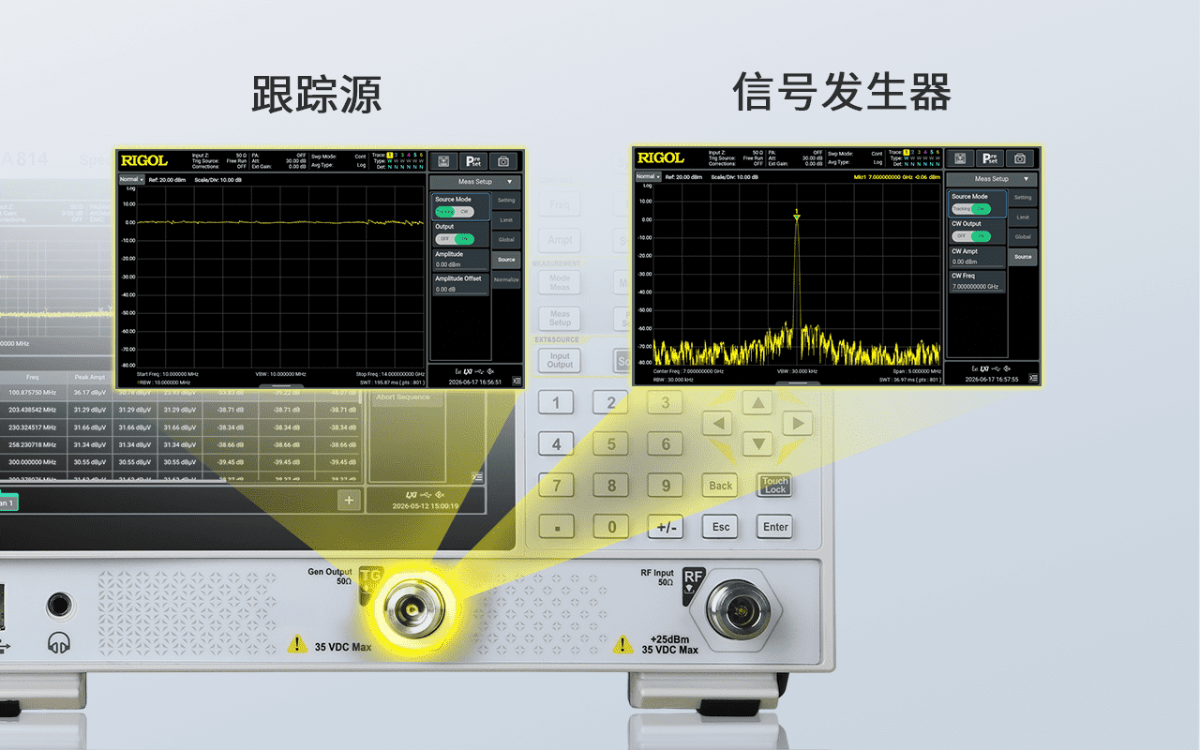

Premium Features, Now Standard.

Key capabilities come standard on the RSA800 Series, including a built-in preamplifier and 40 MHz real-time bandwidth. The integrated tracking generator can also operate as an independent signal source.

Premium Features, Now Standard.

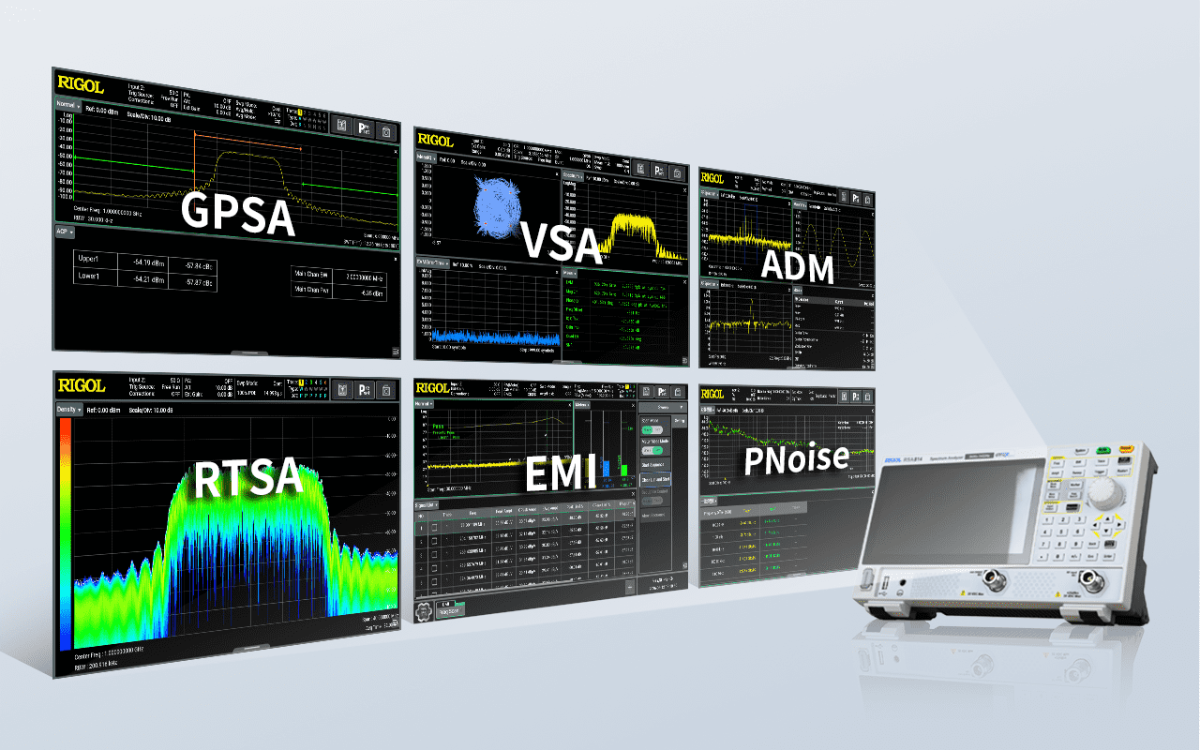

Comprehensive Measurement Applications

The RSA800 integrates essential RF measurement capabilities and offers software options that expand functionality as your testing needs evolve.

Comprehensive Measurement Applications

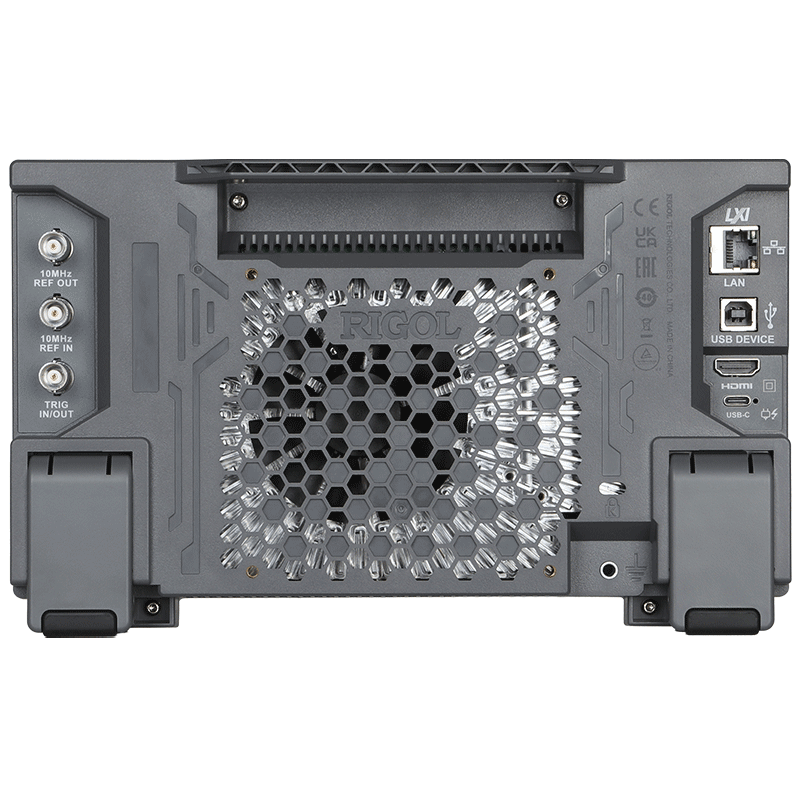

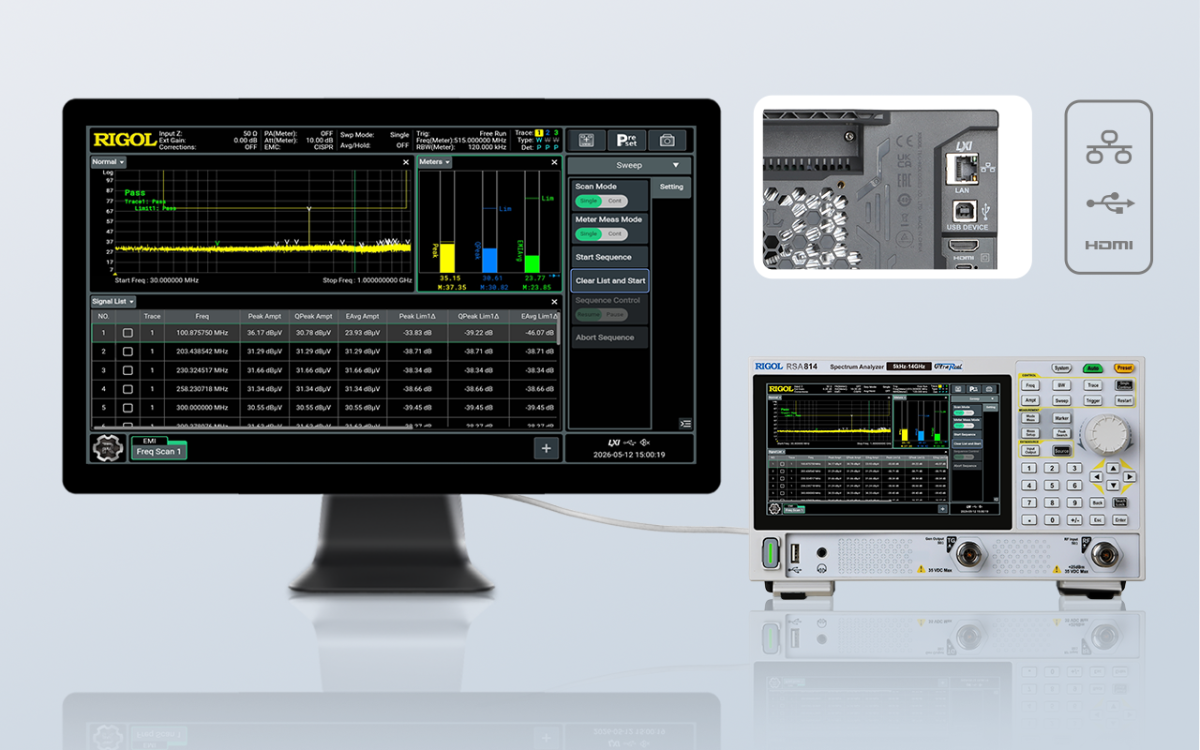

Standard USB, LAN and HDMI Connectivity

USB and LAN interfaces provide remote instrument control with support for standard SCPI commands. HDMI output connects to an external display for a larger, clearer view of measurement results.

Standard USB, LAN and HDMI Connectivity

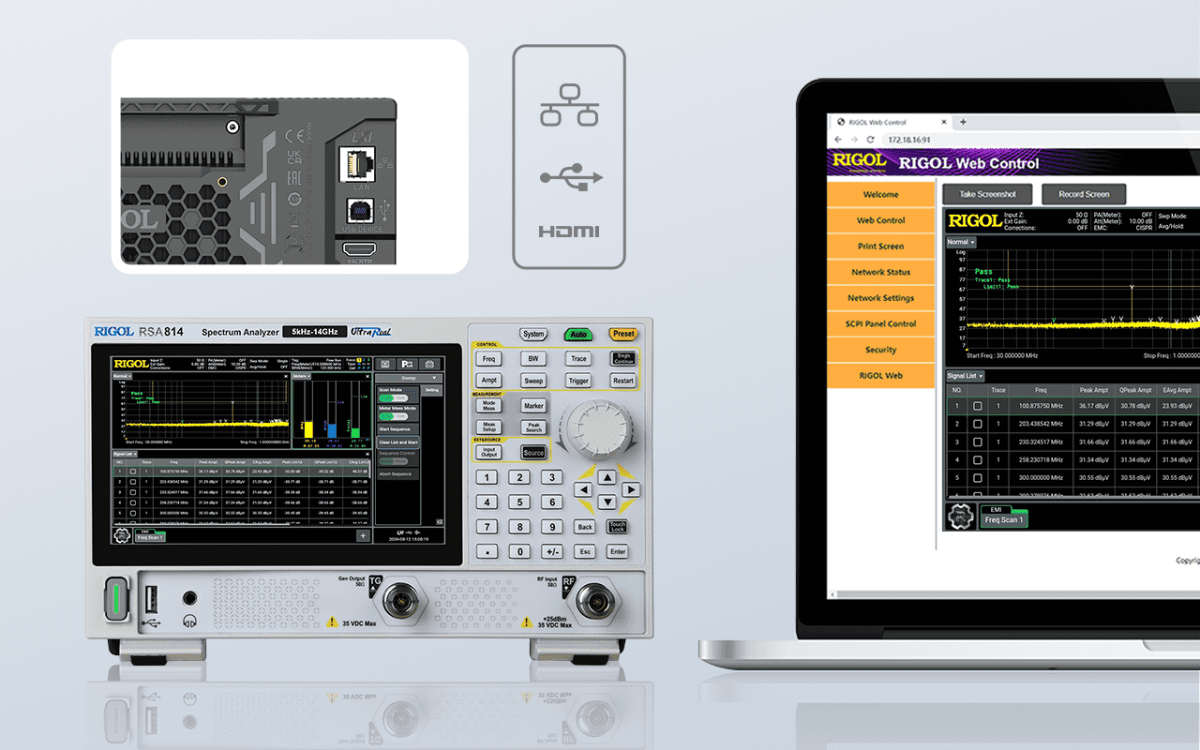

Web Control

Access and control the instrument through a web browser using its IP address; no PC software installation required. The browser interface also supports remote operation and SCPI command development and debugging.

Web Control

Model

Model Frequency Range The resolution bandwidth (RBW) Phase noise (typ) Displayed average noise level (DANL) Tracking Generator
RSA804 5 kHz ~ 4.5 GHz 1Hz~10MHz -112dBc/Hz@10kHz -168 dBm (typ.) Yes
RSA808 5 kHz ~ 8.5 GHz 1Hz~10MHz -112dBc/Hz@10kHz -168 dBm (typ.) Yes
RSA814 5 kHz ~ 14 GHz 1Hz~10MHz -112dBc/Hz@10kHz -168 dBm (typ.) Yes
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
RSA800-ADM Analog Demodulation Application Software
RSA800-EMI EMI Measurement Application Software
RSA800-VSA Vector Signal Analysis Application Software
RSA800-AMK Advanced Measurement Kit
RSA800-AMK Advanced Measurement Kit
RSA800-PNOISE Phase Noise Measurement
RM5041 Ultra-Portable Platform Rack Mount Kit

User Manual

Name Version Release Date Download
RSA800 UserGuide UGD36102-1110 2026-09-16 Download

Datasheet

Name Version Release Date Download
RSA800 DataSheet DSD36102-1110 2026-09-16 Download

Programming Manual

Name Version Release Date Download
RSA800 ProgrammingGuide PGD36102-1110 2026-09-16 Download

Quick Guide

Name Version Release Date Download
RSA800 QuickGuide QGD36101-1110 2026-09-16 Download

Software

Name Version Release Date Download
RSA800 PerformanceVerification PVR41100-1110 2026-07-13 Download
