DNA5000 Series

The DNA5000 Vector Network Analyzer helps you accurately capture S-parameters and comprehensively evaluate the transmission and reflection characteristics of your devices. Easily overcome impedance matching challenges with intuitive Smith charts and polar coordinates. Quickly diagnose cable and antenna problems using powerful DTF (Distance Point Finder) functionality.

Frequency Range : 5 kHz ~ 26.5 GHz
Ports : 2
Connector : 3.5mm (m)
Datasheet
Main Image
Thumbnail 1

Features

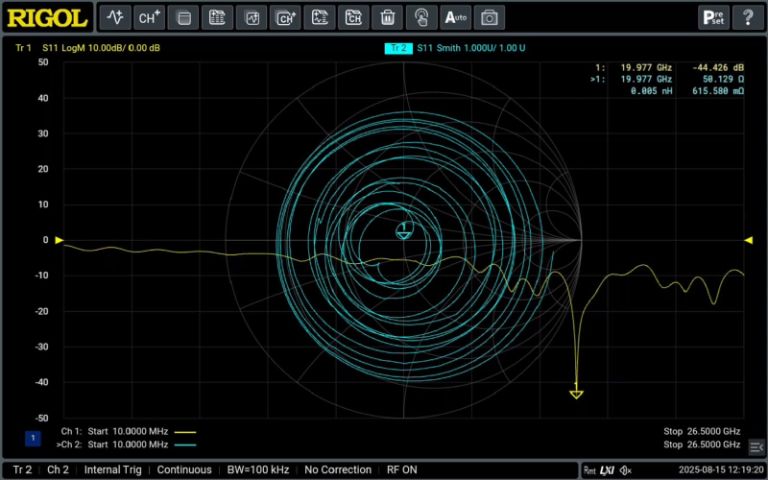

Broad Frequency Range for Diverse Applications

Delivering a frequency range from 5 kHz to 26.5 GHz with 2 standard test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

Broad Frequency Range for Diverse Applications

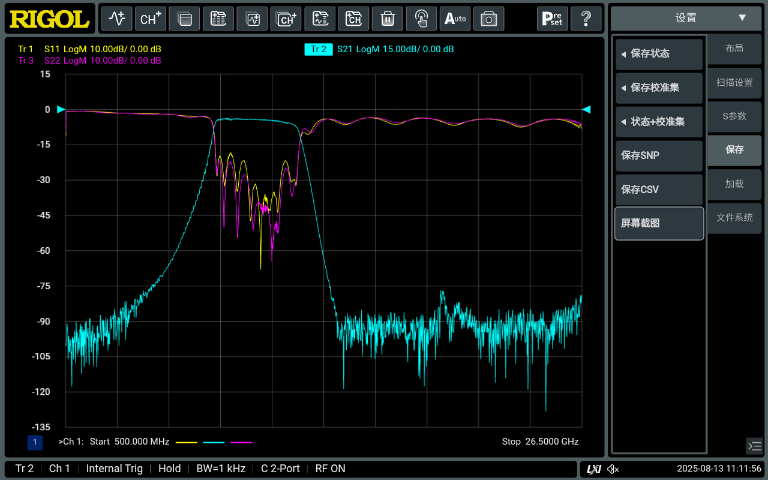

Superior Performance & Stability

Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

Superior Performance & Stability

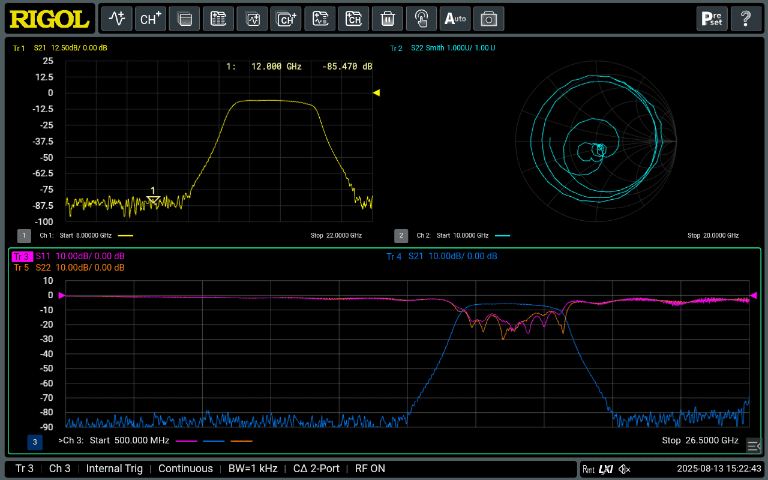

Advanced Analysis Tools Built-In

Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

Advanced Analysis Tools Built-In

Fixture Removal and Unclamping

Easily remove and de-embed the effects of test fixtures, adapters, and cables by removing and de-embedding them, accurately measure the true S-parameters of the device under test (DUT), and ensure the reliability of the results.

Fixture Removal and Unclamping

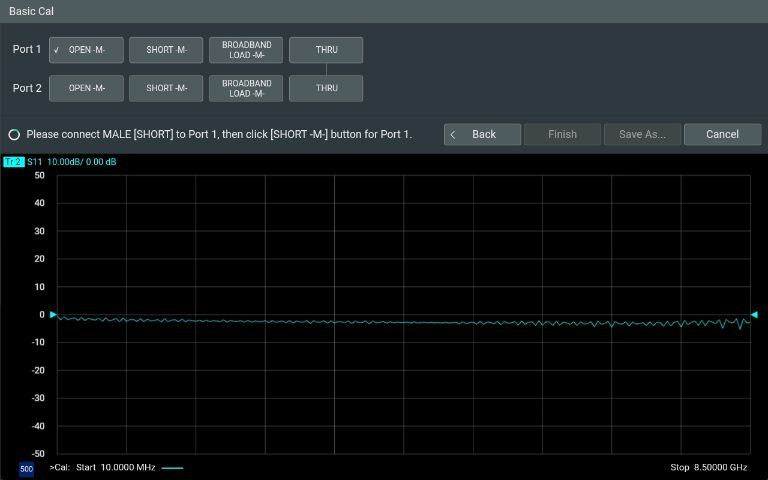

Intuitive Calibration

No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

Intuitive Calibration

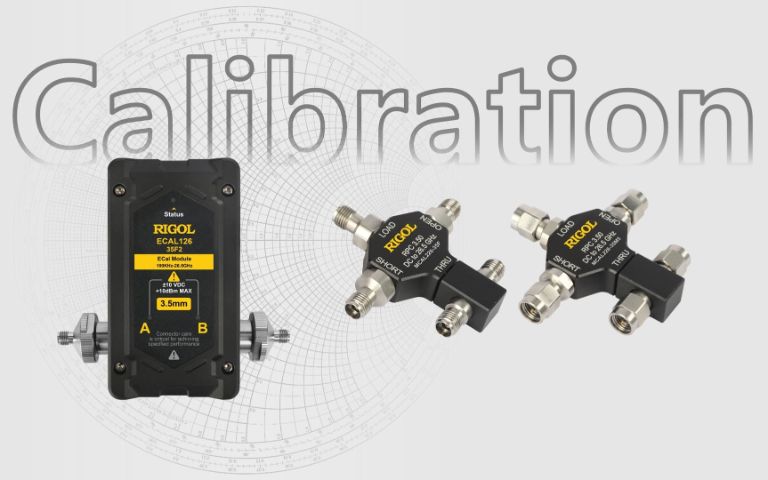

Mechanical or Electronic Calibration

Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

Mechanical or Electronic Calibration

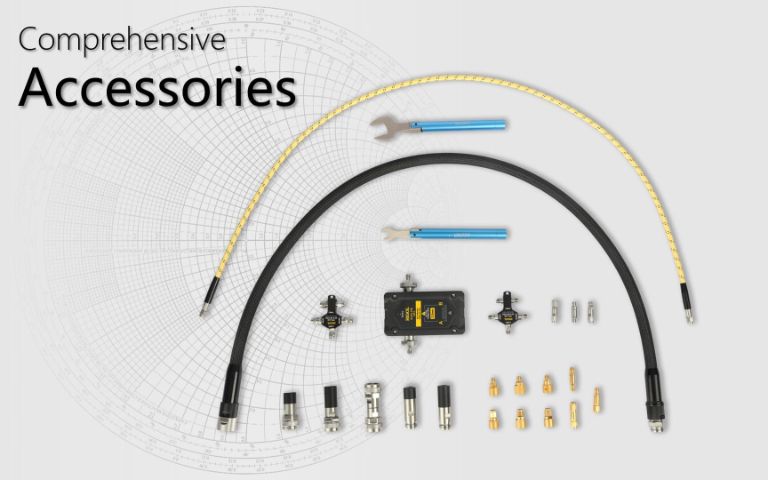

Complete Accessory Support

Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

Complete Accessory Support

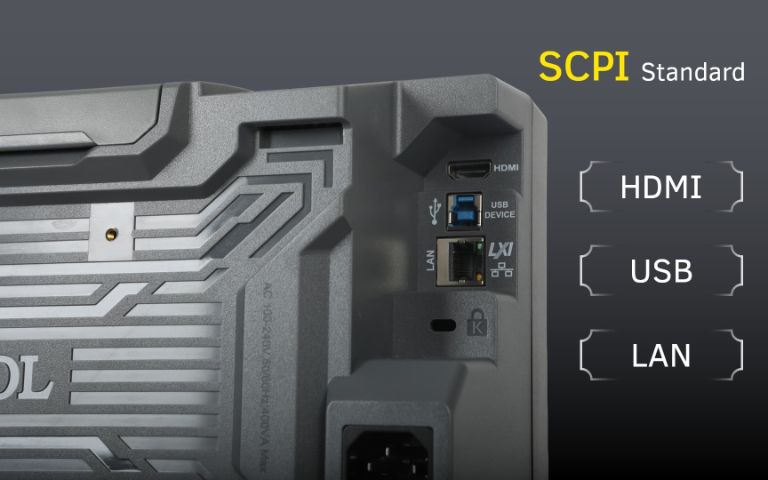

Drop-In Compatibility

Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.

Drop-In Compatibility

Model

Model Number of Ports Highest Frequency Range Connector
DNA5262 2 5 kHz ~ 26.5 GHz 3.5mm (m)
DNA5202 2 5 kHz ~ 20 GHz GHz 3.5mm (m)
DNA5142 2 5 kHz ~ 8.5 GHz N (f)
DNA5082 2 5 kHz ~ 8.5 GHz N (f)
DNA5042 2 5 kHz ~ 4.5 GHz N (f)
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DNA-TDA10 TDA Time Domain Analysis
DNA-DTF10 DTF Fault Distance Measurement
MCAL104-NM1 Mechanical calibration kit, DC ~ 4.5 GHz, N-type (male) 50 Ω
MCAL104-NF1 Mechanical calibration kit, DC ~ 4.5 GHz, N-type (female) 50 Ω
MCAL109-NM1 Mechanical calibration kit, DC ~ 9 GHz, N-type (male) 50 Ω
MCAL109-NF1 Mechanical calibration kit, DC ~ 9 GHz, N-type (female) 50 Ω
MCAL109-NK1 Mechanical calibration kit, DC ~ 9 GHz, N-type (male and female) 50 Ω
MCAL104-SM1 Mechanical calibration kit, DC ~ 4.5 GHz, 3.5 mm (male)
MCAL104-SF1 Mechanical calibration kit, DC ~ 4.5 GHz, 3.5 mm (female head)
MCAL109-SM1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male)
MCAL109-SF1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (female)
MCAL109-SK1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male and female heads)
Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male and female heads) Mechanical calibration kit, DC ~ 26.5 GHz, 3.5 mm (male and female heads)
MCAL226-35F5 4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (female)
ECAL109-NF2 Electronic calibration component, 100 kHz ~ 9 GHz, N-type (female) 50 Ω, 2-port
ECAL114-NF2 Electronic calibration component, 100 kHz ~ 14 GHz, N-type (female) 50 Ω, 2-port
ECAL126-35F2 Electronic calibration kit, 100 kHz ~ 26.5 GHz, 3.5 mm (female), 2 ports
CB-3.5M-3.5M-100-L-26G RF cable, DC ~ 26.5 GHz, 3.5 mm (male) - 3.5 mm (male), 100 cm
CB-SMAM-SMAM-100-L-18G RF cable, DC ~ 18 GHz, SMA (male) - SMA (male), 100 cm
CB-NM-NM-100-L-18G RF cable, DC ~ 18 GHz, N (male) - N (male), 100 cm
CB-NM-SMAM-100-L-18G RF cable, DC ~ 18 GHz, N (male) - SMA (male), 100 cm
CB-NM-3.5M-100-L-18G RF cable, DC ~ 18 GHz, N (male) - 3.5mm (male), 100 cm
CB-NMD3.5F-3.5F-63-L-26G Dedicated RF cable for network splitter, DC ~ 26.5 GHz, NMD 3.5mm (female) - 3.5mm (female), 63.5 cm
AD-NF-NF-L-18G Adapter, N (female) - N (female), DC ~ 18GHz
AD-NM-NM-L-18G Adapter, N (male) - N (male), DC ~ 18GHz
AD-SMAF-SMAF-L-18G Adapter, SMA (female connector) - SMA (female connector), DC ~ 18GHz
AD-SMAM-SMAM-L-18G Adapter, SMA (male) - SMA (male), DC ~ 18GHz
AD-3.5F-3.5FL-26G Adapter, 3.5mm (female) - 3.5mm (female), DC ~ 26.5GHz
AD-3.5M-3.5ML-26G Adapter, 3.5mm (male) - 3.5mm (male), DC ~ 26.5GHz
AD-NM-BNCF-L-4G Adapter, N (male) - BNC (female), DC ~ 4GHz
AD-SMAM-NM-L-18G Adapter, SMA (male) - N (male), DC ~ 18GHz
AD-SMAF-NM-L-18G Adapter, SMA (female) - N (male), DC ~ 18GHz
AD-SMAF-BNCM-L-4G Adapter, SMA (female) - BNC (male), DC ~ 4GHz
AD-3.5M-2.92FL-26G Adapter, 3.5mm (male) - 2.92mm (female), DC ~ 26.5GHz
AD-3.5F-2.92ML-26G Adapter, 3.5mm (female) - 2.92mm (male), DC ~ 26.5GHz
TW8-8 Torque wrench, 8 in-lb, 8.1 mm open end, for SMA 3.5mm connectors.
TW12-19 Torque wrench, 12 in-lb, 19.1 mm open end, for N-type connectors.

User Manual

Name Version Release Date Download
DNA5000 User Guide UGR01101-1110 2026-03-02 Download
RM6051 RackmountKit 202603 2026-03-31 Download

Datasheet

Name Version Release Date Download
DNA5000 DataSheet DSR01102-1110 2026-03-02 Download

Programming Manual

Name Version Release Date Download
DNA5000 Programming Guide PGR01100-1110 2026-03-02 Download

Quick Guide

Name Version Release Date Download
DNA5000 Quick Guide QGO01100-1110 2026-03-02 -
