DNA6000 Series

The DNA6000 Vector Network Analyzer is the ideal choice for your lab and production line. Its solid benchtop form factor provides stable and reliable measurements, making it perfect for long-duration and repetitive testing tasks.

Frequency Range : 5 kHz ~ 26.5 GHz
PORTS : 4
Connector : 3.5mm (m)
Datasheet
Main Image
Thumbnail 1

Features

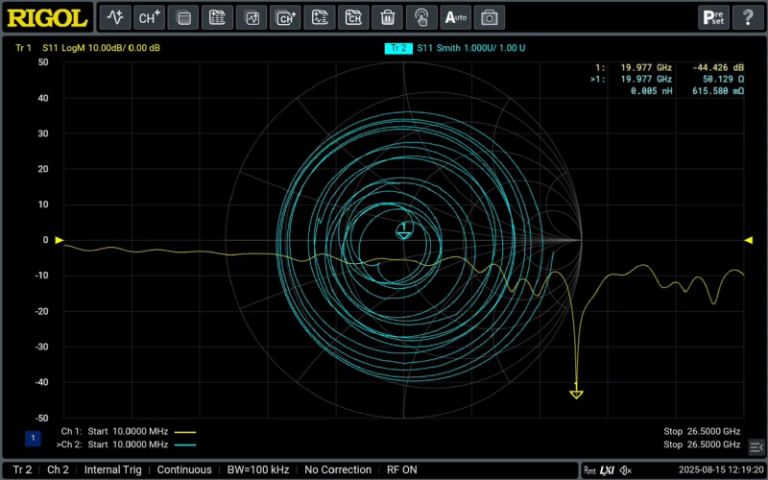

Broad Frequency Range for Diverse Applications

Delivering a frequency range from 5 kHz to 26.5 GHz with 4 or 2 test ports, this analyzer precisely covers testing requirements ranging from basic passive components to material dielectric constant analysis and high-speed interconnects.

Broad Frequency Range for Diverse Applications

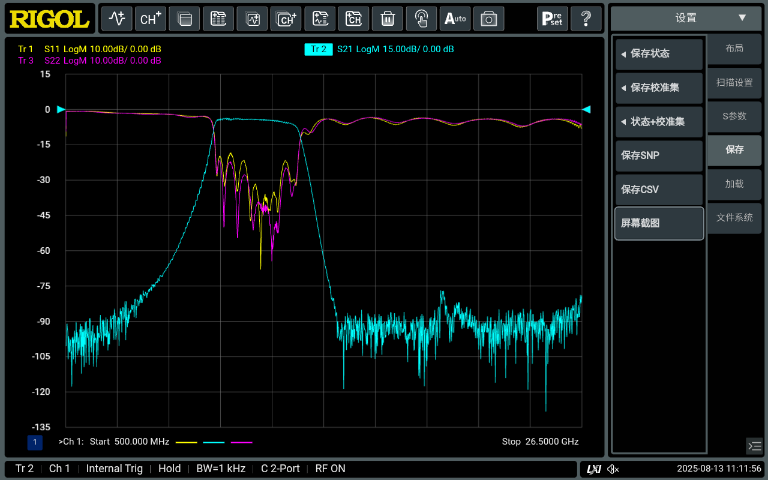

Superior Performance & Stability

Achieve precise characterization with a wide dynamic range >120 dB and low trace noise, ensuring stability even when testing high-suppression devices.

Superior Performance & Stability

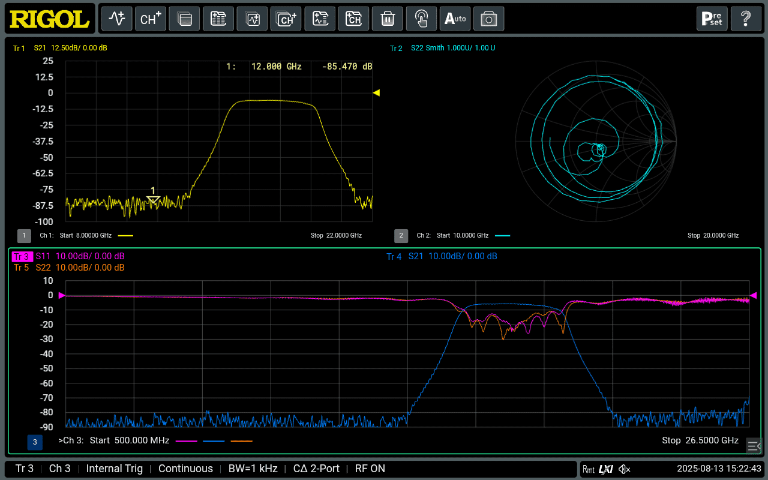

Advanced Analysis Tools Built-In

Accelerate your workflow with essential integrated tools including Pass/Fail limits, SWR, Smith Charts, and TDR—perfect for both the lab and the production floor.

Advanced Analysis Tools Built-In

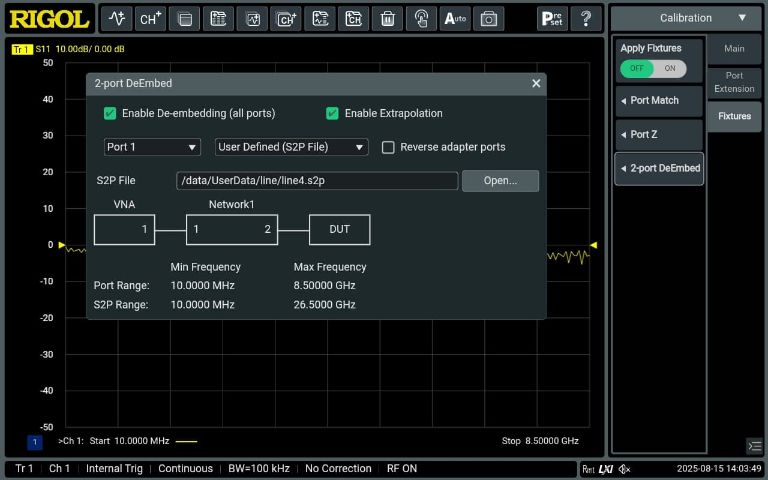

True Device Performance via De-embedding

See the real performance of your DUT. Our Fixture Removal and De-embedding features strip away errors caused by cables and adapters, delivering the true S-parameters you need.

True Device Performance via De-embedding

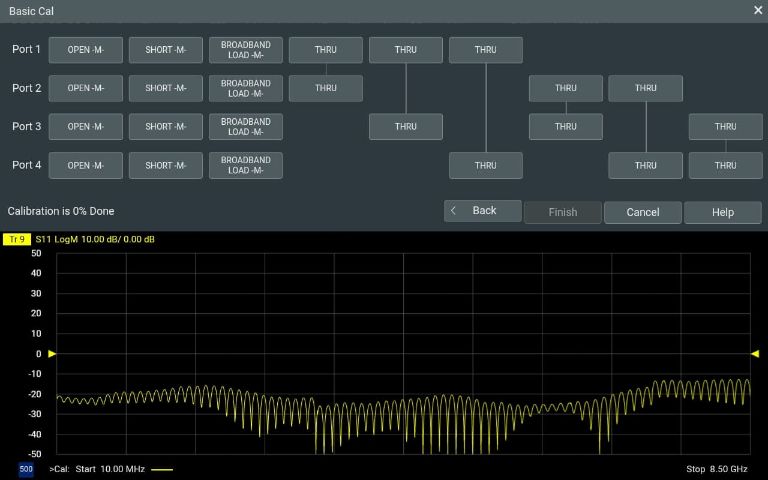

Intuitive Calibration

No more guesswork. Our step-by-step Calibration Wizard guides users of all skill levels to achieve accurate, calibrated setups in seconds.

Intuitive Calibration

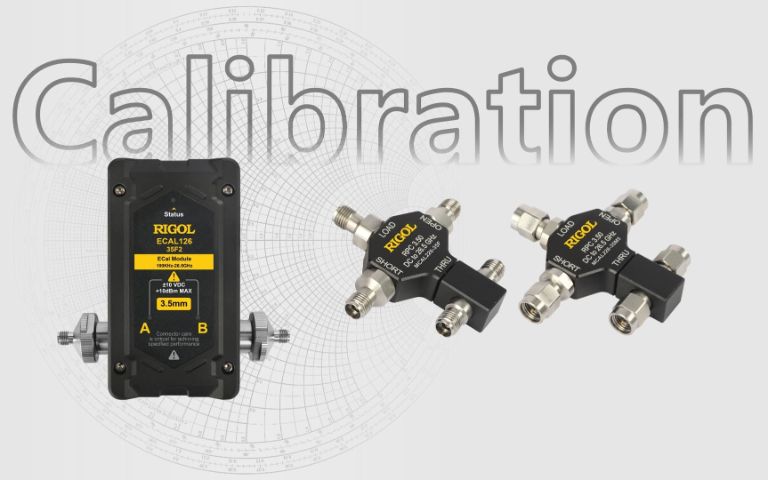

Mechanical or Electronic Calibration

Choose the precision of our durable mechanical kits or the speed and consistency of our Electronic Calibration (E-Cal) modules to maximize testing efficiency.

Mechanical or Electronic Calibration

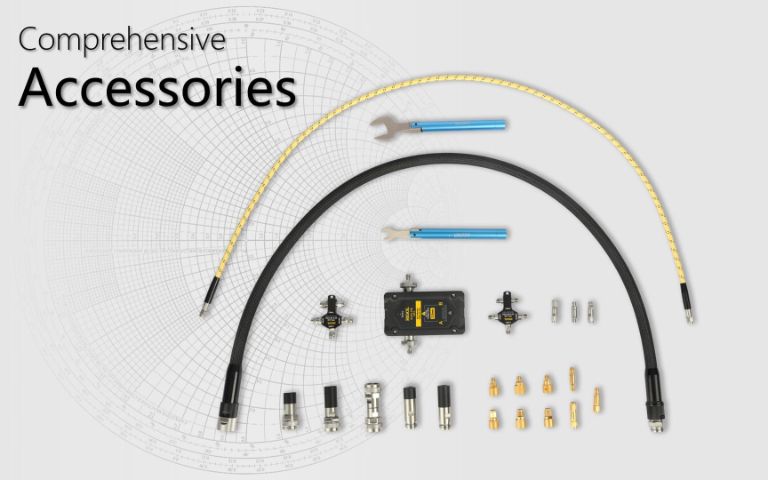

Complete Accessory Support

Get up and running faster with our comprehensive ecosystem of accessories—your one-stop shop for reliable testing.

Complete Accessory Support

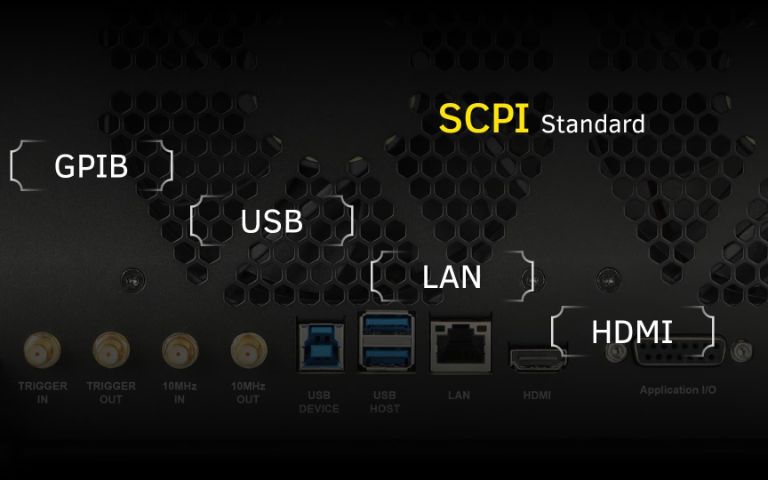

Drop-In Compatibility

Upgrade your test system effortlessly. With standard SCPI support and command set compatibility, you can integrate this unit into existing automated systems without rewriting code.

Drop-In Compatibility

Model

Model Number of Ports Highest Frequency Range Connector
DNA6264 4 5 kHz ~ 26.5 GHz 3.5mm (m)
DNA6262 2 5 kHz ~ 26.5 GHz 3.5mm (m)
DNA6204 4 5 kHz ~ 20 GHz 3.5mm (m)
DNA6202 2 5 kHz ~ 20 GHz 3.5mm (m)
DNA6144 4 5 kHz ~ 14 GHz N (f)
DNA6142 2 5 kHz ~ 14 GHz N (f)
DNA6084 4 5 kHz ~ 8.5 GHz N (f)
DNA6082 2 5 kHz ~ 8.5 GHz N (f)
*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan

Accessories

Model Description
DNA-TDA10 TDA Time Domain Analysis
DNA-DTF10 DTF Fault Distance Measurement
MCAL104-NM1 Mechanical calibration kit, DC ~ 4.5 GHz, N-type (male) 50 Ω
MCAL104-NF1 Mechanical calibration kit, DC ~ 4.5 GHz, N-type (female) 50 Ω
MCAL109-NM1 Mechanical calibration kit, DC ~ 9 GHz, N-type (male) 50 Ω
MCAL109-NF1 Mechanical calibration kit, DC ~ 9 GHz, N-type (female) 50 Ω
MCAL109-NK1 Mechanical calibration kit, DC ~ 9 GHz, N-type (male and female) 50 Ω
MCAL104-SM1 Mechanical calibration kit, DC ~ 4.5 GHz, 3.5 mm (male)
MCAL104-SF1 Mechanical calibration kit, DC ~ 4.5 GHz, 3.5 mm (female head)
MCAL109-SM1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male)
MCAL109-SF1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (female)
MCAL109-SK1 Mechanical calibration kit, DC ~ 9 GHz, 3.5 mm (male and female heads)
MCAL126-35K1 Mechanical calibration kit, DC ~ 26.5 GHz, 3.5 mm (male and female heads)
MCAL226-35F5 4-in-1 OSLT Mechanical Calibration Kit, DC ~ 26.5 GHz, 3.5 mm (female)
ECAL109-NF2 Electronic calibration component, 100 kHz ~ 9 GHz, N-type (female) 50 Ω, 2-port
ECAL114-NF2 Electronic calibration component, 100 kHz ~ 14 GHz, N-type (female) 50 Ω, 2-port
ECAL126-35F2 Electronic calibration kit, 100 kHz ~ 26.5 GHz, 3.5 mm (female), 2 ports
CB-3.5M-3.5M-100-L-26G RF cable, DC ~ 26.5 GHz, 3.5 mm (male) - 3.5 mm (male), 100 cm
CB-SMAM-SMAM-100-L-18G RF cable, DC ~ 18 GHz, SMA (male) - SMA (male), 100 cm
CB-NM-NM-100-L-18G RF cable, DC ~ 18 GHz, N (male) - N (male), 100 cm
CB-NM-SMAM-100-L-18G RF cable, DC ~ 18 GHz, N (male) - SMA (male), 100 cm
CB-NM-3.5M-100-L-18G RF cable, DC ~ 18 GHz, N (male) - 3.5mm (male), 100 cm
CB-NMD3.5F-3.5F-63-L-26G Dedicated RF cable for network splitter, DC ~ 26.5 GHz, NMD 3.5mm (female) - 3.5mm (female), 63.5 cm
AD-NF-NF-L-18G Adapter, N (female) - N (female), DC ~ 18GHz
AD-NM-NM-L-18G Adapter, N (male) - N (male), DC ~ 18GHz
AD-SMAF-SMAF-L-18G Adapter, SMA (female connector) - SMA (female connector), DC ~ 18GHz
AD-SMAM-SMAM-L-18G Adapter, SMA (male) - SMA (male), DC ~ 18GHz
AD-3.5F-3.5FL-26G Adapter, 3.5mm (female) - 3.5mm (female), DC ~ 26.5GHz
AD-3.5M-3.5ML-26G Adapter, 3.5mm (male) - 3.5mm (male), DC ~ 26.5GHz
AD-NM-BNCF-L-4G Adapter, N (male) - BNC (female), DC ~ 4GHz
AD-SMAM-NM-L-18G Adapter, SMA (male) - N (male), DC ~ 18GHz
AD-SMAF-NM-L-18G Adapter, SMA (female) - N (male), DC ~ 18GHz
AD-SMAF-BNCM-L-4G Adapter, SMA (female) - BNC (male), DC ~ 4GHz
AD-3.5M-2.92FL-26G Adapter, 3.5mm (male) - 2.92mm (female), DC ~ 26.5GHz
AD-3.5F-2.92ML-26G Adapter, 3.5mm (female) - 2.92mm (male), DC ~ 26.5GHz
TW8-8 Torque wrench, 8 in-lb, 8.1 mm open end, for SMA 3.5mm connectors.
TW12-19 Torque wrench, 12 in-lb, 19.1 mm open end, for N-type connectors.
