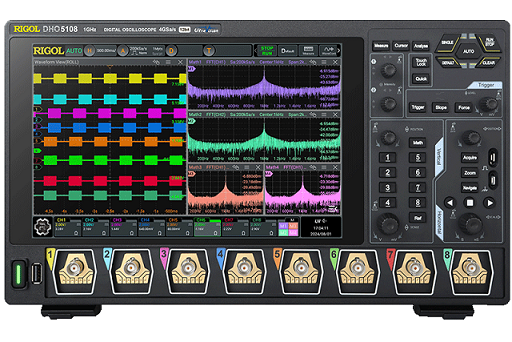

DHO5000 Series

The DHO5000 series is RIGOL's first 8-channel digital oscilloscope, supporting up to 8 analog channel inputs, with a maximum real-time bandwidth of 1 GHz and a maximum real-time sampling rate of 4 GSa/s.

Bandwidth: 500 MHz to 1 GHz
Sample Rate: 4 GSa/s
Vertical Resolution: 12-bit vertical resolution
Channels: 4 to 6 channels
Arbitary Wave Length: 500 Mpts
Datasheet
DHO5000 Series Product
DHO5000 Series thumbnail 1

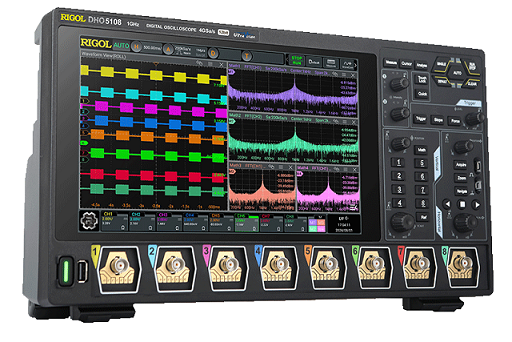

DHO5000 Series thumbnail 2

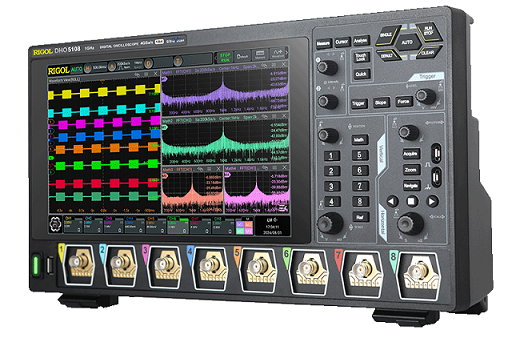

DHO5000 Series thumbnail 3

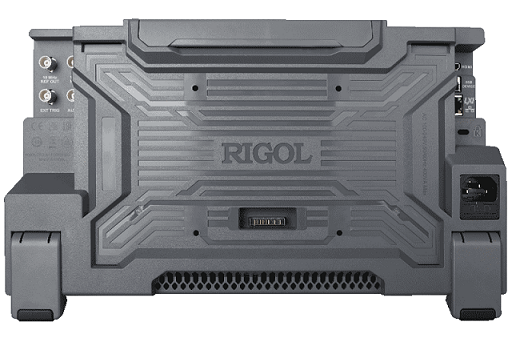

DHO5000 Series thumbnail 4

Features

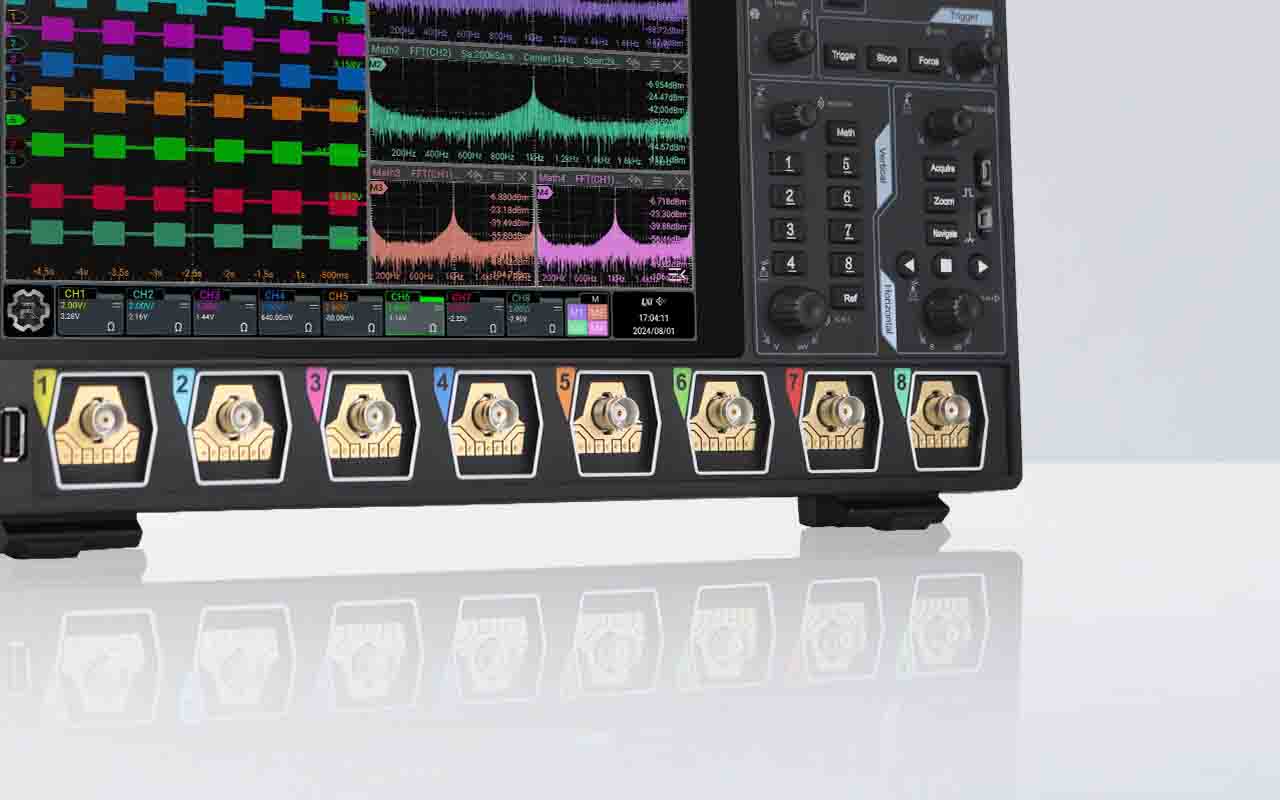

4/6/8 Analog Channel

With up to 8 analog input channels on a single device, the DHO5000 series can handle various multi-channel testing applications, such as Power Sequencing Tests, 3-Phase Power Analysis, motor testing, and third-generation semiconductor testing.

4/6/8 Analog Channel – DHO5000 Series

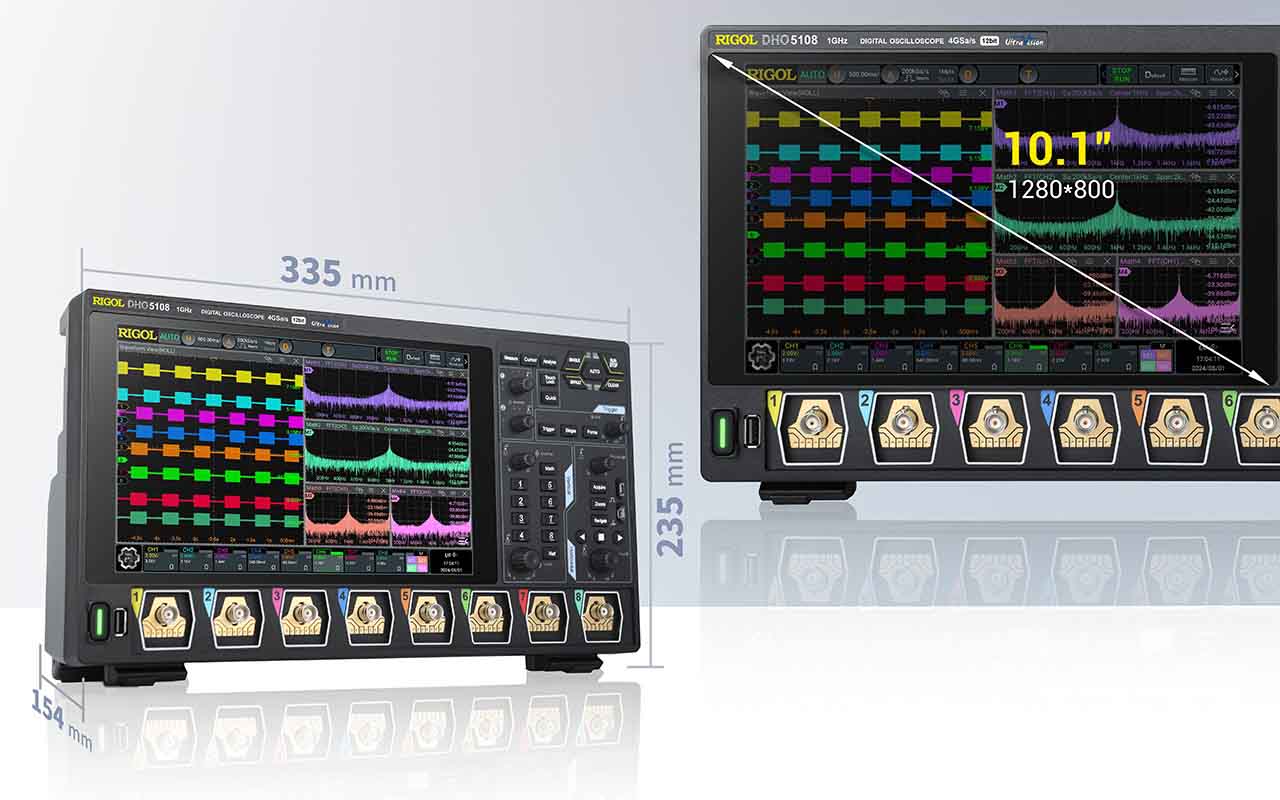

Compact Design

The DHO5000 series features a compact design with dimensions of 335 mm (W) × 235 mm (H) × 154 mm (D), minimizing desktop space usage. Its 5U rack mount height makes it an efficient solution for system integration, improving cabinet utilization and overall compactness.

Compact Design – DHO5000 Series

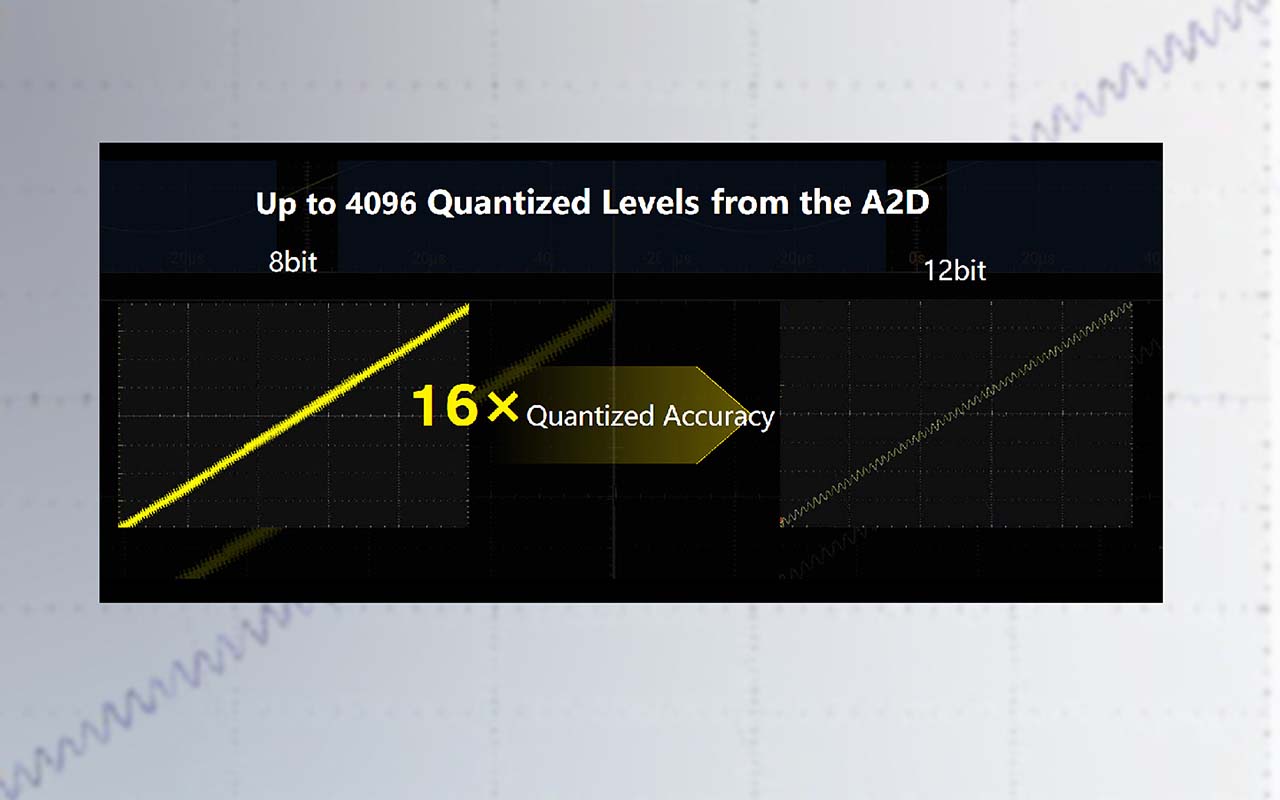

Outstanding Testing Accuracy

With a 12-bit ADC and up to 4096 vertical levels, 16 times greater than an 8-bit oscilloscope, the DHO5000 significantly enhances measurement accuracy, capturing even the smallest waveform details. Whether testing power supply ripple or analyzing critical applications like medical devices, it helps you efficiently assess signal characteristics, ensuring every measurement is precise, enabling technological innovation.

Outstanding Testing Accuracy – DHO5000 Series

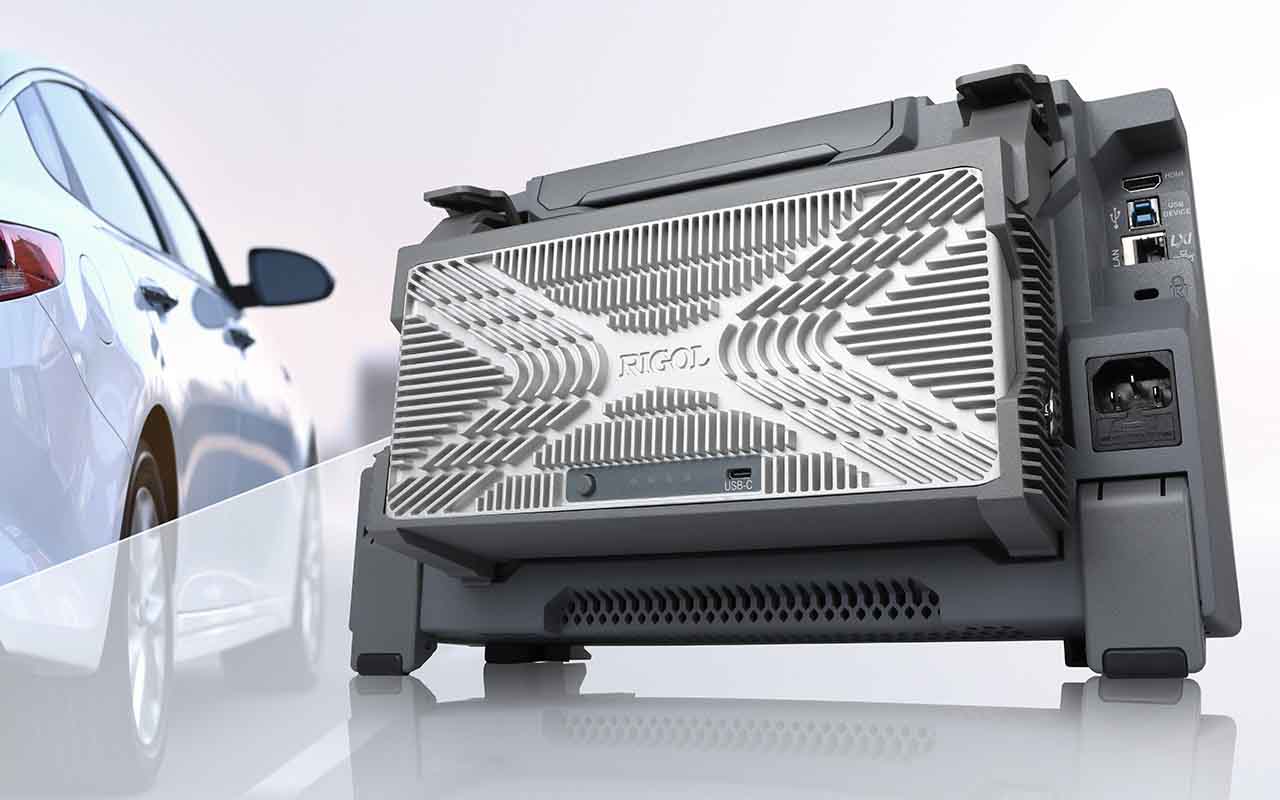

Battery Pack Support

The DHO5000 supports battery pack power, allowing for measurements in locations without AC power. This is ideal for certain outdoor or vehicle-mounted testing. The battery pack also offers clean energy in high-interference environments, minimizing environmental impact on test results.

Battery Pack Support – DHO5000 Series

Model

Model Bandwidth Analog Channels Real-Time Sample Rate Max Memory Depth Waveform Capture Rate Price
DHO5108 1GHz 8 4GSa/s 500Mpts 1,000,000 wfrms/s Rp256.354.874
DHO5106 1GHz 6 4GSa/s 500Mpts 1,000,000 wfrms/s Rp230.215.824
DHO5058 500MHz 8 4GSa/s 500Mpts 1,000,000 wfrms/s Rp205.710.127
DHO5056 500MHz 6 4GSa/s 500Mpts 1,000,000 wfrms/s Rp179.571.077
DHO5088 500MHz 8 4GSa/s 500Mpts 1,000,000 wfrms/s Rp224.184.642
DHO5066 500MHz 6 4GSa/s 500Mpts 1,000,000 wfrms/s Rp195.951.892
DHO5104 1GHz 4 4GSa/s 500Mpts 1,000,000 wfrms/s Rp141.147.142
DHO5054 500MHz 4 4GSa/s 500Mpts 1,000,000 wfrms/s Rp112.914.392
MHO5104 1GHz 4 4GSa/s 500Mpts 1,000,000 wfrms/s Rp112.914.392
MHO5054 500MHz 4 4GSa/s 500Mpts 1,000,000 wfrms/s Rp84.681.642
*Prices may change without prior notice.

Accessories

Model Description Price
PLA3204 Quad-channel Logic Analyzer Probe Rp2.988.000

User Manual

Name Version Release Date Download
MHO5000 / DHO5000 User Guide V2.0 2025-02-24 Download

Datasheet

Name Version Release Date Download
MHO5000 / DHO5000 DatasheetsMHO5000 / DHO5000 Datasheets V2.0 2025-09-24 Download

Programming Manual

Name Version Release Date Download
MHO5000 / DHO5000 Programming Guide V2.0 2025-02-13 Download

Quick Guide

Name Version Release Date Download
MHO5000 / DHO5000 Quick GuideMHO5000 / DHO5000 Quick Guide V2.0 2024-11-01 Download

Software

Name Version Release Date Download
MHO5000 / DHO5000 Performance Verification Guide V2.0 2024-12-23 Download
